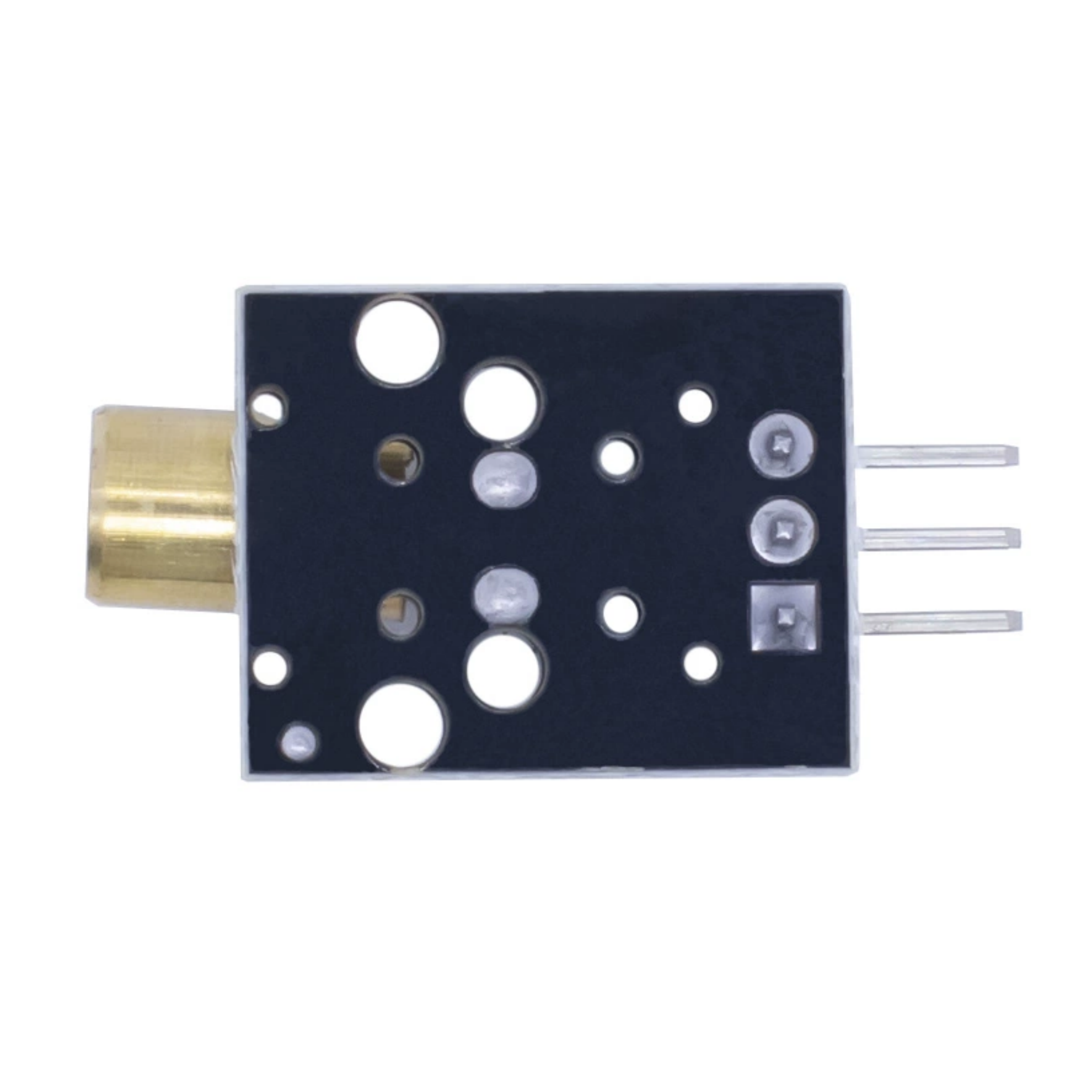

KY-008 Laser Transmitter Module
$0.891 pcs
The KY-008 laser head sensor module is suitable for 5V-powered, point laser heads with 6mm laser modules, and is compatible with arduino
| Dimensions | 18.5 × 15 mm |
|---|---|
| Brand |
easyelecmodule |
1201 in stock

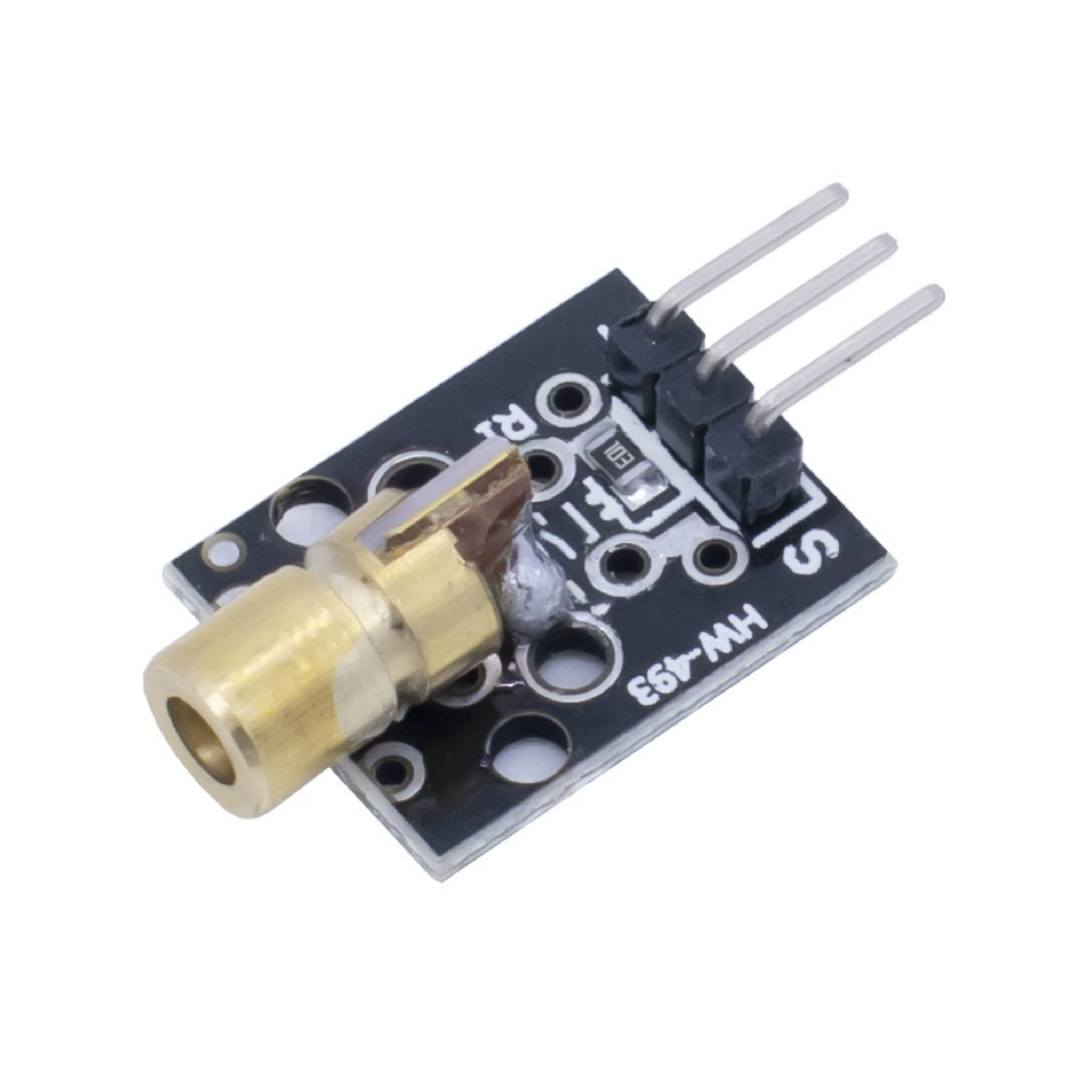

Introduction
The KY-008 Laser Transmitter Module emits a red laser beam with a wavelength of 650 nm and an output power of 5 mW. It operates at a voltage of 5V and consumes less than 40 mA of current. The module features a 650 nm red laser diode, a resistor, and three male header pins. It is commonly used in laser pointer applications and is compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32.
How to Use the KY-008 Laser Module?
This is one of the simpler modules and needs very little interaction. Unless you need to check the laser’s power state, you can put the sensor in a separate circuit. To get the ‘tripwire’ function working, you just need to connect the photo sensing module to your device.
The KY-008 laser module only needs to be connected to the power pins, unless you need to turn the laser on and off when it’s not in use. The VCC (+) pin connects to the 5V pin on the Raspberry Pi (the red one), and (-) GND connects to the ground pin (the black one). Alternatively, you can connect the laser module to any 5V power source and use the photosensor module to turn sensing on and off.
KY-008 Specification
| PARAMETER | VALUE |
|---|---|
| Operating Voltage | 5V |
| Output Power | 5mW |
| Wavelength | 650nm |
| Operating Current | < 40mA |
| Working Temperature | -10°C ~ 40°C [14°F to 104°F] |

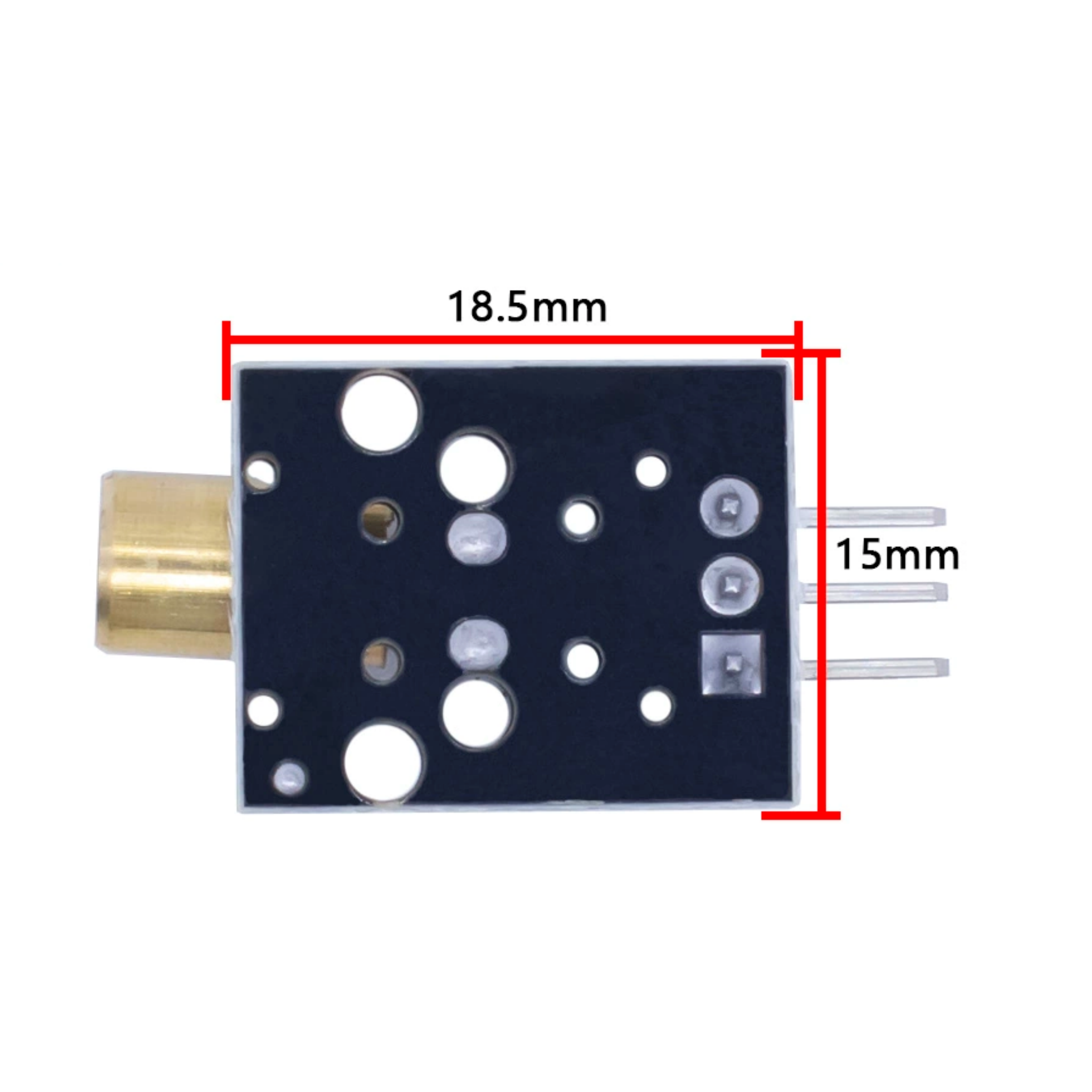

| Board Dimensions | 18.5mm×15mm [0.728in×0.591in] |

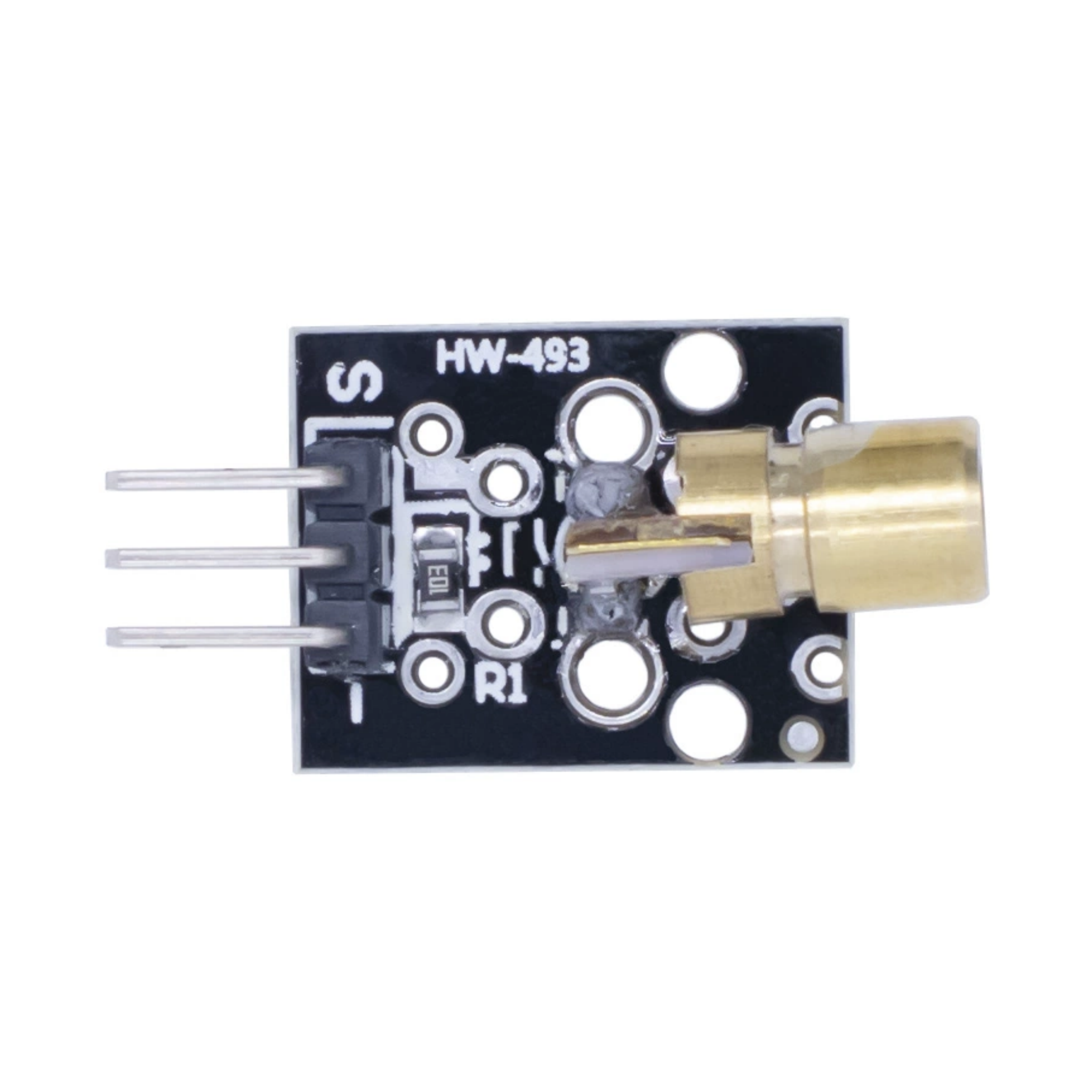

KY-008 Pinout Diagram

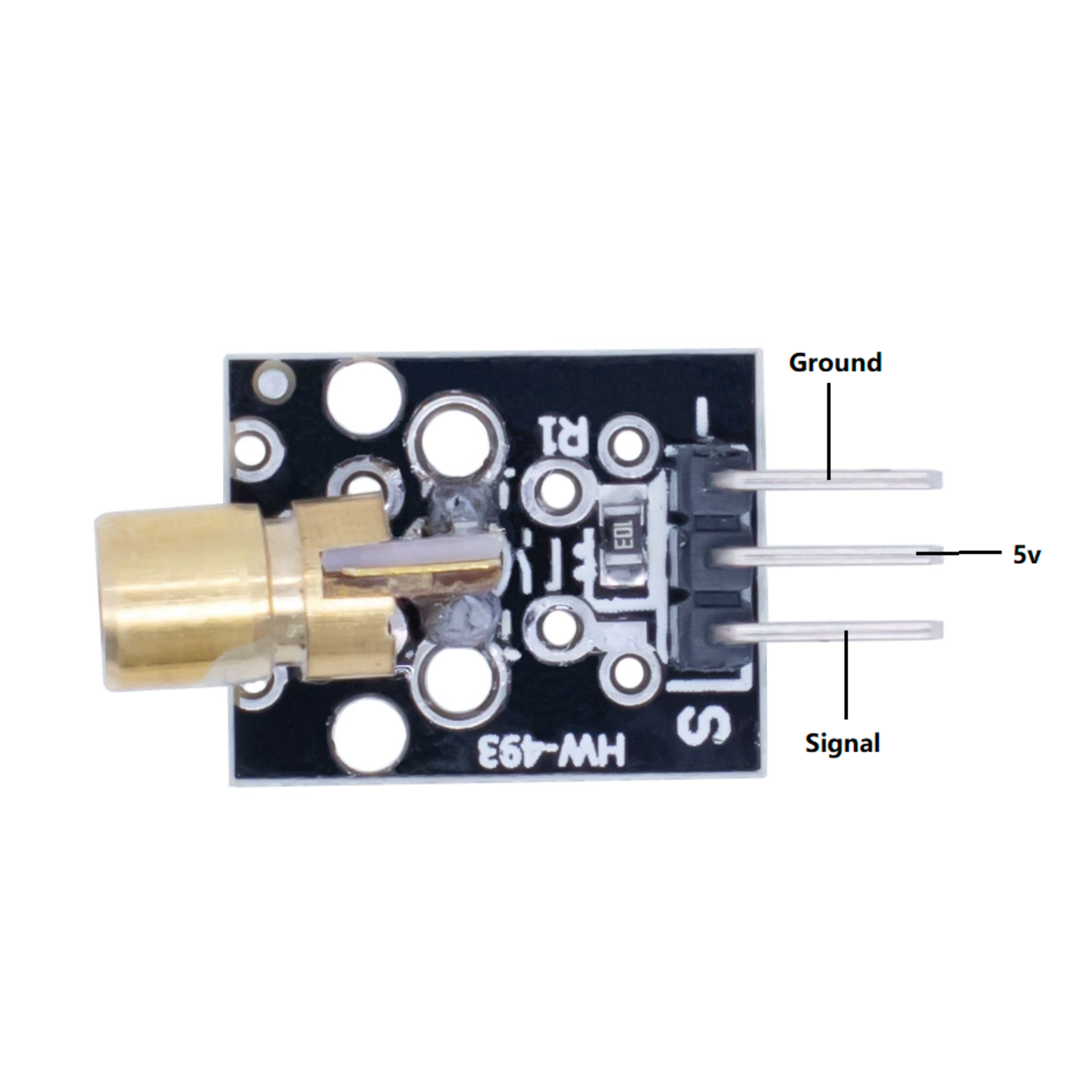

- Pin-1 (S):This is the signal pin of the module which controls whether the laser is turned off/on.
- Pin-2 (5V):This is a power supply pin that provides supply based on the module.
- Pin-3 (GND):This is the ground pin of the module.
KY-008 Datasheet
If you want to learn more KY-008 laser module details，you can refer to this datasheet.
Applications
- Security Tripwire：Pair with receiver module; blocking the laser triggers alarms, ideal for garages and studios.
- Precision Alignment：Aids 3D printer nozzle calibration and wall art positioning with clear laser dots.
- Object Detection：Works with sensors for assembly line counting or robot obstacle avoidance (ms-level response).
- Educational Demo：Shows light straight propagation or builds simple optical communication (like Morse code).
