ToF400C TOF Sensor
$6.891pcs
The ToF400C sensor works by calculating the time it takes for a laser beam to travel to and back from a target, which is then used to determine the distance. It is widely used in distance measurement and obstacle avoidance.
| Dimensions | 20 × 12 mm |
|---|---|
| Brand |
easyelecmodule |
3611 in stock
Introduction

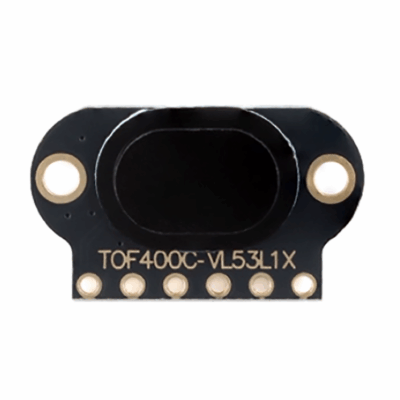

The TOF400C-VL53L1X is a Time-of-Flight (ToF) sensor. This model can measure distances up to 4 meters with good performance and has a very small blind spot for close-range detection.
After calibration, it can detect objects as close as 1mm. It offers high measurement accuracy, with a typical error of only about 4mm. This makes it ideal for applications like distance measurement and obstacle avoidance.
Electrical Parameters
| Item | Specification |
|---|---|
| Communication Mode | IIC Mode |
| Operating Current | 400mA (Max) |
| Operating Voltage | 3.0~5V (DC) |
| Storage Temperature | -20~80°C |
| Operating Temperature | -20~70°C |
| Measurement Range | 0~4CM |
| Measurement Distance | 4M (Max) |
| FOV (Field of View) | 27° |
| Infrared Emission Wavelength | 940nm |
Module Introduction
TOF400C is equipped with an exclusive housing that effectively prevents light interference and protects the sensor chip, delivering remarkable results.

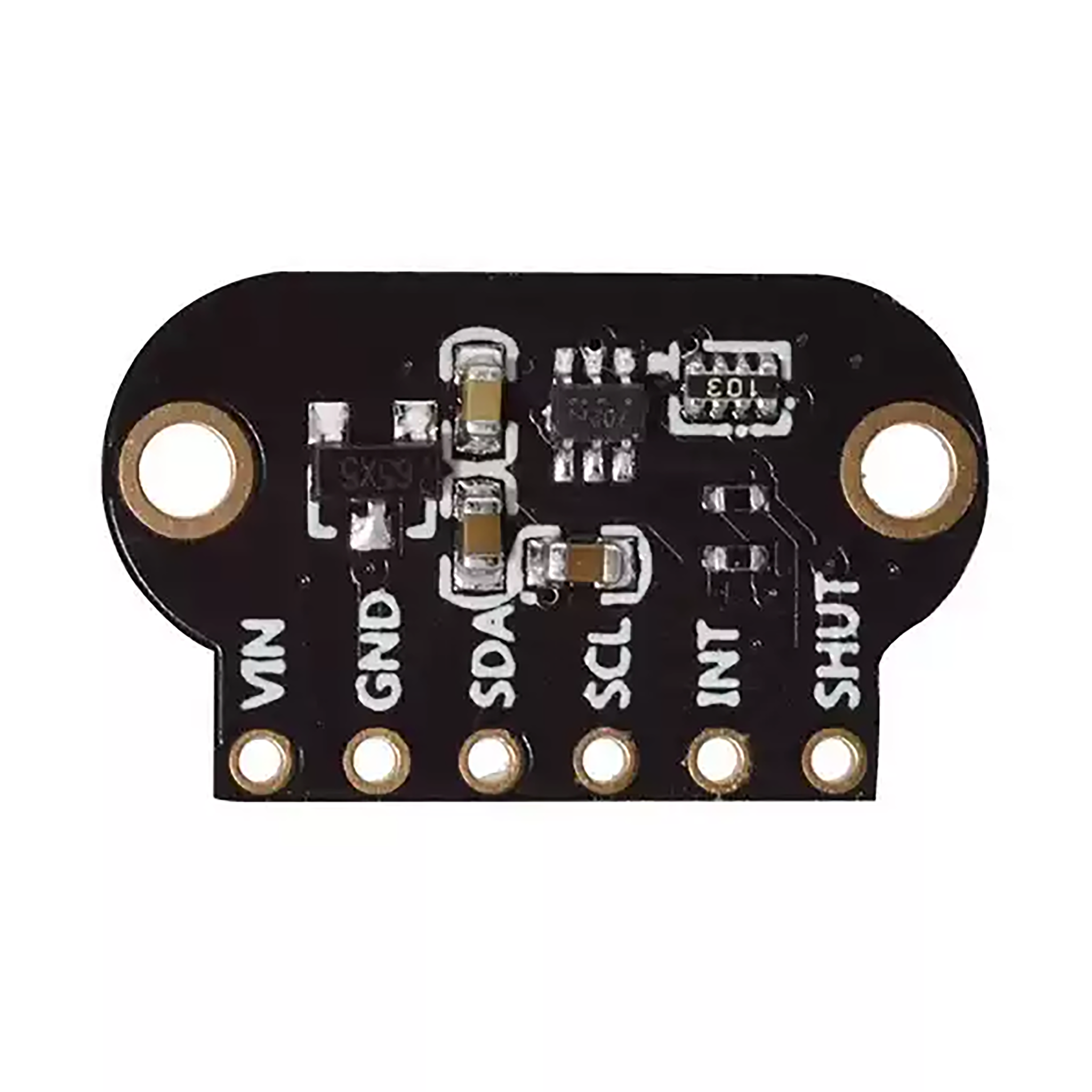

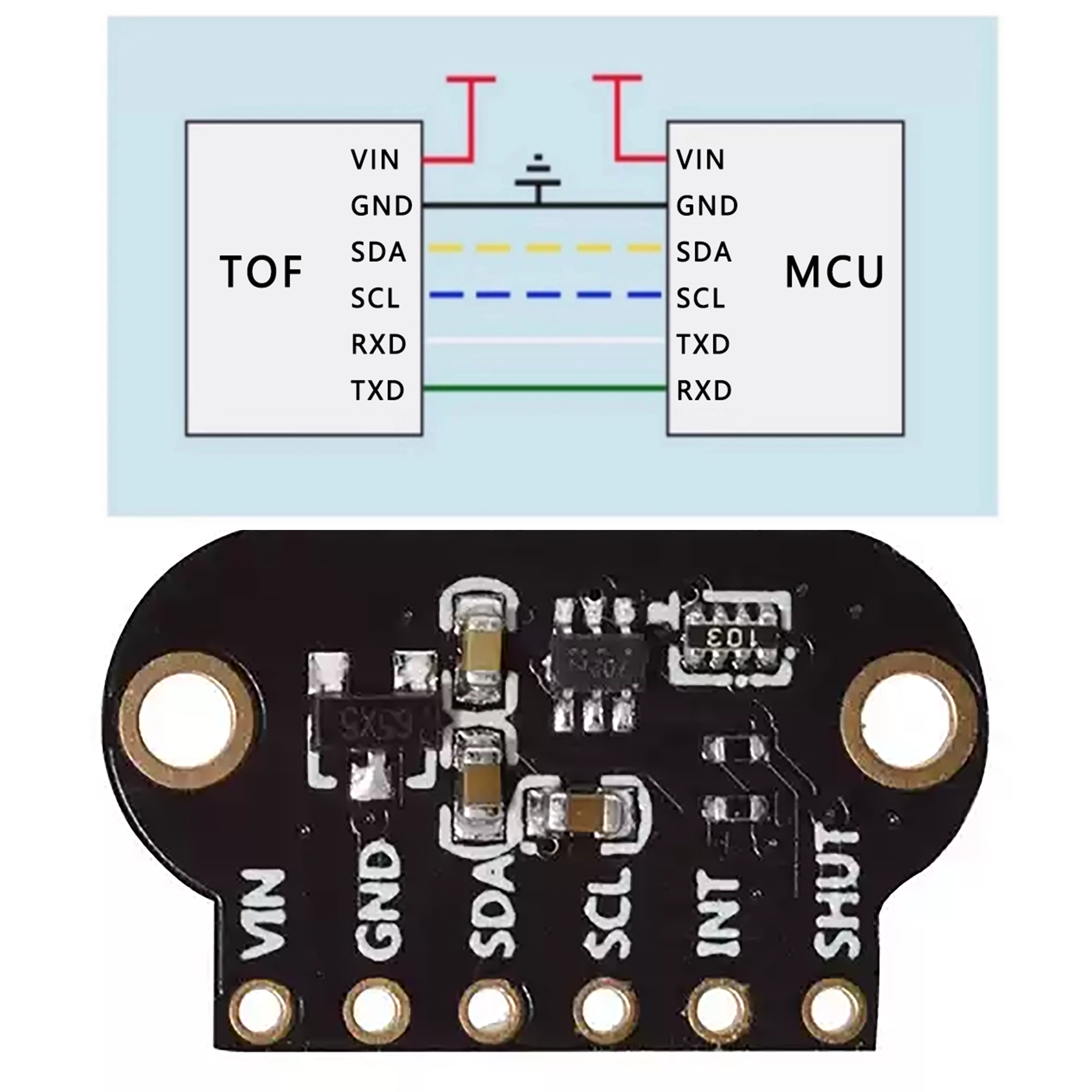

Pin connection method
There are two communication methods: I2C and UART, and either one can be used.
Module dimension
Demo video
