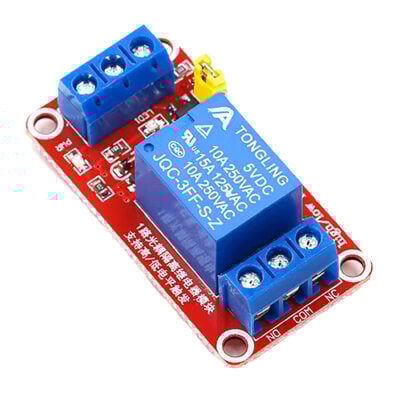

1 channel Relay Module
$0.991pcs
Relay is automatic switch that uses a small current to control a large current.
| Dimensions | 50 × 26 mm |
|---|---|
| Brand |
easyelecmodule |
1231 in stock
Description

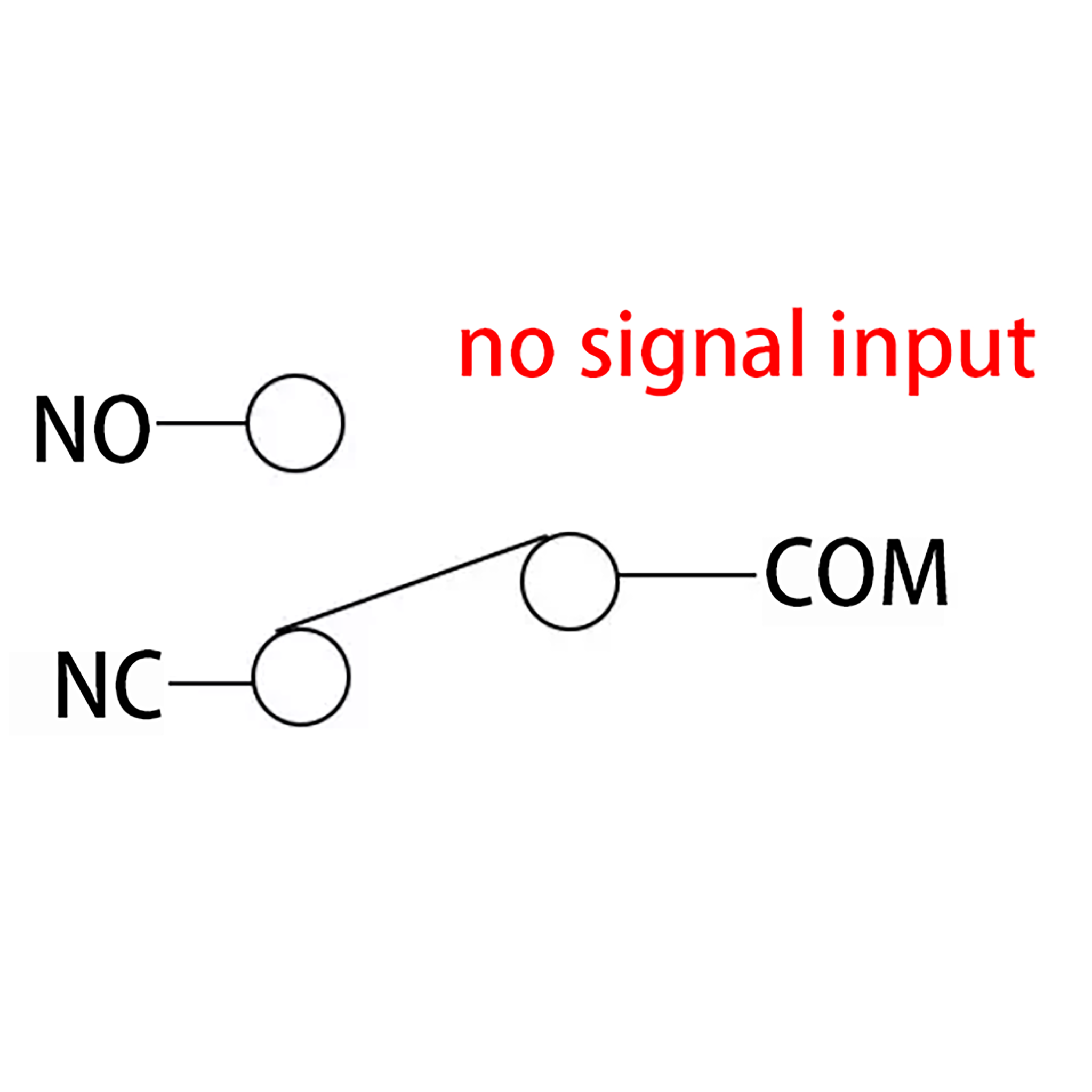

SRD-05-VDC-SL-C is a relay module specially designed for dual-circuit control. It adopts electromagnetic drive technology, supports 5V DC control voltage, and can independently control two circuits of loads at the same time, realizing safe isolation control of high-voltage electricity by low-voltage electricity. The module has two built-in sets of single-pole double-throw contacts, which are compatible with normally open/normally closed switching modes.
Feature
- Input Electrical Isolation: An optocoupler is used to separate the input from the control side, thereby protecting the safety of the input device.
- High load capacity: Each channel can support a maximum load of 250V AC/10A or 30V DC/10A, suitable for controlling high-power equipment.
- Fast response and long service life: It meets the requirements of high-frequency switching and is suitable for long-term stable operation.
- Low-power design: It can be directly and seamlessly connected to controllers such as single-chip microcomputers.
Parameter
| SPECIFICATION | DETAILS |
|---|---|
| Module | SRD-05VDC-SL-C |
| Working Voltage | 5V |
| Maximum Load | 250V/10A |
| Trigger Current | 5mA |
| Dimension | 50mm × 41mm |
