2 channel Relay Module
$1.791 PCS
The 2-channel relay module places two relays on the same PCB, allowing them to share the input power supply. This reduces wiring and minimizes the overall size.

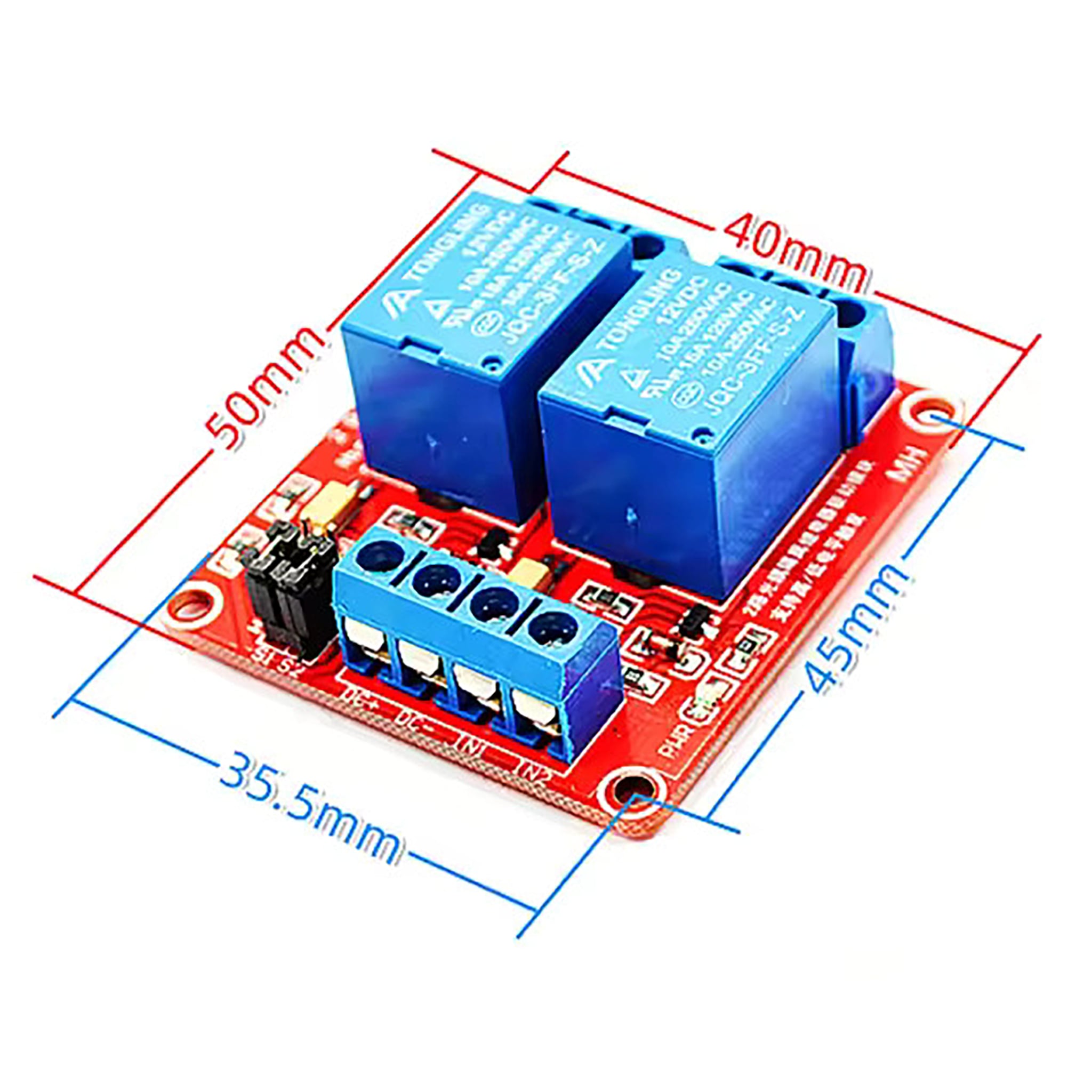

| Dimensions | 40 × 50 mm |
|---|---|
| Brand |
easyelecmodule |
1232 in stock
Description
The 2‑channel relay module uses two relays, addressing common beginner issues such as relay failure or the need for an additional relay. Its affordable price also makes it accessible for learners. Each relay is independently controlled via a dedicated optocoupler, requiring only 5 mA of current for reliable operation.
Feature
- Dual-channel independent control: It can manage two loads simultaneously and supports independent programming control, meeting the needs of multi-device collaborative work.
- High load capacity: Each channel can support a maximum load of 250V AC/10A or 30V DC/10A, suitable for controlling high-power equipment.
- Fast response and long service life: It meets the requirements of high-frequency switching and is suitable for long-term stable operation.
- Low-power design: It can be directly and seamlessly connected to controllers such as single-chip microcomputers.
Parameter
| SPECIFICATION | DETAILS |
|---|---|
| Module | 2 channel Relay Module |
| Working Voltage | 5V |
| Maximum Load | 250V/10A |
| Trigger Current | 5mA |
| Dimension | 50mm × 41mm |
