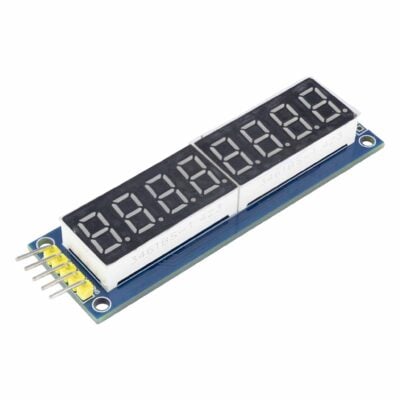

74HC595 8-Digit-Segment Display Module
$1.991 PCS
The 8-digit seven-segment display module connects two 4-digit displays together, enabling the display of more numbers and fully utilizing the capabilities of the driver chip.

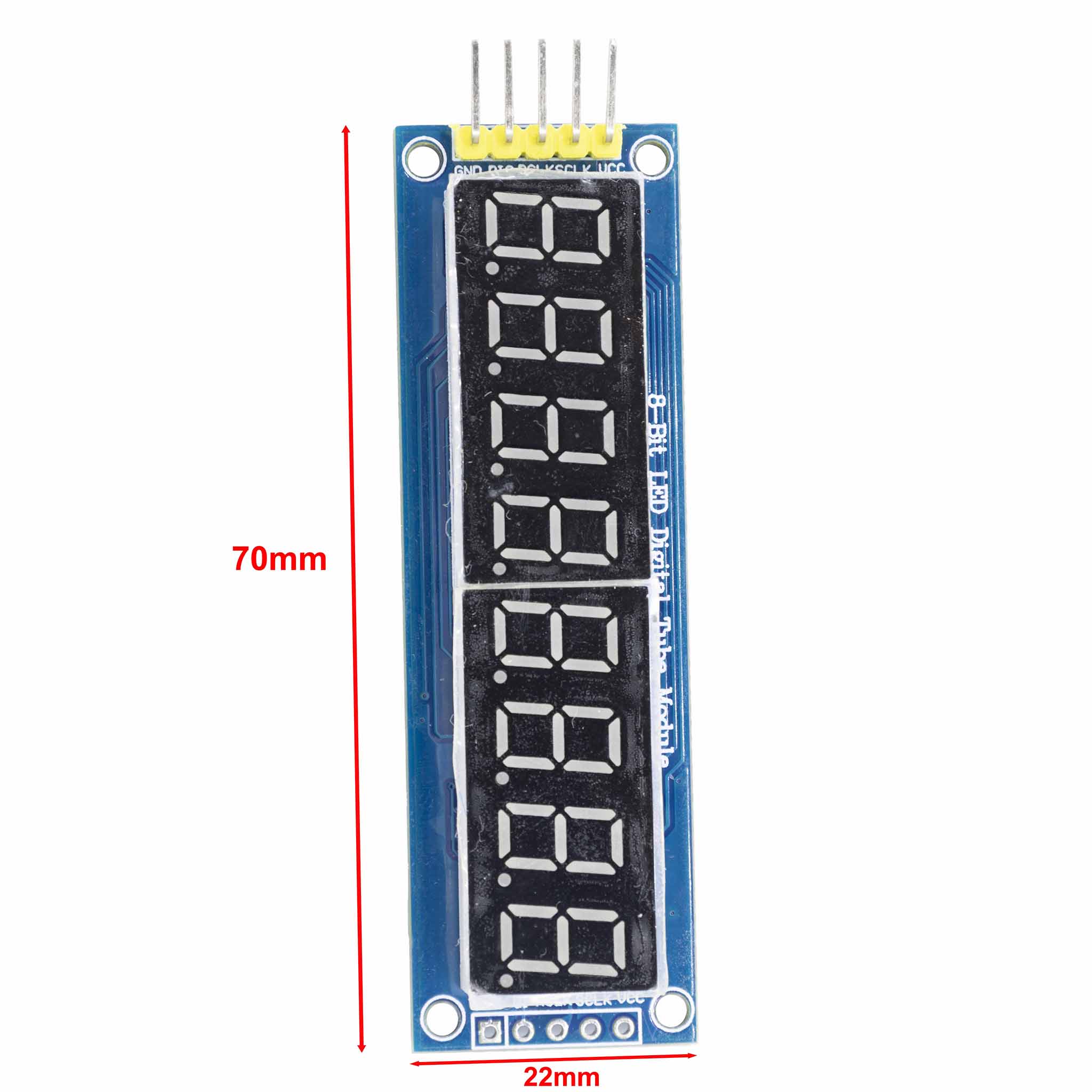

| Dimensions | 80 × 25 mm |
|---|---|
| Brand |
easyelecmodule |
5221 in stock
Product Introduction
The 8-digit seven-segment display module uses two 74HC595 chips for control, offering strong driving capability, simple control logic, and mature technology, making it highly suitable for driving such displays. One chip controls the content of the digits, while the other selects which digits are illuminated. This configuration precisely manages eight digits without wasting any chip performance.
Product Parameters
| SEGMENT | VALUE |
|---|---|
| driver IC | 74HC595 |
| power supply voltage | 3.3V~5V |
| pins quantity | 5 (Including power supply) |
| segment | 8 |
| current | 80mA |
