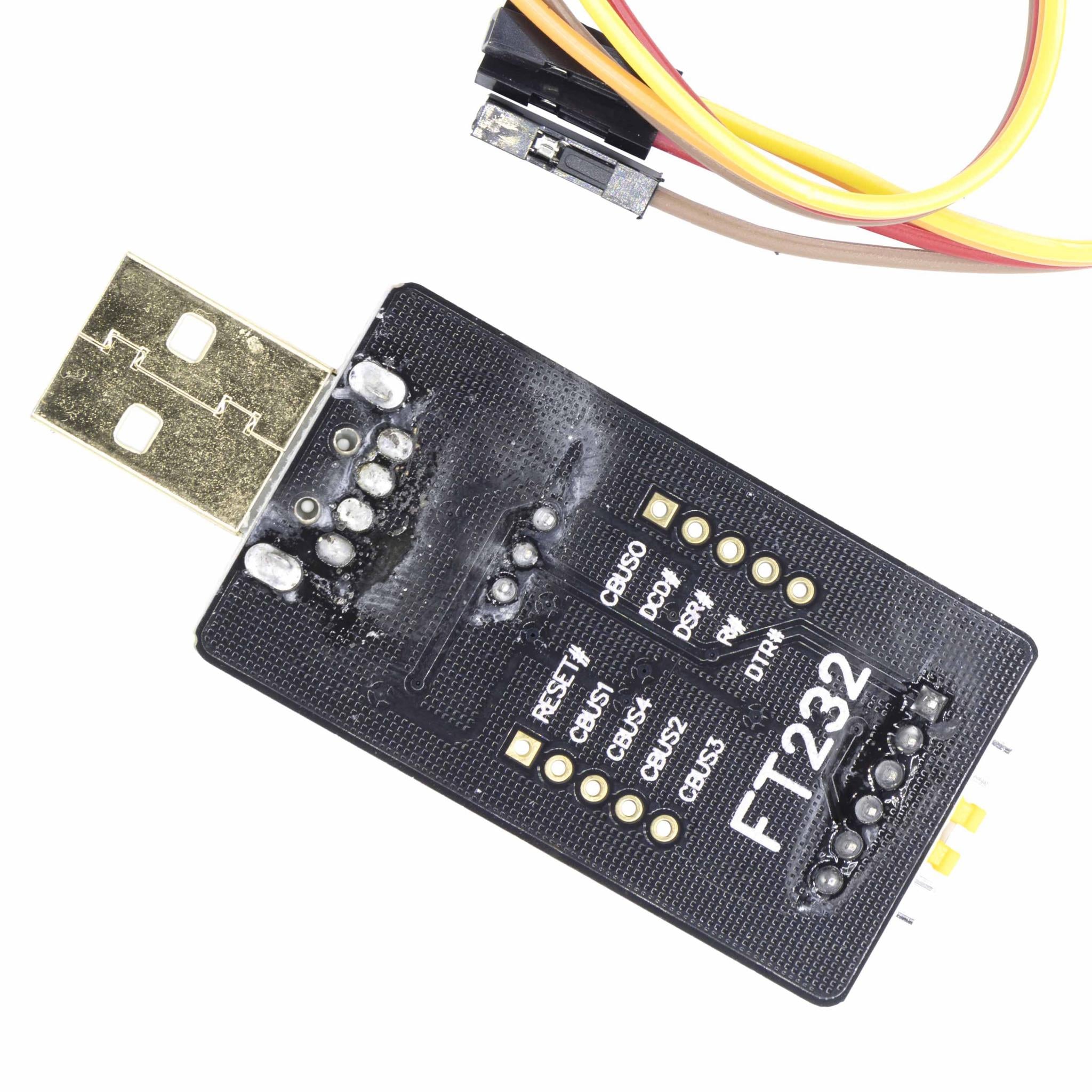

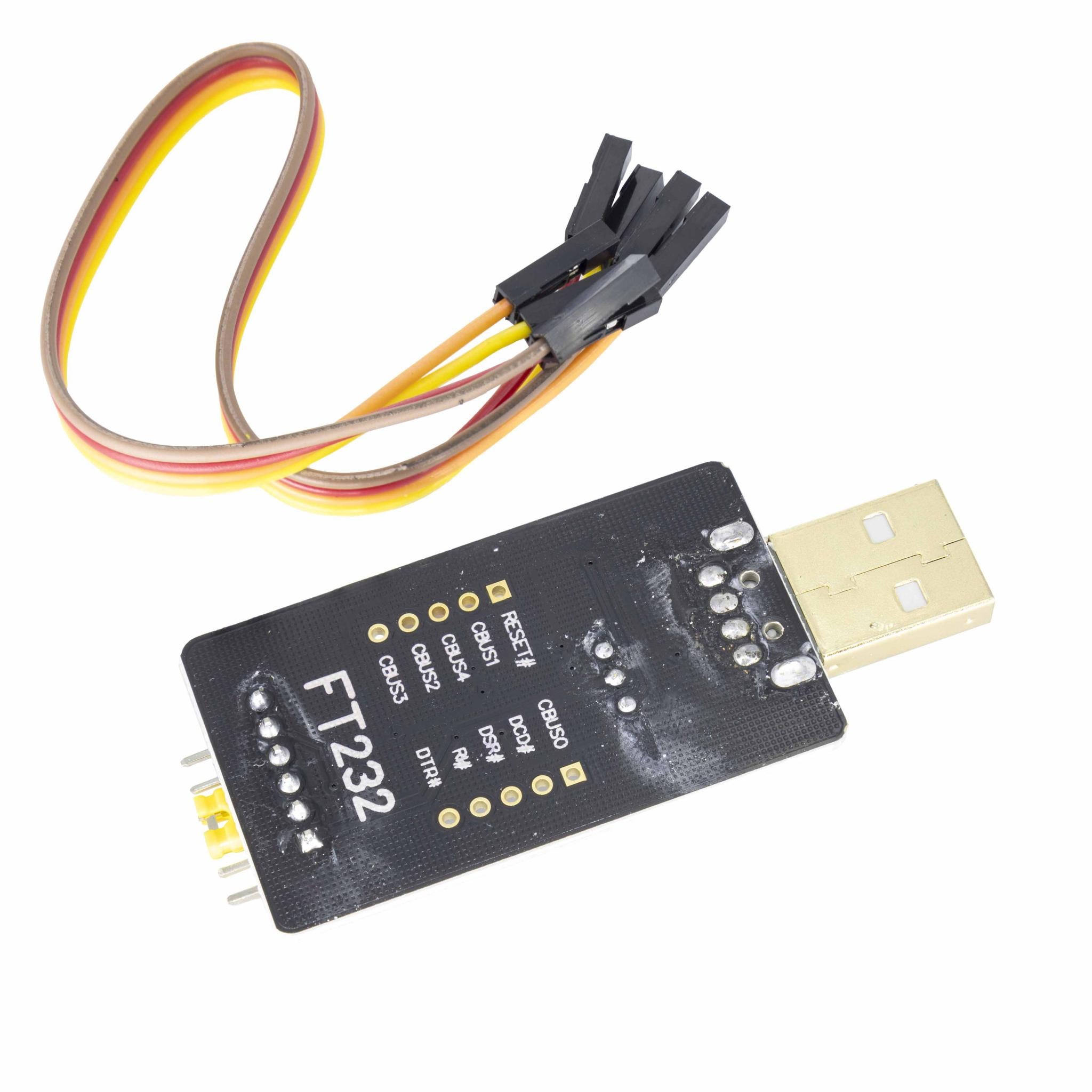

FT232 Module USB to TTL Local Gold Plus Small Board with Switch
$6.901 pcs
FT232 module USB-to-serial port, USB-to-TTL upgrade download, flashing board cable FT232BL/RL gold board.

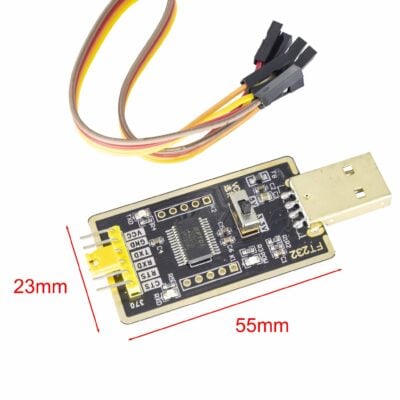

| Dimensions | 55 × 23 mm |
|---|---|
| Brand |
easyelecmodule |
541 in stock
Introduction
Parameters
- Main Control Chip: FT232RL
- Supported Operating Systems: Windows 10/8/7/XP/Vista, Mac OS X, Linux, Android, etc.
- 5V external power supply
- 3.3V external power supply
- External power supply (voltage range: 3.3–5V)Supported Power Supply Modes:
- Interface Pins: The board uses a pin header to lead out VCC, GND, TXD, RXD, RTS, CTS, LED_TXD (LED indicator), RXDLED, POWER (LED indicator), with more flexible pin arrangements.
Wiring Instructions (4-Wire System):
- GND: Connect to GND.
- TXD: Connect to MCU.TX (Signal flow: MCU.TX → FT232x → PC.RX).
- RXD: Connect to MCU.RX (Signal flow: MCU.RX ← FT232x ← PC.TX).
- 3V3/5V: Outputs 3.3V or 5V (powered by USB; adjust the jumper cap to 3.3V or 5V as needed).
- CTS: Connect to MCU.CTS (Signal flow: MCU.CTS → FT232x → PC.CTS).
- RTS: Connect to MCU.RTS (Signal flow: MCU.RTS ← FT232x ← PC.RTS).
