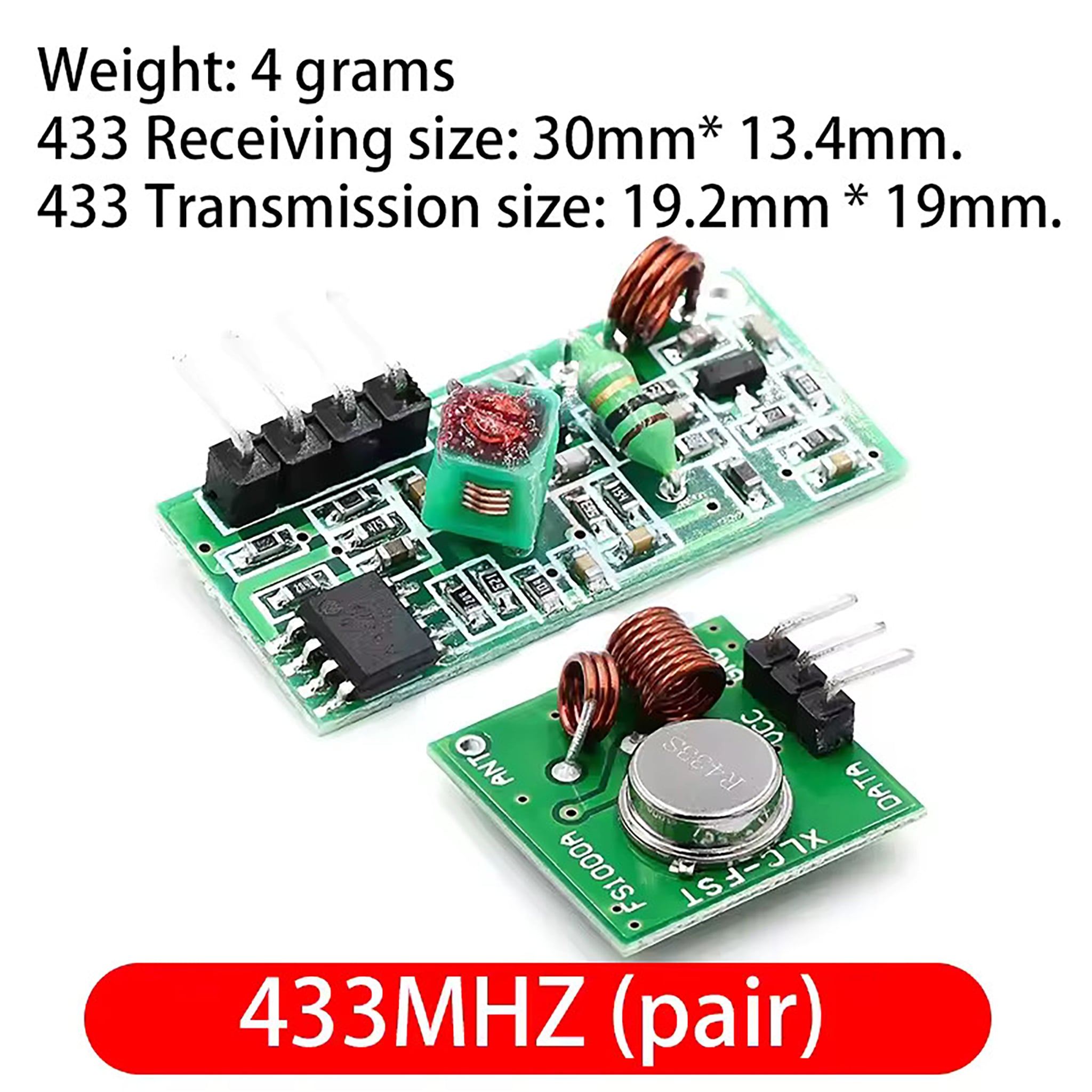

433MHz transceiver module
$1.891 PCS
433MHz wireless transceiver module, low power consumption, TTL communication.
| Dimensions | 19 × 30 mm |
|---|---|
| Brand |
easyelecmodule |
8546 in stock
Product Introduction
433MHz Transmitter Module
Uses amplitude modulation for signal transmission, with a simple design that makes reception easier at the receiver end. It employs a SAW resonator for oscillation, providing stable frequency output with minimal temperature drift. Operating voltage ranges from 3V to 12V, offering wide compatibility though the output power is limited to only about 10mW, which helps in easily passing FCC certification.
433MHz Receiver Module
Utilizes an LC oscillator circuit and includes amplification and TTL-level conversion circuitry. It can be directly connected to a decoder chip or MCU for data reading. Multiple receiver modules can simultaneously receive signals from a single transmitter. The design is compact with a small footprint.
Product Parameters
| TRANSMITTER | VALUE | RECEIVER | VALUE |
|---|---|---|---|
| Input voltage | 3.5–12V | Input voltage | 3.3–5V |
| Transmission frequency | 433MHz | Receiving frequency | 433.92MHz |
| Transmission power | 10mW | Receiving sensitivity | −105dB |
| Work current | 20–28mA | Static current | 4mA |
If you want to know how to use it, please go to Discussion and Usage of 433MHz Modules
