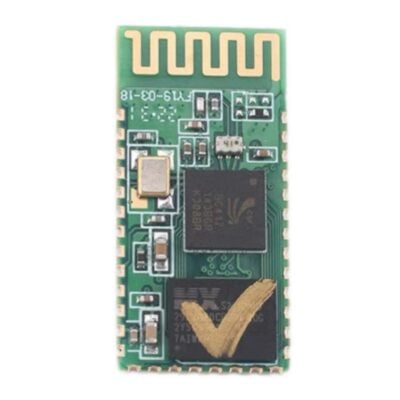

HC-05 Bluetooth Module Standard Model

$5.211pcs

HC-05 Bluetooth module standard model supports master and slave modes with fast pairing and firm links. Works with various microcontrollers delivering smooth signals and low latency.

Dimensions

27.0 × 13.0 mm

Brand

easyelecmodule

2608 in stock

Product Introduction

HC-05 module is an easy to use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup. Serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).

HC-05 Specification

Hardware Feature

1. Typical -80dBm sensitivity

2. Up to +4dBm RF transmit power

3. Low Power 1.8V Operation ,1.8 to 3.6V I/O

4. PIO control

5. UART interface with programmable baud rate

6. With integrated antenna

7. With edge connector

Software Feature

1. Default Baud rate: 38400, Data bits:8, Stop bit:1, Parity:No parity, Data control: has.
Supported baud rate: 9600,19200,38400,57600,115200,230400,460800.

2. Given a rising pulse in PIO0, device will be disconnected.

3. Status instruction port PIO1: low-disconnected, high-connected;

4. PIO10 and PIO11 can be connected to red and blue led separately. When master and slave are paired, red and blue led blinks 1time/2s in interval, while disconnected only blue led blinks 2times/s.

5. Auto-connect to the last device on power as default.

6. Permit pairing device to connect as default.

7. Auto-pairing PINCODE:”0000” as default

8. Auto-reconnect in 30 min when disconnected as a result of beyond the range of connection.

HC-05 Pin Definition

Pin	I/O Direction	Description
TX	Output	UART output port, 3.3V TTL level
RX	Input, weak pull-up	UART input port, 3.3V TTL level
CTS	Floating	Serial port flow control function is not supported for the time being
RTS	Floating	Serial port flow control function is not supported for the time being
PCM_CLK	Floating	NC
PCM_OUT	Floating	NC
PCM_SYNC	Floating	NC
PCM_IN	Floating	NC
AIO0	Floating	NC
AIO1	Floating	NC
RST	Input, pull-up	Module reset pin, requires a low level of not less than 10ms for reset
VCC	Input	Power pin, requires 3.3V DC power supply with a supply current of not less than 100mA
GND	Floating	Module common ground
NC	Floating	NC
USB D-	Floating	USB function is not supported for the time being
CSB	Floating	NC
MOSI	Floating	NC
MISO	Floating	NC
CLK	Floating	NC
USB D+	Floating	NC
GND	Floating or Grounding	Module common ground
CON	Input	On-board LED control pin, connect to ground to turn off the LED
PIO0	Floating	NC
PIO1	Floating	NC
PIO2	Floating	NC
PIO3	Floating	NC
PIO4	Floating	NC
PIO5	Floating	NC
PIO6	Floating	NC
PIO7	Floating	NC
PIO8	Output	Module status indicator light output pin, Note 1
PIO9	Output	Module status indicator light output pin, Note 2
PIO10	Floating	NC
PIO11	Input, weak pull-down	AT command setting pin, master clear memory, Note 3

Note 1 : Module status indicator output pin, high-level output, connect a resistor in series when connecting an LED.

Before connection: the master has not recorded the slave, the LED lights for 200ms per second. When the master records the slave address, the LED lights for 500ms per second, and the slave LED lights for 200ms per second.

After connection : the LED flashes twice and pauses once. Pull this pin high first and then power on the module to enter AT command mode with a fixed baud rate of 38400, the LED lights for 1 second every 2 seconds.

Note 2 : Module connection indicator output pin, high-level output, connect a resistor in series when connecting an LED.

Before connection, the pin outputs a constant low level (LED off).

After connection, the pin outputs a constant high level (LED always on).

Note 3 : Input pin with internal pull-down. Pull this pin to high level, the module enters AT command mode, which is used by the master to touch the recorded slave address lightly.

Relative Information

HC-05 Datasheet
