HC-06 Bluetooth Module with Welded Pin Headers
$9.401pcs
HC-06 Bluetooth module with welded pin headers removes the need for complex wiring! Compatible with various microcontrollers it provides stable signals and efficient transfer.

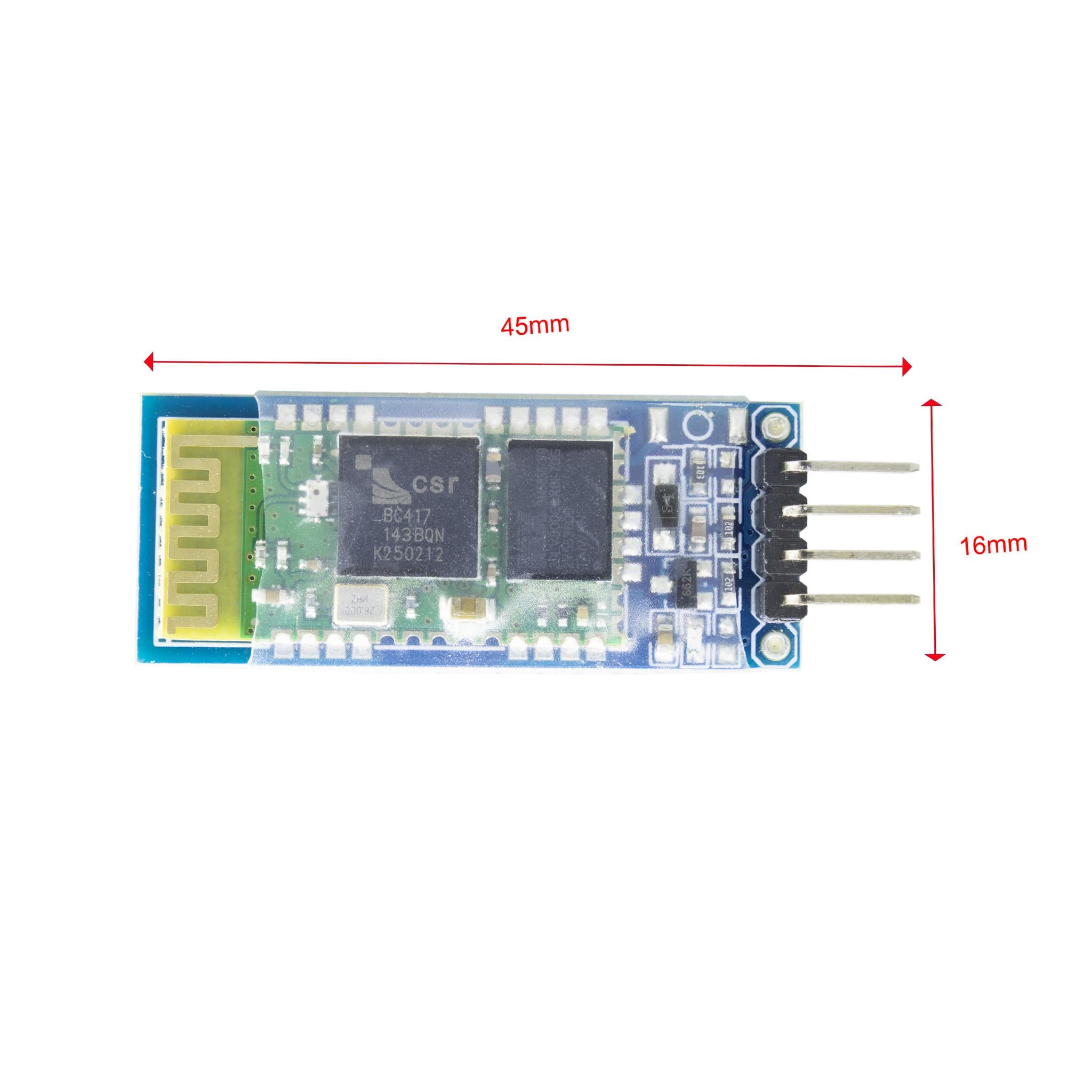

| Dimensions | 45.0 × 16.0 mm |
|---|---|
| Brand |
easyelecmodule |
2986 in stock

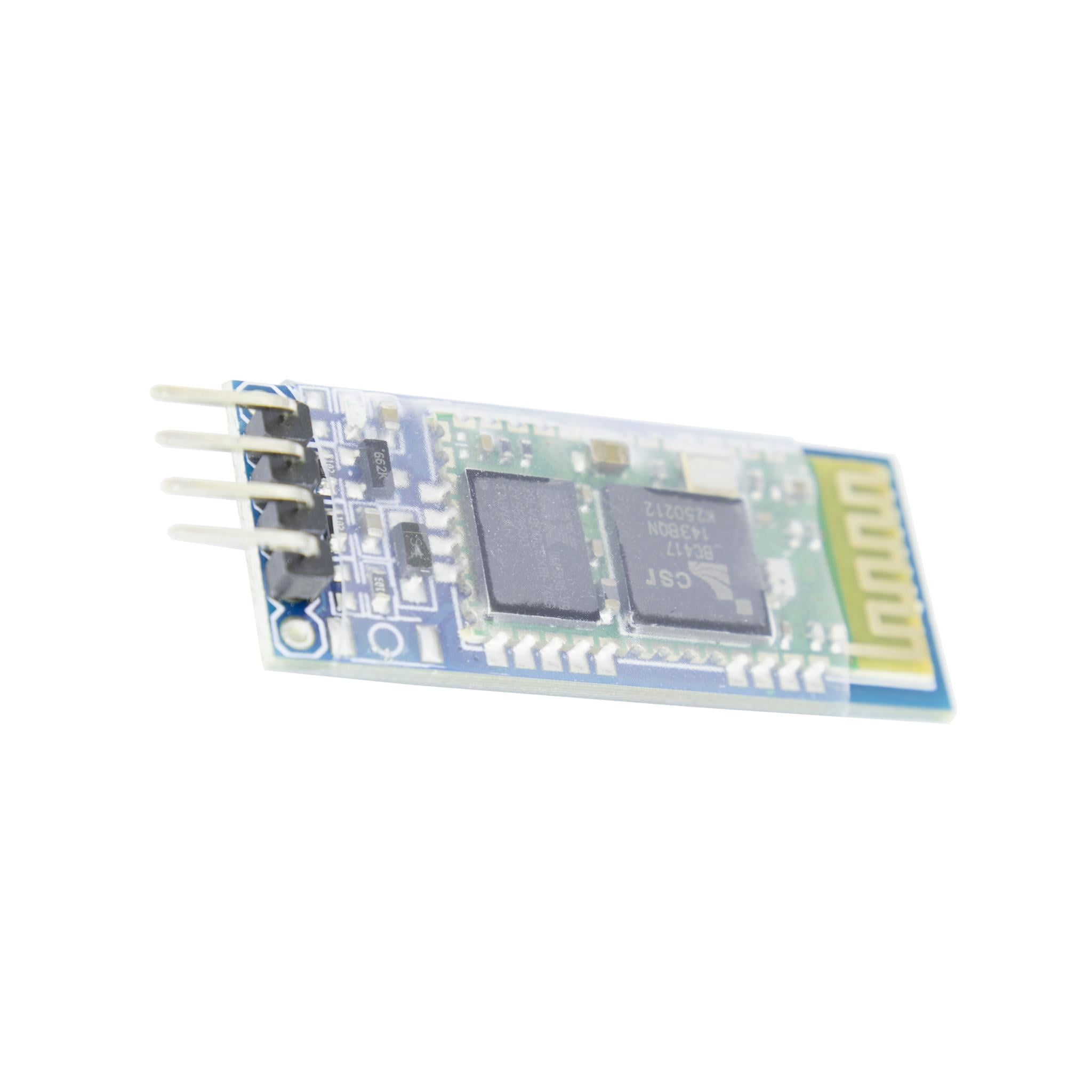

Product Introduction
The Bluetooth module is a PCBA board that integrates Bluetooth functionality. It is used for short-range wireless communication. According to its function, it is divided into Bluetooth data module and Bluetooth voice module. It is the basic circuit assembly of an integrated Bluetooth function chip and is used for wireless network communication. It can be roughly classified into data transmission module, remote control module, etc.
HC-06 Feature

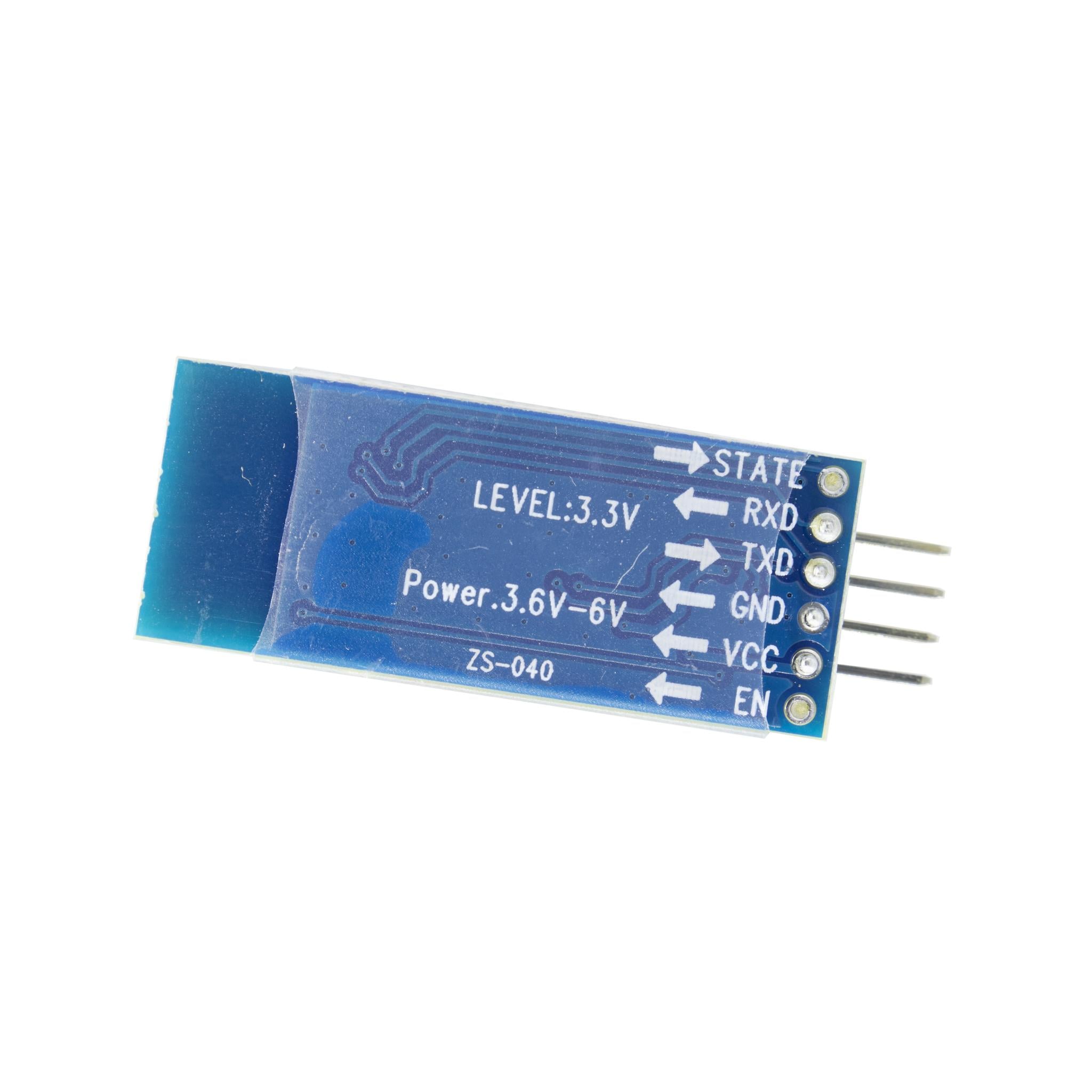

①Product Introduction : The inclusion of a base plate makes the module more versatile. The four pins thus generated are directly connected to the serial port of the microcontroller. Once the pairing is successful, they can be used as a group of serial ports for data transmission.
② Voltage description: The input voltage is 3.2V to 6V. The power supply has built-in reverse connection protection, but it will not work if connected in reverse.
③ Status indication: Before connection, the LED lights up for 100ms every 200ms. After connection, the LED remains on constantly.
④ Interface description : The interface voltage range is 3.2 to 6V. It can be connected to various microcontrollers (ARDUION, 51, AVR, PIC, ARM, MSP430, etc.). 5V microcontrollers can be directly connected. Connect the microcontroller serial port directly, without going through the MAX232 chip.
⑤ Communication distance: In an open environment, the effective range is 10 meters. It is possible to exceed 10 meters, but anything beyond 10 meters cannot guarantee the communication quality.
⑥ Communication method: Once the pairing is successful, it can be used as a full-duplex serial port without requiring any knowledge of Bluetooth protocols. However, it only supports a communication format with 8 data bits, 1 stop bit, and no parity check.
⑦ Default values: Slave mode, baud rate 9600, Bluetooth name HC-06, pairing password 1234, LED status light is on.
HC-06 Parameter
| Model | HC-06 |
| Airspeed | 2mbps |
| Working frequency range | 2.4G |
| Antenna interface | Built-in PCB antenna |
| Communication interface | UART 3.3V TTL level |
| Communication current | 40mA |
| Working voltage | 3.6V~6.0V |
| Receive sensitivity | -85dbm@2mbps |
| RSSI support | nonsupport |
| Operating humidity | 10%~90% |
| Communication level | 3.3V |
| Storage temperature | -40℃~80℃ |
| Transmitting power | 4dbm |
| Operating temperature | -25℃~75℃ |
| Reference range | 10m |
