3-series 12V 18650 lithium battery protection board
$0.991pcs
This 3-series 12V 18650 lithium battery protection board provides 11.1V-12.6V protection to prevent overcharging and over-discharging of the battery.
| Dimensions | 49.8 × 15.4 mm |
|---|---|
| Brand |
easyelecmodule |
3316 in stock

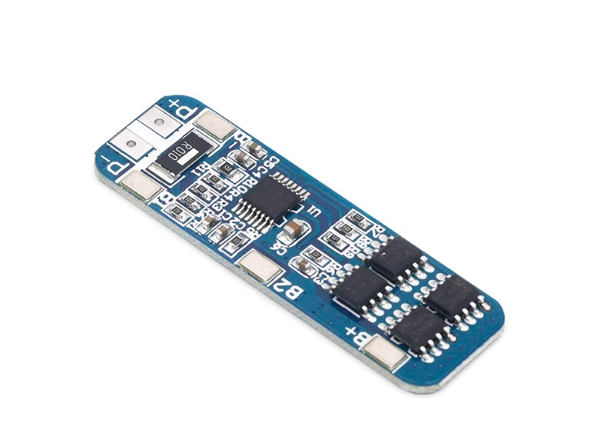

Product Introduction of Lithium Battery Protection Board
The main IC of this lithium battery protection board adopts original “Seiko” imported components. It features protection functions such as overcharge, over-discharge, overcurrent and short circuit protection, and is suitable for 3.7V lithium battery cells of various capacities and shapes. It uses Japanese Seiko protection ICs, high-quality MOSFETs from VISHAY, AOS, IR, etc., and FR-4 low temperature coefficient boards. With sophisticated design and comprehensive testing, it has a compact size, making it suitable for many occasions requiring high integration and low cost. It can meet various performance requirements and ensure absolute safety and reliability of the battery pack.
Electrical Performance of Lithium Battery Protection Board
| Parameter | Specification |
|---|---|
| Model | HX-3S-01 |
| Overcharge Voltage Range | 4.25-4.35v±0.05v |
| Dimensions | 50*16*1.0mm |
| Over-discharge Voltage Range | 2.3-3.0v±0.05v |
| Maximum Operating Current | 5-8A |
| Operating Temperature | -40°C to +50°C |
| Maximum Instantaneous Current | 9-10A |
| Storage Conditions | -40°C to +80°C |
| Quiescent Current | Less than 6uA |
| Effective Service Life | More than 30000 hours |
| Internal Resistance | Less than 60mΩ |
| Short Circuit Protection | Protected, delayed self-recovery |
| Parameter | Test Condition | Symbol | Minimum | Typical | Maximum | Unit |
|---|---|---|---|---|---|---|
| Normal Self – Consumption | 10.0 – 30.0 | ICC | 20.2 | 22.3 | 24.5 | uA |
| Overcharge Protection Voltage | 4.35 – 4.10 | VOCP | 4.15 | 4.23 | 4.27 | V |
| Overcharge Recovery Voltage | 4.20 – 4.00 | VOCR | 4.10 | 4.15 | 4.20 | V |
| Overdischarge Protection Voltage | 2.80 – 2.3 | VODP | 2.35 | 2.50 | 2.75 | V |
| Overdischarge Recovery Voltage | 3.30 – 2.80 | VODR | 2.80 | 3.2 | 3.3 | V |
| On – Resistance | 60.0 – 10.0 | RDS (ON) | 10.0 | 33.2 | 39.3 | mΩ |
| Overcurrent Protection Current | 10.0 – 6.0 | COIP(VOUT) | 6.50 | 8.00 | 9.50 | A |
Introduction to the Serial Port of Lithium Battery Protection Board
It needs to be activated with a 12.6V voltage for the first use; otherwise, there will be no output from P+ and P-.
Schematic Diagram of Lithium Battery Protection Board

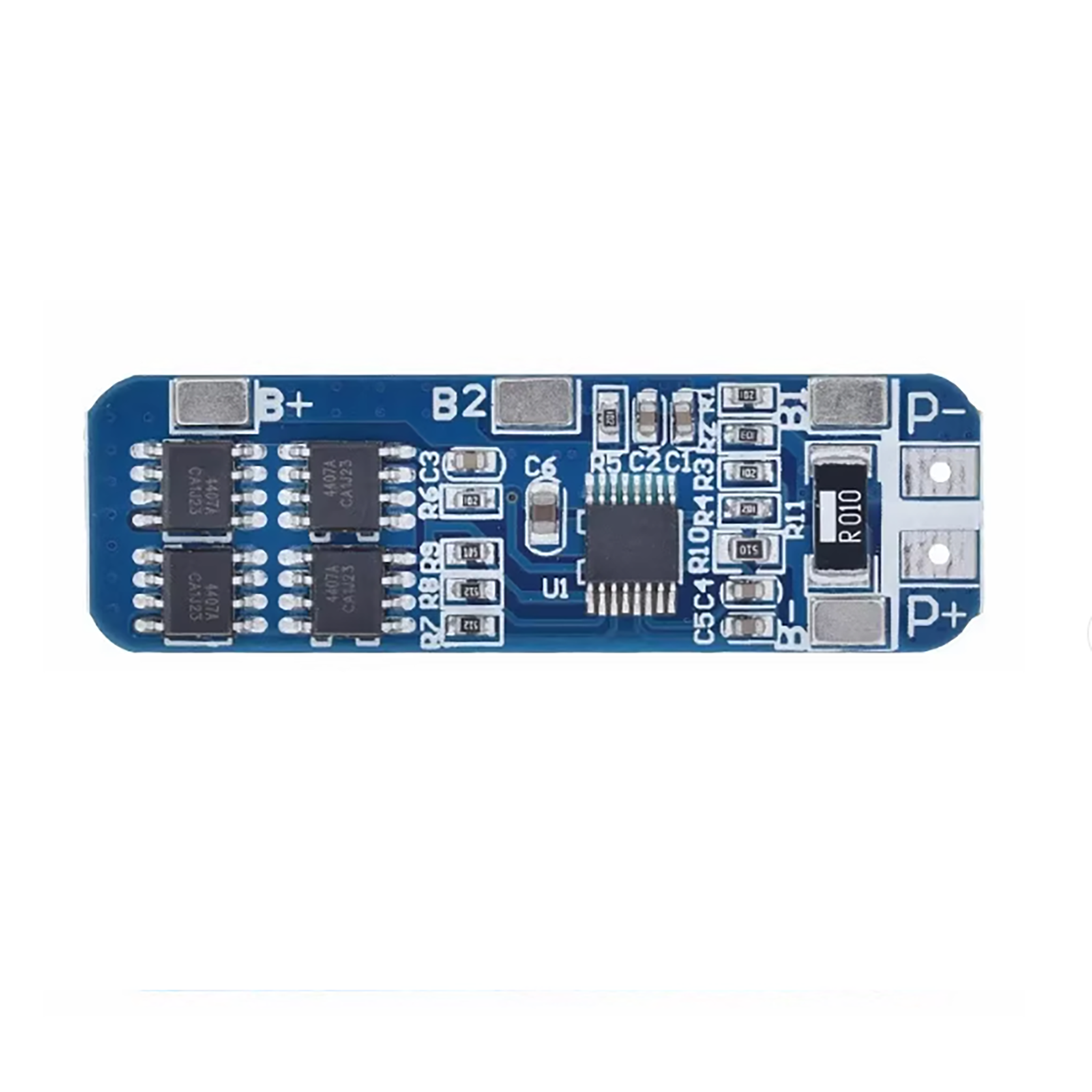

lithium battery protection board PCB diagram
How to use lithium battery protection board?
lithium battery protection board Pinout
| Port Number | Symbol | Description |
|---|---|---|
| 1 | P+ | Charging input positive / Protection board output positive |
| 2 | P- | Charging input negative / Protection board output negative |
| 3 | B- | Battery 3 negative |
| 4 | 3.7V | Battery 3 positive / Battery 2 negative |
| 5 | 7.4V | Battery 2 positive / Battery 1 negative |
| 6 | 11.1V(B+) | Battery 1 positive |
3-series combination display:
2-parallel 3-series combination display:

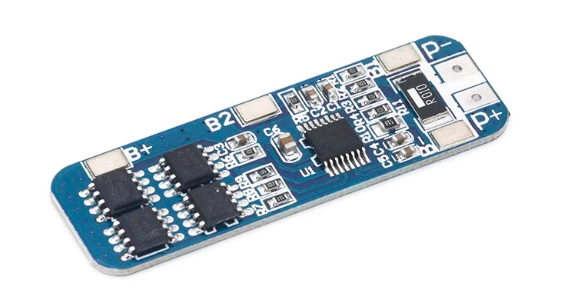

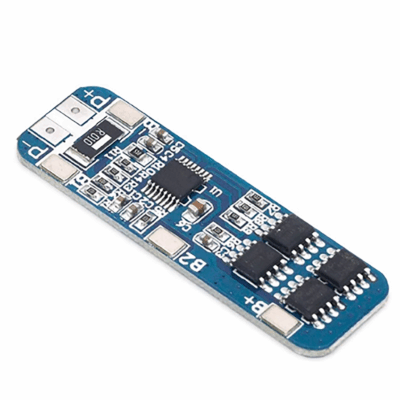

Display of Lithium Battery Protection Board Products
