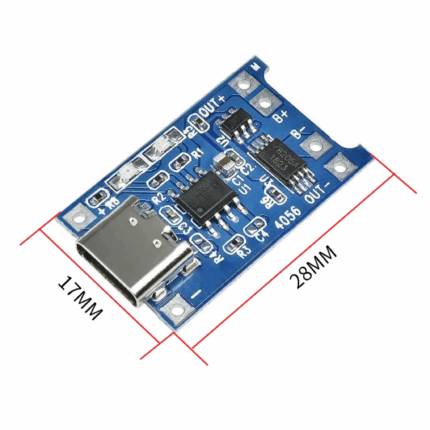

TP4056 TYPE – C Interface – No Protection
$0.891 pcs
Charging source module TP4056 charging board TYPE-C interface without protection 1A lithium battery charging module.
| Dimensions | 22 × 17 mm |
|---|---|
| Brand |
easyelecmodule |
654 in stock
Introduction
| Parameter | Value |
|---|---|
| Voltage | 5V |
| Charge Cut-off Voltage | 4.2V±1% |
| Charging Current | 1000mA |
| Battery Over-Discharge Protection Voltage | 2.5V |
| Battery Over-Current Protection Current | 3A |
The difference between with protection and without protection
Notes
The charging current will automatically drop to 100mA after reaching the full-charge voltage. When the battery voltage drops below 4.05V (roughly corresponding to 80%-90% of the battery capacity), the charging cycle restarts. When the battery voltage is lower than 2.9V, it will charge the battery with a 100mA current.
