TP4056 1A Lithium Battery Protection MINI Interface
$0.991 pcs

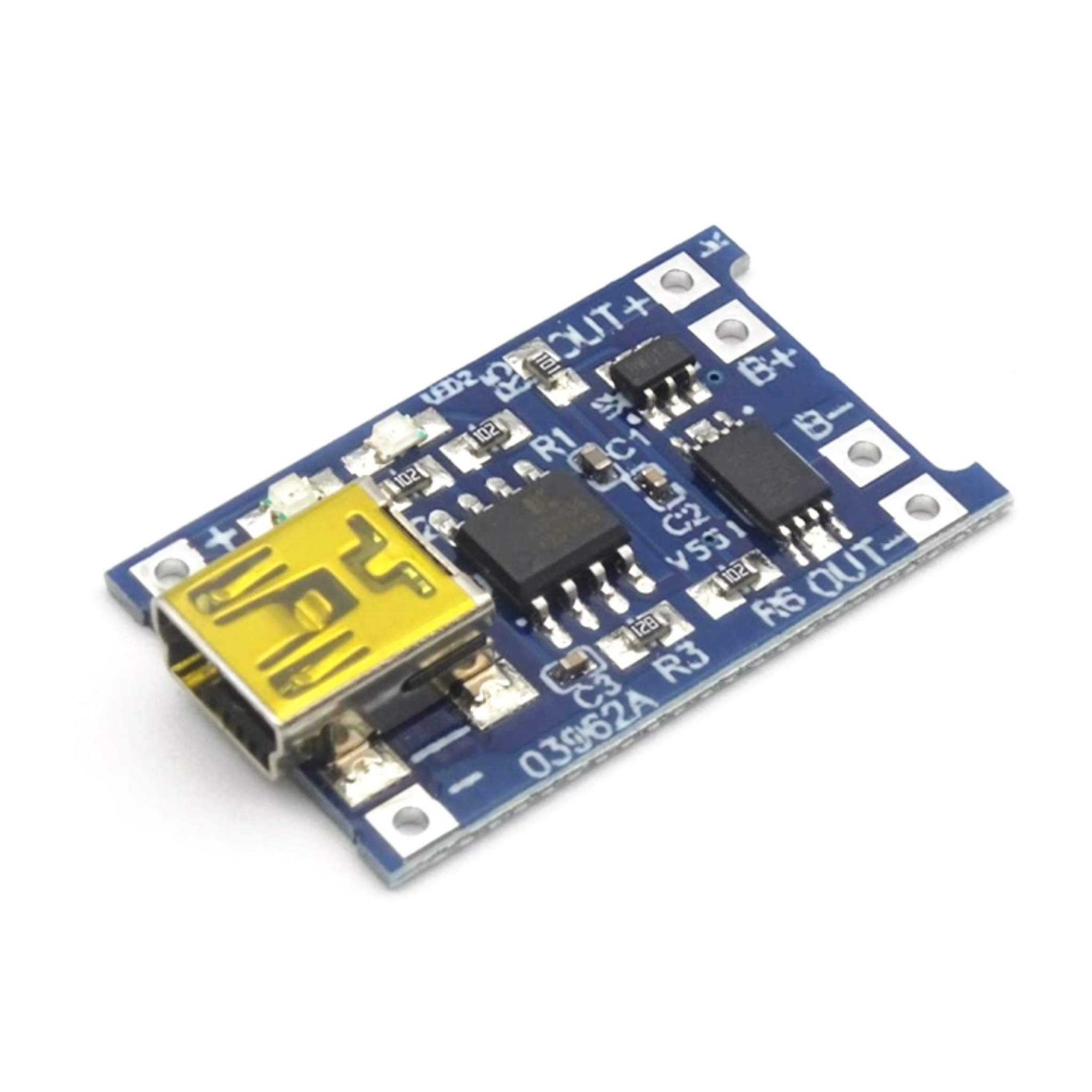

TP40561A lithium battery charging and protection integrated board, charging belt protection two-in-one module MINI.
| Dimensions | 28 × 17 mm |
|---|---|
| Brand |
easyelecmodule |
984 in stock
Simple Peripheral Circuit, Excellent Protection Performance
This module uses the mature TP4056 charging chip. It features a simple peripheral circuit and excellent protection performance.
Input Port Features a MINI USB Female Connector
The input port is equipped with a MINI USB female connector, allowing you to use a phone charger directly as the input to charge the lithium battery. Input voltage wiring pads are also retained.
Usage Method
Step 1
Note: When connecting the battery for the first time, there may be no voltage output between OUT+ and OUT-. To activate the protection circuit, connect a 5V voltage to charge it briefly. If the battery is disconnected from B+/B- and reconnected, you also need to charge it briefly to reactivate the protection circuit.
When using a phone charger as the input, ensure the charger can output 1A or more; otherwise, charging may not work properly.
Step 2
- Connect B+ to the positive terminal of the lithium battery.
- Connect B- to the negative terminal of the lithium battery.
- Connect OUT+ and OUT- to the load (e.g., the positive/negative terminals of a mobile voltage booster or other devices).
Step 3
- A red light indicates charging is in progress.
- A green light indicates the battery is fully charged.
