Hand Sweep Sensor Switch Module 12V 36W
$1.761pcs
12V 36W hand-sweep sensor switch, wave to turn on/off, ultra-sensitive, touch-free and hygienic. Easy install, fits many uses. Smart energy-saving, lights follow you.
| Dimensions | 42.0 × 12.0 mm |
|---|---|
| Brand |
easyelecmodule |
5367 in stock
Product Introduction
Hand sweep sensor Infrared switch module, when the hand is within 3-8cm of the sensor head, a gentle sweep turns it on, and another sweep turns it off.
Product Parameter
| Model | Sweep-hands SW V2.0 |
| Induction Mode | Instant on/off with a sweep |
| Load Current | Resistive 3A |
| Load Power | 72W(MAX) |
| Standby Current | 10-15mA |

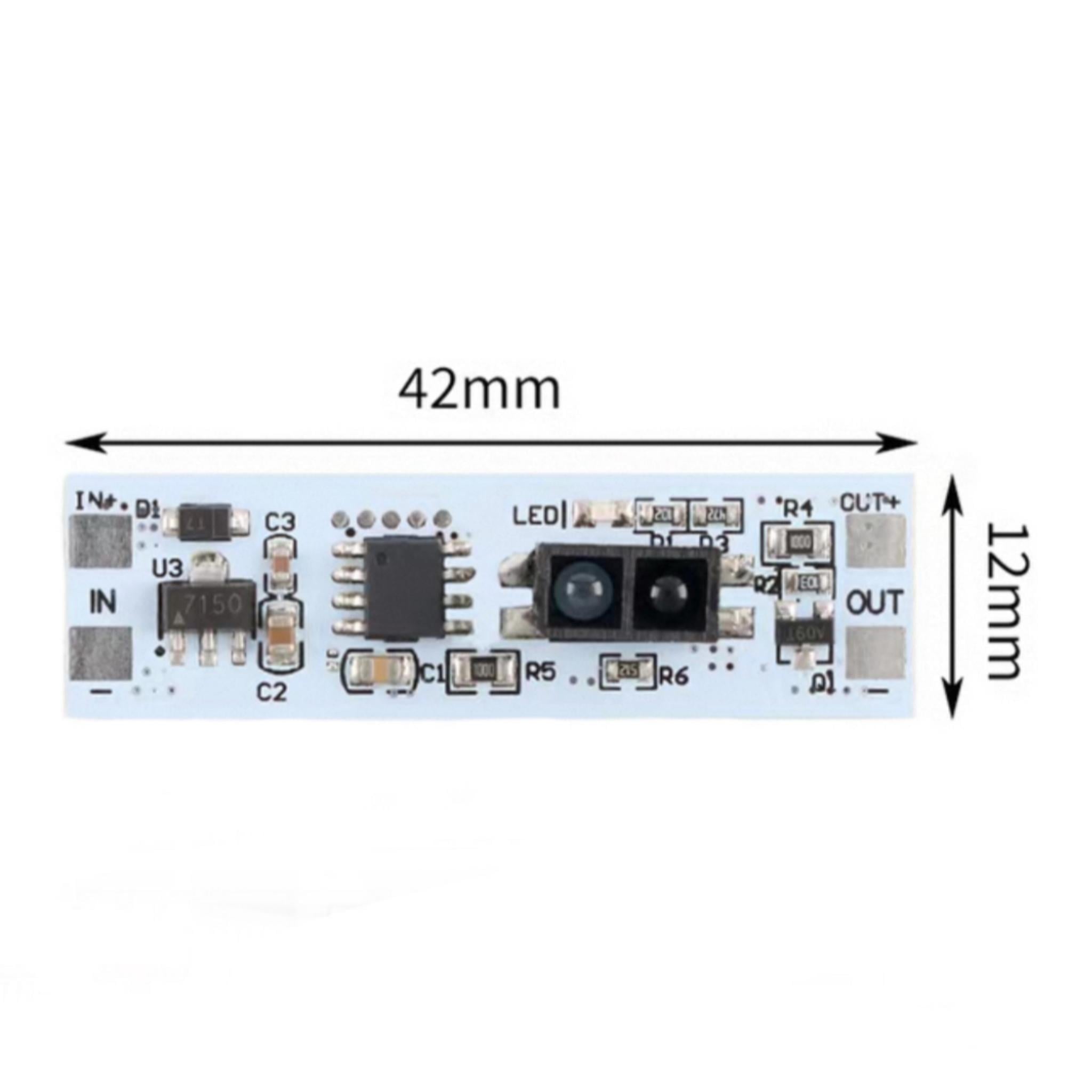

| Size | 42.0*12.0 mm |
| Induction Principle | Infrared |
| Induction Range | 30-80mm |
| Input Voltage | 5-24V(DC) |
| Output Voltage | = Input voltage |
| Output Form | Switch + indicator light |
| Applicable Range | DC, Constant Voltage |
Note : This sensor cannot directly use 220V household power supply. A 12V/24V transformer should be selected according to the working voltage of the LED lamp. The controller is only used for the on-off control of LED lamps and cannot be used for inductive loads (such as inductors, motors, relays, etc.)
Common Connection Method
The infrared emitting tube is a luminous body composed of infrared light emitting diode arrays. A PN junction is made of materials with high infrared radiation efficiency (gallium arsenide is commonly used). A forward bias voltage is applied to the PN junction to inject current and excite infrared light, and its spectral power distribution is centered on the wavelength. LED is the abbreviation of Light Emitting Diode, which has a positive temperature coefficient. The power of an LED infrared lamp is related to the current magnitude, but when the forward current exceeds the rated value, the emission power of the infrared lamp will decrease instead.
Hand Sweep Sensor Switch Application
- The hand sweep sensor switch is suitable for installation in household places such as living rooms, bedrooms, kitchens, etc. When users get up at night, they do not need to look for the switch and only need to gently sweep their hands to turn on the light, which is very convenient.
- The hand sweep sensor switch can be applied to commercial places, such as offices, shopping malls, restaurants, etc.
- For hygiene considerations, the hand sweep sensor switch is a good choice for public places. For example, in public toilets, hospitals, schools, users do not need to directly touch the switch, which reduces the spread of bacteria.
