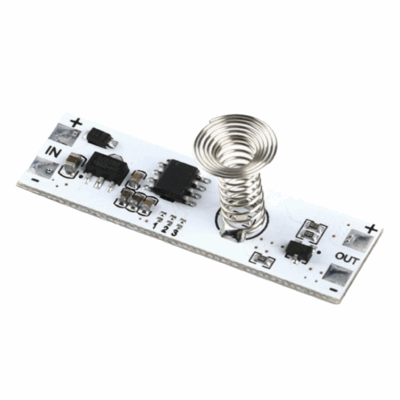

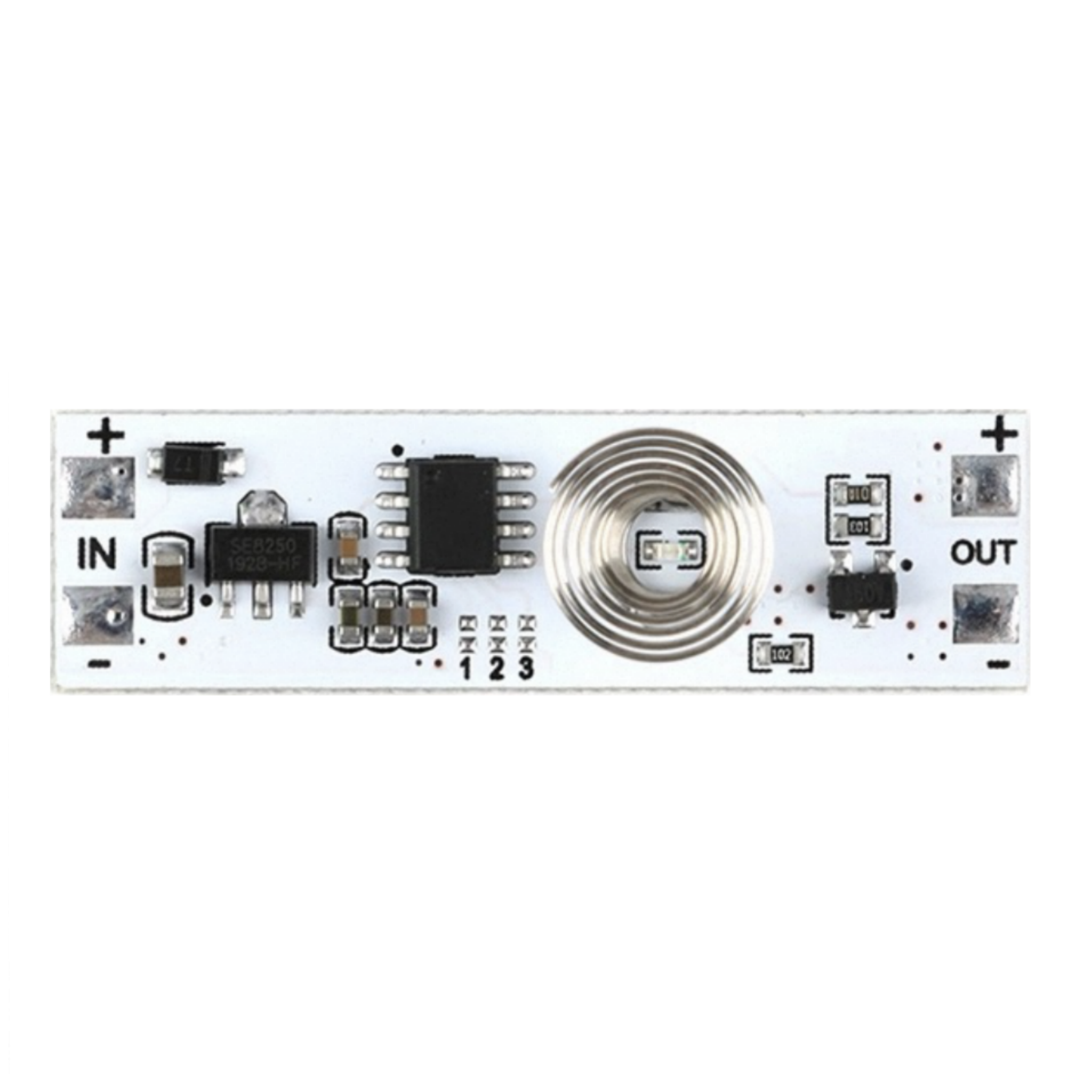

Touch Dimmer Light Switch Capacitive
$1.321pcs
Capacitive touch stepless dimmer, light up with a tap, slide brightness freely! Soft glare-free glow, easy install for cabinet lights.
| Dimensions | 42.0 × 12.0 mm |
|---|---|
| Brand |
easyelecmodule |
5523 in stock
Product Introduction
This product is a multi-functional touch sensing module, which is an integrated circuit module designed for realizing human-machine touch interface. It can replace mechanical tact switches. This module can realize touch switch control and brightness adjustment of LED lights. The designed circuit of this module can automatically overcome various interferences caused by ambient temperature, humidity, surface impurities and so on. It can avoid key differences caused by resistance and capacitance errors.
Product Parameter
| Input voltage | DC5V-24V (recommend 12V) |
| Output voltage | = Input voltage |
| Load power | 72W(MAX) |
| Load current | Resistive 3A(MAX) |
| Standby current | 10-15mA |
| Standby power consumption | ≈ 0.01W |
| Operating temperature | -25℃~85℃ |
| Output frequency | 32KHZ |

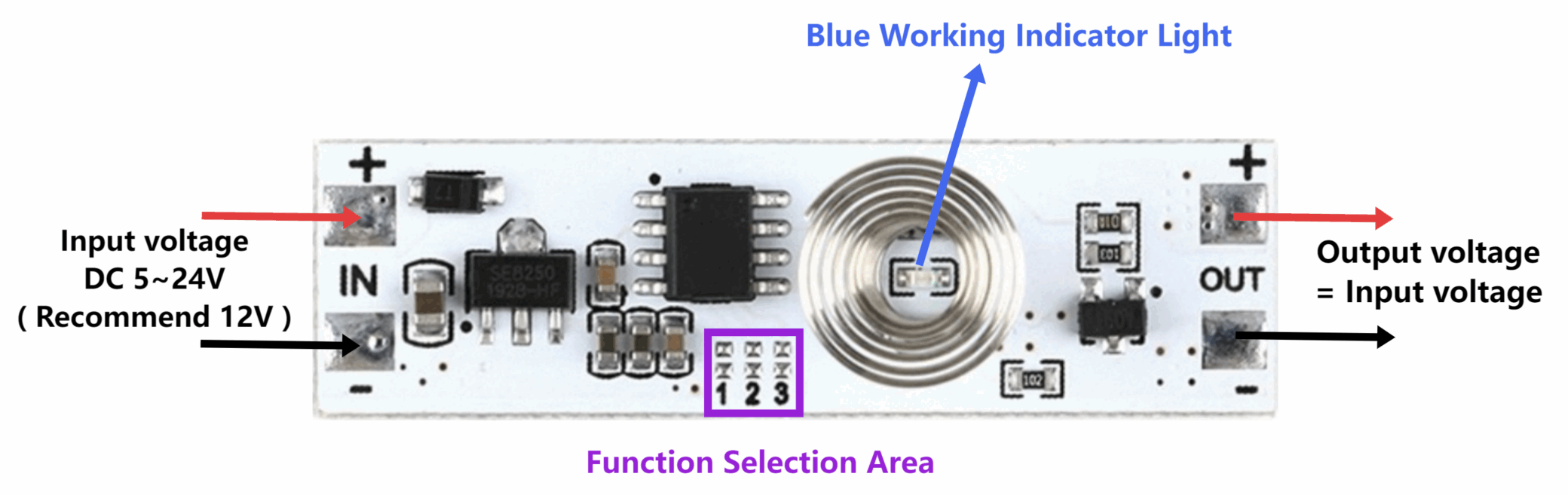

Interface Description
| IN+ | Input positive |
| IN- | Input negative |
| OUT+ | Output positive |
| OUT- | Output negative |
Function Mode Selection
The default is Mode 1, where pads 1, 2 and 3 are not soldered, and OPT1, OPT2 and OPT3 are set as 1, 1 and 1 respectively. Other modes are shown in the table below:
Unsoldered = 1, Soldered = 0
| Mode | OPT1 | OPT2 | OPT3 | Dimming Method | |
|---|---|---|---|---|---|
| 1 | 1 | 1 | 1 | No Brightness Memory, No Brightness Buffering | Stepless Dimming |
| 2 | 1 | 1 | 0 | With Brightness Memory, No Brightness Buffering | Stepless Dimming |
| 3 | 1 | 0 | 1 | Cycling: High → Medium → Low → Off | Three-stage Dimming |
| 4 | 1 | 0 | 0 | Cycling: Low → Medium → High → Off | Three-stage Dimming |
| 5 | 0 | 1 | 1 | Output Low Level Active, Normally High Level | Synchronization Button |
| 6 | 0 | 0 | 1 | Output High Level Active, Normally Low Level | Synchronization Button |
| 7 | 0 | 1 | 0 | Output Low Level Active, Normally High Level | Switch Latching |
| 8 | 0 | 0 | 0 | Output High Level Active, Normally Low Level | Switch Latching |
Touch Dimmer Light Switch Precaution
- The input voltage shall not be lower than 5V or higher than 24V.
- The load power shall not exceed 72W. Otherwise, there will be an induction but the load will not operate.
- Do not reverse the input and output connections. IN is for input and OUT is for output.Otherwise, the circuit will be burned out.
- An unconnected pad is at the default high level of 1, while a short – circuited pad is at the low level of 0.
- Brightness memory does not refer to power – off memory. It means that the brightness memory function is enabled during the touch switch operation after the module is powered on. When the module is powered off, the brightness will return to the default state.
Touch Dimmer Light Switch Application
- Kitchen Cabinet Lighting
- WardrobeLighting
- Wine Cabinet / Display Cabinet Lighting
- Bathroom Mirror Cabinet / Washbasin Lighting
