TB6600 Upgraded Version 42/57/86 Stepper Motor Driver
Price range: $12.50 through $234.30
| Product Status |
New |
|---|

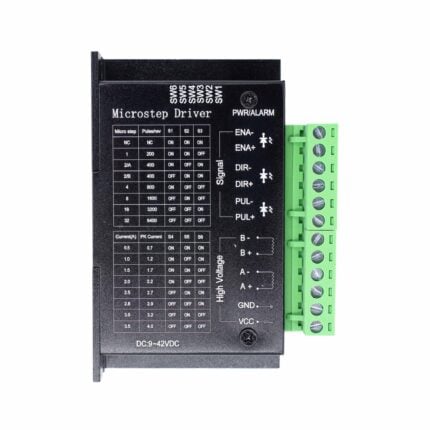

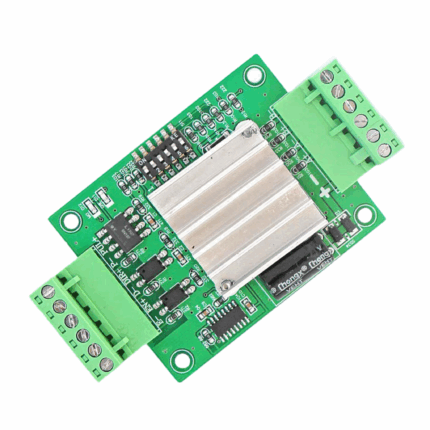

TB6600 Stepper Motor Driver
- TB6600 Introduction
The TB6600 upgraded version driver is a professional two-phase hybrid stepper motor driver, which is compatible with various brands. It is suitable for two-phase hybrid stepper motors with a current of 3.5A or less, an outer diameter of 39mm, 42mm, 57mm, and four-wire, six-wire, and eight-wire configurations. It is applicable to various small and medium-sized automation equipment and instruments, such as engraving machines, marking machines, cutting machines, laser typesetting, plotters, CNC machine tools, pick-and-place devices, etc. It works particularly well in equipment where users expect low-cost and high-current operation.

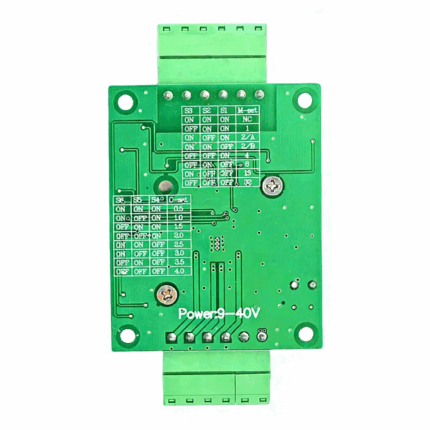

- TB6600 Feature
- Signal input: Single-ended, pulse/direction
- Selectable microsteps: 1/2/4/8/16/32 microsteps
- Output current: 0.5A-3.5A
- Input voltage: 9-42VDC, recommended operating voltage 12-24VDC
- Current automatically halves when stationary
- Can drive 4, 6, 8-wire two-phase and four-phase stepper motors, 42-type, 57-type motors with 1.8Nm and below
- Optocoupler isolated signal input, strong anti-interference capability
- With overheating, overcurrent, undervoltage lockout, input voltage reverse connection protection and other functions
- Compact size, easy to install
- External signals 3.3-24V universal, no need for series resistors
- TB6600 Parameter
Driver model | TB6600 |
Input voltage | DC 9V~42V，suitable for harsh power grid environments |
Current | 4A speed adaptive circuit, automatic current optimization |
Number of microsteps | 200/400/800/1600/3200/6400 microsteps |
Various protections | Overcurrent, overvoltage, undervoltage, short circuit and other protections |
Offline | Offline (ENA) protection function |

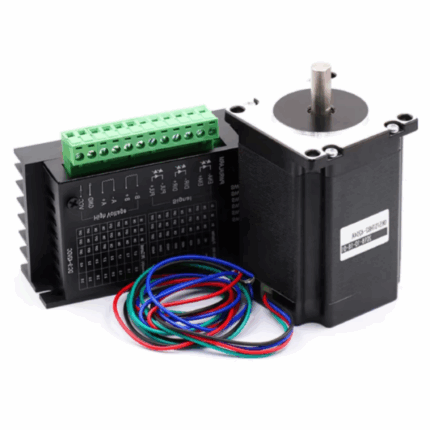

57 Stepper motor with torque 2.3N.M length 81mm
Driver model | 57HS22 | ||
Current | 3A | Shaft extension length | 19mm |
Shaft diameter of the output shaft | 8mm | Shaft output type | Single output shaft |
Wire outlet mode | Two-phase with four lead wires (Black A+ , Green A- , Red B+ , Blue B- ) | ||
Shaft output type | Default shaft diameter: 8mm + single flat wire | ||
57 Stepper motor 57BYG250B with torque 1.2N.M length 56mm
Driver model | 57BYG250B | ||
Current | 3A | Shaft extension length | 21mm |
Shaft diameter of the output shaft | 8mm | Shaft output type | Single/double output shaft (default single output shaft) |
Output torque | 1.2Nm | Body length | 56mm |
Wire outlet mode | Two-phase with four lead wires (Black A+, Green A-, Red B+, Blue B-) | ||
Shaft output type | Default shaft diameter: 8mm + single flat wire | ||
57 Closed-loop Stepper Motor 2.2N + Closed-loop Stepper Motor Driver
- Product Introduction
- Low heat generation (When stationary, the current is almost zero with no heat generation)
- Smooth (Based on the space vector current control algorithm of the feedback encoder and vector smoothing filtering technology, it effectively suppresses the low-frequency resonance that plagues traditional stepper motors)
- High-speed response (Excellent servo control technology provides high torque output, enabling the system to have high dynamic response. The stepper servo speed can reach 600-2000 RPM.)
- Applicable industries: Dispensing machines, woodworking machines, welding machines, screw driving machines, zipper machines, winding machines, placement machines, packaging machines, engraving machines, laser machines, LED equipment, and electronic devices.
- 32-bit DSP digital 57 closed-loop stepper motor driver, applicable to engraving machines and numerical control equipment. It features PWM current control, low noise, and its high-speed torque is 40% higher than that of ordinary drivers.
- Closed-loop Stepper Motor Driver Parameter
Driver | HBS57 | ||
Voltage | DC 16V-70V（For the 57 motor, It is recommended to use DC 24V~48V. ） | ||
Microstep | 256 microsteps | ||
57HSEN-D25 current | 4A | ||
Torque | 2.2N.m | Shaft diameter | 8mm |
Rated speed | 1000 revolutions per minute, no-load rotational speed 2000 revolutions per minute | ||
Motor wire outlet | 50cm | Motor encoder wire outlet | 30cm |
All products undergo a 72-hour continuous power-on aging test before leaving the factory! | |||
- 57 Closed-loop Stepper Motor 2.2N Parameter
Static torque | 2.2N.m | Rated current | 4A |
Rabbet diameter | 38mm | Shaft length | 25mm |
Rotational speed | 2000rpm | Rated speed | 1000rpm |
No keyway | |||
- Use Environmental Parameter
Cooling method | Natural cooling or external radiator | |
Operating environment | Usage occasion | Try to avoid dust, oil mist and corrosive gases. |
Temperature | 0℃~50℃ | |
Humidity | 40~90%RH | |
Shake | 10~55Hz 0.5mm | |
Storage temperature | -20℃~65℃ | |
- Performance
- Traditional stepper: Short distance, medium-low speed (300-600 rpm)
- Stepper servo: Small to medium distance, medium-high speed (600-2000 rpm)
- AC servo: Long distance, high speed (above 2000 rpm)
- Interface Specification
1、Motor and power input ports
Terminal number | Symbol | Name | Lead color description |
1 | A+ | Phase A motor winding + | red |
2 | A- | Phase A motor winding – | green |
3 | B+ | Phase B motor winding + | yellow |
4 | B- | Phase B motor winding – | blue |
5 | +VDC | Power input positive pole | DC 16V-70V |
6 | GND | Power input negative pole |
Note: The phases of the motor wires must not be interchanged.
2、Encoder signal input port
Terminal number | Symbol | Name | Lead color description |
1 | EA+ | Motor encoder phase A positive input | black |
2 | EA- | Motor encoder phase A negative input | blue |
3 | EB+ | Motor encoder phase B positive input | yellow |
4 | EB- | Motor encoder phase B negative input | green |
5 | VCC | Encoder power supply +5V input | red |
6 | EGND | Encoder power ground | white |
3、Control signal input port
Terminal number | Symbol | Name | Description |
1 | PU+ | Pulse positive input | Signal source: 5V to 24V universal, no need to connect resistors in series |
2 | PU- | Pulse negative input | |
3 | DR+ | Direction positive input | |
4 | DR- | Direction negative input | |
5 | ENA+ | Motor enable positive input | When this signal is active, the motor is in the enabled state. When the signal is inactive, the motor is in the disabled state. |
- Fault Setting
The green LED is the power indicator. When the driver is powered on, the green LED remains steadily on.
The red LED is the fault indicator. When a fault occurs, this indicator flashes cyclically with a 5-second period. Different numbers of flashes correspond to different faults, and the specific relationships are as follows:
Number of flashes | Fault description |
1 | overcurrent |
2 | overvoltage |
7 | tracking error |
When the driver triggers a fault alarm, it will shut off the motor current and improve a fault code. The user needs to power off the device. The fault can be cleared when the power is turned back on.
86 Closed-loop Stepper Motor + Stepper Motor Driver
- Product Introduction
1、Low heat generation (When stationary, the current is almost zero) and smooth operation (Based on the space vector current control algorithm and vector smoothing filtering technology of a feedback encoder, it effectively suppresses the low-frequency resonance that troubles traditional stepper motors).
2、High-speed response (The control technology provides high torque output, enabling the system to achieve high dynamic response, with the stepper servo speed reaching 600-2000 RPM).
3、Applicable industries: Dispensing machines, woodworking machines, welding machines, screw driving machines, zipper machines, winding machines, placement machines, packaging machines, engraving machines, laser machines, LED equipment, and electronic devices.
- Motor Introduction
Frame number | 86*86 | Motor total length | 180mm |
Static torque | 12N.m | Rated current | 4.2A |
Keyway | 5*5*25 | Rotational speed | 2000rpm |
Rated speed | 1000rpm | ||
- Driver Introduction
- The HBS86H employs a dedicated motor control DSP chip and adopts vector-type closed-loop control technology, thereby overcoming the step loss issue of open-loop stepper motors, with a pulse response frequency up to 200KHZ. Input power: alternating current16-70VAC, direct current 24-100VDC.
- It boasts high quality and high positioning accuracy, and is widely applied in the automation equipment industry, such as engraving machines, packaging machines, non-standard equipment, XY-axis motion platforms, CNC machine tools, precision machine tools, cutting machines, feeding machines, and embroidery machines.
- Interface Description
1、Motor and power input ports
Terminal number | Symbol | Name | Lead color description |
1 | A+ | Phase A motor winding + | red |
2 | A- | Phase A motor winding – | green |
3 | B+ | Phase B motor winding + | yellow |
4 | B- | Phase B motor winding – | blue |
5 | +VDC | Power input positive pole | +18V~80V |
6 | GND | Power input negative pole | 0V |
- Encoder signal input ports
Terminal number | Symbol | Name | Lead color description |
1 | EA+ | Motor encoder phase A positive input | black |
2 | EA- | Motor encoder phase A negative input | blue |
3 | EB+ | Motor encoder phase B positive input | yellow |
4 | EB- | Motor encoder phase B negative input | green |
5 | VCC | Encoder power supply +5V input | red |
6 | EGND | Encoder power ground | white |
Application
- 3D printers: Used to drive the stepper motors for moving the print head or platform, achieving precise positioning.
- CNC engraving machines/milling machines: Control the operation of X, Y, and Z axis motors for high-precision machining.
- Automation equipment: Control the actions of stepper motors in equipment such as automatic assembly lines and conveyor belts.
- Robot joint control: Provide precise motion control for the joints of robotic arms or mobile robots.
- DIY electronic projects: Widely used in stepper motor control projects by makers and electronics enthusiasts.
Relative Information
TB6600 driver powers steppers 4-42V/4A, 1/128 microstepping for smooth quiet motion. Opto-isolated, cool-running, anti-interference. Pulse/direction control, plug-and-play for 3D printers, CNC and automation. Durable & easy to use.
