GY-68 BMP180 Pressure and Temperature Sensor
$2.661pcs
| Dimensions | N/A |
|---|---|
| Brand |
easyelecmodule |
Product Introduction
The GY-68 BMP180 barometric pressure sensor is a high-precision, small-sized, and low-power consumption pressure sensor, which can be easily applied in mobile devices. When measuring the altitude, the traditional method is to measure the atmospheric pressure at a certain height and then perform conversion to obtain the altitude data. The BMP180 not only can measure the atmospheric pressure in real time, but also can measure the real-time temperature. At the same time, it has an IIC bus interface, which is convenient for the single-chip microcomputer to access. Moreover, its usage is also very convenient. Without too many operations, the air pressure and measurement data can be read.
BMP180 Feature
- Pressure range: 300 – 1100 hPa (at an altitude of 9000 meters to -500 meters)
- LCC8 package: Lead-free ceramic carrier package (LCC)
- Low power consumption: 5 μA, in standard mode
- High precision: In low power consumption mode, the resolution is 0.06 hPa (0.5 meters)
- High linearity mode: The resolution is 0.03 hPa (0.25 meters)
- Includes temperature output
- I2C interface
- Temperature compensation
- Lead-free, compliant with RoHS regulations
- MSL 1 response time: 7.5 ms
- Standby current: 0.1 μA
- No external clock circuit required
BMP180 Parameter
| Parameter | Value |
|---|---|
| Model | GY-68 BMP180 |
| Working voltage | Double-hole: 1.8V ~ 3.6V (VDDA), 1.62-3.6V (VDDD); single-hole: 5V |
| Operating Current | 0.1~1000uA |
| Temperature Accuracy | ±1°C |
| Temperature Range | 0~65°C |
| Air Pressure Range | 300~1100 hPa |
| Air Pressure Accuracy | 1 hPa |
| Output Mode | IIC |
BMP180 Pin Function

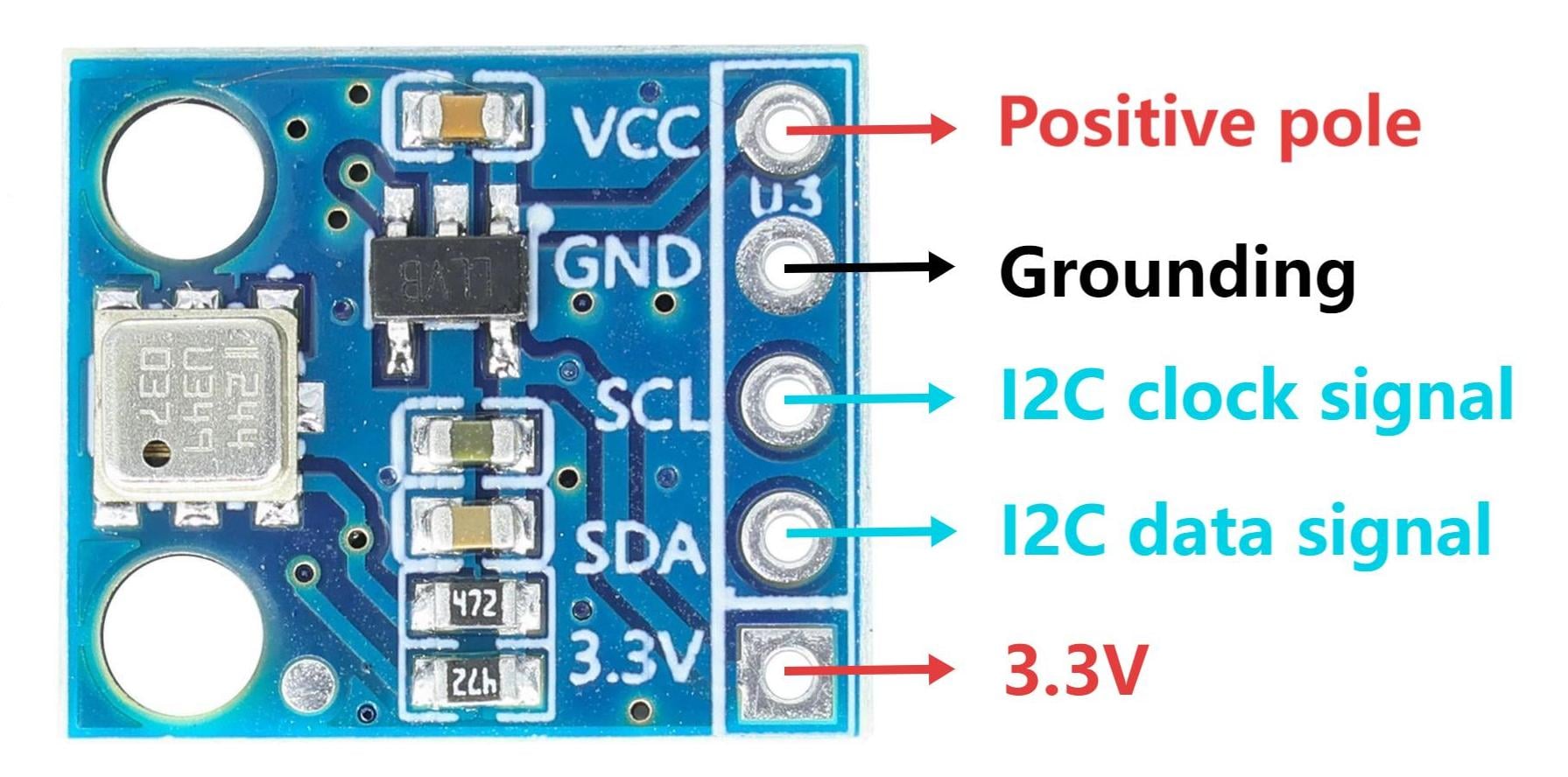

GY-68 BMP180 double hole

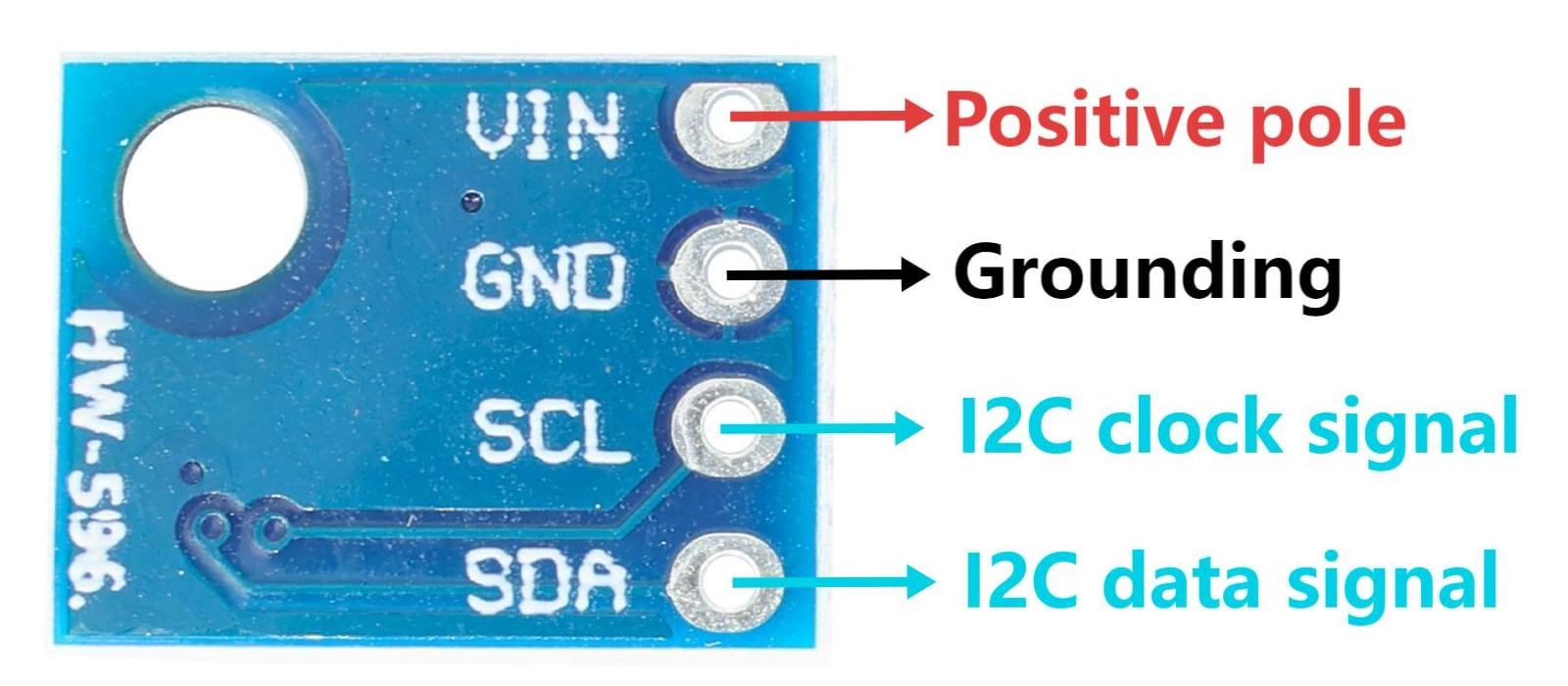

GY-68 BMP180 single hole
BMP180 Application
① GPS precise navigation (position calculation, bridge detection, etc.)
② Indoor and outdoor navigation
③ Monitoring of leisure, sports and medical health, etc.
④ Weather forecast
⑤ Vertical speed indication (ascending/descending speed)
⑥ Fan power control
