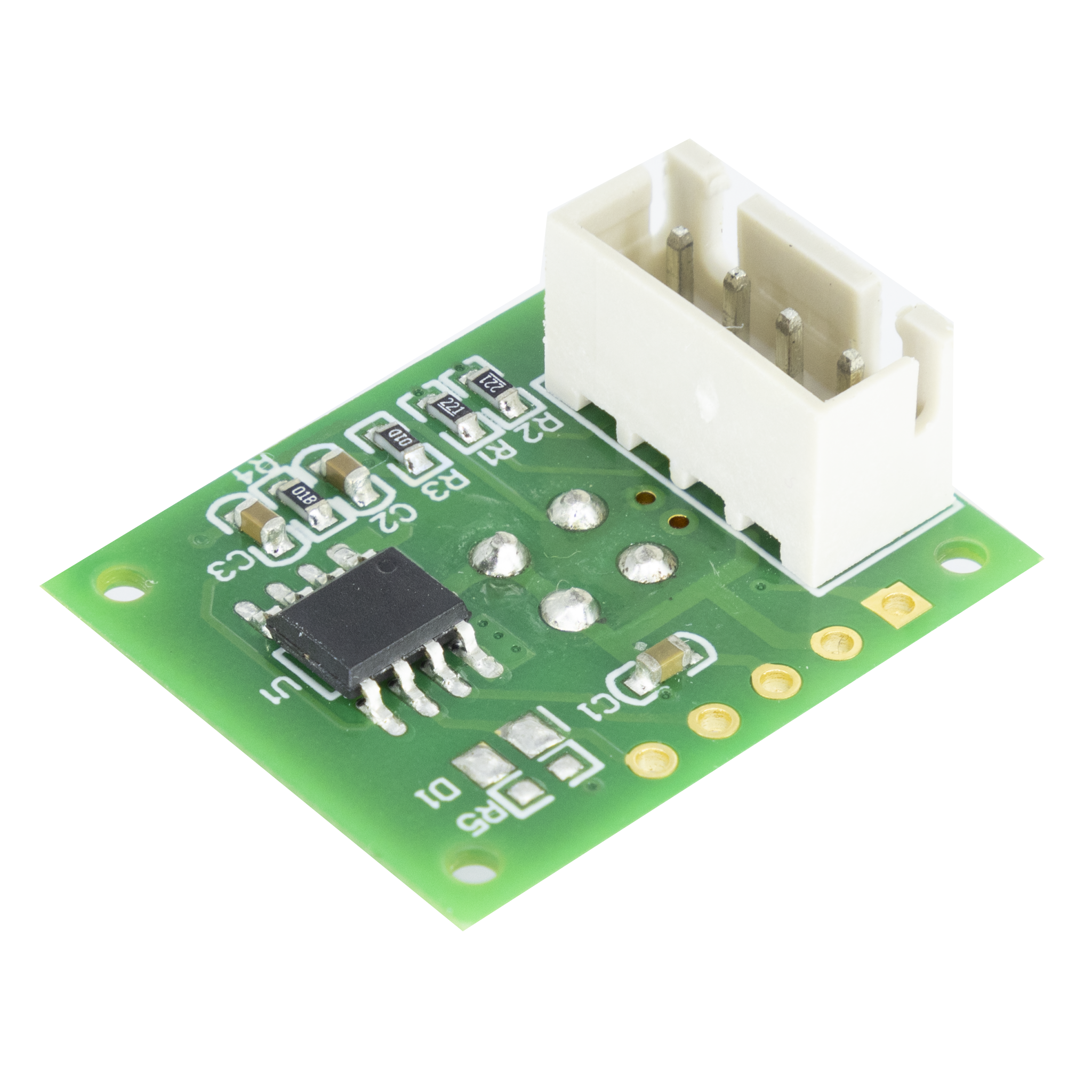

Air-Quality Detection Module ZP01
$6.511pcs
The module has very high sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of cigarette, essence &etc.

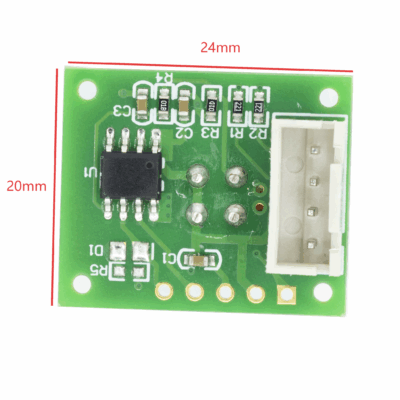

| Dimensions | 24.0 × 20.0 mm |
|---|---|
| Brand |
easyelecmodule |
3028 in stock
Description
ZP01-MP503 air-quality module adopts flat surface semiconductor gas sensor. The module has very high sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of cigarette, essence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.
Features
- High sensitivity and good long-term stability
- Calibrated before shipment
- 10 seconds to 3 minutes with auto-preheating function
- Faulty auto-check, low power consumption
- Long lifespan, high cost-effective
Application
Air cleaner, fresh-air system, intelligent integrated ceiling, air quality monitor, ventilator, air-condition.
Specifications
- Sensor: Air quality sensor
- Target Gas: Formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia, cigarette smoke, essence, etc.
- Physical Interface: XH2.54 – 4P Pins
- Output Data: 0~3 grade pollution signal
- Output Data: TTL level (200ohm protected resistance inside)
- Working Voltage: 5.0±0.2V DC (No voltage reverse connect protection)
- Working Current: ≤60mA
- Warm Up Time: ≤3 min
- Response Time: ≤20s
- Recovery Time: ≤60s
- Operating Temperature: 0～50℃
- Operating Humidity: ≤95% RH
- Storage Temperature: －20～60℃
- Storage Humidity: ≤60% RH
- Size: 24×20×15mm（L×W×H）
- Weight: ≤20g
- Sensitivity Attenuator: ≤1%/year
Sensitivity Characteristic
Application of schematic diagram

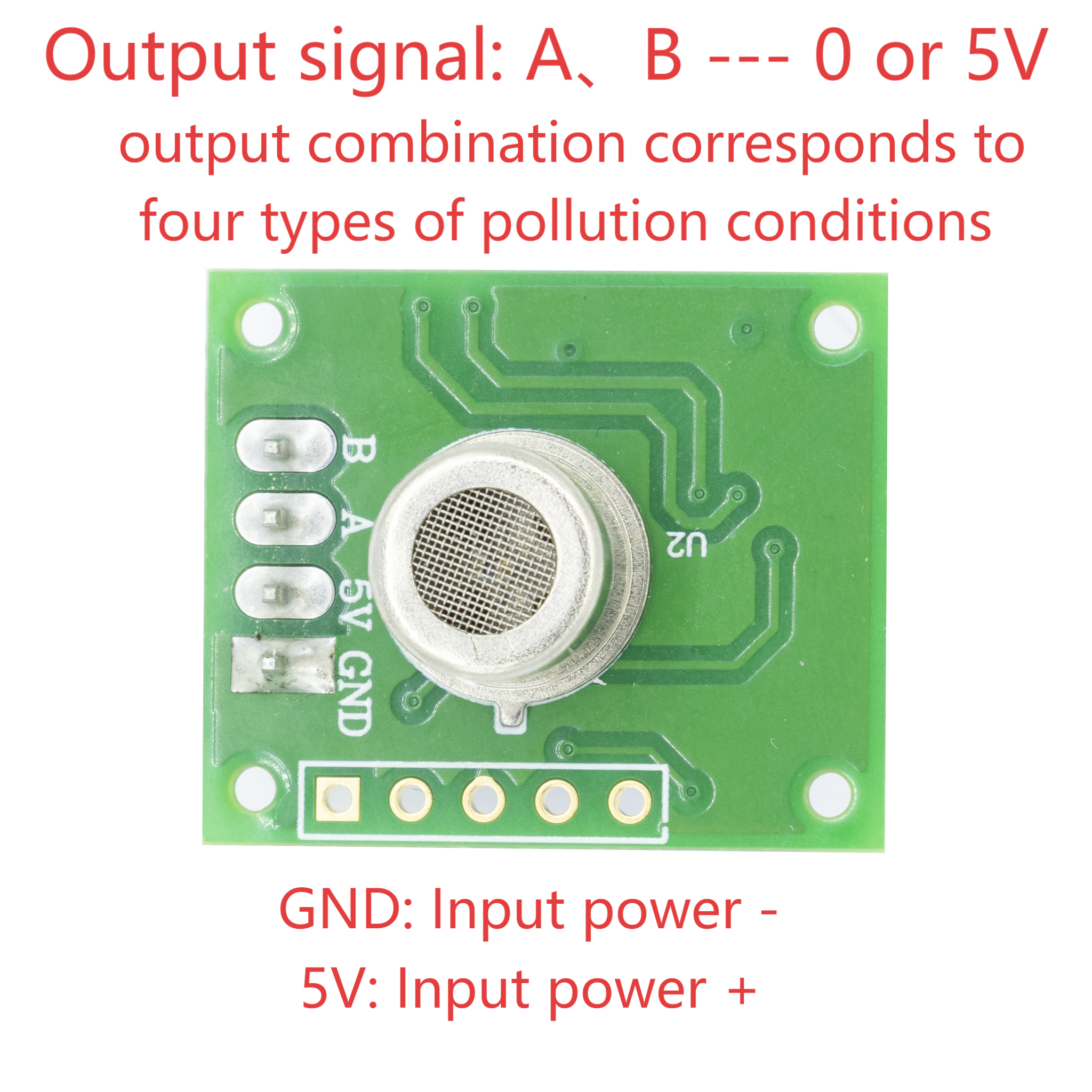

Pins definition
- Pin 1: GND (Input power -)
- Pin 2: 5V (Input power +)
- Pin 3: A (Output signal A)
- Pin 4: B (Output signal B)
Output Signal
- Grade 0: Output A (0V), Output B (0V) → Clean
- Grade 1: Output A (0V), Output B (+5V) → Light pollution
- Grade 2: Output A (+5V), Output B (0V) → Moderate pollution
- Grade 3: Output A (+5V), Output B (+5V) → Severe pollution
Cautions
Please do not put the module in organic solvent (include silica gel and other cementing compound), painting, medicament, oils and fuels, high concentration gas etc.Please do not impact or vibrate the module seriously.
Please warm up for 5 min before first use.
Please do not use the module related with personal safety.
Please do not install the module in the severe convection environment.
Please do not put in the module in high concentration organic gas for long time.
Please supply the module with requested voltage as manual strictly, if voltage is higher than 5.5V, the module will be destroyed irreversibly.
