GY-906 MLX90614ESF BAA BCC DCI Infrared Temperature Sensor
Price range: $17.02 through $84.86
High-precision non-contact IR temp sensor, IIC digital interface, 3-5V power, -70~+380°C range, medical-grade 0.5°C accuracy (0-50°C), long-range options, ideal for human, industrial, automotive and smart home use.
| Dimensions | N/A |
|---|
Product Introduction
GY-906-BCC Infrared Temperature Sensor
Module model | GY-906-BCC | Power supply | 3-5V |
Chip | MLX90614ESF-BCC | Communication mode | Standard IIC communication protocol |

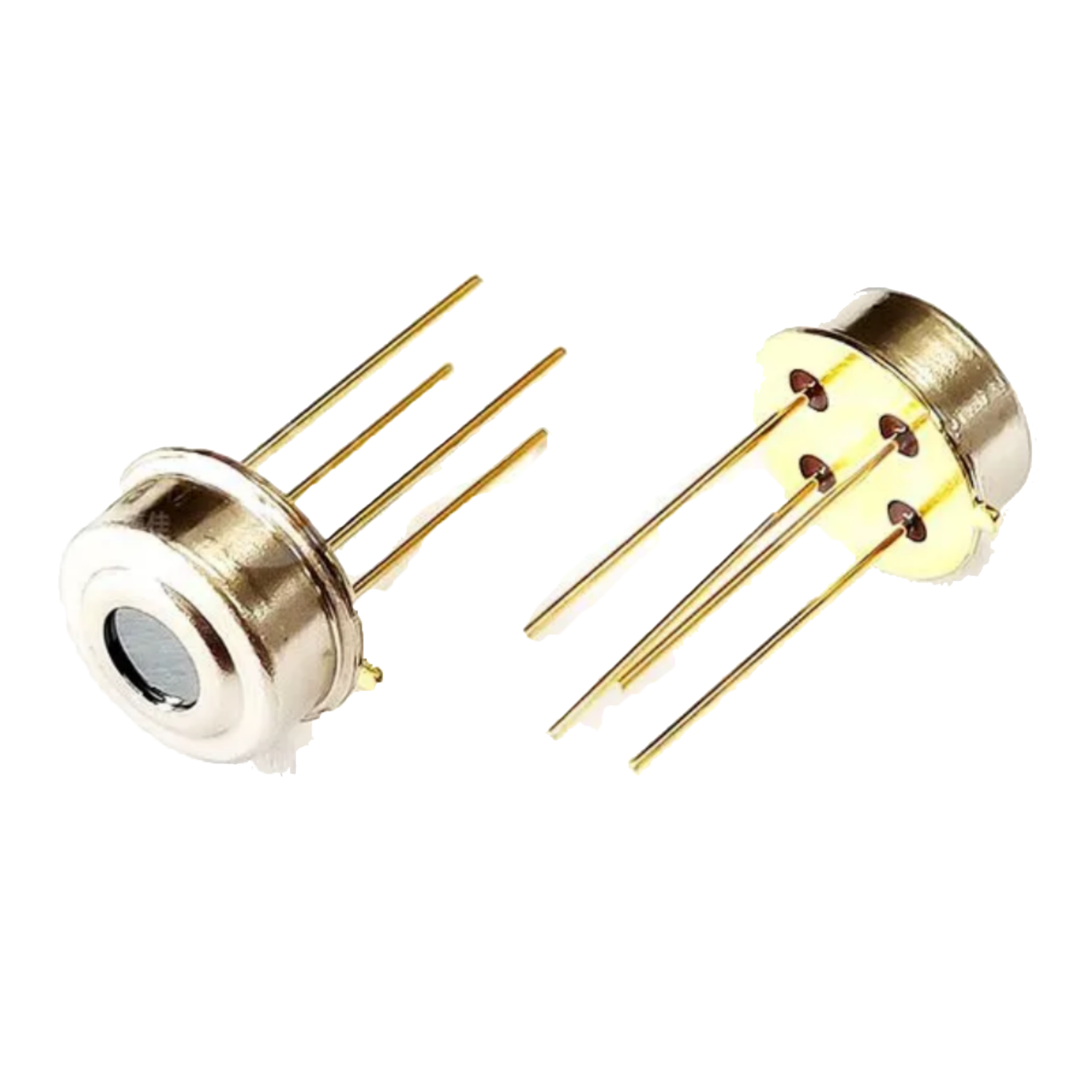

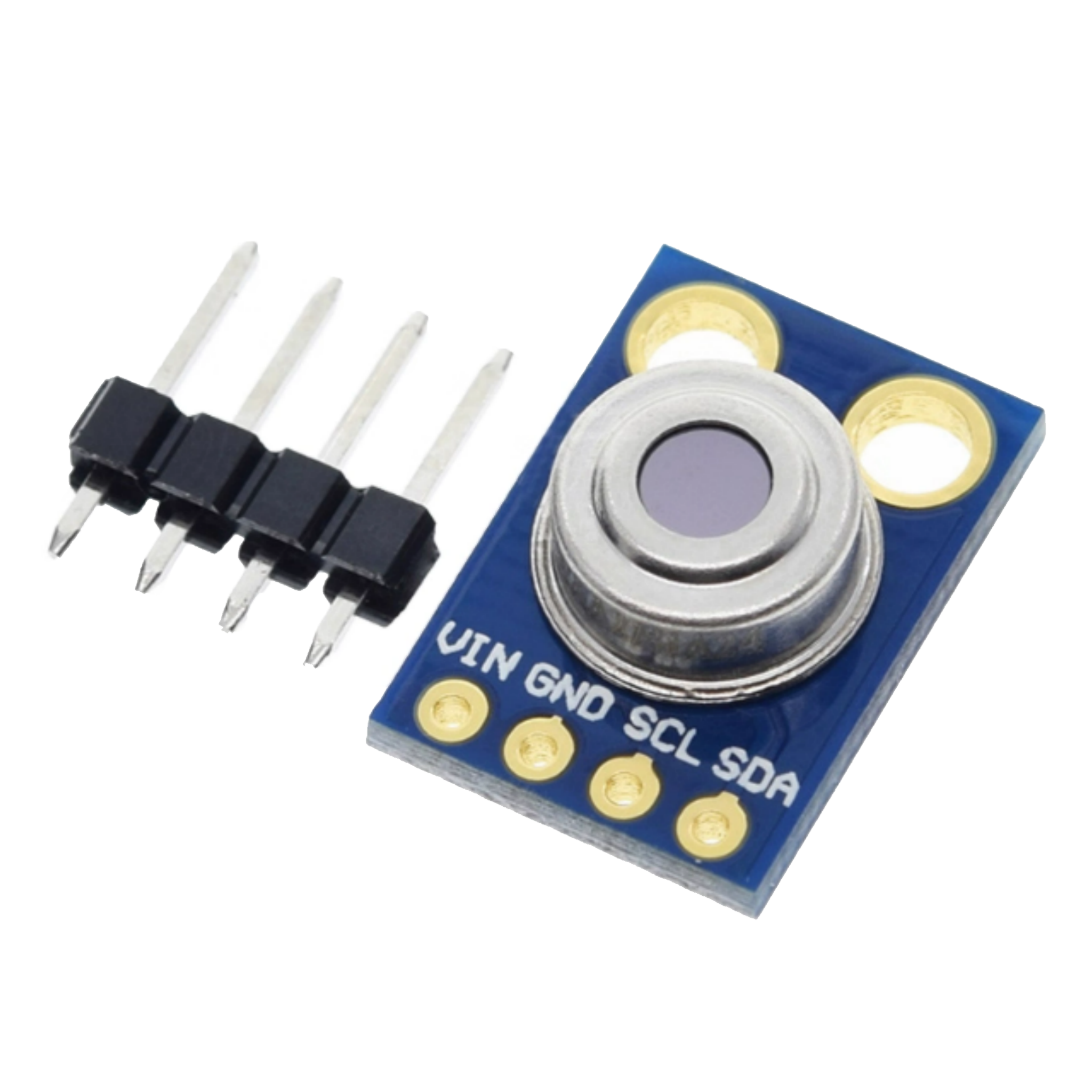

GY-906-BAA Non-contact IR Sensor
Module model | GY-906-BAA | Power supply | 3V~5V |
Chip | MLX90614 | Communication mode | Standard IIC communication protocol |
GY-906-DCI Long-distance Infrared Temperature Sensor
Module model | GY-906-DCI | Communication mode | Standard IIC communication protocol |
Chip | MLX90614DCI | Size | 11.5mm * 16.5mm |
Power supply | 3V~5V | Weight | 2g |
Sensor temperature range | -40℃ ~ +125℃ | Object temperature range | -70℃ ~ +380℃ |
- GY-906-DCI feature
- Small size, low cost, easy to integrate
- Wide temperature range
- High-precision calibration (medical use): When Ta and To are within 0℃~50℃, the measurement accuracy can reach 0.5℃
- Measurement resolution up to 0.02℃
- Single and dual field-of-view versions
- Compatible with SMBus digital interface
- 3V and 5V power supply voltages
- Power supply voltage adjustable from 8V to 16V
- Energy-saving operating mode
- Multiple packaging and measurement methods suitable for different application fields, meeting automotive-grade standards
- GY-906-DCI application example
- High-precision non-contact measurement
- Temperature comfort sensor for automotive air conditioning control systems
- Air conditioning temperature sensing element for residential, commercial, and industrial buildings
- Windshield anti-fog application
- Automotive blind spot detection
- Temperature control for industrial moving components
- Temperature control for printers and copiers
- Temperature control for home appliances
- Sanitation and maintenance
- Livestock monitoring
- Moving object detection
- Multi-zone temperature control, two-wire communication supports up to 100 sensors
- Thermal relay/alarm
- Body temperature measurement

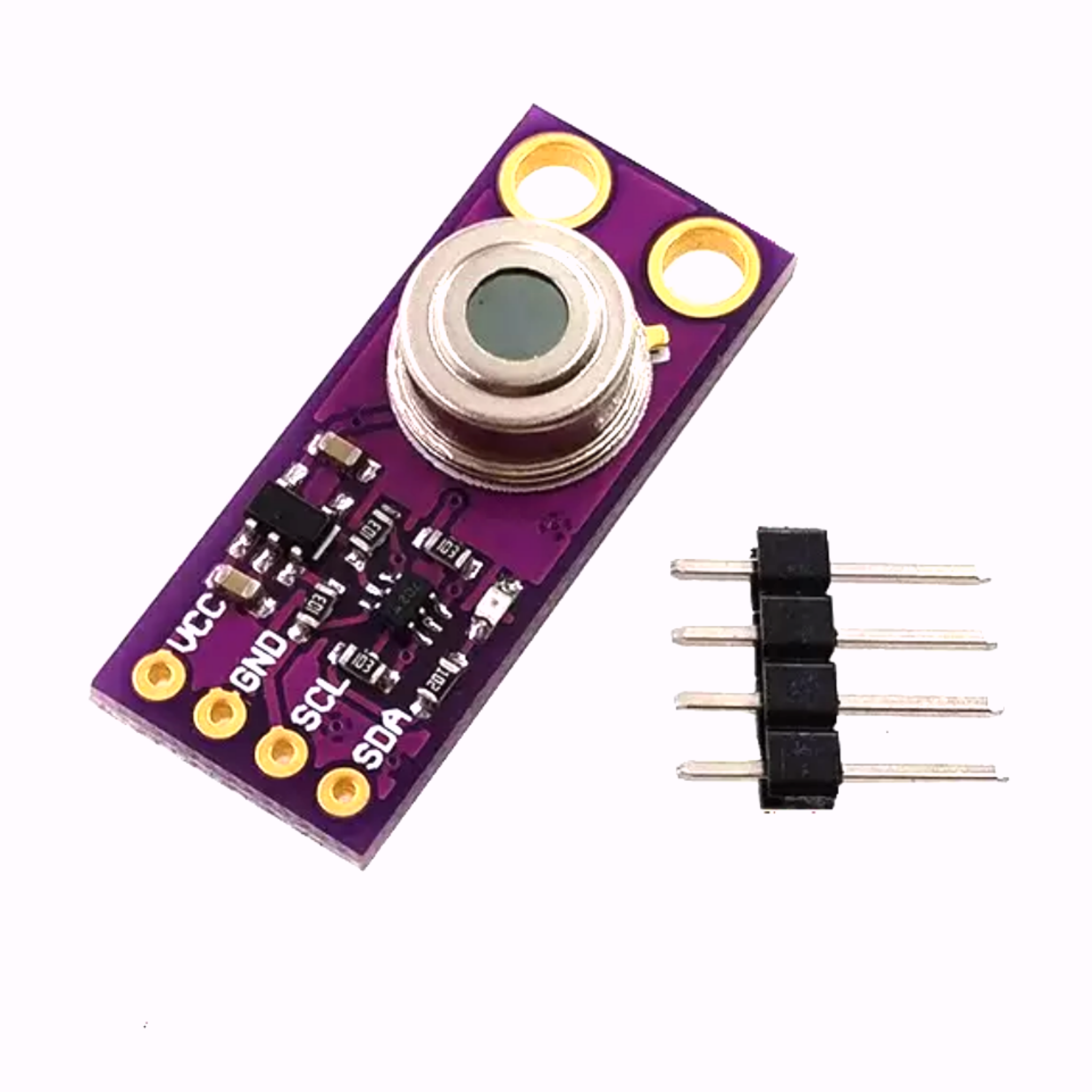

MLX90614ESF Sensor Module
MLX90614 is a non-contact infrared temperature sensor that integrates an infrared detection thermopile chip and a dedicated signal processing integrated chip. The integration of a low-noise amplifier, a 17-bit ADC, and a powerful DSP processing unit enables the sensor to achieve high-precision and high-resolution measurements. The measurement results of the sensor are factory-calibrated, and the data interfaces are digital PWM and SMBus (System Management Bus) outputs. As standard, the PWM is 10-bit and configured for continuous output with a resolution of 0.14 within the range of -20℃ to 120℃. The sensor is factory-set to use SMBus communication upon power-up reset.
- MLX90614ESF sensor feature
- Small size, low cost, easy to integrate
- High-precision calibration (medical use): When Ta and To are within 0℃~50℃, the measurement accuracy can reach 0.5℃
- Single and dual field-of-view versions
- Compatible with SMBus digital interface, configurable PWM continuous output
- Can be adjusted to energy-saving mode
- Suitable for various application fields with multiple packaging forms and measurement methods
- MLX90614ESF sensor parameter
Product name | MLX90614ESF sensor | Measurement value resolution | 0.02℃ |
Working environment temperature range | -40℃ ~ +125℃ | Power supply | 5V/3V power supply voltage can be adjusted to be between 8V and 16V |
Temperature range of the measured object | -70℃ ~ +380℃ | Sensitivity | 2KV |
