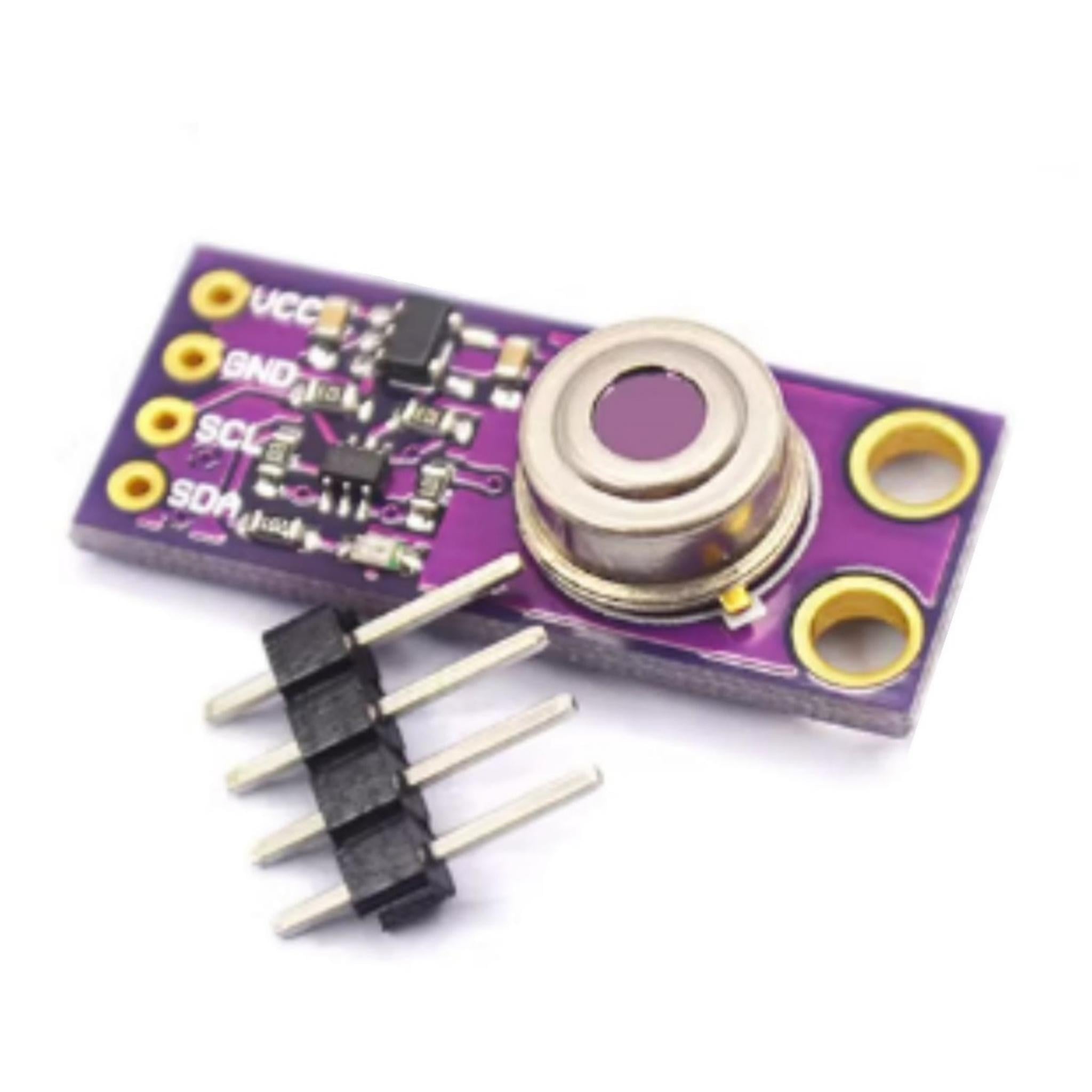

MLX90614ESF Sensor Module
$52.551pcs
MLX90614ESF sensor module offers non contact infrared temperature sensing with high accuracy and fast response. Measures ambient and object temps in compact size easy to integrate using simple I2C.
| Dimensions | 27.5 × 11.0 mm |
|---|---|
| Brand |
easyelecmodule |
4268 in stock
Product Introduction
MLX90614 is a non-contact infrared temperature sensor that integrates an infrared detection thermopile chip and a dedicated signal processing integrated chip. The integration of a low-noise amplifier, a 17-bit ADC, and a powerful DSP processing unit enables the sensor to achieve high-precision and high-resolution measurements. The measurement results of the sensor are factory-calibrated, and the data interfaces are digital PWM and SMBus (System Management Bus) outputs. As standard, the PWM is 10-bit and configured for continuous output with a resolution of 0.14 within the range of -20℃ to 120℃. The sensor is factory-set to use SMBus communication upon power-up reset.
Product Feature
- Small size, low cost, easy to integrate
- High-precision calibration (medical use): When Ta and To are within 0℃~50℃, the measurement accuracy can reach 0.5℃
- Single and dual field-of-view versions
- Compatible with SMBus digital interface, configurable PWM continuous output
- Can be adjusted to energy-saving mode
- Suitable for various application fields with multiple packaging forms and measurement methods
Product Parameter
| Product name | MLX90614ESF sensor | Measurement value resolution | 0.02℃ |
| Working environment temperature range | -40℃ ~ +125℃ | Power supply | 5V/3V power supply voltage can be adjusted to be between 8V and 16V |
| Temperature range of the measured object | -70℃ ~ +380℃ | Sensitivity | 2KV |
