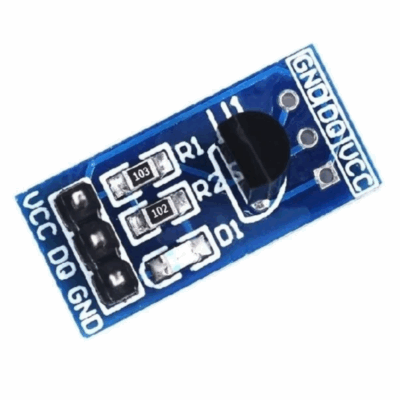

DS18B20 Temperature Measurement Module
$1.341pcs
DS18B20 module ultra-simple 1-Wire wiring, ultra-stable digital signal anti-interference, plug and play, high precision!
| Dimensions | 21.0 × 10.0 mm |
|---|---|
| Brand |
easyelecmodule |
2693 in stock
Product Introduction
DS18B20 is a digital temperature sensor widely used for temperature measurement. It communicates with the microcontroller through 1-Wire interface and provides temperature readings. This sensor features a small size, low hardware cost, strong anti-interference ability and high accuracy.
The DS18B20 can be deployed to achieve multi-point temperature measurement. It has a 9-12 bit serial output. Users can independently choose the power supply mode and the parasitic power supply mode.
DS18B20 Parameter
| Parameter | Value |
|---|---|
| Operating voltage | 3V to 5.5V |
| Working Current | 750nA to 1mA |
| Temperature Measurement Range | -55°C to +125°C (-67°F to +257°F) |
| Measurement Accuracy | ±0.5°C (-10°C to +85°C), ±2°C (-55°C to +125°C) |
| Resolution | 9 to 12 bit (selectable) |
| Interface | Digital |
| Communication Protocol | 1-Wire |
| Number of Pins | 3 pin (2.54mm pin spacing) |

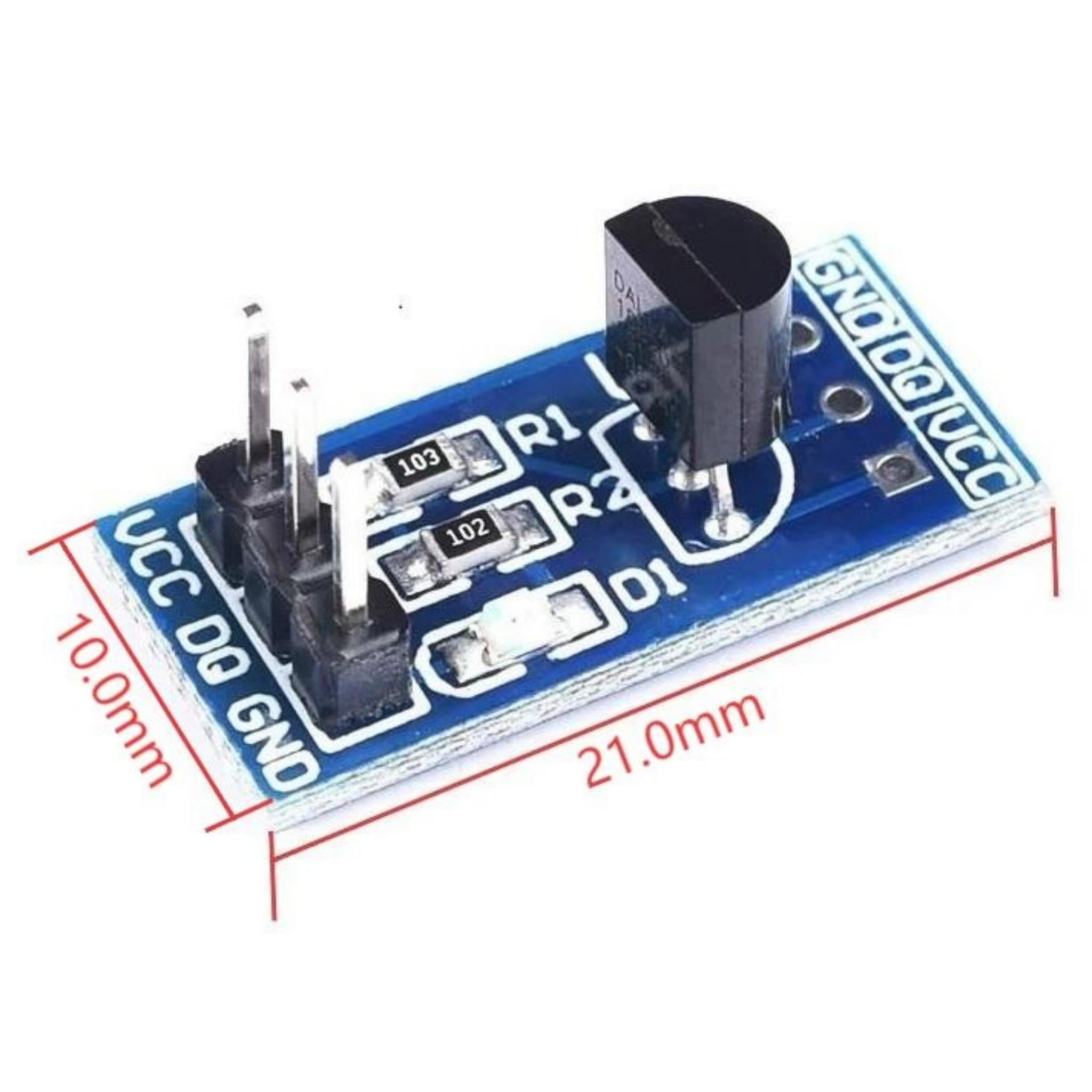

| Panel Size | 21.0mm × 10.0mm |

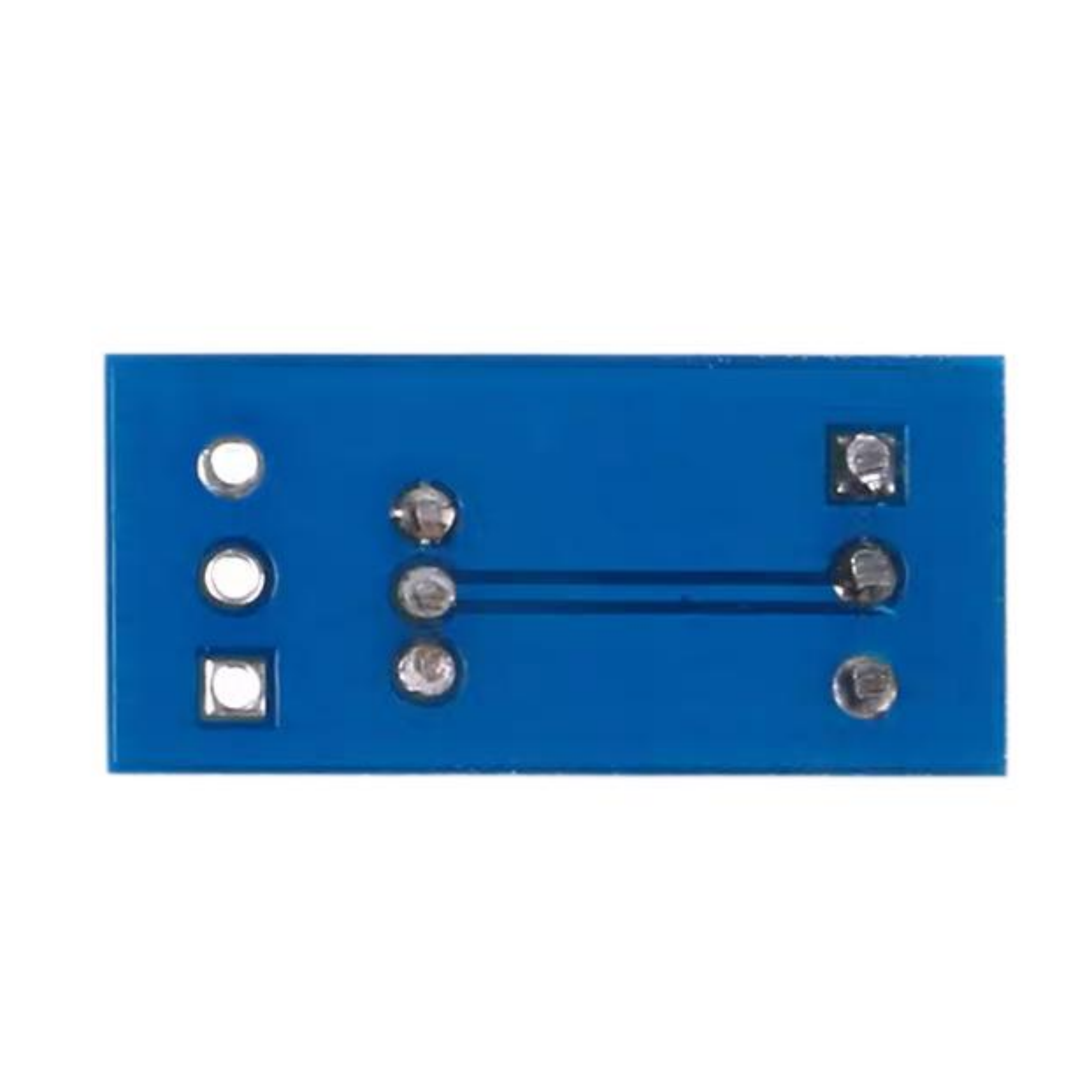

DS18B20 Feature
1. It is equipped with a DS18B20 chip and has a 3P round socket for easy insertion and removal of the DS18B20 chip.
2. All of the chip’s pins are exposed, and an internal pull-up resistor is included.
3. A built-in power indicator light is added.

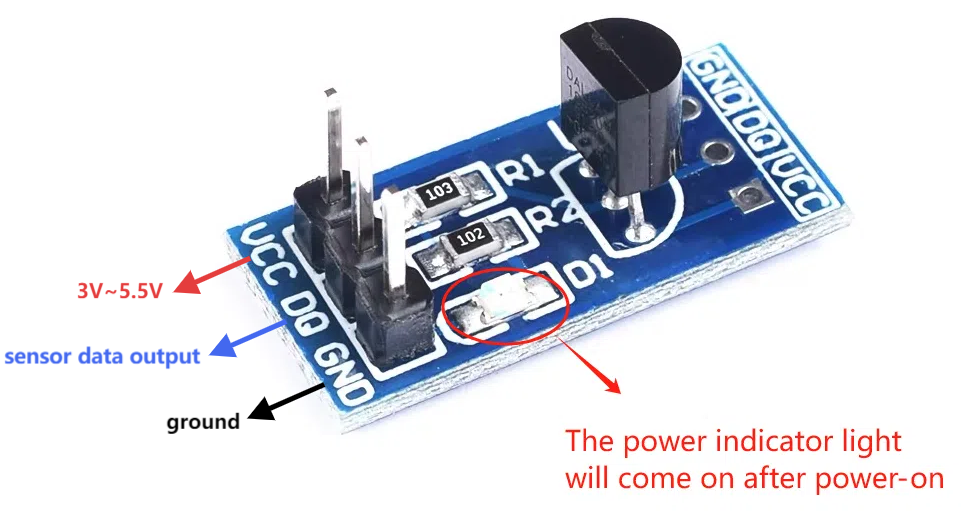

DS18B20 Pin Definition
DS18B20 Note
1. Ensure correct wiring. Do not reverse the positive and negative connections, as it could cause the electronic components on the board to be damaged.
2. The module does not require an external pull-up resistor. The module already provides a pull-up resistor. After the correct connection is made, the power indicator light will turn on. Then, after downloading the corresponding driver program, you can start using it.
DS18B20 Application
1. Portable applications, such as mobile phones and wearable devices.
2. Temperature monitoring
3. Smart home appliance system
4. Water temperature measurement
5. Temperature monitoring system for buildings, equipment or computer rooms
6. Process detection and control system
