HC-SR505 PIR Sensor
$2.501pcs
HC-SR505 is a small PIR human infrared sensor with good response speed and measuring range.
| Dimensions | 24 × 10 × 2 mm |
|---|---|
| Brand |
easyelecmodule |
3749 in stock
HC-SR505 Product description
As a miniature PIR infrared sensor, the HC-SR505, with its compact size, is suitable for compact devices. It features a wide voltage supply range of 4.5-20V, low static power consumption, and a detection distance of 1-3 meters, with selectable triggering modes via adjustment. It can capture moving heat sources and often serves as the core of induction triggering for human bodies or heat-generating objects in smart home widgets, portable sensing devices, and miniature automated devices.
HC-SR505 Performance parameters
Operating voltage: 4.5V-20V
Static current: <60uA
Output level: 3.3V (high level), 0V (low level)
Induction distance: approximately 3 meters
Delay time: 8 seconds (non-adjustable)
Operating temperature: -20°C to +80°C

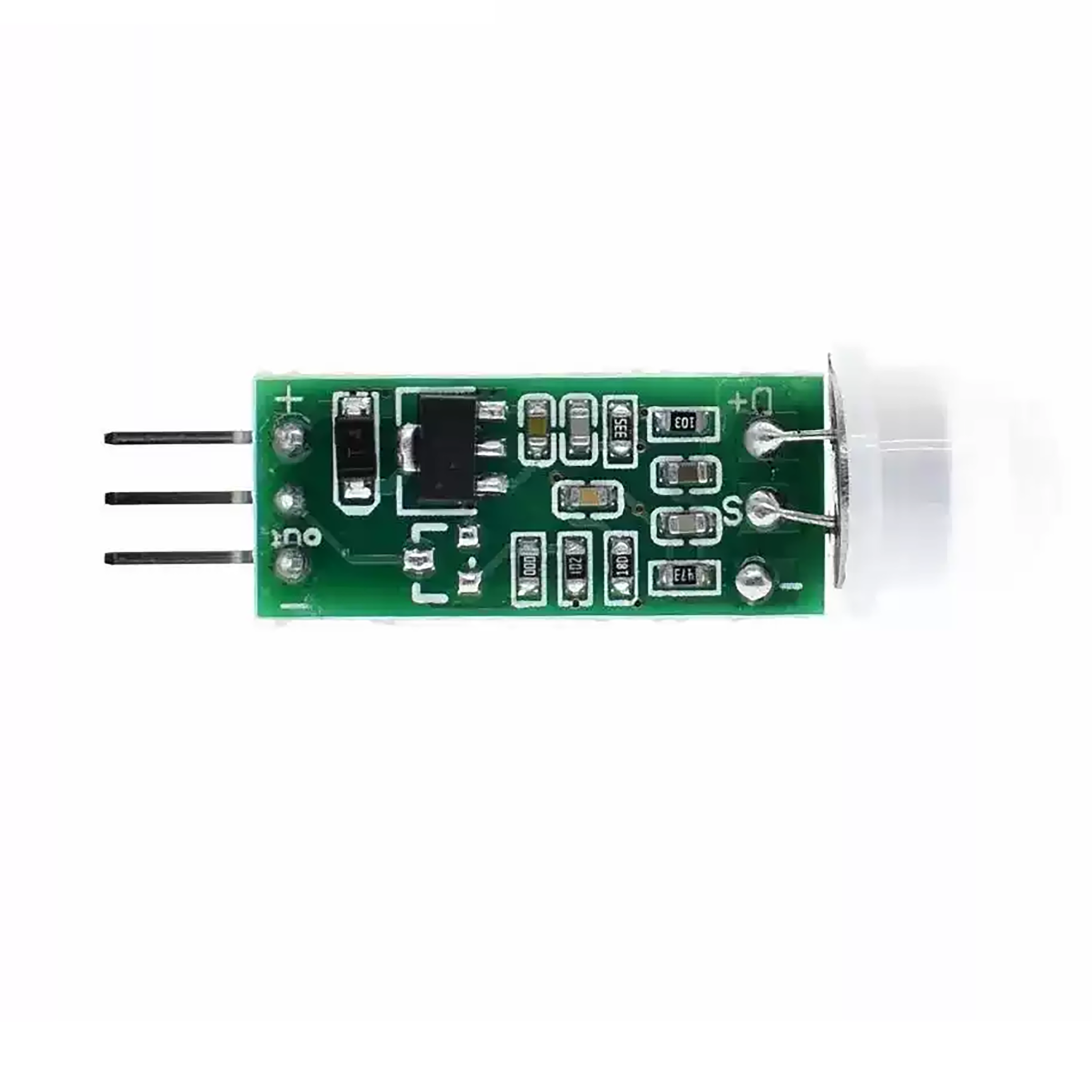

HCSR505 schematic diagram

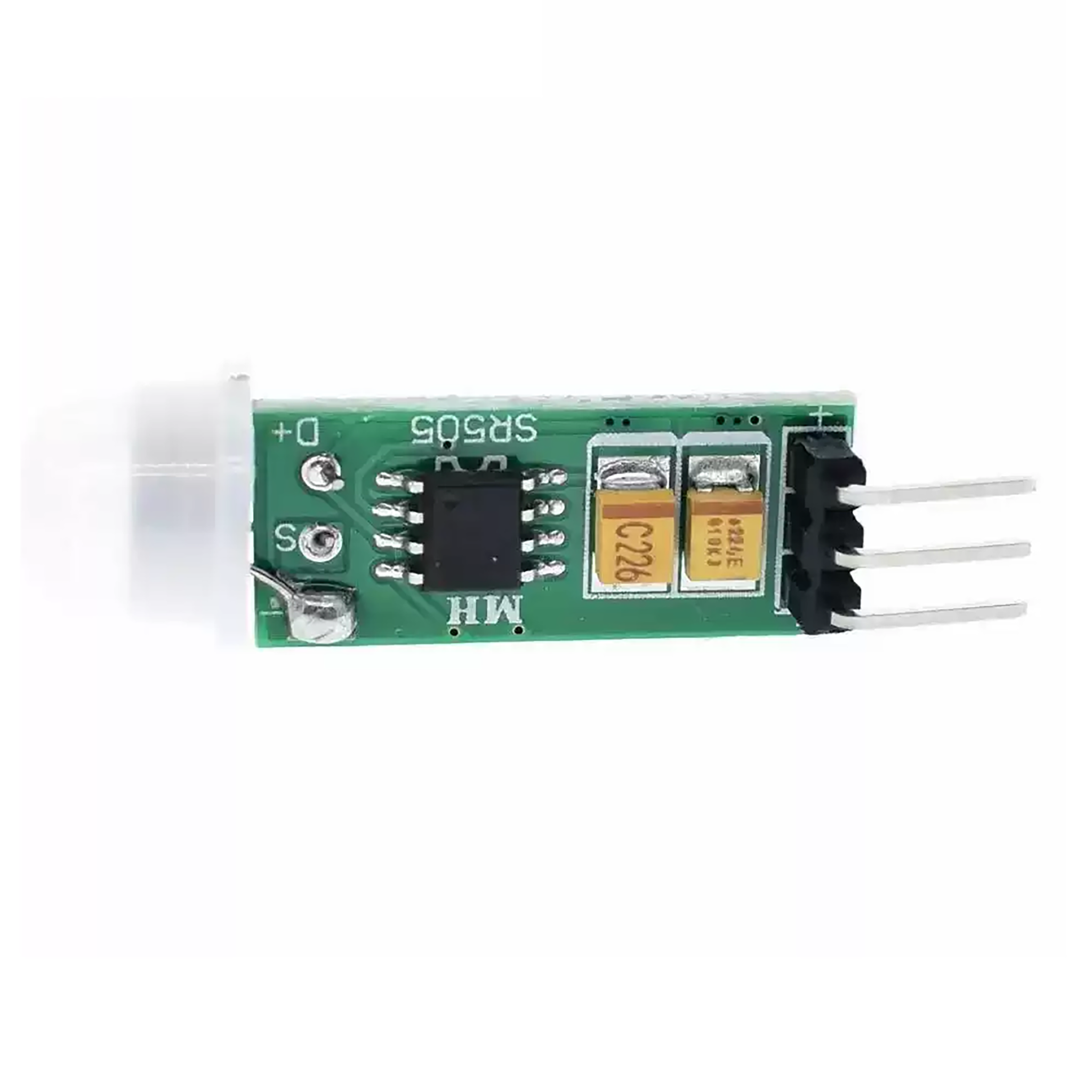

HC-SR505 pin diagram
Usage case diagram
