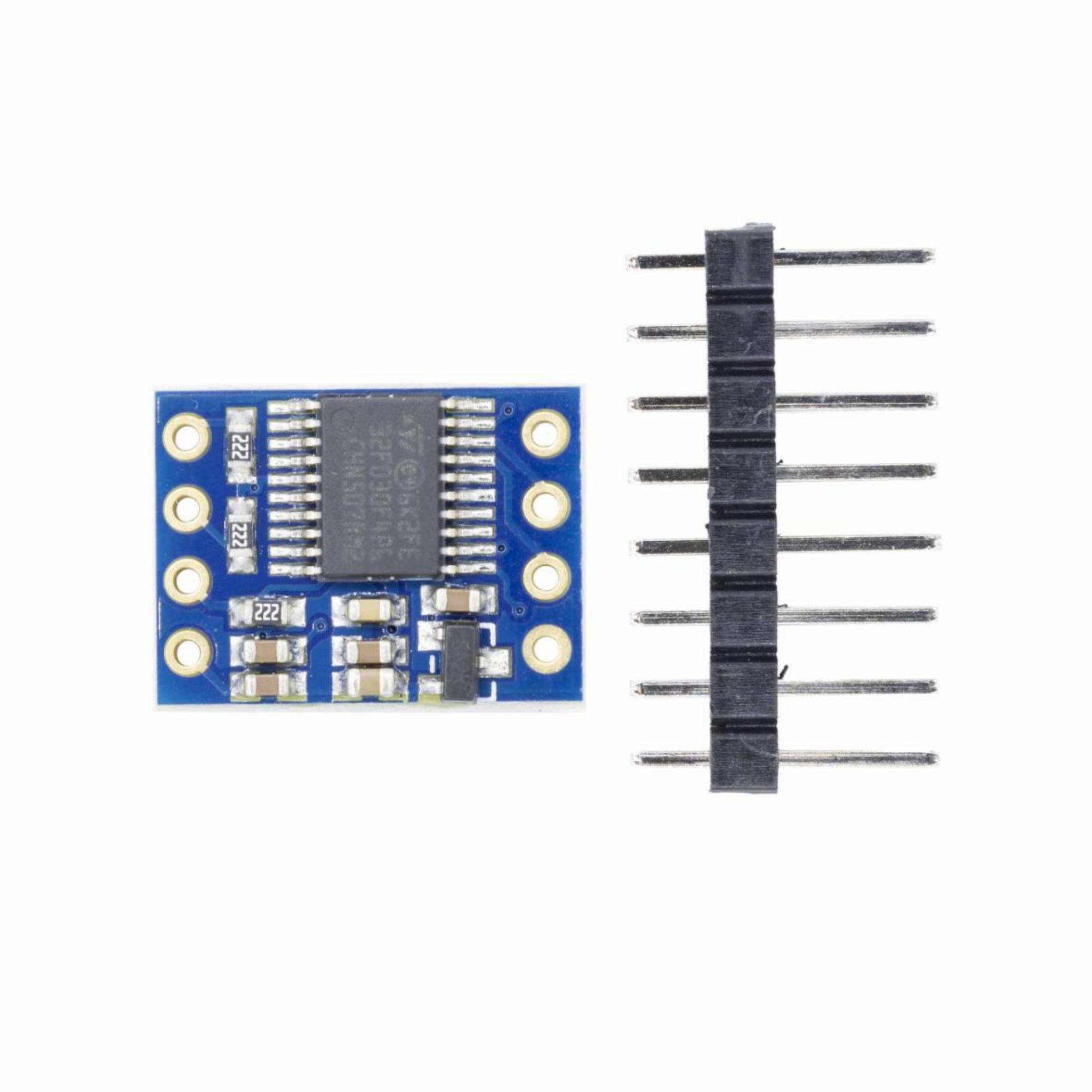

GY-25 Tilt Angle Sensor Module MPU6050 Gyro Acceleration
$11.501pcs
GY-25 has strong anti-interference ability, with negligible temperature drift. It remains stable during long-term operation, no frequent maintenance required.
| Dimensions | 15.5 × 11.5 mm |
|---|---|
| Brand |
easyelecmodule |
3022 in stock
Product Introduction
GY-25 is a low-cost tilt angle module. It has an operating voltage of 3-5 V, low power consumption and small size. GY-25 working principle is that it obtains direct angle data through data fusion algorithms based on gyroscopes and acceleration sensors. The GY-25 tilt module communicates with the host computer in a full-duplex manner with TTL level via serial port. This product features high precision and high stability. It can obtain accurate angles at any position, with output baud rates of 9600bps and 115200bps, and two output modes (continuous output and inquiry output). The GY-25 tilt module can adapt to different working environments. It can be connected to all single-chip microcomputers and computers.
Product Feature
- Small size
- High cost-effectiveness, high stability
- High precision, low power consumption
- Serial port output format
GY-25 Parameter
| Parameter | Details |
|---|---|
| Product Name | Tilt angle module |
| Power Supply | 3V-5V (with internal low dropout regulation) |
| Operating Current | 15mA |
| Measurement Range | -180°~180° |
| Angle Resolution | 0.01° |
| Chip | MCU+MPU6050 |
| Measurement Accuracy | 1° (Inclination) |
| Response Frequency | 100Hz (115200bps) |
| Operating Temperature | -20°C~85°C |
| Storage Temperature | -40°C~125°C |
| Module Size | 15.5mm×11.5mm |
| Pin Pitch | 2.54mm |
| Pitch Angle | ±180°(±90°+±90°) |
| Roll Angle | ±180° |
| Yaw Angle | ±180° |
| Communication Method | Serial Communication (Baud Rate: 9600, 115200), I2C Communication (only read raw data) |

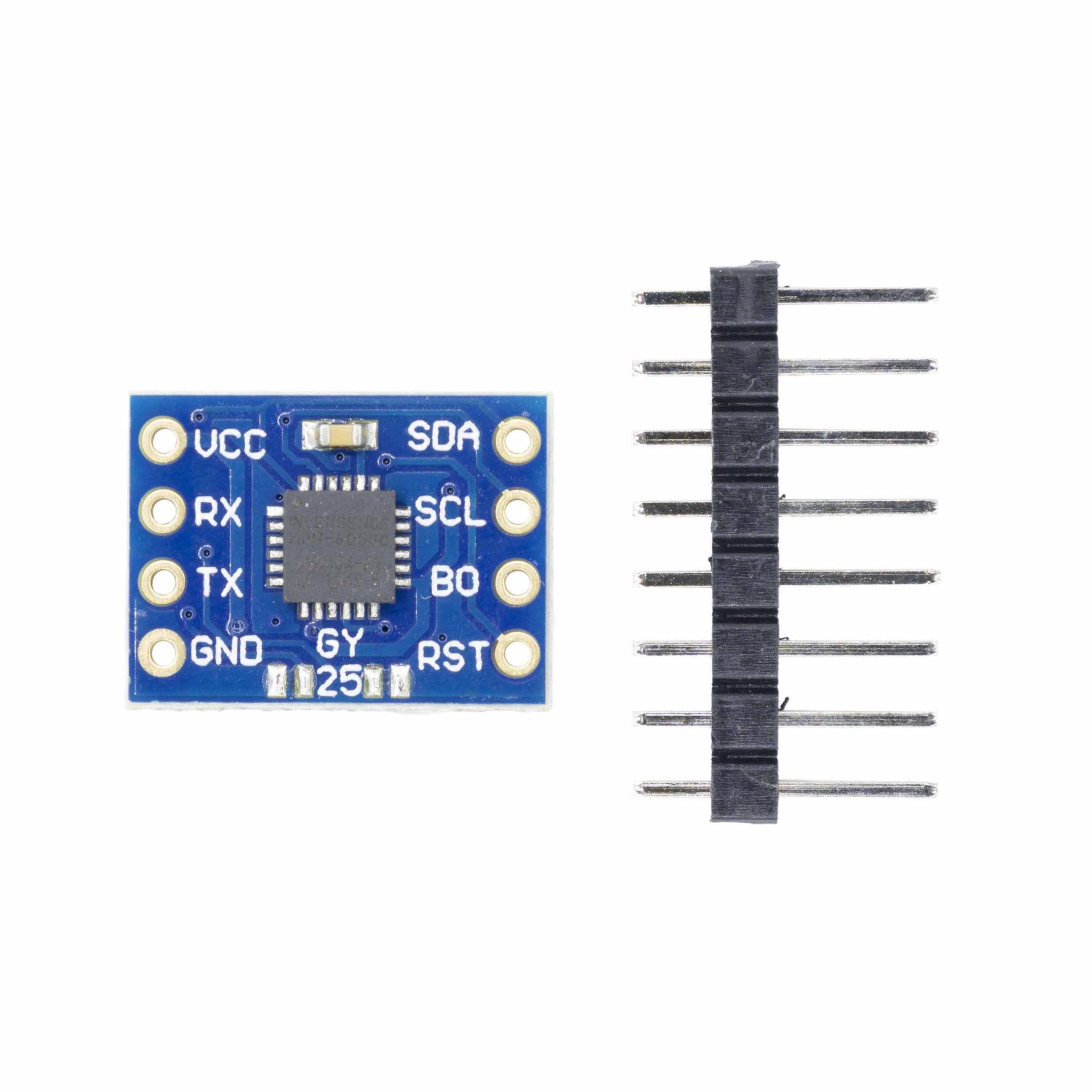

GY-25 Pin Description
| Pin | Definition |
|---|---|
| VCC | Power Supply 3-5V |
| RX | Serial Port Data Reception |
| TX | Serial Port Data Transmission |
| GND | Power Ground |
| RST | For internal use, no connection required (Floating) |
| B0 | For internal use, no connection required (Floating) |
| SCL | I2C Clock |
| SDA | I2C Data |
GY-25 Application
This product is mostly used in handheld instruments and meters, robot navigation, positioning, navigation and aeromodel systems, balance cars, and antenna pitch positioning.
