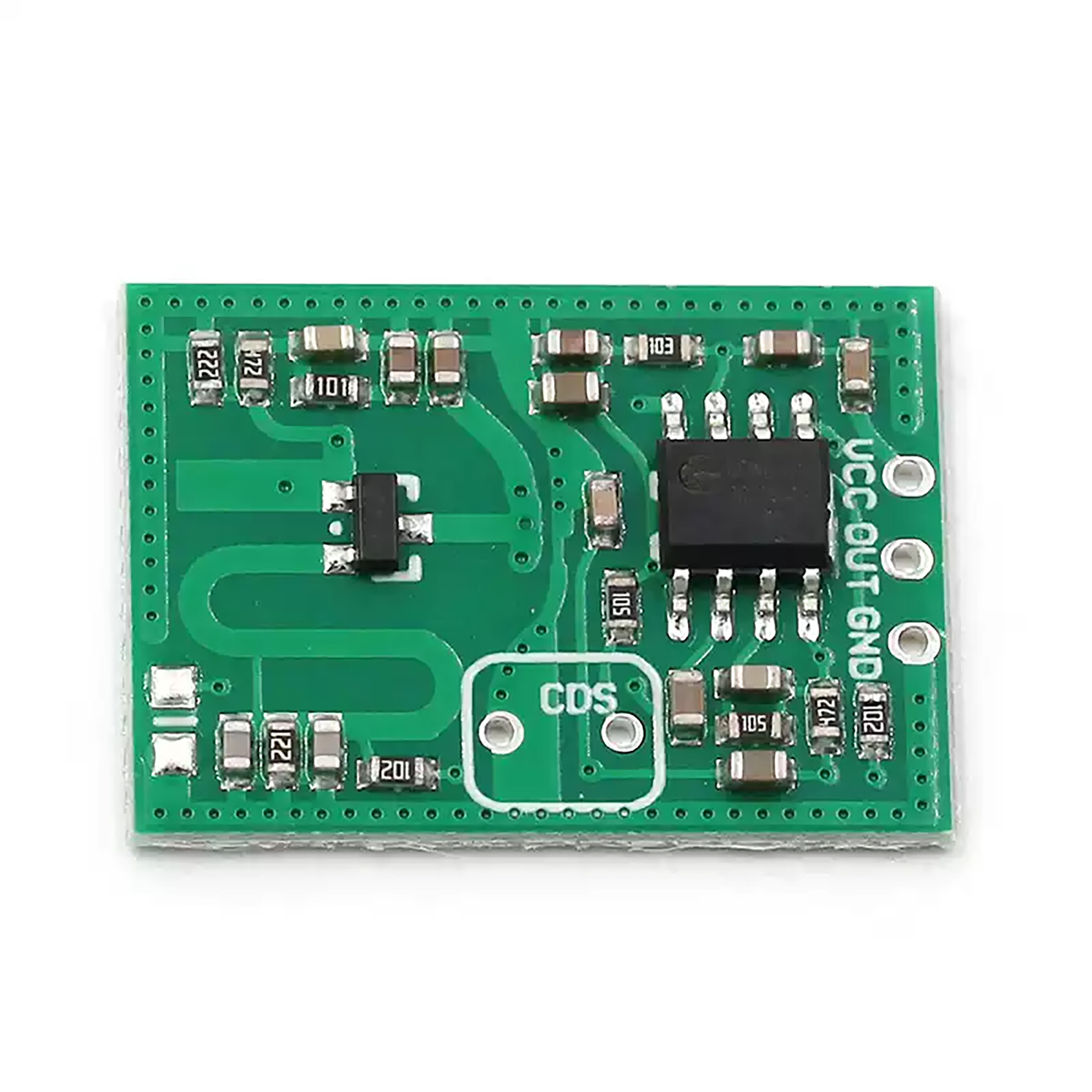

RCWL-0515 Microwave Sensor
$1.201pcs
RCWL-0515 is a microwave sensing module based on Doppler radar technology, featuring a long sensing distance, a wide angle, and penetration detection capability.
| Dimensions | 24 × 17 mm |
|---|---|
| Brand |
easyelecmodule |
3117 in stock
RCWL-0515 Performance parameters
RCWL-0515 is a microwave sensing module based on Doppler radar technology, widely used in the field of intelligent sensing due to its non-contact detection feature. It has a wide operating voltage range of 4 – 18V and a low static power consumption of only 65uA, combining low energy consumption with good adaptability.
The module has a sensing distance of up to 0.5 – 12 meters and a detection angle of approximately 120°. It can penetrate non – metallic obstacles such as glass and wood, with stable recognition ability for moving targets. It supports adjustment of trigger delay (default 2 seconds, modifiable via resistors) and outputs 3.3V high – level digital signals, facilitating connection with microcontrollers and other devices.
Its anti – interference design makes it unaffected by ambient temperature and light. It is suitable for scenarios such as automatic switches for smart lighting, security alarm triggering, and automatic bathroom equipment. With flexible installation methods and strong compatibility, it is an ideal choice for miniaturized sensing solutions. It works at a frequency of about 2.7GHz and adopts the TT1712B processing chip.
Electrical performance of RCWL-0515
| Parameter | Min | Typ | Max |
|---|---|---|---|
| Operating voltage | 4V | – | 28V |
| Operating current | – | 2.8mA | 3mA |
| Microwave sensor range | 5M | 7M | 9M |
| Transmit power | – | 20mW | 30mW |
| Output voltage | 3.2V | 3.2V | 3.4V |
| Output voltage driving capability | – | 100mA | – |
| Trigger mode | Repeat trigger | ||
| Output control low level | – | 0V | – |
| Output control high level | – | 3.2V | – |
| Operating temperature | -20℃ | – | 80℃ |
| Storage temperature | -40℃ | – | 100℃ |
RCWL-0515 Schematic Diagram
RCWL-0515 Pinout
VCC:+5V
OUT:DOUT
GND:GROUND
Application scenarios of RCWL-0515
The RCWL-0515 microwave motion sensor module has a wide range of applications: in homes, it can control smart lighting and sockets to realize automatic on/off; in the security field, it can trigger alarms or link with monitoring systems; in public places, it can manage lighting and ventilation equipment for energy saving; in industrial scenarios, it is used to sense the movement of personnel or equipment and perform linked control; it can also be integrated into toys or small electronic devices to enhance interactivity.
