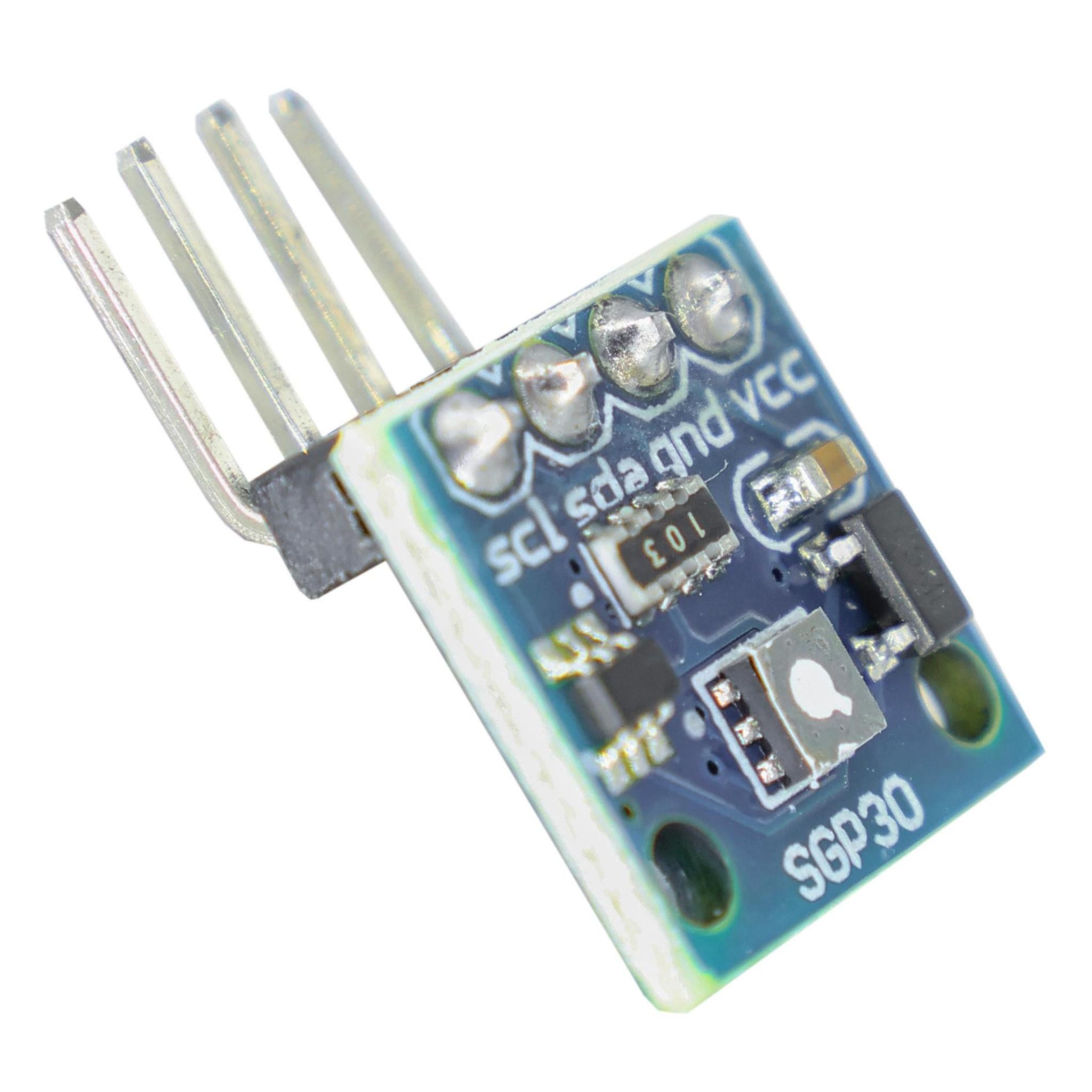

SGP30 Gas Sensor eCO2 and TVOC
$16.601pcs
SGP30 Gas Sensor – Precise eCO₂/TVOC measurement with dual outputs & humidity compensation. Compact, stable, easy-to-use. I²C interface for Arduino, 0-1000ppm range, ideal for smart home & air monitoring.
| Dimensions | 12.0 × 12.0 mm |
|---|---|
| Brand |
easyelecmodule |
2889 in stock
Product Introduction
The SGP30 is a digital multi-pixel gas sensor platform, specifically designed for easy integration into air purifiers, on-demand air quality control systems, and IoT applications. The SGP30 is designed for use in smart home, home appliances, and IoT applications, providing two calibrated air quality signals and humidity compensation functions.
The SGP30 air quality sensor can offer more detailed indices regarding air quality. For pollutants in real-life environments, this sensor has unparalleled reliability, achieving unique long-term stability and low drift.
Product Feature
- Adopt imported high-sensitivity SGP30 formaldehyde sensor.
- Compact and practical design.
- IIC communication interface, can be directly inserted into 51 single-chip microcomputer, STM32 single-chip microcomputer, and Arduino development board.
- On-board logic level conversion chip, the communication voltage can be 1.8V, 3.3V or 5V.
Parameter
Model | SGP30 |
Sensor output | Two 16-bit digital original signals |
Handling output | VOC total quantity(ppb)， CO2 equivalent (ppm) |
Measuring range(TVOC) | 0 – 1000 ppm |
Measuring range(CO2-eq) | 0 – 1000 ppm |
Device-to-device variables(TVOC) | 15~25% |
Device-to-device variables(CO2-eq) | 10~20% |
Power voltage | 1.8V-5V |
Average power current | 49mA |
SGP30 Application
- Air quality detector
- Formaldehyde detector
- Portable gas detector
- Various DIY designs
Shiping List
SGP30 Gas Sensor ×1
