AGS10 Air Quality Gas Detection Sensor Module
$5.001 pcs
High-precision real-time TVOC concentration detection, I2C interface for easy integration, compact surface-mount size, low power consumption, and high compatibility.

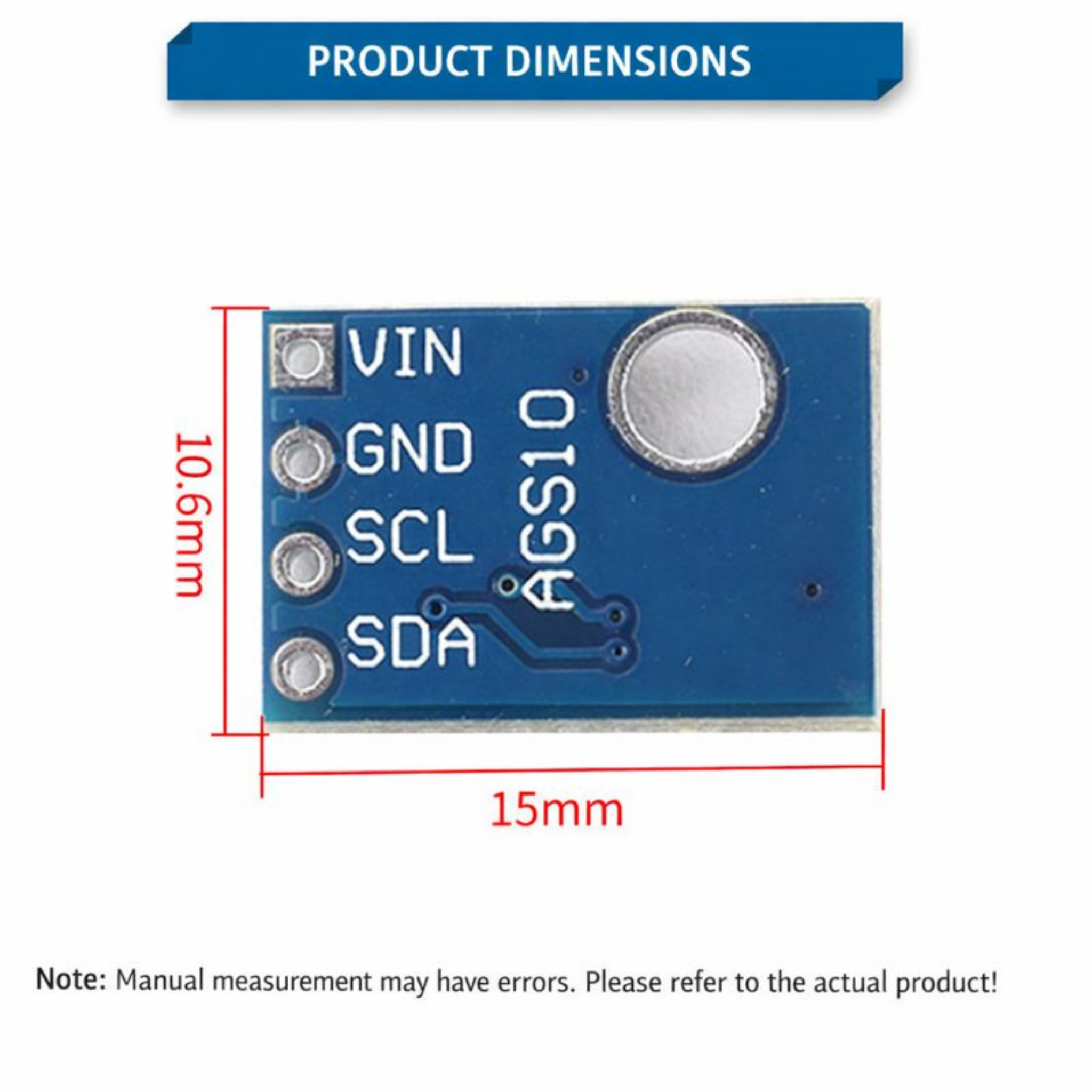

| Dimensions | 15 × 10.6 mm |
|---|---|
| Brand |
easyelecmodule |
4218 in stock
Introduction

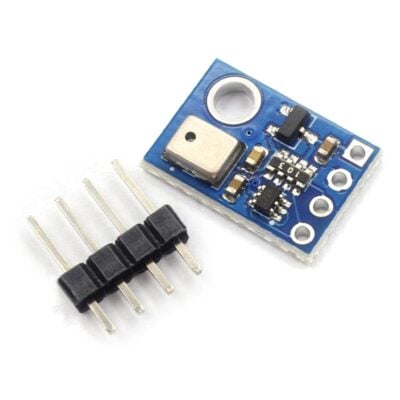

The AGS10 TVOC Air Quality Gas Detection Sensor Module is a high-precision sensor module specifically designed to detect the concentration of Total Volatile Organic Compounds (TVOC) in the air. It adopts advanced semiconductor sensing technology, which can quickly and accurately respond to changes in TVOC levels in the environment. It outputs detection data via an I2C digital interface, making it easy to integrate with various microcontrollers or development boards for real-time air quality monitoring and data analysis. Its compact size and low-power consumption make it ideal for scenarios with strict space and energy requirements.
Core Features
- High-Precision TVOC Detection:The module supports accurate detection of TVOC concentrations with excellent sensitivity and accuracy. It is widely used in indoor air quality monitoring, in-vehicle environment detection, and other scenarios to provide reliable data support for users.
- Standard I2C Communication Protocol:The interface is simple and easy to use, enabling direct and quick connection to common microcontroller development boards (likeArduino, ESP32). This greatly facilitates embedded development and prototype building.
- Compact SMD Design:With a small and lightweight overall structure, the module is highly suitable for integration into embedded systems or various portable projects that have high space requirements, offering strong engineering adaptability.
- Direct Replacement for AGS02MA:It is fully compatible with the AGS02MA sensor in terms of electrical performance and structure. It also provides a more user-friendly experience, significantly reducing replacement and upgrade costs.
AGS10 Module vs Traditional AGS02MA Module Comparison
As an alternative to the AGS02MA, the AGS10 module has significant advantages in terms of interface and integration. The detailed comparison is as follows:
| Function Dimension | AGS10 TVOC Sensor Module | Traditional AGS02MA Module |
|---|---|---|
| Communication Interface Type | I2C digital interface (simple wiring, only SDA/SCL required) | Mostly UART interface (requires additional level matching) |
| Integration Level | SMD module (built-in peripheral circuit, ready to use) | Bare chip (needs self-built driving circuit) |
| Size & Volume | Mini SMD size (fits compact projects) | Larger size (high integration difficulty) |
| Compatibility | Directly compatible with mainstream MCUs (Arduino/ESP32) | Requires additional communication parameter configuration, limited compatibility |
| Usage Threshold | Low (no extra circuit needed, direct wiring) | High (requires circuit design and driver development skills) |
Core Technical Parameters
| Parameter | Specification |
|---|---|
| Operating voltage | 3.0±0.1 V DC |
| Operating current | 28±5 mA |
| Typical power consumption | 75 mW |
| Sampling period | ≥2 s |
| Output mode | I²C slave mode (≤15 kHz) |
| Preheating time | 120 s |
| Working temperature | 0～50 ℃ |
| Working humidity | 0～95%RH |
| Life span | >5 years (@25℃, clean air) |
| Sensor category | Semiconductor sensor |
| Output unit | ppb |
| Measuring range | 0～99999 ppb |
| Typical Accuracy (25℃/50%RH) | 25% reading |
| Standard test gas | Ethanol |
AGS10 module Datasheet
Here we provide the AGS10 datasheet for your reference：
