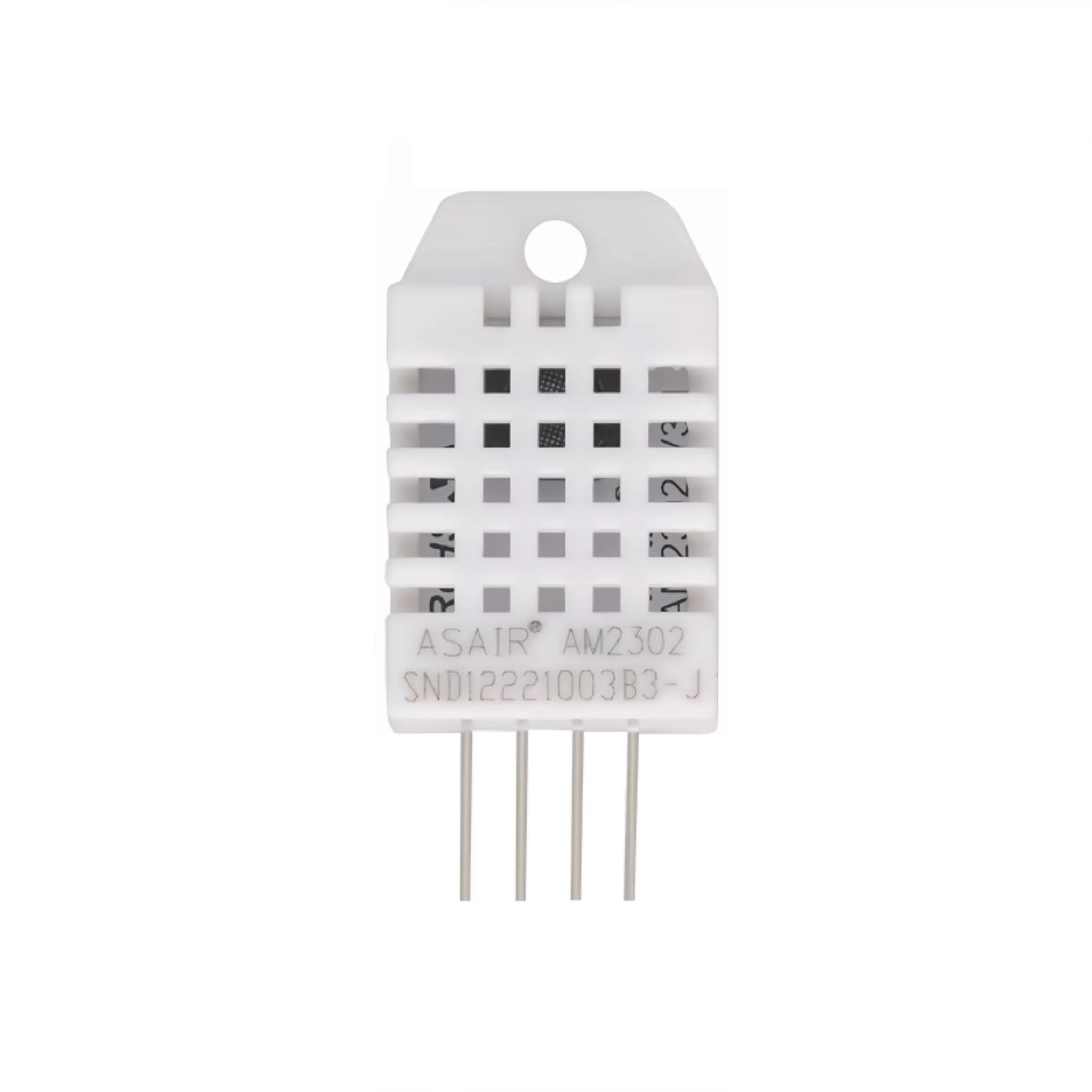

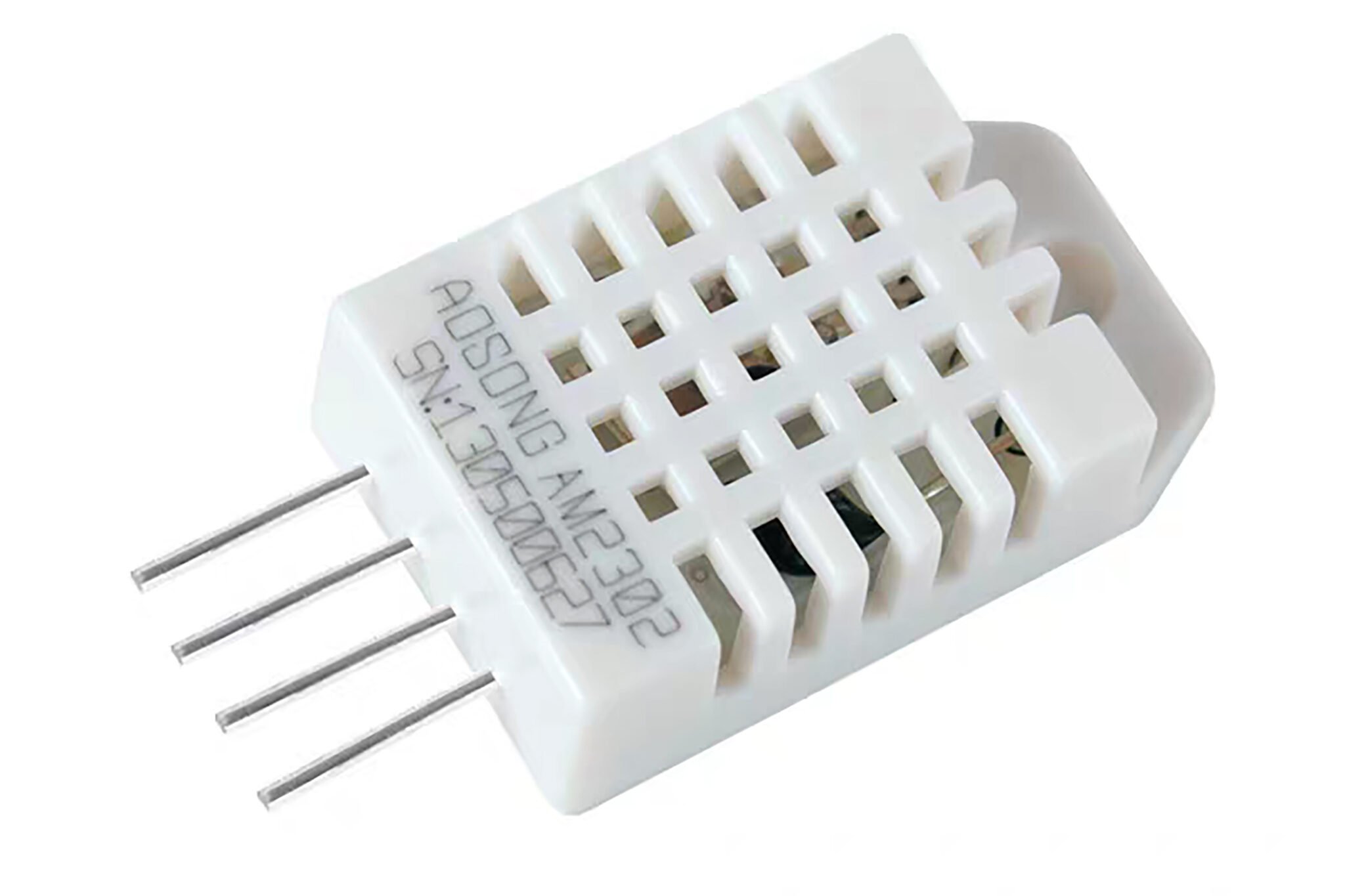

DHT22 temperature and humidity sensor
$1.001pcs
The DHT22 (AM2302) temperature and humidity sensor provides you with industrial-grade high-precision measurements
| Dimensions | 25 × 15 × 7.7 mm |
|---|---|
| Brand |
easyelecmodule |
3583 in stock
Product Description
The DHT22 (AM2302) Temperature and Humidity Sensor is a high-performance digital device that provides calibrated outputs for both temperature and humidity. It integrates a capacitive humidity sensor, a precise NTC temperature element, and an internal 8-bit microcontroller to ensure high accuracy, fast response, and excellent long-term stability. Thanks to its strong anti-interference capability and simple single-wire interface, it is easy to integrate into various systems. With compact size, low power consumption, and a transmission distance exceeding 20 meters, the DHT22 is widely used in environmental monitoring, industrial control, and smart home applications.
Materials
Component | Material & Specifications |
|---|---|
| Sensor Module | ABS material Excellent impact/heat/low-temp/chemical resistance, strong electrical performance, stable dimensions, high surface gloss |
Metal pins | Metal Four-pin single row pin configuration |
Product Features
| Feature | Specification & Technical Details |
|---|---|
| Ultra-high accuracy |

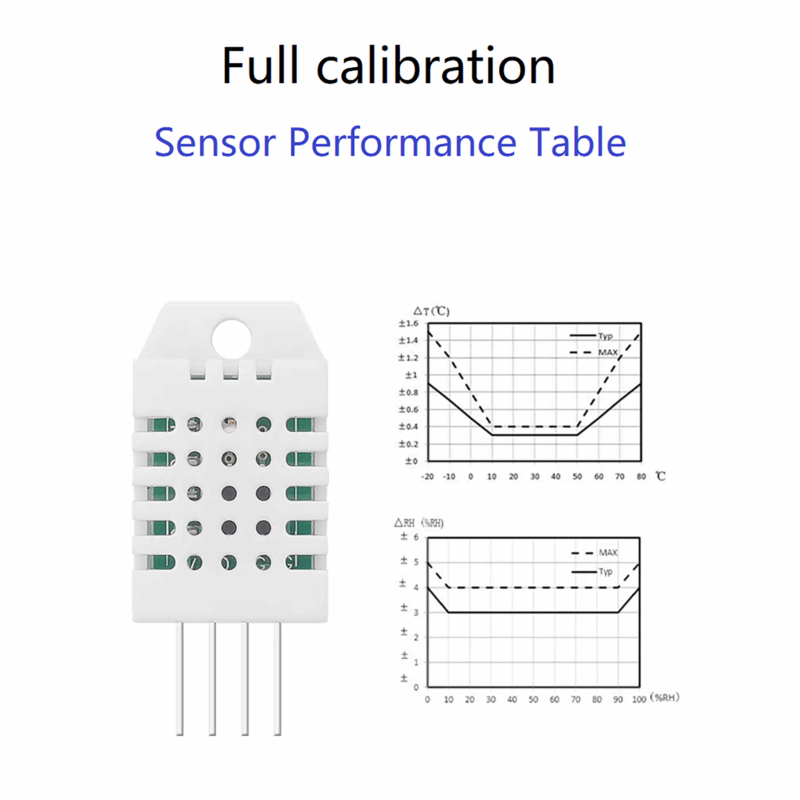

±0.5°C (temp) | ±2% RH (humidity) • Temperature accuracy: ≤0.5°C in 0-60°C range • Humidity accuracy: ±2% at 25°C (max ±5% over full 0-100% RH range) |
| Ultra-low power consumption |
1.5mA (active) | 50μA (standby) • Active current during measurement: 1.5mA (3-5V DC) • Sleep current: 40-50μA (80% lower than DHT11) • Enables multi-year battery operation |
| Ultra-fast response speed |
2s sampling rate | 4s step response • New readings every 2 seconds (refresh rate) • 63% humidity step response in 4 seconds • Temperature response time: 10s (airflow 1m/s) |
| Long transmission distance |
20+ meters • Reliable data transmission at >20m cable length • Robust single-wire digital protocol • Maintains signal integrity with 4.7kΩ pull-up resistor |
| Fully automatic calibration |
Factory laser-trimmed • Precision calibrated during manufacturing • Calibration coefficients stored in OTP memory • No user calibration required throughout lifespan |
| Ultra-high stability |
±0.1°C/yr | ±0.5% RH/yr • Long-term temperature drift: <0.1°C/year • Humidity drift: <0.5% RH/year • Stable performance in -40°C to 80°C range |
Product Parameters
| Parameter | Value |
|---|---|
| Model | DHT11 (AM2302) |
| Supply Voltage | DC:3.3~5.5V |
| Max Operating Current | 2.5mA |
| Temperature Range | -40~+80°C |
| Humidity Range | 0~99.9%RH |
| Accuracy | Temperature: ±0.5°C Humidity: 0.1%RH |
| Sampling Rate | 0.5HZ (Read every two seconds) |
| Resolution | Humidity: 0.1°C Temperature: 0.1%RH |
| Drift Value | Temperature: <0.1°C/year Humidity: <0.5%RH/year |
| Sensor | Capacitive humidity sensor |
| Output Signal | 1-Wire digital signal |
| Housing Material | PC plastic |
Application Areas
Testing and inspection equipment, consumer electronics, automobiles, data loggers, home appliances, humidity regulators, medical, meteorological stations, and various other fields related to temperature and humidity detection.
Pin Description
| Pin | Description |
|---|---|
| Vcc | Connect to 3.3V |
| DATA | Used for communication between sensor and microcontroller (connect to Arduino digital signal interface) |
| NC | Not connected |
| GND | Connect to the ground of Arduino development board |
Related content

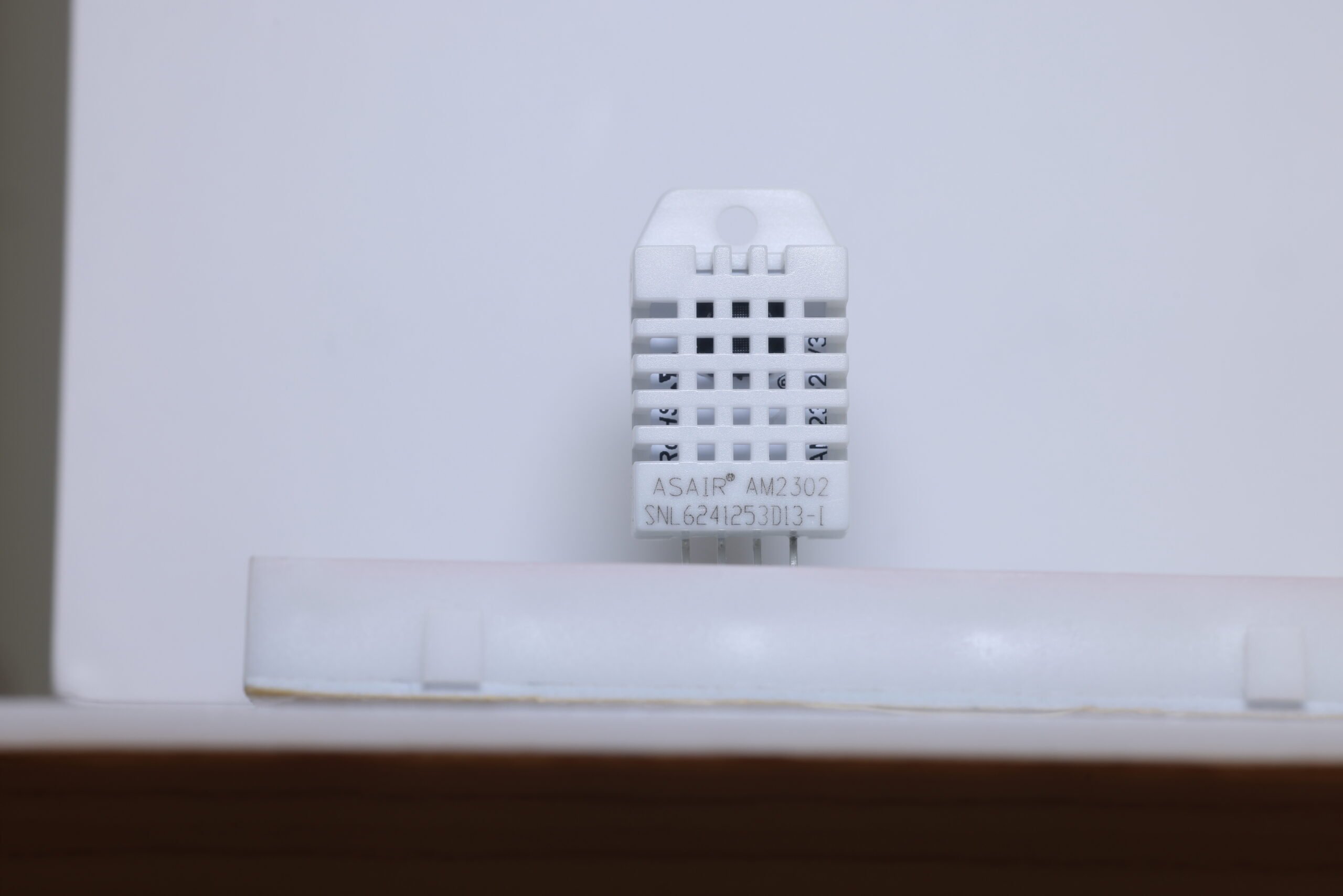

Real shot effect picture display
