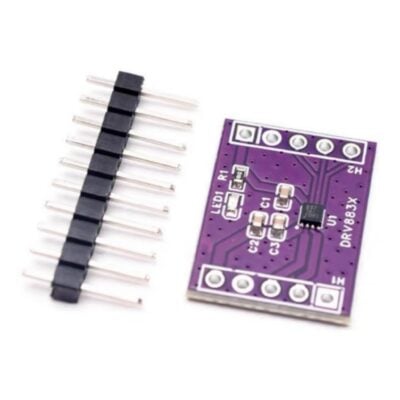

DRV8837 1-Channel H-Bridge Motor Driver Module
$1.921pcs
DRV8837 makes motor driving simple! Small size eases layout, built-in protection and low power save effort. Wide voltage suits varied apps, PWM delivers precise, smooth control. Quick integration, stable performance.
| Dimensions | 20.0 × 15.0 mm |
|---|---|
| Brand |
easyelecmodule |
6412 in stock
Product Introduction
DRV8837 is an integrated motor driver solution designed for applications such as cameras, consumer products, toys, and other low-voltage or battery-powered motion control devices. It features a Sleep pin and comes with a low-power sleep mode.
One Channel DRV8837 Feature
1. Input Voltage : 1.8V ~ 7V
2. Single H-Bridge Output Current: 1.8A
3. Built-in overcurrent protection, short-circuit protection, undervoltage lockout and overheat protection. Equipped with low-power sleep mode.
4. This product can drive DC motor or 4-wire stepper motor below 1.8A.

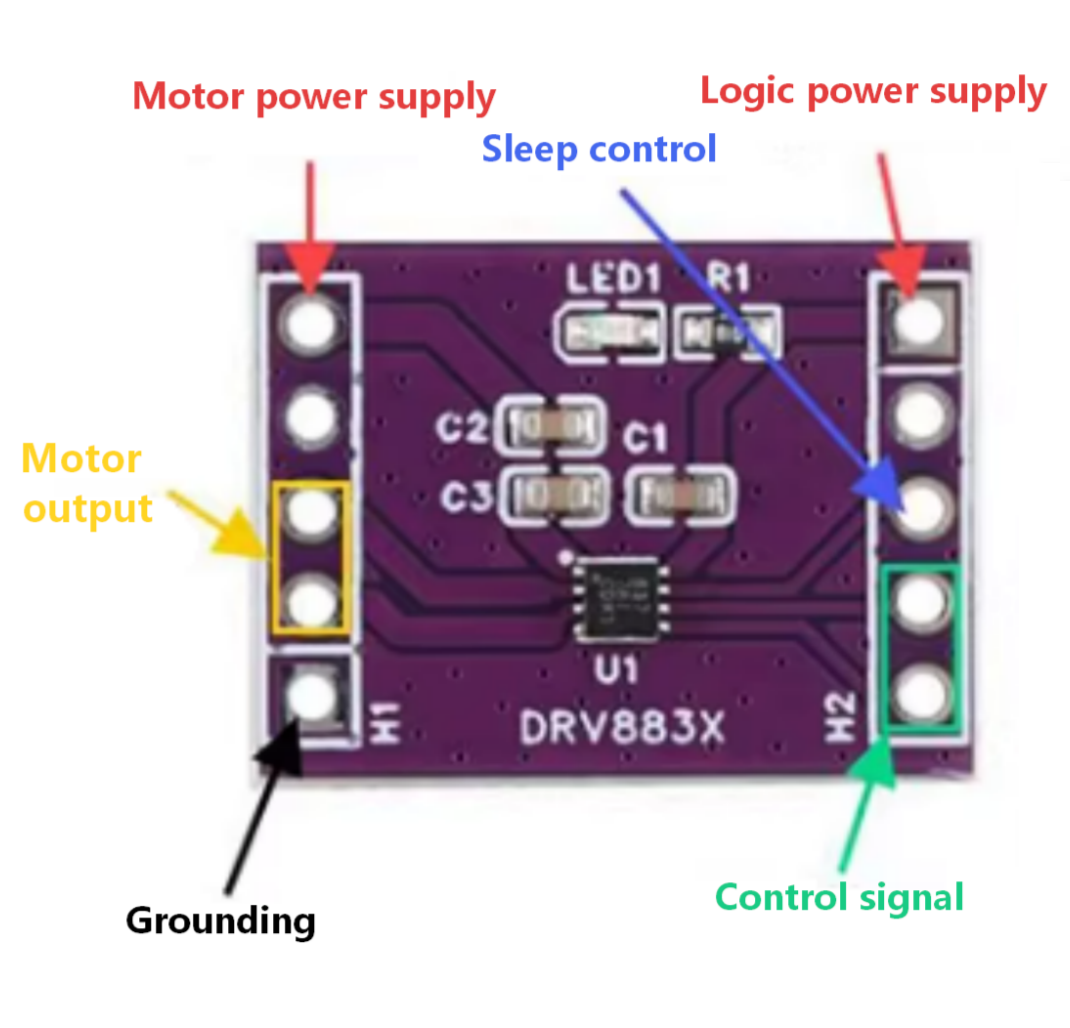

DRV8837 Pinout
1. Please connect the power supply, drive signals and motor circuits as shown in the figure above.
2. Please refer to the logic truth table and descriptions below. The microcontroller can control the motor operation by providing control signals.
3. The onboard LED indicator facilitates observation for users.
Note : Please check the positive and negative poles of the power supply and the voltage value. Incorrect connection will cause permanent damage to the module.

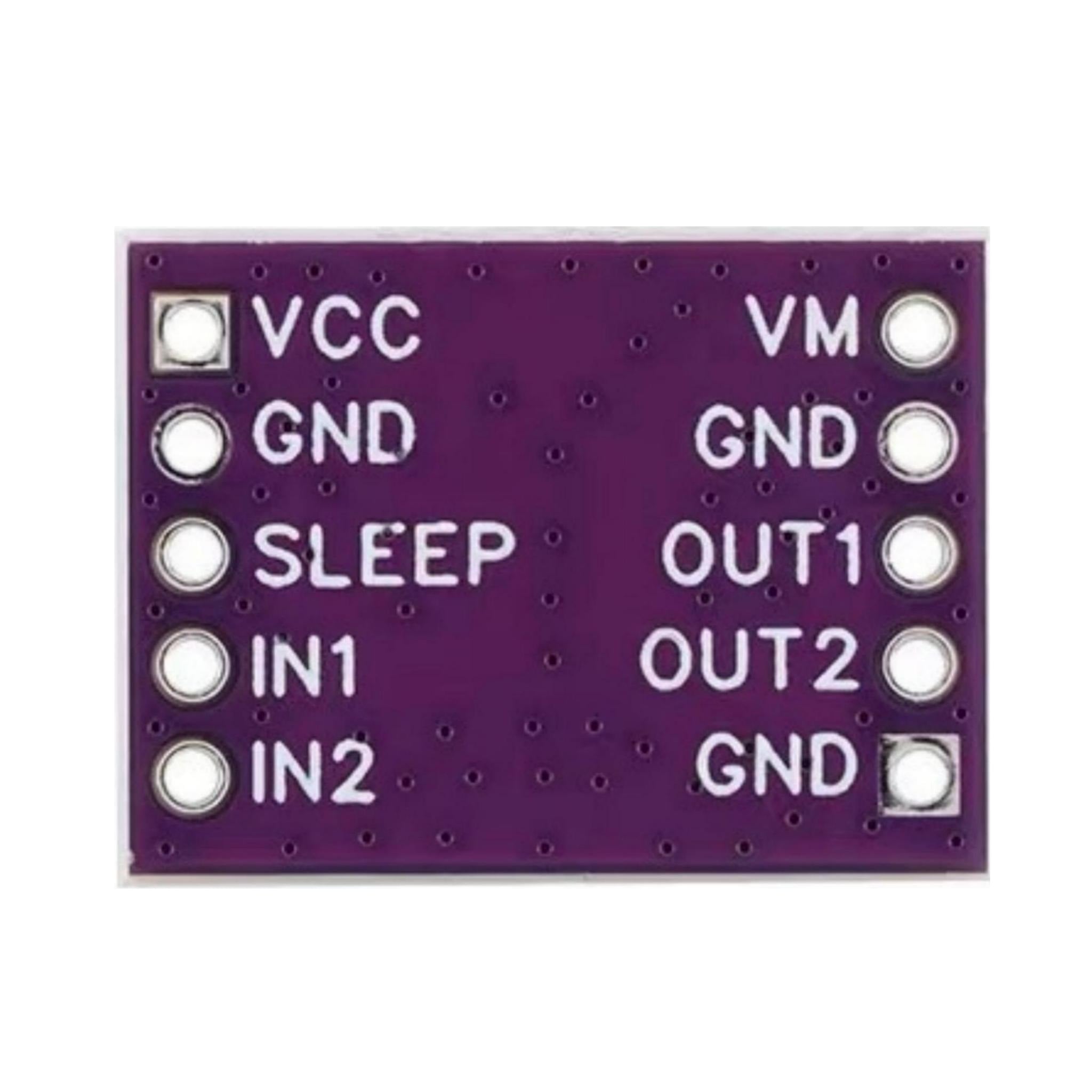

One Channel DRV8837 Pin Description
| Pin | Description |
|---|---|
| IN1 | PWM input 1, voltage range: -0.3 ~ 7 V |
| IN2 | PWM input 2, voltage range: -0.3 ~ 7 V |
| OUT1 | Motor drive output 1, voltage range: -0.3 ~ 7 V |
| OUT2 | Motor drive output 2, voltage range: -0.3 ~ 7 V |
| IN1 and IN2 are the output ports of 1-channel H-bridge, which are connected to the two terminals of a DC motor. | |
| SLEEP | Low level puts the chip into sleep mode, while high level enables normal operation. An internal pull-down resistor to GND is integrated, voltage range: -0.5 ~ 7 V. |
| VCC | Chip power supply pin, voltage range: 1.8 ~ 7 V |
| GND | Grounding |
| VM | Motor power supply pin, voltage range: 1.8 ~ 11 V |
