LCD1602A_IIC
$1.691pcs
The module is based on the PCF8574, which enables most MCUs to achieve remote I/O expansion via a bidirectional I2C bus.
| Dimensions | 42 × 19 × 15 mm |
|---|---|
| Brand |
easyelecmodule |
5363 in stock

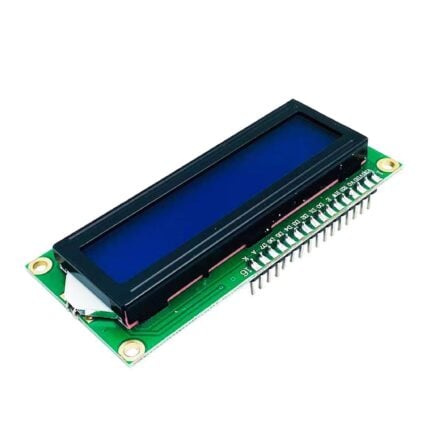

LCD 1602A to I2C Module
The module is based on the PCF8574, which enables most MCUs to achieve remote I/O expansion via a bidirectional I2C bus. This device contains an 8-bit quasi-bidirectional port and an I2C bus interface. The PCF8574 features low current consumption, and its latched port outputs have high-current drive capability, allowing them to directly drive LEDs.
It also includes an interrupt line (INT, open-drain output) that can be connected to the MCU’s interrupt logic. By sending an interrupt signal via the INT pin, the remote I/O ports can notify the MCU if there is data input, all without needing to communicate via the I2C bus.

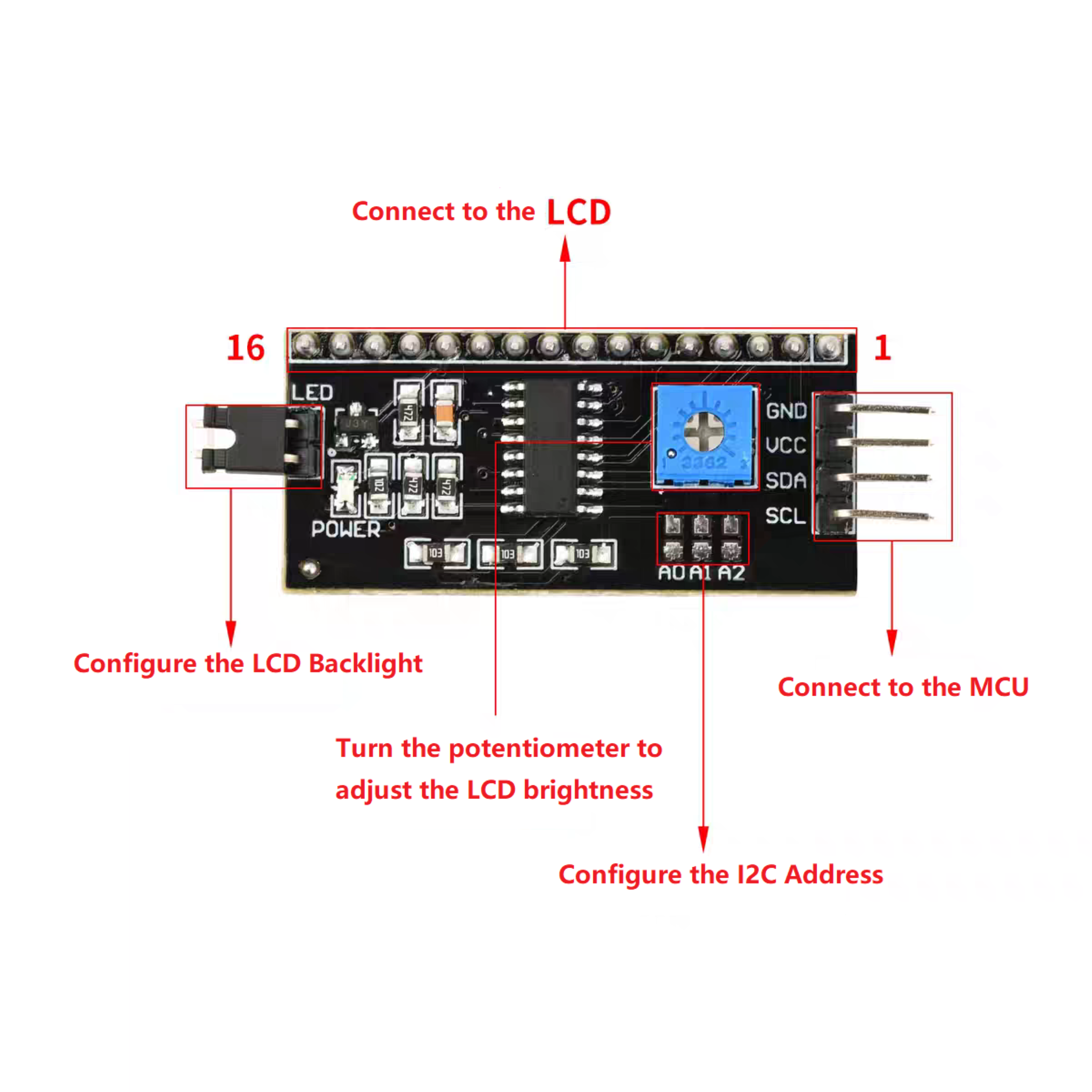

- Shorting Cap: Backlight can be enabled by this cap, unplug this cap to disable the backlight.
- Potentiometer: It is used to adjust the contrast (the clarity of the displayed text), which is increased in the clockwise direction.
- Pads: The default address is basically 0x27, in a few cases, it may be 0x3F. Taking the default address of 0x27 as an example, the device address can be modified by shorting the A0/A1/A2 pads; in the default state, A0/A1/A2 is 1, and if the pad is shorted, A0/A1/A2 is 0.
Shorting Cap: Backlight can be enabled by this cap，unplugg this cap to disable the backlight.
Potentiometer: It is used to adjust the contrast (the clarity of the displayed text), which is increased in the clockwise
Configure the I2C Address：The default address is basically 0x27, in a few cases it may be 0x3F.Taking the default address of 0x27 as an example, the device address can be modified by shorting the A0/A1/A2 pads; in the default state, A0/A1/A2 is 1, and if the pad is shorted, A0/A1/A2 is 0.
| IIC MODULE PINS | FUNCTION DESCRIPTION | CONNECT TO ARDUINO UNO | REMARKS |
|---|---|---|---|
| VCC | Power Positive | 5V | Power Supply 5V (Some modules are also compatible with 3.3V) |
| GND | Power Ground | GND | Common Ground |
| SDA | I²C Data Line | A4 | SDA of UNO |
| SCL | I²C Clock Line | A5 | SCL of UNO |
| (Backlight Pad) | Control Backlight | Module’s Own Jumper | Short Circuit = Backlight Always On, Disconnect = Backlight Controllable |
| (Blue Potentiometer) | Contrast Adjustment | Built-in Adjustment | Rotate Clockwise/Counterclockwise to Adjust Display Contrast |
