TXS0108E 8-Bit Bidirectional Voltage Translator
$1.381pcs
The TXS0108E 8-bit bidirectional voltage translator is designed for level shifting between different logic voltages in digital systems. It supports bidirectional data transfer across multiple channels and is suitable for interfacing low-voltage and higher-voltage devices in embedded and communication applications.
| Dimensions | 26.3 × 15.8 mm |
|---|---|
| Brand |
easyelecmodule |
3776 in stock
TXS0108E 8-Bit Bidirectional Voltage Translator
The TXS0108E is an advanced 8-bit bidirectional voltage-level translator designed to solve communication problems between devices operating in different voltage domains. Its core feature is automatic direction sensing; it requires no additional direction control pin, as the data lines can automatically determine and facilitate bidirectional data transmission based on the input signals on either side, greatly simplifying system design. It supports any voltage translation combination from 1.2V to 3.6V (e.g., 1.8V ↔ 3.3V) and features a unique built-in edge accelerator that effectively mitigates signal slowdown (slower rise/fall times) caused by level shifting. This ensures high-speed data transmission in both open-drain and push-pull output modes, making it ideally suited for bidirectional bus applications such as I²C, UART, and SPI.
Main applications:
– Communication compatibility between 5V microcontrollers and 3.3V modules
– Communication compatibility between 3.3V microcontrollers and 5V modules
– Level conversion for communication between microcontrollers and SD cards
– Level conversion for microcontrollers and I2C, SPI, UART devices
Features of TXS0108E 8-Bit Bidirectional Voltage Translator

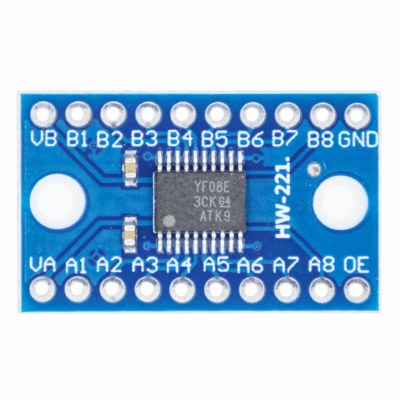

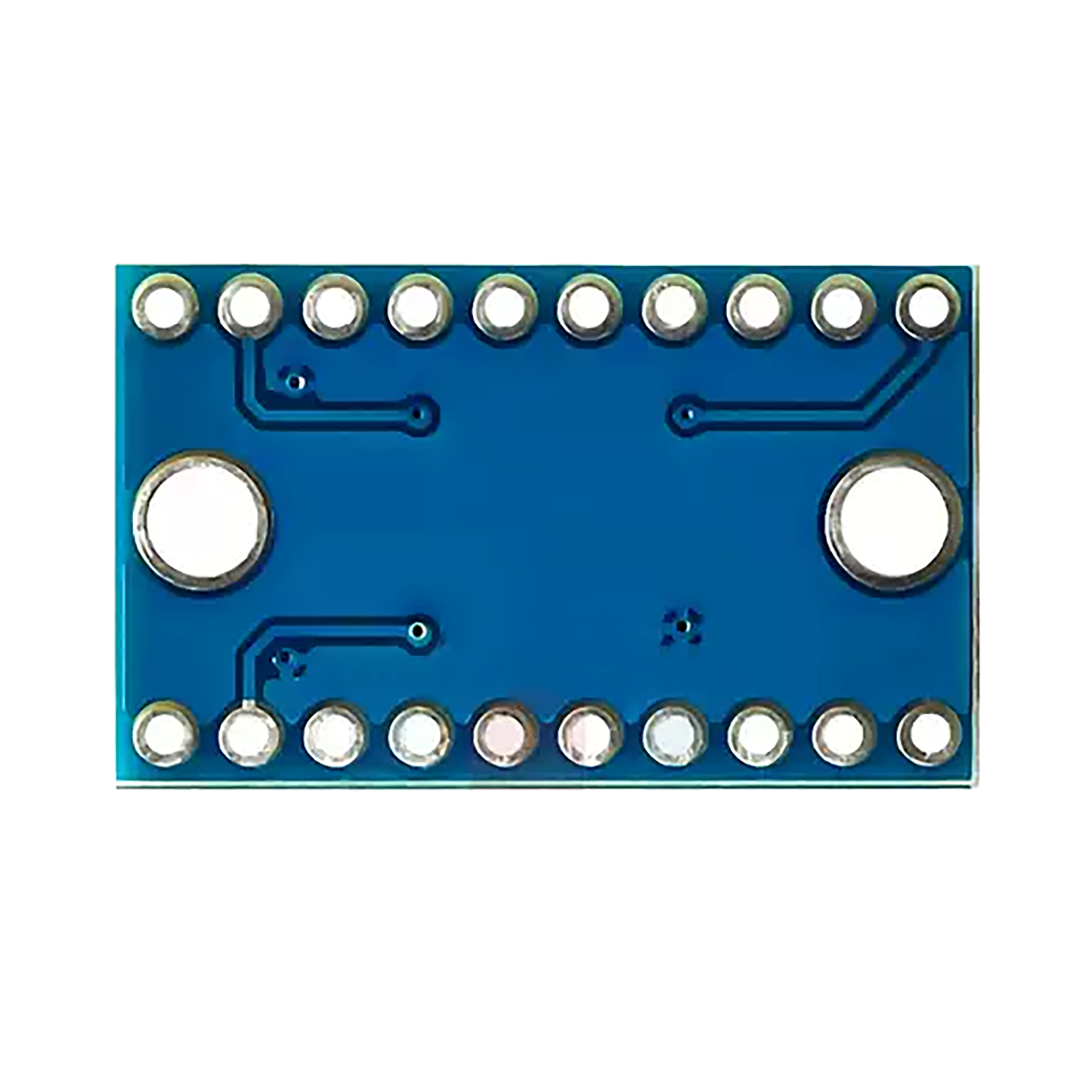

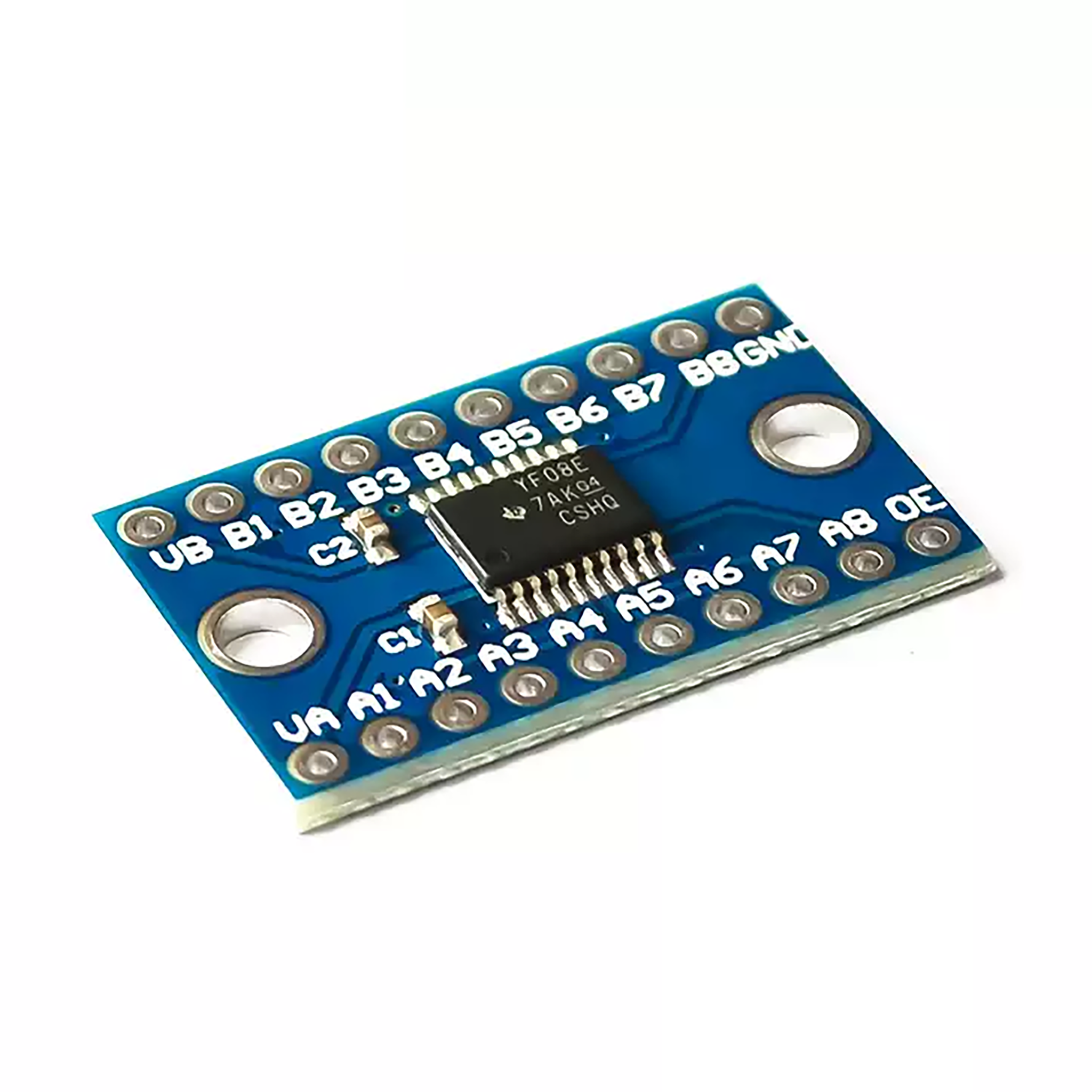

TXS0108E High-Speed Full-Duplex 8-Channel Level Conversion Module
8-bit Bidirectional Voltage Translator Module
Chip used in the module: TXS0108E
High-speed full-duplex 8-channel level conversion module
Provides bidirectional communication capability
- VCCA pin supports voltage range: 1.2V-3.6V
- VCCB pin supports voltage range: 1.65V-5.5V
It can provide common level conversion capabilities such as 3.3V-5V and 1.8V-3.3V.
The OE enable IO is active high, and it is recommended to connect it to the IO port of the low-voltage side.
