2-Channel Level Conversion Module
$0.861pcs
The 2-channel level conversion module enables safe and reliable voltage level translation between different logic systems. It is suitable for interfacing components operating at different voltage levels in embedded and digital control applications.
| Dimensions | 16.2 × 11.2 mm |
|---|---|
| Brand |
easyelecmodule |
3112 in stock
Product Introduction of 2-Channel Level Conversion Module
Some microcontroller development boards and devices operate at 3.3V, while others—including certain microcontroller development boards, devices, and sensors—use a 5.0V power supply. This creates a voltage mismatch when these components need to communicate, causing inconvenience for users. This product is specifically designed to address and solve this issue. It enables compatibility between 3.3V and 5.0V devices, acting as a bridging component for their communication. Additionally, it is available in 2-channel, providing users with multiple options for different complexity requirements.
Except for the difference in the types of bits, the other functions and performance standards of the above-mentioned level converters are identical.
Features of 2-Channel Level Conversion Module

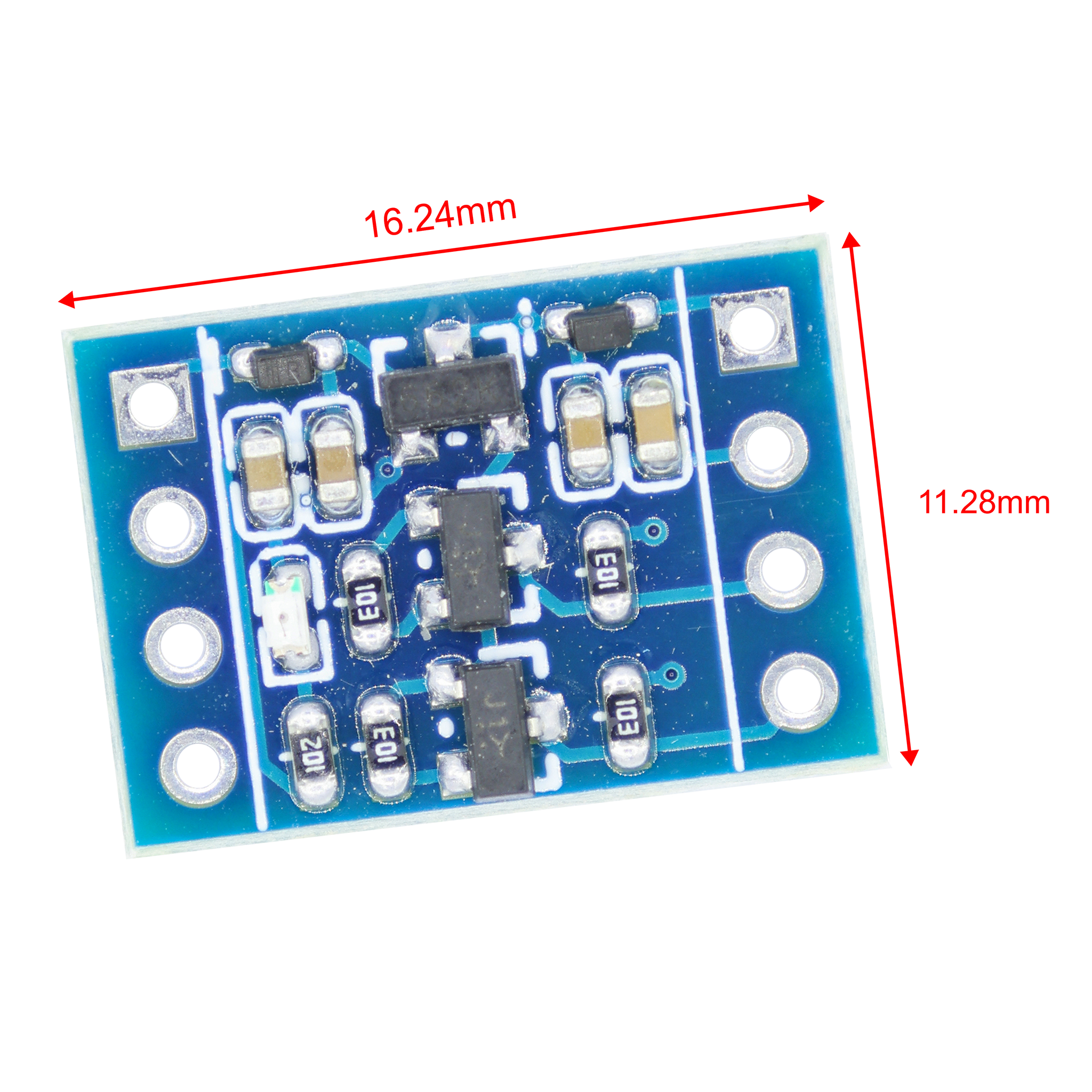

2-Channel Level Conversion Module Size:
2-Channel Level Conversion Module User Manual
(Taking 3.3V and 5V mutual conversion as an example)
- VCCA connects to the 3.3V power supply of the 4-channel level shifter module;
- VCCB connects to a 5V power supply (which can be an external 5V power supply);
- GND connects to the negative terminal of the power supply (shared by both power supplies);
- When 3.3V TTL levels are input to Ax (of the 4-channel level shifter module), Bx will output 5V TTL levels for the sensor module;
- When 5V TTL levels are input to Bx (from the 5V electronic module), Ax will output 3.3V TTL levels (for the 2/4/8-channel level shifter module).
- Conversion Level Range: 1.8V ~ 6V
