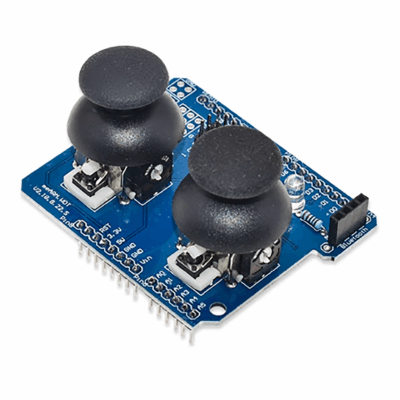

PS2 Dual-Axis Joystick Module(Arduino)
$3.991pcs
The PS2 dual-axis joystick module for Arduino provides two-axis analog control with an integrated push button. It is suitable for robotics, game control, and embedded projects requiring intuitive directional input.

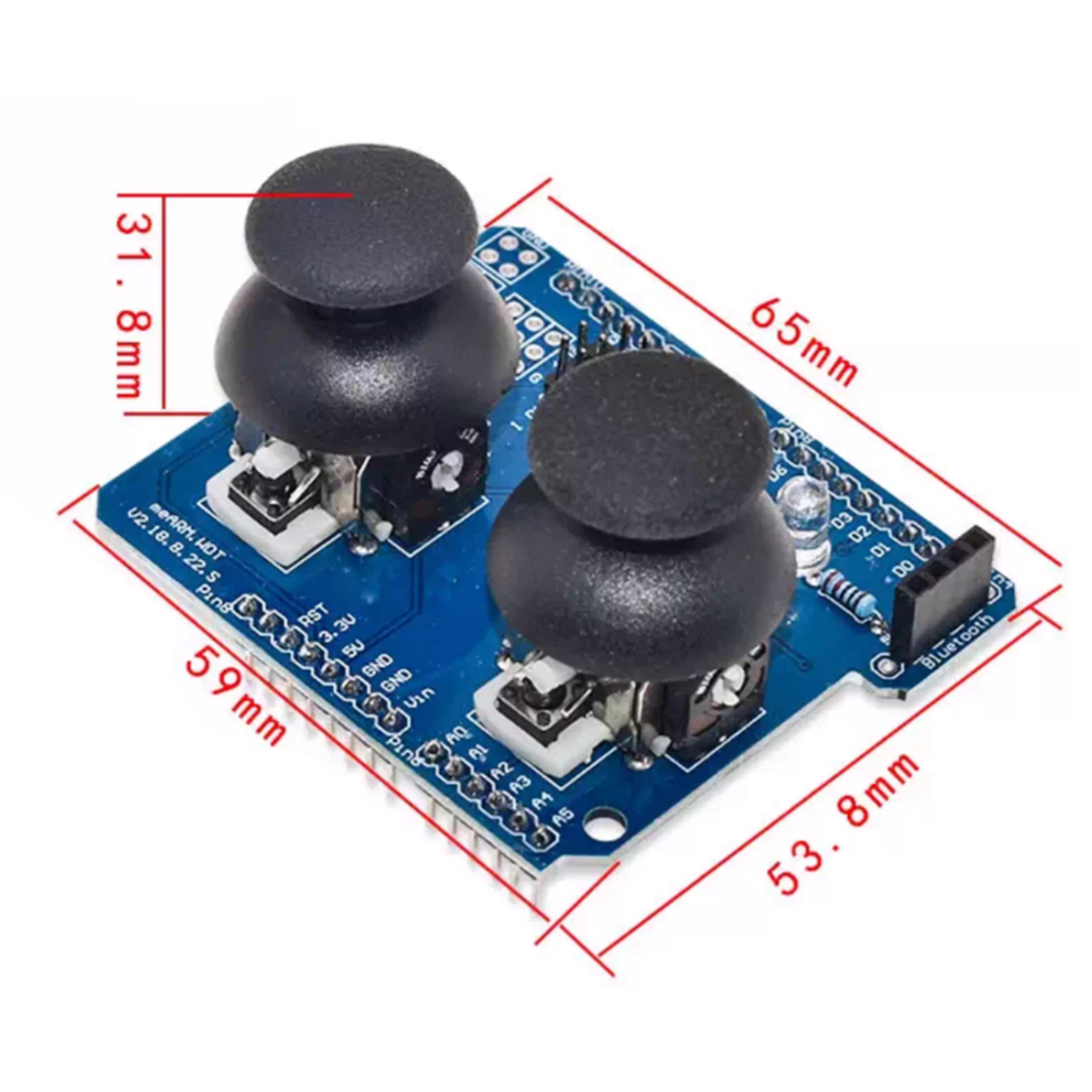

| Dimensions | 65 × 53.8 mm |
|---|---|
| Brand |
easyelecmodule |
3793 in stock
Dual-channel version
The PS2 dual-axis button game joystick module adopts high-quality metal button joystick potentiometers from PS2 game controllers. The module is specially designed with two analog output interfaces and one digital output interface. The output values correspond to the (X, Y) dual-axis offsets respectively, and the type is an analog quantity. The digital switch quantity indicates whether the user has pressed on the Z-axis. The module integrates a power indicator light to display the working status. The coordinate indicators are clear and concise, accurately positioning. It can be used to easily control objects (such as two-degree-of-freedom servo pan-tilt) to move in a two-dimensional space. Therefore, through controller programming and sensor expansion board insertion, creative remote interactive works can be completed.
Product Features
- Input Voltage Range: DC 3.3V to 5V.
- Output Signal: The module is specially designed with two analog output interfaces and one digital output interface. The output values correspond to the (Z, Y) dual-axis offsets, and their types are analog quantities. The button indicates whether the user has pressed on the Z-axis, and its type is a digital switch quantity.
- It can be programmed through an Arduino controller and connected with a sensor expansion board to complete creative remote interactive works.
- The joystick is a two-way 10K resistor. As the direction of the joystick changes, the resistance value of the tap changes accordingly. This module is powered by 5V. In the original state, the readout voltages of X and Y are approximately 2.5V. When pressed in the direction of the arrow, the readout voltage value increases, reaching a maximum of 5V; when pressed in the opposite direction of the arrow, the readout voltage value decreases, reaching a minimum of 0V.
