PS2 Dual-Axis Joystick Module
Price range: $1.20 through $3.991pcs
| Dimensions | N/A |
|---|---|
| Brand |
easyelecmodule |
Product Intruduction

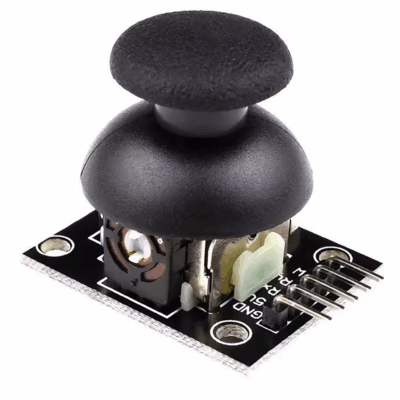

The PS2 dual-axis button game joystick module adopts the metal button joystick potentiometer module on the PS2 game controller, specially designed with two analog output interfaces and one digital output interface. The output values correspond to the (X, Y) dual-axis offsets, which are analog quantities, and the button indicates whether the user has pressed on the z-axis, which is a digital switch quantity. The module integrates a power indicator light that can display the working status. The coordinate identifiers are clear and concise, accurately positioning.
It can easy for you to control objects (such as two-degree-of-freedom servo gimbal) to move in a two-dimensional space. Therefore, it can be used for controller programming and sensor expansion board insertion to complete creative remote interactive works.
Product Features
The dual-axis button joystick sensor module is made with PS2 joystick potentiometers and features (X, Y) 2-axis analog output and (Z) 1-channel button digital output. It can be used to create remote controls and other interactive projects when paired with an Arduino sensor expansion board. Additionally, to make it more convenient for customers to connect with standard interfaces such as Arduino expansion boards, the circuits for the X, Y, and Z axes are separately led out in the design. Users can directly plug in 3-pin Arduino dedicated wires to the expansion board for use.
1. Long service life and stable performance
2. Two analog outputs and one digital output
3. The X and Y axes are output by two potentiometers, and the twisting angle can be read through AD conversion
4. Pressing the joystick down activates a momentary switch, which is a digital output and has been pulled up
5. Suitable for two-degree-of-freedom servo pan-tilt control or other remote control proportional control
Product Name: Joystick Module (Dual-axis Button Joystick)
Product Size: 34.0mm x 26.0mm x 32.0mm (Length * Width * Height)
Color: Black
Product Performance
1. Input Voltage Range: DC 5V
2. Output Signal:The module is specially designed with two analog output interfaces and one digital output interface. The output values correspond to the (X, Y) dual-axis offsets, and their type is analog quantity. The button indicates whether the user has pressed on the Z-axis, and its type is a digital switch quantity.
3. It can be programmed through an Arduino controller and sensor expansion board to complete creative remote control interactive works.
4. The cross joystick is a bidirectional 10K resistor. As the direction of the joystick changes, the resistance value of the tap changes. This module is powered by 5V. In the original state, the readout voltage of X and Y is about 2.5V. When pressed in the direction of the arrow, the readout voltage increases to a maximum of 5V. When pressed in the opposite direction of the arrow, the readout voltage decreases to a minimum of 0V.
Working Principle
Before introducing how to use it, let’s first take a look at its working principle. This will be very helpful for our use of it. Below is a functional schematic diagram.
In fact, this module is just a potentiometer. The data output of the X and Y dimensions is the voltage value read from the analog port. The data output of the Z dimension is not shown in this diagram. The Z dimension only outputs 0 and 1, which can be achieved through a button. In a nutshell, it is a combination of a potentiometer and a button. When using it in Arduino, we connect the X and Y dimensions to two analog ports to read their values, and the Z dimension to a digital port, and then connect the power supply and ground.
Pinout
GND: Ground
+5V: Connect to a 5V voltage power supply
VRx: Output analog signal for X-axis, connect to an analog pin
VRy: Output analog signal for Y-axis, connect to an analog pin
SW: Output pin for key signal, outputs digital signal, connect to a digital pin
9PIN version
The PS2 dual-axis button game joystick module adopts the original high-quality metal button joystick potentiometer from the PS2 game controller. The module is specially designed with two analog output interfaces and one digital output interface. The output values correspond to the (X, Y) dual-axis offsets, which are analog quantities. The button indicates whether the user has pressed on the Z-axis, which is a digital switch quantity.The module integrates a power indicator light to display the working status. The coordinate identifiers are clear and concise, accurately positioning. With it, you can easily control objects (such as a two-degree-of-freedom servo pan-tilt) to move in a two-dimensional space. Therefore, it can be programmed through the Arduino controller and connected to the sensor expansion board to complete creative remote control interactive works.
Product Features
·High-quality joystick with long service life and stable performance
·Two analog output channels and one digital output channel
·X and Y axis outputs are two potentiometers, and the twisting angle can be read through AD conversion
·Pressing the joystick down activates a momentary switch, which is a digital output and has been pulled up
·Suitable for two-degree-of-freedom servo pan-tilt control or other remote control proportional control
·Compatible with Arduino platform and Arduino sensor interface
Dual-channel version
Product Introduction
The PS2 dual-axis button game joystick module adopts high-quality metal button joystick potentiometers from PS2 game controllers. The module is specially designed with two analog output interfaces and one digital output interface. The output values correspond to the (X, Y) dual-axis offsets respectively, and the type is an analog quantity. The digital switch quantity indicates whether the user has pressed on the Z-axis. The module integrates a power indicator light to display the working status. The coordinate indicators are clear and concise, accurately positioning. It can be used to easily control objects (such as two-degree-of-freedom servo pan-tilt) to move in a two-dimensional space. Therefore, through controller programming and sensor expansion board insertion, creative remote interactive works can be completed.
Product Features
1. High-quality joystick with long service life and stable performance.
2. Two analog output channels and one digital output channel.
3. X and Y axis outputs are two potentiometers, and the twisting angle can be read through AD conversion.
4. Pressing the joystick down activates a momentary switch, which is a digital output and has been pulled up.
5. Suitable for two-degree-of-freedom servo pan-tilt control or other remote control proportional control.
Electrical Performance
1. Input Voltage Range: DC 3.3V to 5V.
2. Output Signal: The module is specially designed with two analog output interfaces and one digital output interface. The output values correspond to the (Z, Y) dual-axis offsets, and their types are analog quantities. The button indicates whether the user has pressed on the Z-axis, and its type is a digital switch quantity.
3. It can be programmed through an Arduino controller and connected with a sensor expansion board to complete creative remote interactive works.
4. The joystick is a two-way 10K resistor. As the direction of the joystick changes, the resistance value of the tap changes accordingly. This module is powered by 5V. In the original state, the readout voltages of X and Y are approximately 2.5V. When pressed in the direction of the arrow, the readout voltage value increases, reaching a maximum of 5V; when pressed in the opposite direction of the arrow, the readout voltage value decreases, reaching a minimum of 0V.
