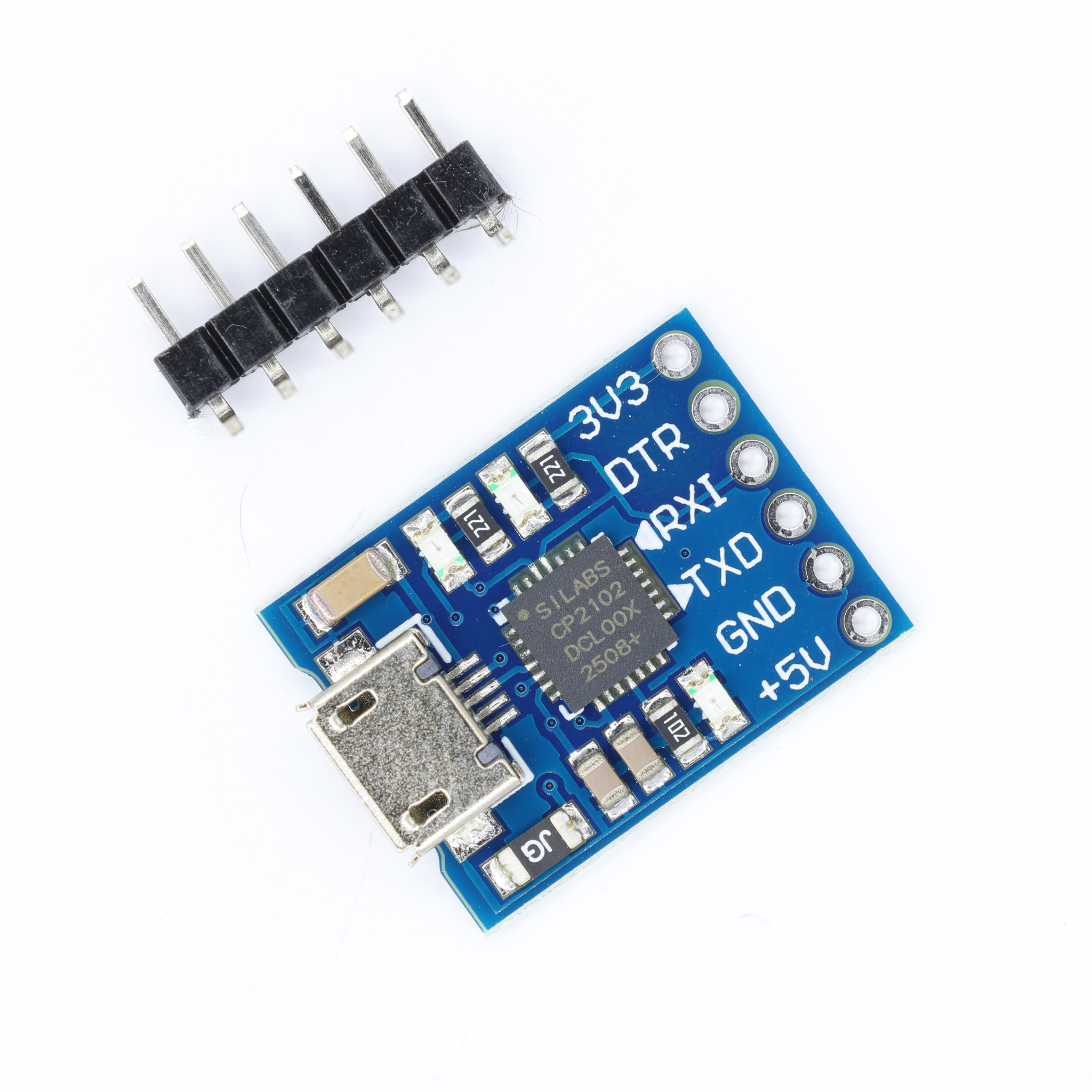

CP2102 Module USB to TTL Micro Interface
$2.691 pcs
CP2102 USB-to-Serial UART Downloader, flashing board, USB to TTL module, USB Micro interface.
| Dimensions | 10.7 × 7.9 mm |
|---|---|
| Brand |
easyelecmodule |
561 in stock
Parameters:
1、Equipped with the CP2102 chip, a COM port is generated after installing the driver.
2、With a self – recovering fuse, it can effectively protect the downloader and the computer’s USB port in case of accidental short circuit.
3、With 3 indicator lights: power indicator light, data reception indicator light, and data transmission indicator light.
4、With two types of voltage output: 3.3V and 5V.
5、All useful pins are led out.
6、With a reset signal output, it can directly download programs to Arduino mainboards such as Promini.
7、Supported operating systems: Windows 98/Me/2000/XP/7/8/10, MAC OS – 9, MAC OS, Linux 2.40 or a higher version.
8、Built – in USB transceiver, no external interface circuit required; built – in clock circuit, no external circuit required.
9、Built – in upper computer circuit.
10、The on – chip voltage regulation can output 3.3V voltage.
If you want to download the driver, you can refer to this: Install CP2102 Driver on Windows System.
