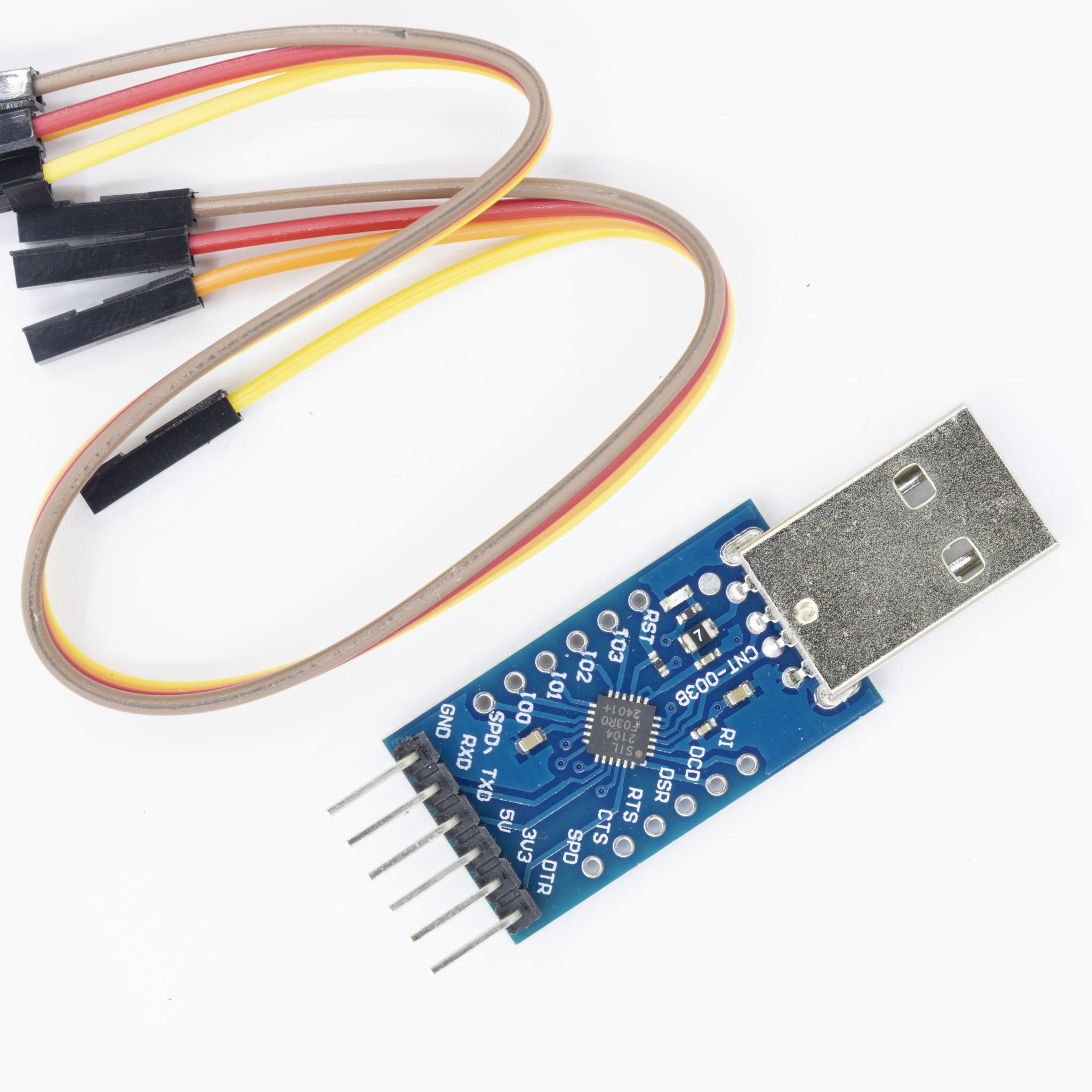

CP2104 Module USB to TTL USB to Serial Port
$5.901 pcs
CP2104 module USB TO TTL, USB to serial port module, UART STC downloader, flashing cable.

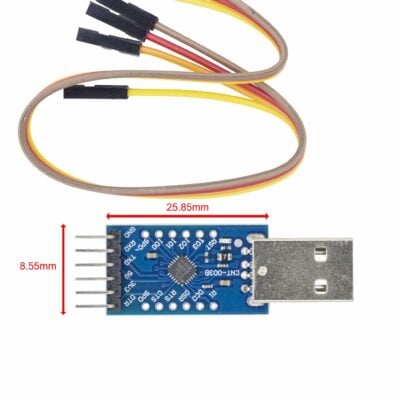

| Dimensions | 25.85 × 8.55 mm |
|---|---|
| Brand |
easyelecmodule |
852 in stock
Parameters:
1、Adopts the new chip CP2104.
2、With self – recovering fuse, which can effectively protect your downloader and computer USB port in case of accidental short circuit.
3、With indicator light to show the working status at a glance.
4、With two kinds of power output: 3.3V and 5V.
5、All useful pins are led out.
6、With reset signal output, which can directly download programs to Arduino mainboards such as Promini.
7、Supported operating systems: Windows 98/Me/2000/XP/7/8/10, MAC OS – 9, Mac OS – X, Windows CE, Linux 2.40 or higher versions.
8、Built – in USB transceiver, no need for external circuit; built – in clock circuit, no need for external circuit.
9、Built – in upper computer circuit.
10、The on – chip voltage regulation can output 3.3V voltage.
11、The serial data bus contains all handshaking and modulation regulators.
12、Supports data bits of 5 – 8, stop bits of 1 – 2, and parity bits.
13、The receiving buffer can hold 512 bytes, and the transmitting buffer can hold 512 bytes.
14、Supports hardware or X – ON/X – OFF handshaking.
If you want to download the driver, you can refer to this: Install CP2102 Driver on Windows System.
If you want to refer datasheet, you can refer to:CP2104 Datasheet104 datasheet.
