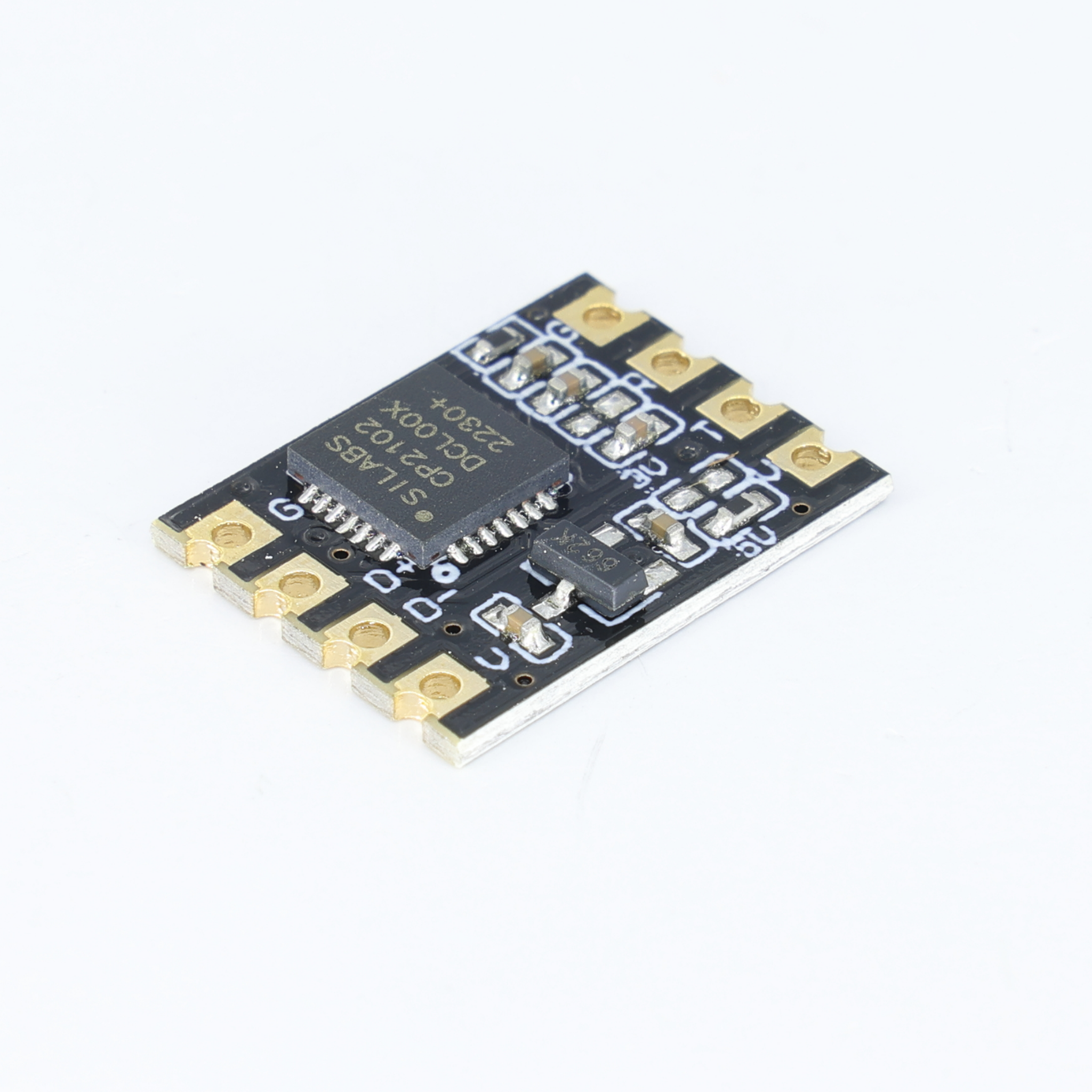

CP2102 USB to TTL Serial Port Module（SMD）
$4.001 pcs
Download the CP2102 USB-to-TTL serial port UART module for flashing and soldering wire surface mount gold-plated board

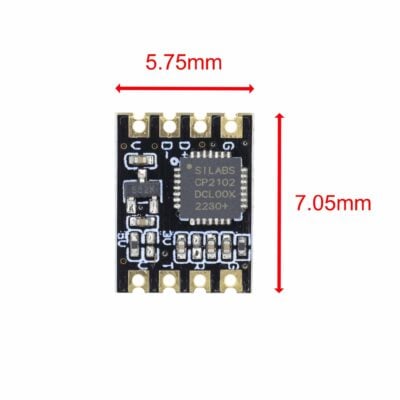

| Dimensions | 7.05 × 5.05 mm |
|---|---|
| Brand |
easyelecmodule |
451 in stock
Parameters:
1、Adopts the new chip CP2102, supporting all operating systems on the market.
2、The incoming port includes: D+, D-, GND, VCC. The outgoing port includes: GND, TX, RX, VCC.
3、The module input voltage ranges from 3.3V to 5V, with the default output being 5V. To supply 3.3V, remove the 5V pull – up resistor and attach a 0Ω resistor to the 3.3V pad.
If you want to download the driver, you can refer to this: Install CP2102 Driver on Windows System.
If you want to refer datasheet, you can refer to: CP2102 Datasheet.
