FC-28 Soil Moisture Detection Module
$1.501pcs
The FC-28 soil moisture detection module is a simple breakout board used for measuring the moisture content in soil and similar materials. The soil moisture sensor is very easy to use. Its two large, exposed pads function as probes, which together act as a variable resistor. The more moisture there is in the soil, the better the conductivity between the pads, resulting in lower resistance and higher output current.

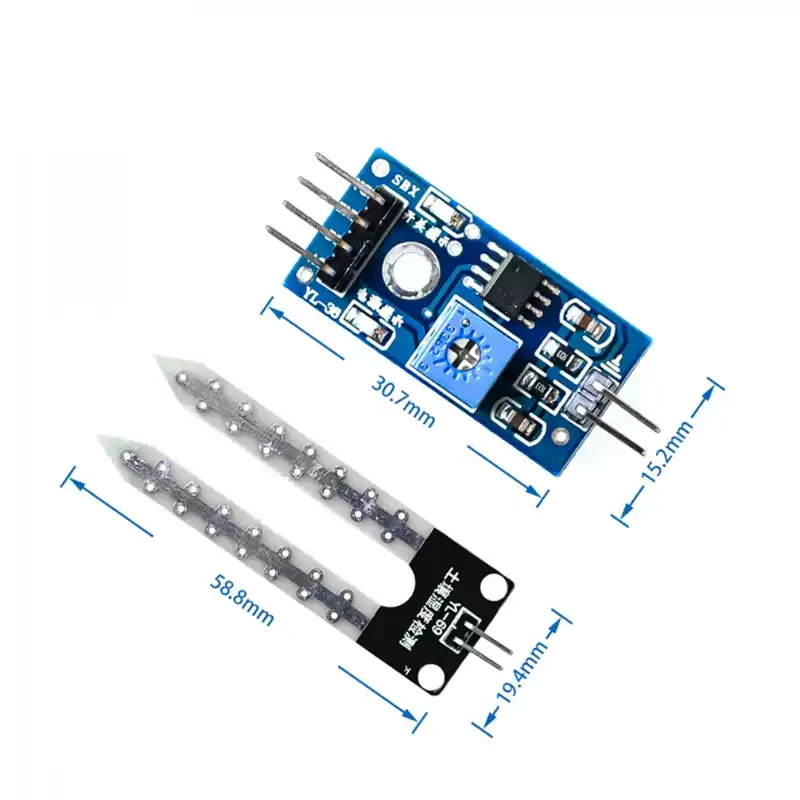

| Dimensions | 58.8 × 19.4 mm |
|---|---|
| Brand |
easyelecmodule |
2619 in stock
Description

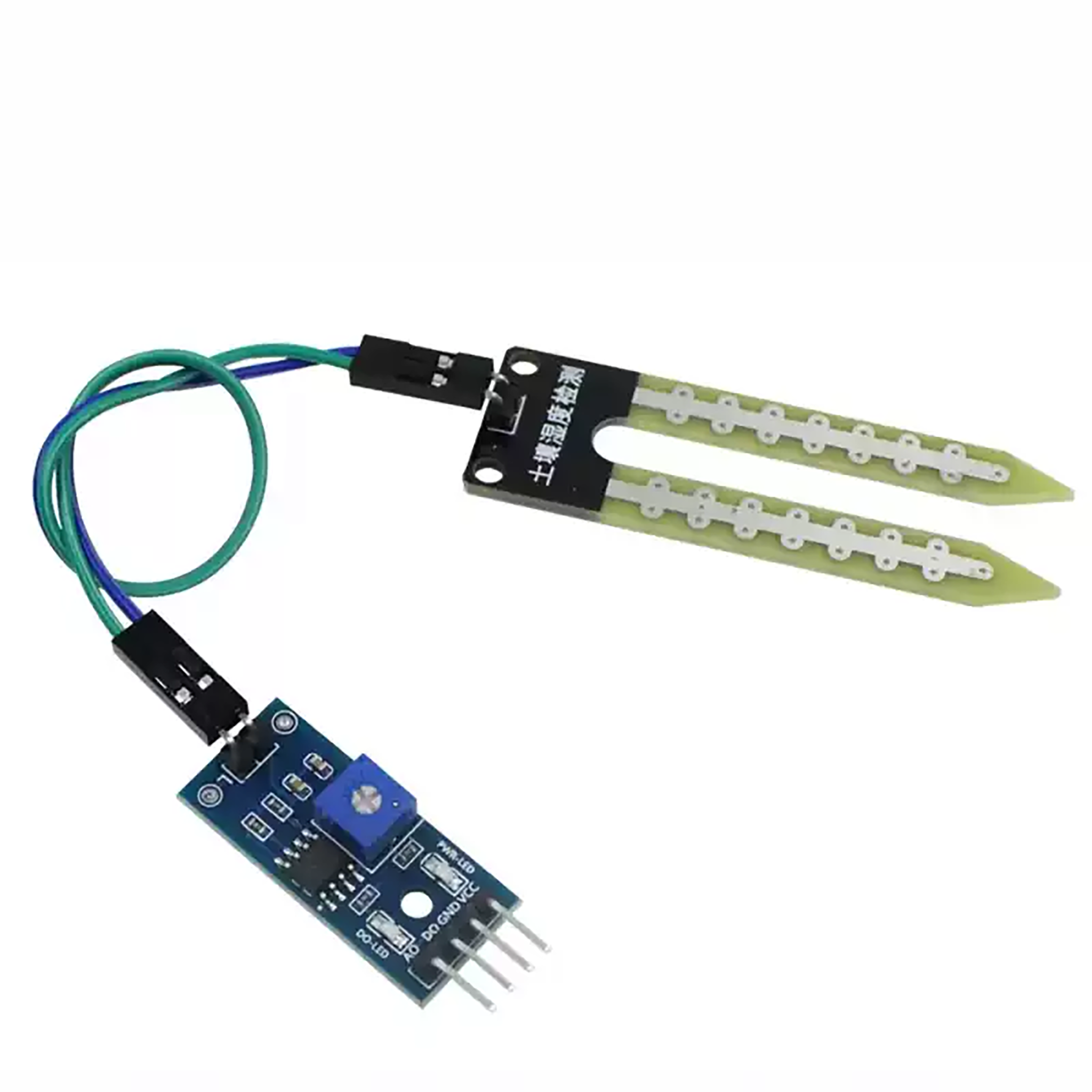

The FC-28 soil moisture sensor is a humidity detection module used for measuring the moisture content of soil and similar materials. This soil moisture sensor is very easy to use. It consists of two large exposed electrodes serving as the sensor's probe and a voltage comparator. The two exposed electrodes form a resistor. The more moisture there is in the soil, the better the conductivity between the electrodes, and the lower the resistance value will be.
Features
- Digital Output Threshold Adjust Potentiometer
- Power and Digital Output Indicator LEDs
- Analog and Digital outputs
- Mounting hole for easy installation
Technical Specifications
Operating voltage 3.3V-5V
PCB size: 3.2cm x 1.4cm
Power indicators: (red) and digital switching output indicator (green)
Comparator Chip : LM393

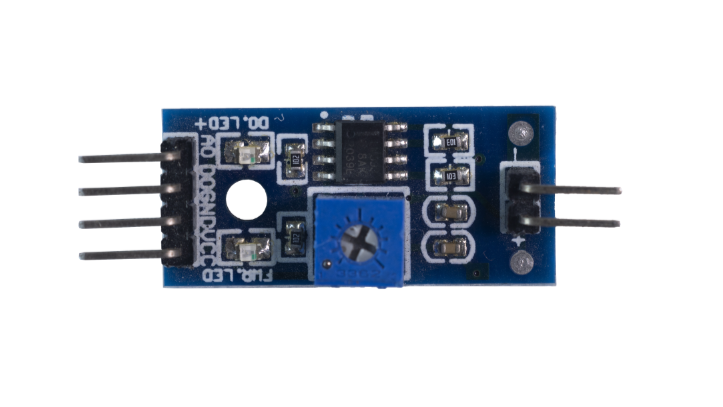

Pinouts
VCC: .3.3V-5V
GND: 0V Ground Reference
DO: digital output (0 or 1)
AO: Analog output (0 – VCC)

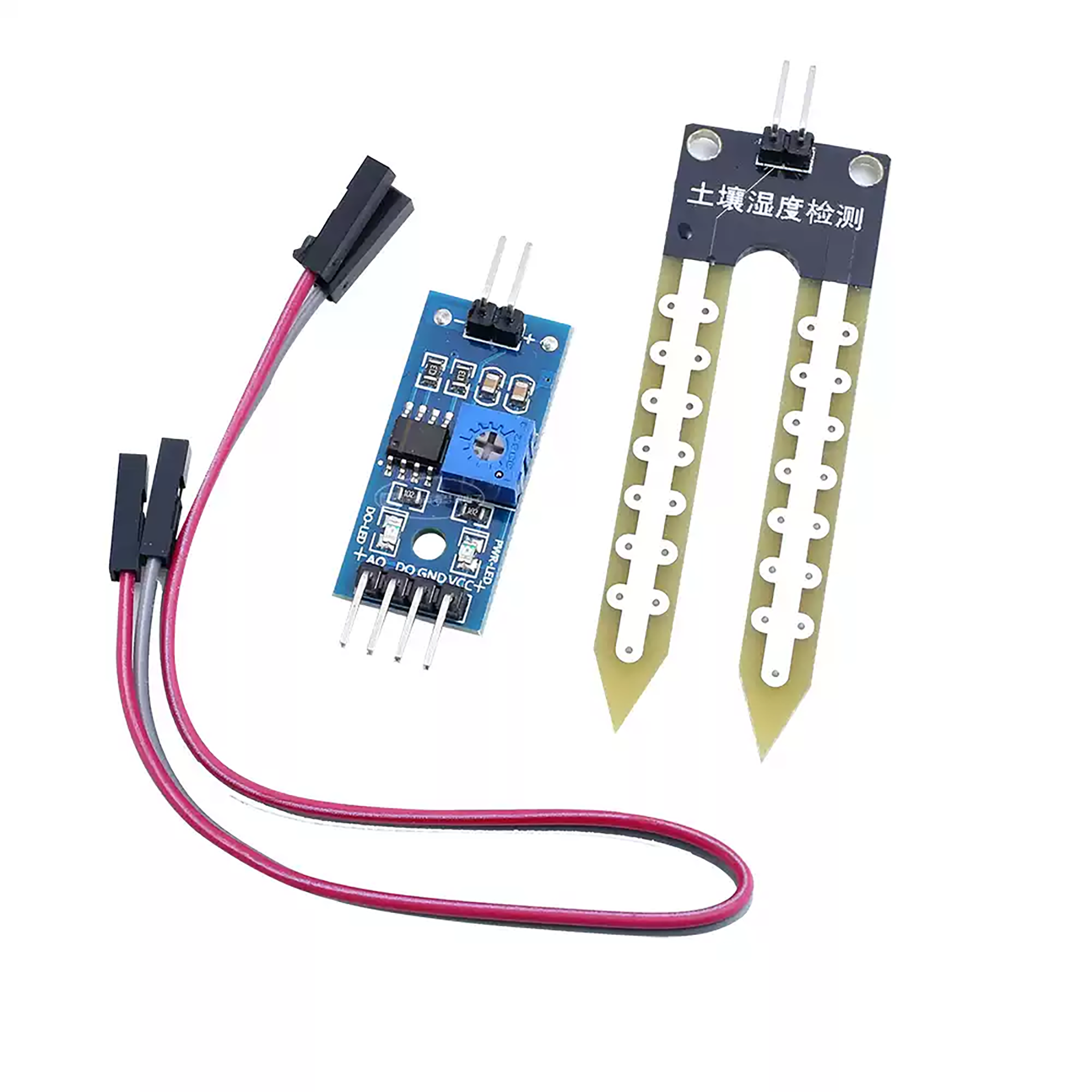

Package Includes
1x FC-28 Soil Moisture Sensor Comparator Board
1x Soil Moisture Sensor Probe
1x 2pin female-female 10cm cable
Documents and Downlaods
