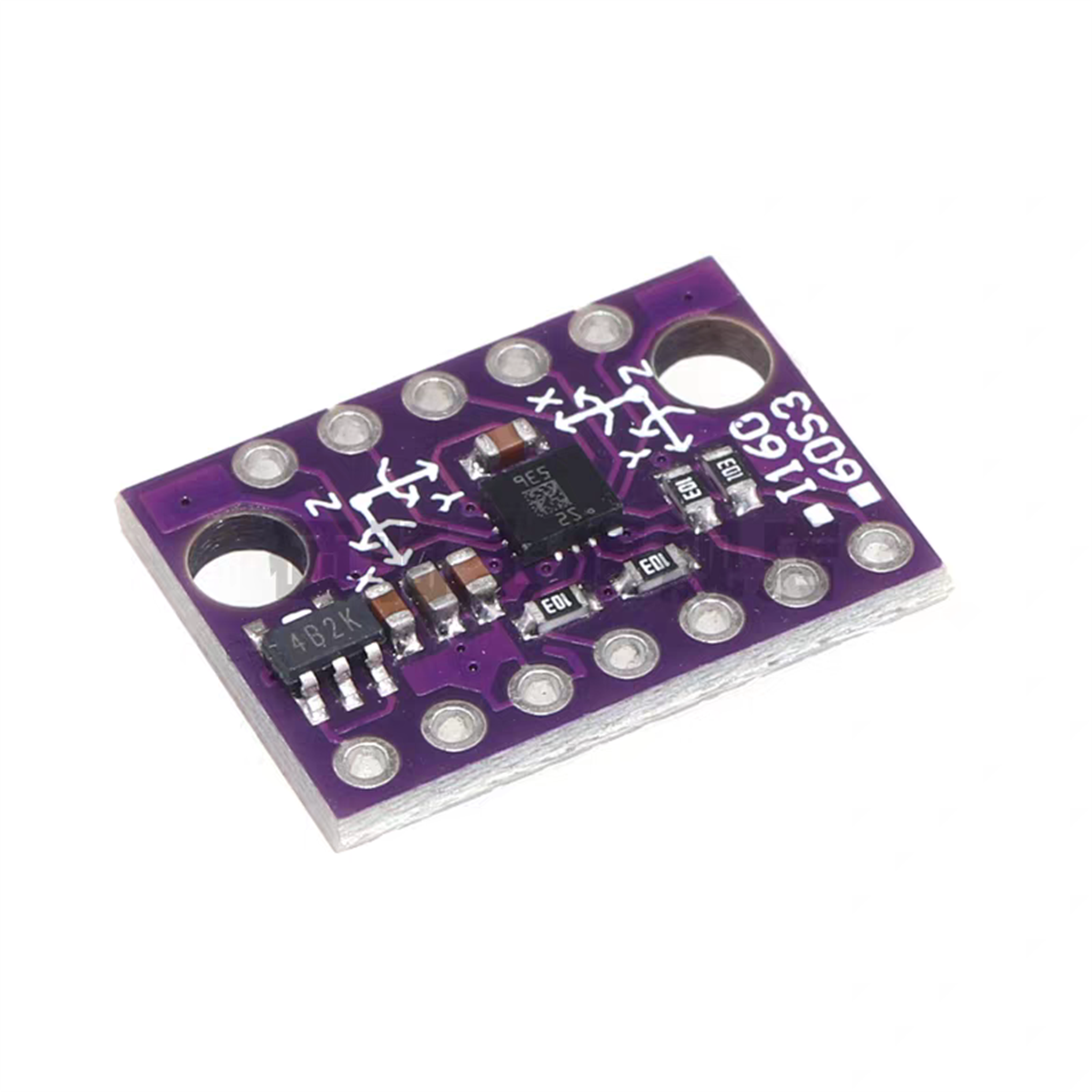

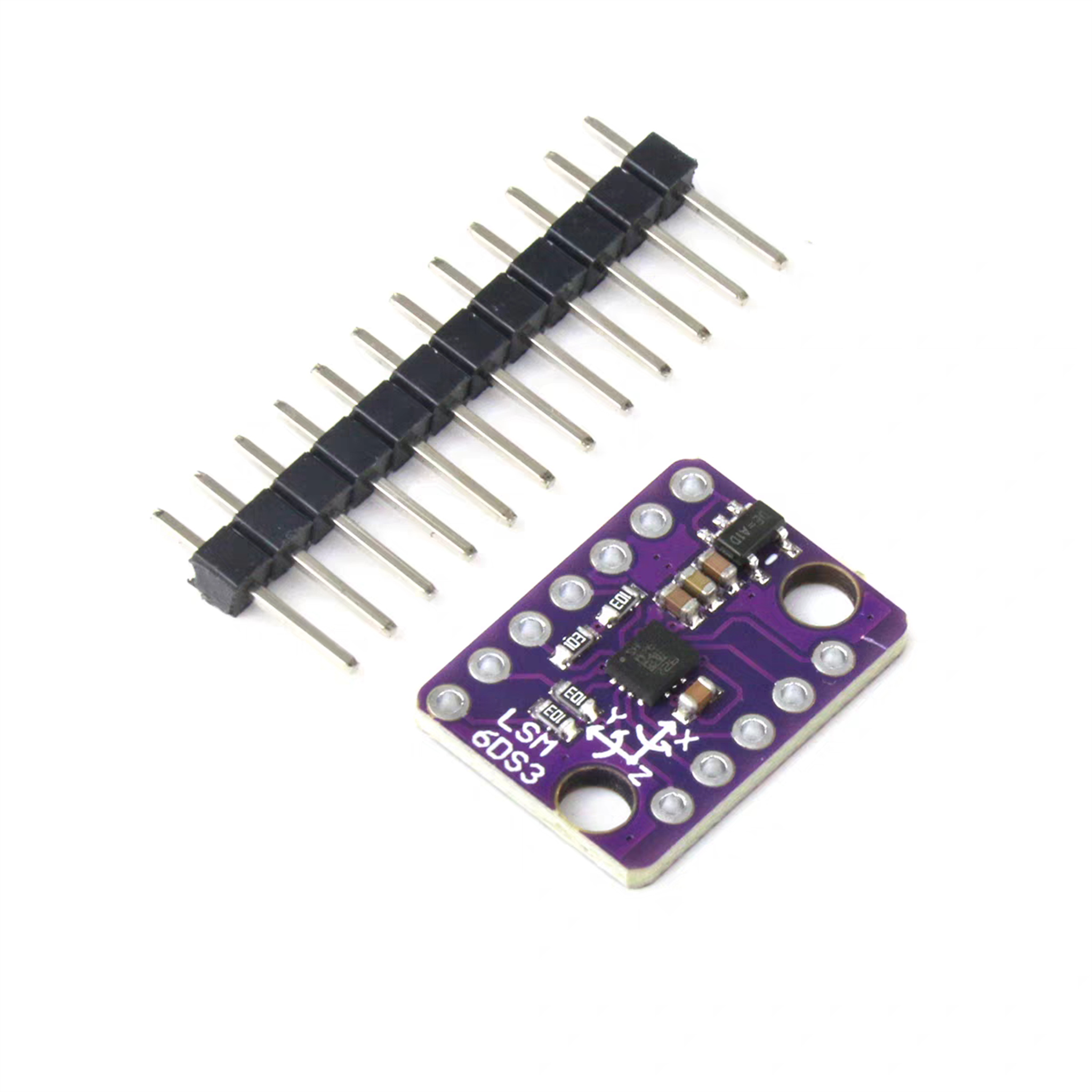

GY-LSM6DS3 6-Axis IMU
$3.111pcs
The GY-LSM6DS3 is a 6-axis motion sensor module that integrates a 3-axis accelerometer and a 3-axis gyroscope, used for detecting orientation and motion.
| Dimensions | 18 × 13 mm |
|---|---|
| Brand |
easyelecmodule |
4381 in stock
Introduce
The GY-LSM6DS3 is a 6-axis motion sensor module that integrates a 3-axis accelerometer and a 3-axis gyroscope, used for detecting orientation and motion.
Some of the things the LSM6DS3 can do
| LSM6DS3 CAPABILITIES |
|---|
| Read accelerometer data up to 6.7 kilosamples per second (high-accuracy motion sensing) |
| Read gyroscope data up to 1.7 kilosamples per second |
| Operates at 1.25mA for up to 1.7 ksps modes |
| Read temperature |
| Buffer up to 8 kbytes of data between reads (built-in FIFO) |
| Count steps (Pedometer) |
| Detect shocks, tilt, motion, taps, double-taps |
| Host other sensors into its FIFO |
| Drive interrupt pins using embedded functions or FIFO low-capacity/overflow warning |
I²C and Power Pins
| PIN LABEL | PIN FUNCTION | NOTES |
|---|---|---|
| VIN | Power Input (5V / 3.3V) | On-board LDO converts VIN to 3.3V for the sensor |
| 3V3 | 3.3V Output / Input | Can power small external devices or power the board directly |
| GND | Ground | Power ground |
| SCL | I²C Clock | Connect to Arduino A5 (UNO) |
| SDA | I²C Data | Connect to Arduino A4 (UNO) |
| CS | Interface Select | HIGH = I²C mode (default) / LOW = SPI mode |
| SA0 | I²C Address Select | LOW = 0x6A (default) / HIGH = 0x6B |
SPI PINS
| PIN LABEL | PIN FUNCTION | NOTES |
|---|---|---|
| DCS | SPI Chip Select (CS) | Active LOW, selects the LSM6DS3 during SPI communication |
| INT2 | Interrupt Output 2 | Configurable interrupt source (motion detection, events, etc.) |
| INT1 | Interrupt Output 1 | Configurable interrupt source for accel/gyro events |
| SCX | SPI Clock (SCK) | SPI clock input |
| SDX | SPI Data (MOSI/MISO) | Bidirectional data line depending on SPI mode |
