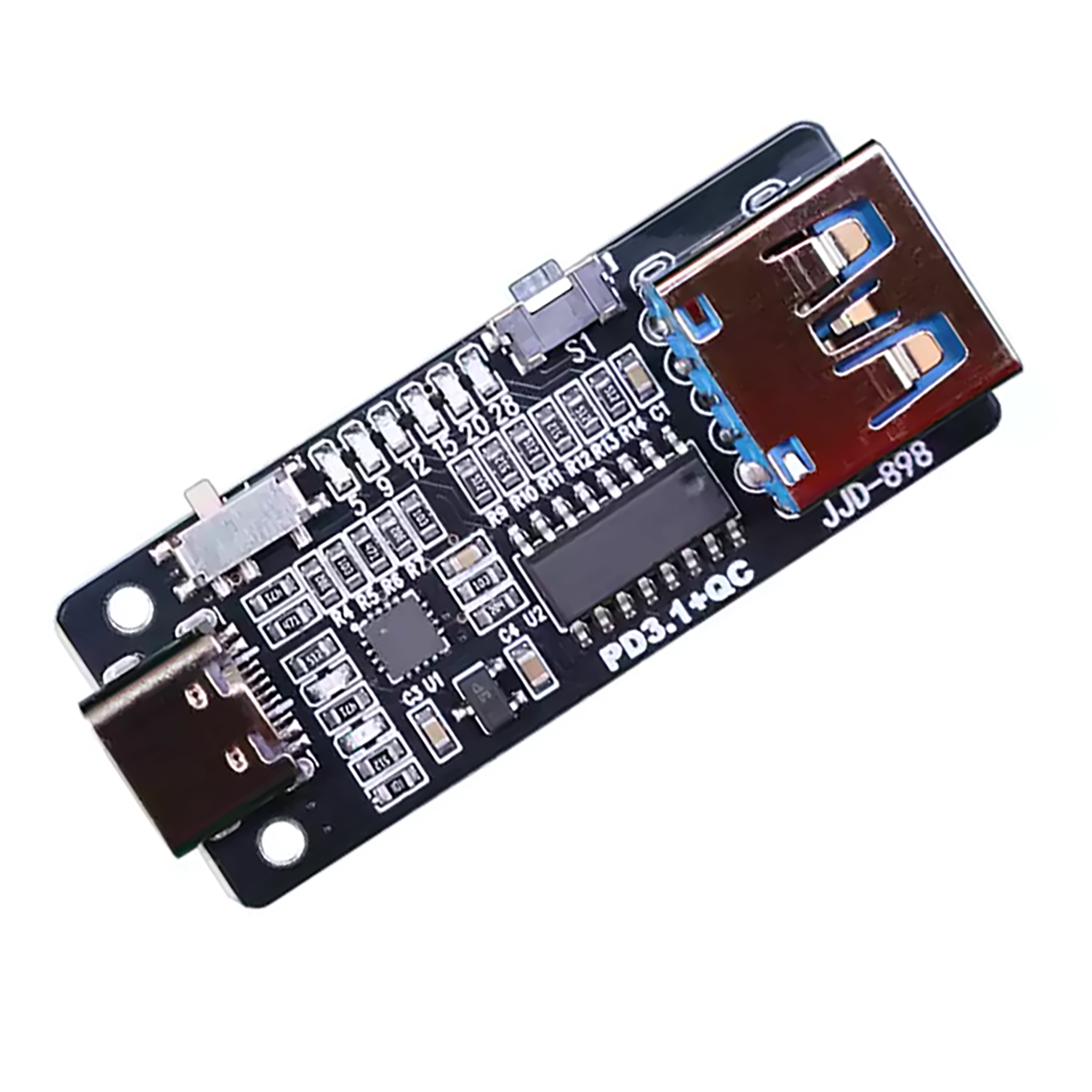

JJD-898 PD Fast Charging Trigger Module
$7.001pcs
The PD Power Delivery 3.1 trigger module is designed to negotiate fast-charging protocols (such as PD3.1, PD3.0, etc.) to achieve higher output power.
| Dimensions | 44.5 × 18 × 1.6 mm |
|---|---|
| Brand |
easyelecmodule |
3124 in stock
What is PD3.1?
USB PD3.1 is an upgraded fast-charging standard based on PD3.0.
It increases the maximum output voltage from the original 20V to 48V, and the charging power is simultaneously increased to 240W.

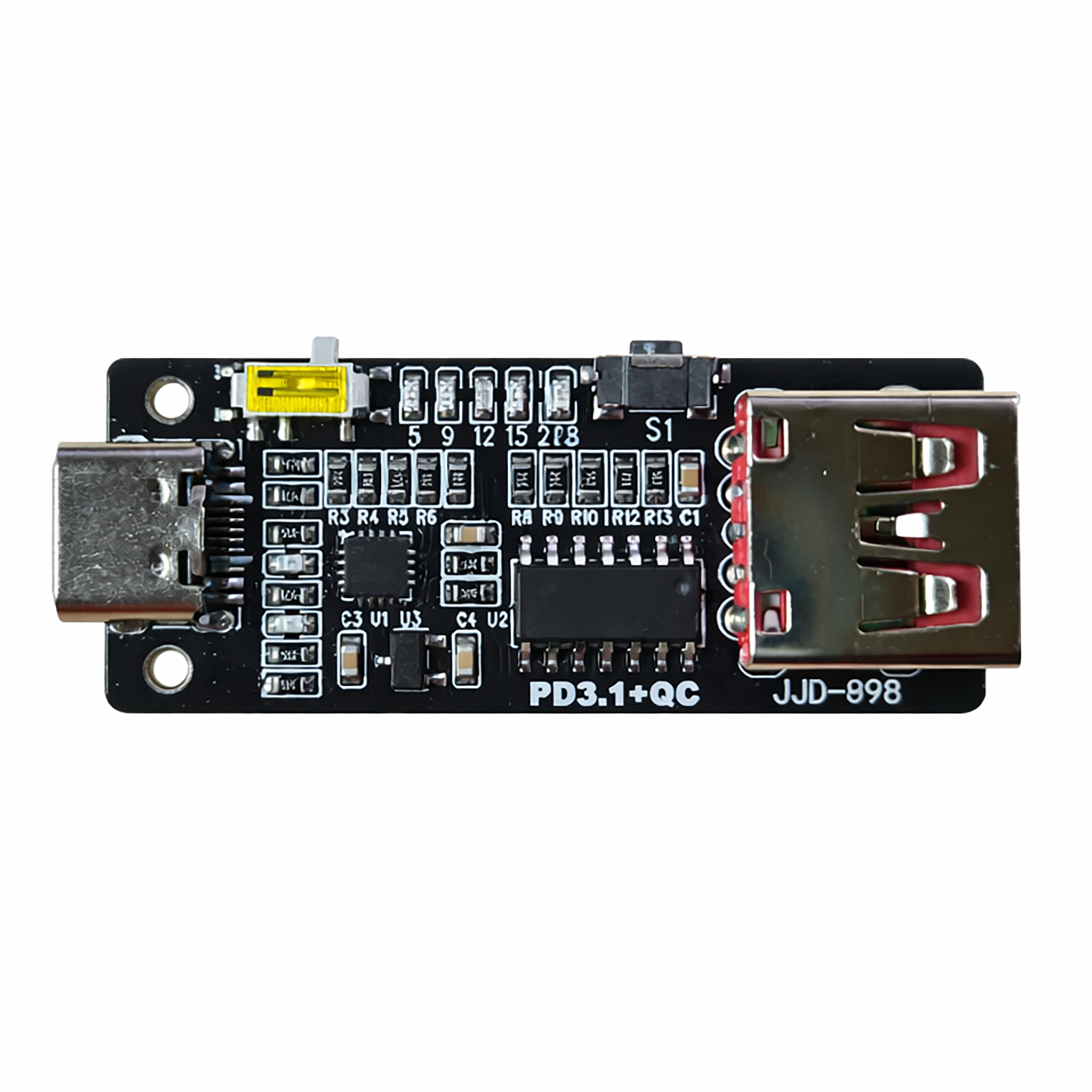

Product Introduction
The PD3.1+QC multifunctional adjustable voltage full-protocol trigger module with power-off memory and integrated manual/auto modes supports PD3.1 / PD3.0 / PD2.0 / QC2.0 / QC3.0 / FCP / AFC and other protocols.
One switch for quick mode switching (Manual / Auto)
One button for increasing and decreasing voltage
One USB Type-C input
Four output methods (USB-A / DC 5525 male connector / terminal block / solder wires)
Auto Mode:
After power-on, the module automatically scans all voltage levels (5V / 9V / 12V / 15V / 20V / 28V).
The maximum output power is 140W at 28V 5A (depending on your PD power supply).
The voltage can be dynamically increased or decreased via the S1 tactile switch.
For valid voltage levels, the corresponding indicator LED lights up; for invalid voltage levels, the indicator LED remains off.
Manual Mode:
Also a memory mode. After power-on, the module automatically outputs the voltage you previously set.
The voltage can be dynamically increased or decreased via the S1 tactile switch.
For valid voltage levels, the corresponding indicator LED lights up; for invalid voltage levels, the indicator LED flashes.
More Functions:

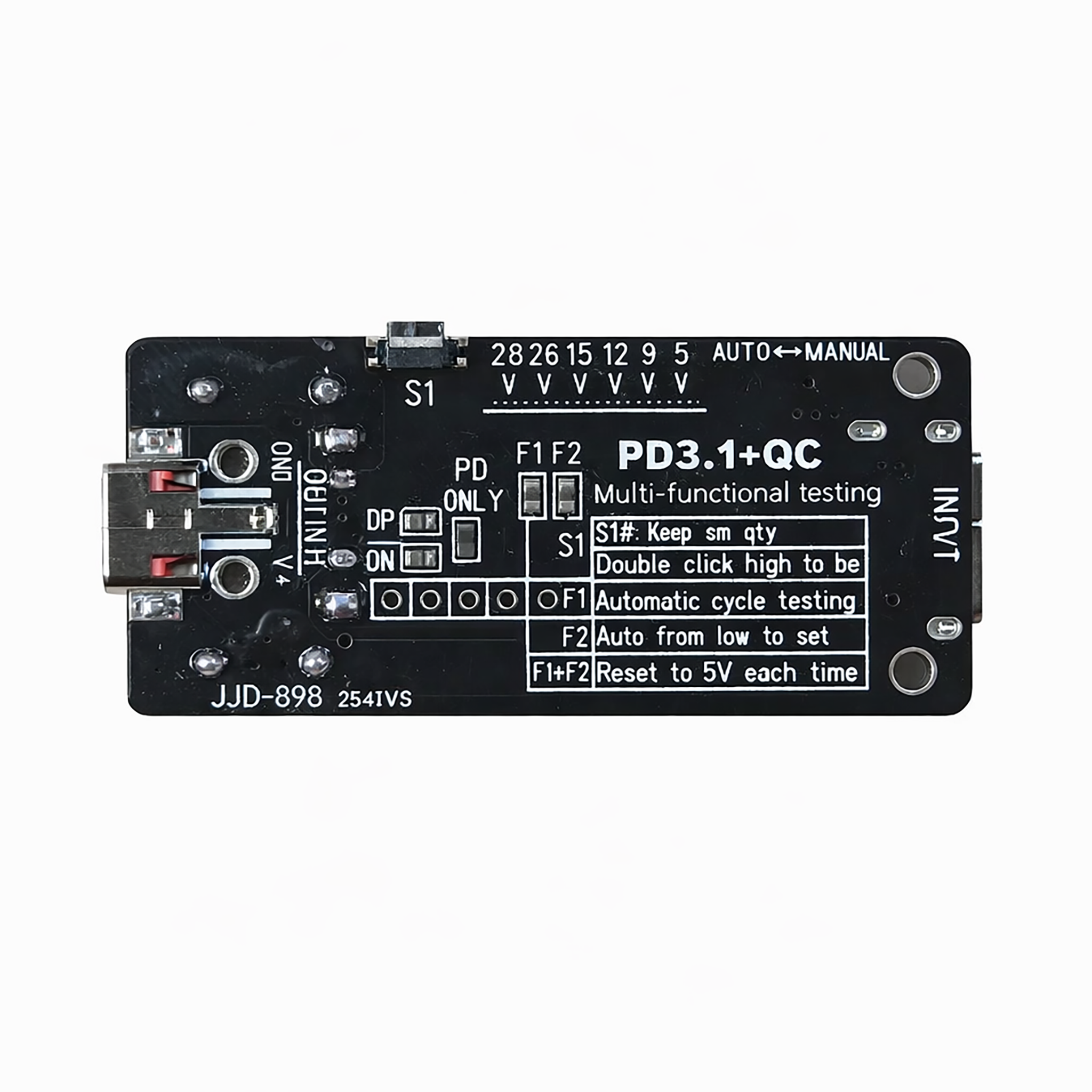

By simple short-circuiting on the back of the test board, fixed-point scanning and automatic cycle testing can be achieved.
Among them, DM and DP are USB data functions.
This meets different application requirements and is widely used in PD power supply R&D, production testing, burn-in testing, and product inspection.
Electrical Parameters
| Item | Description |
|---|---|
| Model | JJD-898 |
| Product Name | PD3.1 + QC Memory Adjustable Voltage Multi-Function PD Trigger |
| Supported Protocols | PD 3.1 / PD 3.0 / PD 2.0 / QC 3.0 / QC 2.0 / AFC / FCP |
| Input | USB Type-C connector |
| Output | USB-A female / DC5525 male / Terminal block / Solder pads |
| Maximum Power | 140W (Max 28V 5A) |
| Dimensions | 44.5 × 18.0 × 1.6 mm |
| PCB Material | FR4 |
| Applications | PD power supply development, production testing, mass production aging, product quality inspection |

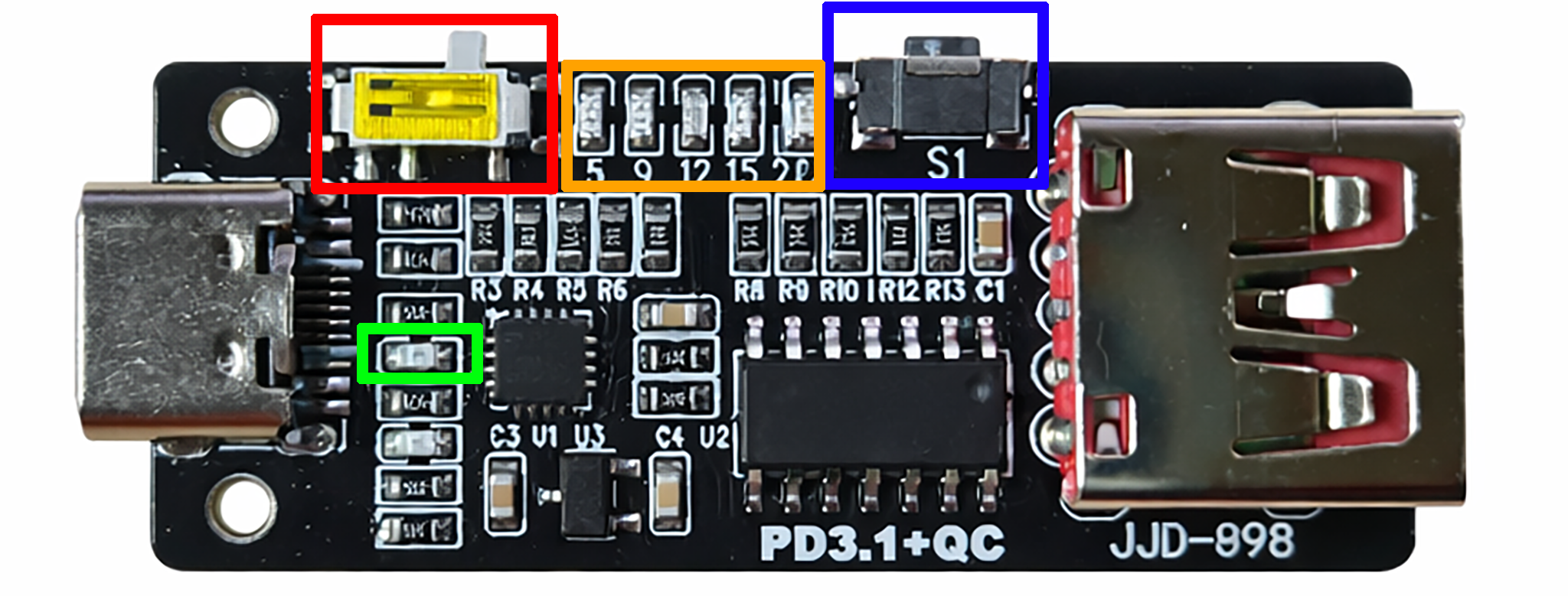

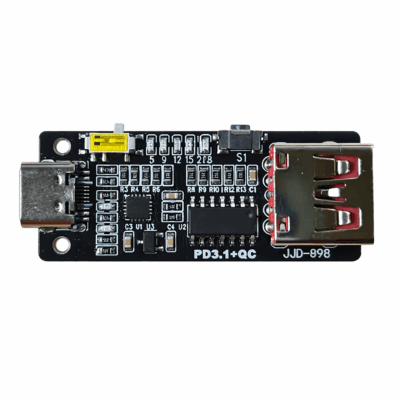

Function Description
Switch to the left: Manual mode (Memory mode). The module outputs the preset voltage after power-on.
Switch to the right: Auto mode. After power-on, the module automatically scans voltage levels from low to high. Available voltage level indicators light up; unavailable voltage level indicators remain off.
Increase / Decrease voltage levels:
Single click: Increase
Double click: Decrease
Protocol Signal Indicator LEDs
Independent Voltage Level Indicator LEDs
5V / 9V / 12V / 15V / 20V / 28V
Manual Mode:
Available voltage: LED on
Unavailable voltage: LED flashing
Auto Mode:
Available voltage: LED on
Unavailable voltage: LED off

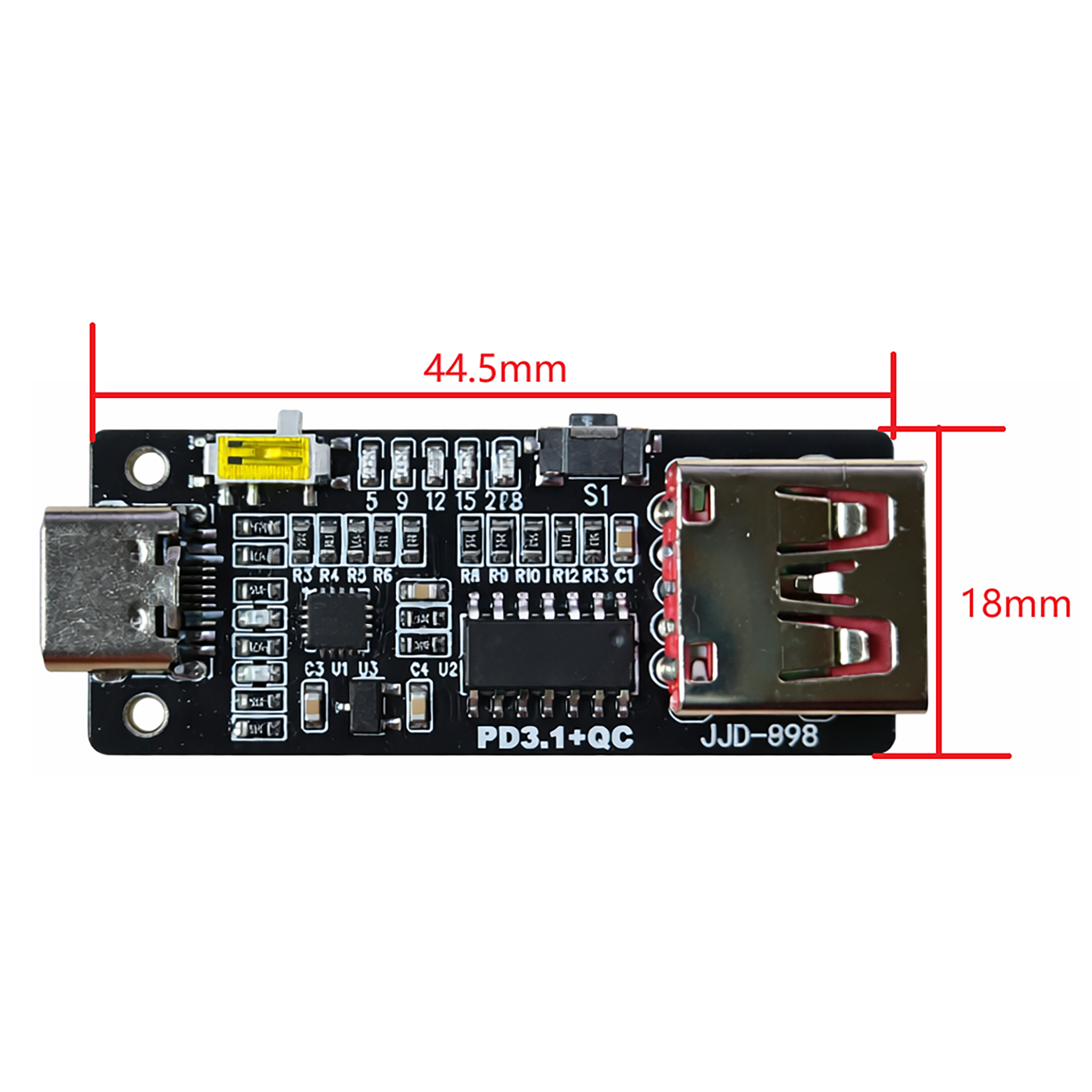

Size
