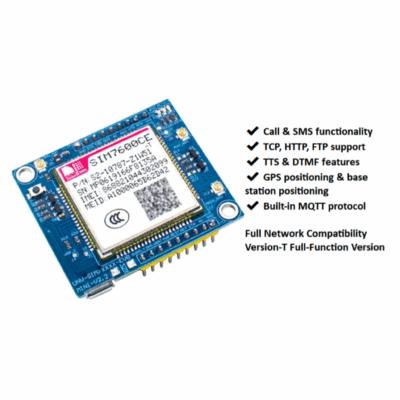

Name: SIM7600CE 4G +GPS Positioning Module Full-Network compatible LTE – Easyelecmodule
Price: 85.90 USD
Availability: InStock

DESCRPIPTION AND FEATURES

Product Introduction

1. Key Features

TDD-LTE: B38/B39/B40/B41
FDD-LTE: B1/B3/B8
TD-SCDMA: B34/B39
WCDMA/HSDPA/HSPA+: B1/B8
CDMA 1X/EVDO: BCO
GSM/GPRS/EDGE: 900/1800 MHz
GNSS functionality: GPS, GLONASS, BeiDou/Compass, Galileo
Controlled via AT commands

2. Data Transmission

LTE CAT4
Maximum uplink rate: 50 Mbps
Maximum downlink rate: 150 Mbps

3. Other Features

USB driver support for:
- Microsoft Windows 2000/XP/Vista/Win7/Win8
- Windows CE/Mobile
- Linux/Android
RIL support for Android/Windows CE/Mobile
Automatic installation on Windows
Linux API SDK

UNV-SIM7600CE Development Board Specifications

UNV-SIM7600CE V1.2 (UNV is the brand logo of Global Eagle, V1.2 refers to the hardware version)

It is a high-performance industrial 4G development board launched by Global Eagle Communications.

The UNV-SIM7600CE module supports LVTTL serial ports and various TTL serial port interfaces with different voltage levels. It supports a power supply voltage range of 5V to 18V, allowing the module to be easily connected to your products.

Product Specifications

Item	Details
Product Name	UNV-SIM7600CE_T
Supported Bands	Supports China Mobile/Unicom/Telecom 2G; China Unicom 3G; China Mobile/Unicom/Telecom 4G
Built-in Platform	Qualcomm solution
Power Supply	5-18V (9V 1A power supply is recommended)
Serial Port	One full serial port (all pins led out)
External Interface	Dual-row pin header with 2.54mm pitch
Additional Features	Equipped with GPS functionality and an auxiliary antenna

UNV-SIM7600CE Datasheet

If you want to learn more SIM7600CE_T product details, you can refer to this datasheet.

UNV-SIM7600CE Hardware Structure

UNV-SIM7600CE Pin Definition Description

TXD, RXD, DCD, etc. are the serial port pins of the module, all of which have undergone level matching processing. TXD is the system transmission end, externally connected to the controller’s RXD. VDD cannot be left floating; VDD is the level matching end. If connecting to a 5V system externally, connect VDD to 5V; if connecting to a 3.3V system, connect VDD to 3.3V. In typical connections, only TXD, RXD, and VDD need to be connected. Leave other pins unconnected (do not float them).

VCC and GND are for power supply, supporting DC 5-18V input. When the power supply voltage is lower than 9V, the power supply must provide a current of no less than 1A. When VCC and GND are connected to the power supply, VBAT outputs 3.8V externally. When VBAT is used as the power input, the voltage range is 3.4-4.3V, and the supply current is no less than 1A. When using VBAT for power supply, remove the R280 resistor on the back of the board. PWRKE is the pin for controlling the module’s power on/off; a high level lasting 2 seconds can turn the module on or off. REST is the reset pin (high level is valid). NETSTA is the status output end.

Notes:

Do not reset the module in non-emergency situations.
All GNDs in the interface are the same; no distinction is made.
NC is a reserved pin.

Actual Product Photos

SIM7600CE Main Board × 1
4G Antenna × 1
GPS Antenna × 1
IPX-SMA Extension Cable × 2
