SIM900A GSM Module
$35.001 pcs
High integration, broad compatibility, extremely low power consumption, and strong stability
| Dimensions | 50 × 49 mm |
|---|---|
| Brand |
easyelecmodule |
5341 in stock
Product Introduction
1. Key Features
1.All-in-one functionality: Eliminates the need for separate voice modules or SMS modules—one module covers all 2G + GPRS functions.
2.Wide compatibility: Supports mainstream global 2G frequency bands; works directly with China Mobile/China Unicom 2G SIM cards, and maintains stable connectivity even in remote areas.
3.Ultra-low power consumption: Only 2 mA in sleep mode and <18 mA in standby mode—battery-powered devices can run continuously for over 6 months.
4.Industrial-grade stability: Operates in a temperature range of -40°C to 85°C, reliable even in harsh environments like high-temperature greenhouses or low-temperature outdoor areas.
5.Easy to use: Supports UART interface; can connect directly to Arduino/STM32/Raspberry Pi, with simple AT commands for easy debugging.
2.SIM900A Application Scenarios: Why Choose It?
| Scenario Requirement | Separate Module Solution | SIM900A Single-Module Solution |
|---|---|---|
| Remote device “call + data” dual control | 2G voice module + independent data module (high cost) | One module for both calls and data transmission |
| Environmental monitoring in remote areas | Requires additional signal amplifiers | Uses 2G’s wide coverage directly—no extra devices needed |
| Battery-powered low-power devices | Overlapping power consumption of multiple modules, short battery life | Low-power design—extends battery life by 3x or more |
SIM900A Core Hardware Specifications
| Parameter Category | Detailed Specifications |
|---|---|
| Core Model | SIM900A (SIMCom) |
| Operating Frequency Bands | Dual bands: GSM 850/900/1800/1900 MHz |
| Physical Dimensions | 42.5mm × 33.6mm × 2.5mm (Note: Compact version dimensions: 24×24×3mm) |
| Supply Voltage | 5V (Note: Voltage range: 3.1V – 4.8V for stable operation) |
| Operating Current | – Call: 200mA (peak: 500mA); – Standby: <18mA; – Sleep: 2mA (1.5mA for compact version) |
| Data Transmission Rate | GPRS Class 12: Downlink 85.6 kbps / Uplink 42.8 kbps |
| Supported Functions | Voice calls, SMS (text/PDU), GPRS data, TCP/IP, HTTP/FTP |
| Interface Type | UART (Baud rate: 1200~115200 bps), SPI, I2C |
| Operating Temperature | -40℃ ~ 85℃ (Industrial grade) |
| SIM Card Compatibility | 1.8V/3V standard SIM card (supports hot-swapping) |
| Antenna Interface | 50Ω SMA interface (external GSM antenna) |
SIM900A DATASHEET
We provide you with the SIN900A datasheet for your reference：

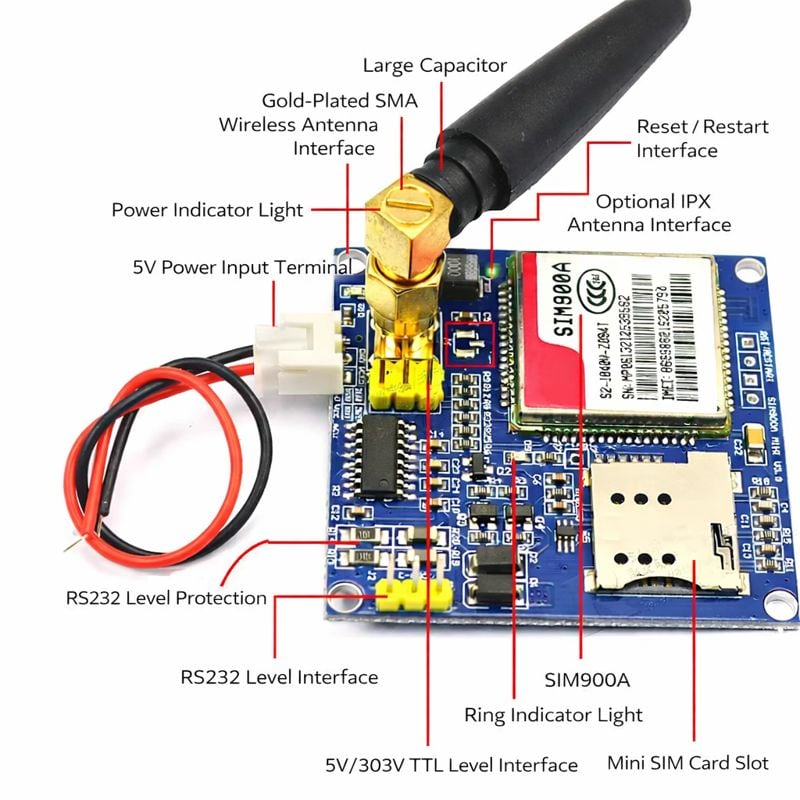

SIM900A Hardware Structure
