HW-738 Vibration Motor Module
$2.001 pcs
Ultra-compact size, compatible with 5V power supply, featuring dual control modes: digital switch vibration and PWM-adjustable vibration intensity to meet diverse needs.
| Dimensions | 23.8 × 24.8 mm |
|---|---|
| Brand |
easyelecmodule |
1221 in stock
Product Introduction

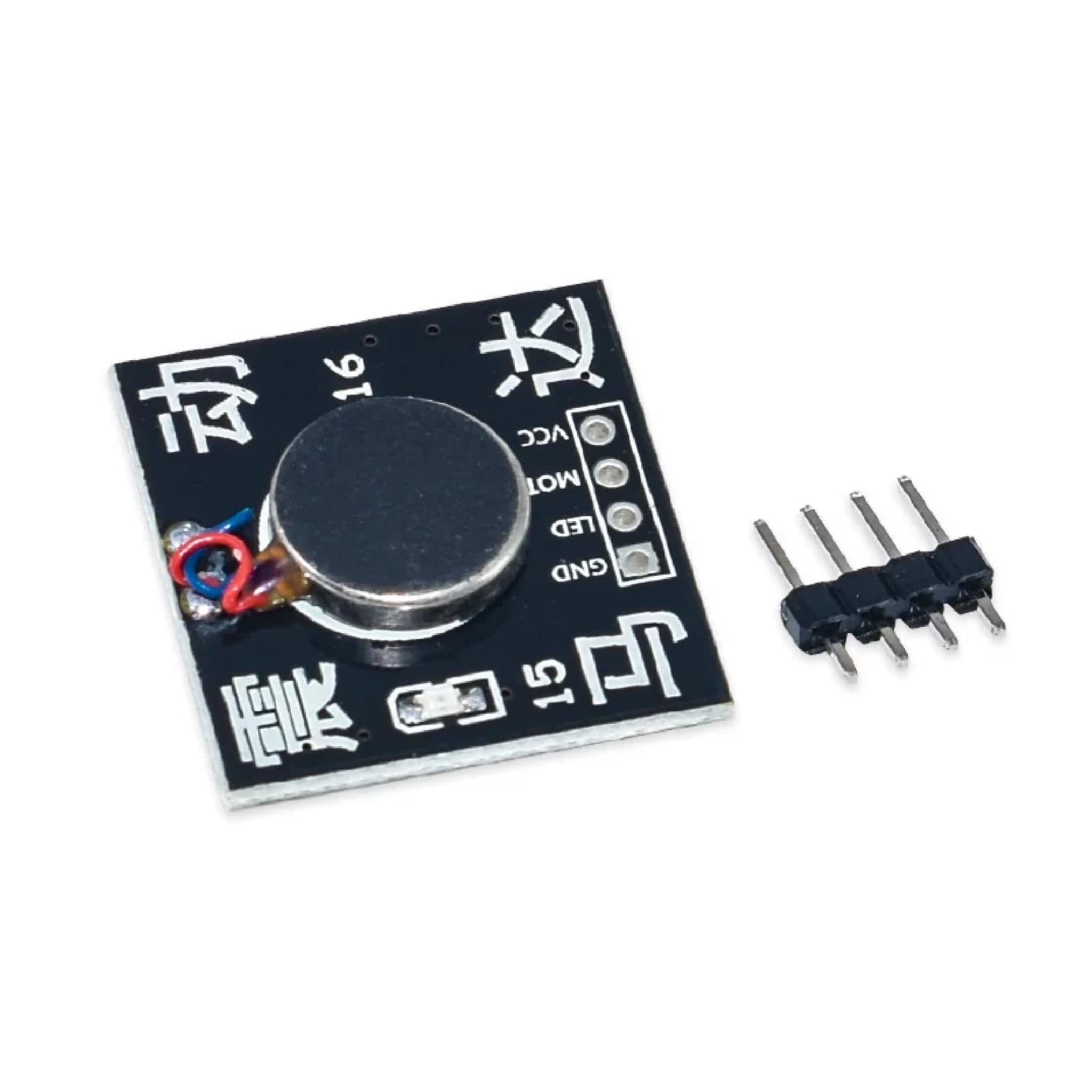

The HW-738 Vibration Motor Module is a haptic feedback component designed specifically for small devices. Its core function is to simulate physical touch through vibration, giving devices “perceivable interaction capabilities.”
1. Key Features
- Ultra-compact size:Precise dimensions of 23.8×25.3mm (approx. 24×25mm), fitting into portable devices like smart bracelets or mini controllers.
- 5V wide compatibility: Works with 5V power sources from microcontrollers or phone chargers—no extra voltage reduction needed.
- Two control modes: Supports digital control (on/off vibration) and PWM control (adjust vibration intensity).

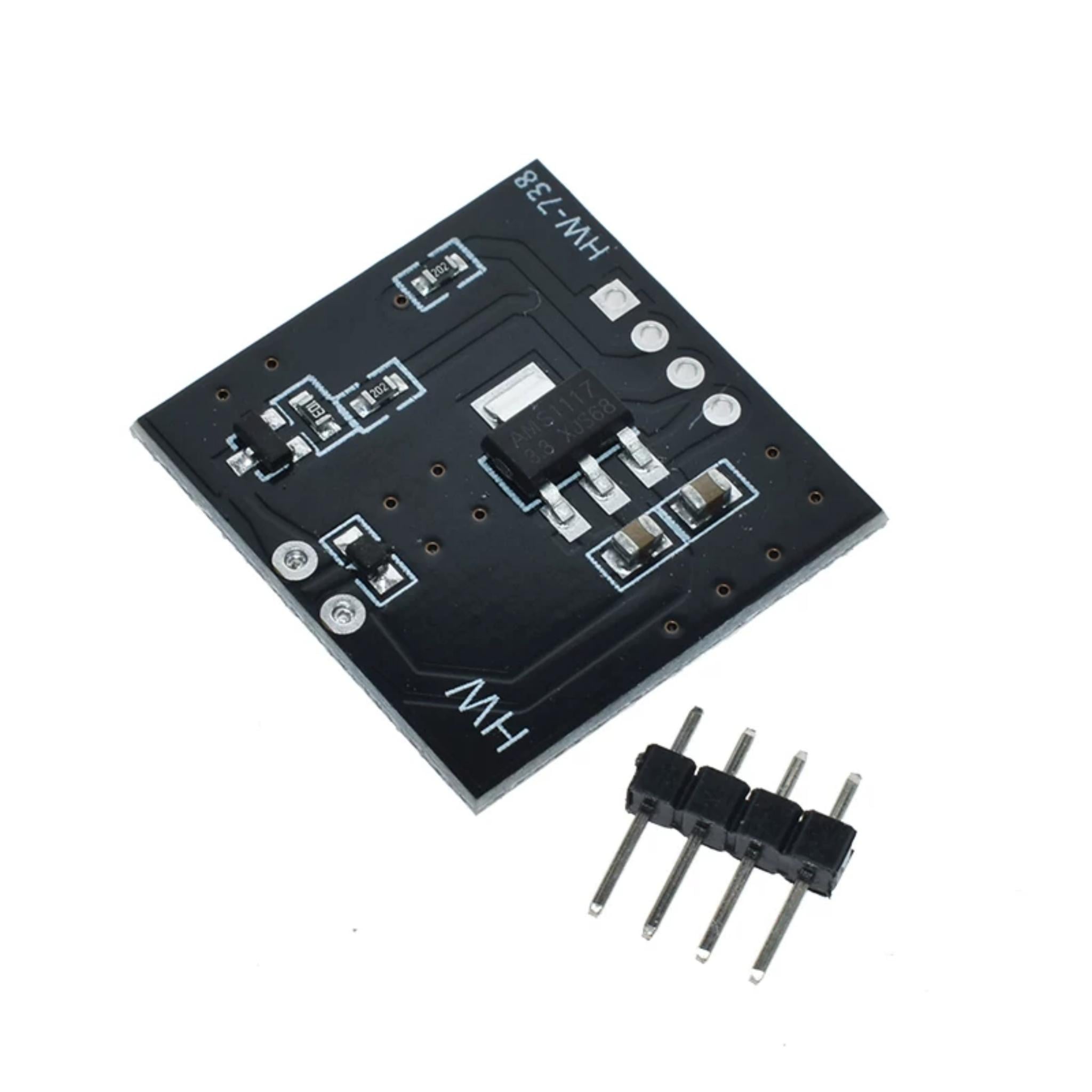

- MOSFET drive:Stronger load capacity and more stable vibration compared to ordinary transistor drives.
- Status indicator: On-board LED that lights up synchronously when vibrating (no extra programming required).
2.Compared to using a bare micro vibration motor
| Comparison Dimension | 738 (HW-738) Vibration Motor Module | Bare Micro Motor |
|---|---|---|
| Drive Method | Built-in MOSFET; connects directly to digital/PWM pins | Requires external drive circuit |
| Control Method | On/off + PWM speed adjustment + status indicator | On/off control only |
| Compatibility | Connects directly to 5V microcontrollers | Needs matching power supply and driver |
| Size | 23.8×25.3mm (integrated drive) | Motor only (extra space for drive circuit needed) |
3.Core Parameter List
| Parameter Dimension | Specific Specification | Description |
|---|---|---|
| Model | HW-738 Vibration Motor Module | Integrated design of micro eccentric motor + MOSFET drive |
| Operating Voltage | 5V | Compatible with power supplies for Arduino, ESP32, and other development boards |
| Control Method | High-level trigger (digital) + PWM speed control | High level = vibration; low level = stop; PWM adjusts vibration intensity |
| Drive Circuit | MOSFET transistor drive | Strong load capacity; stable vibration without stuttering |
| Precise Size | 23.8×25.3mm | Ultra-mini size; fits easily into portable devices |
| Interface Specification | 4-pin header | Supports breadboard insertion/soldering; easy wiring |
