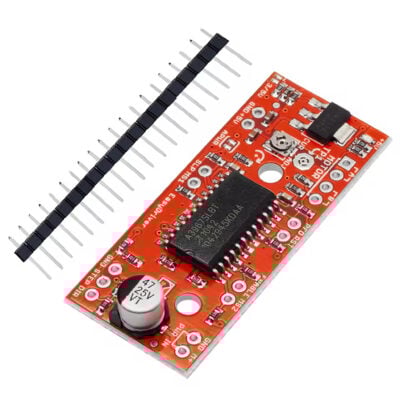

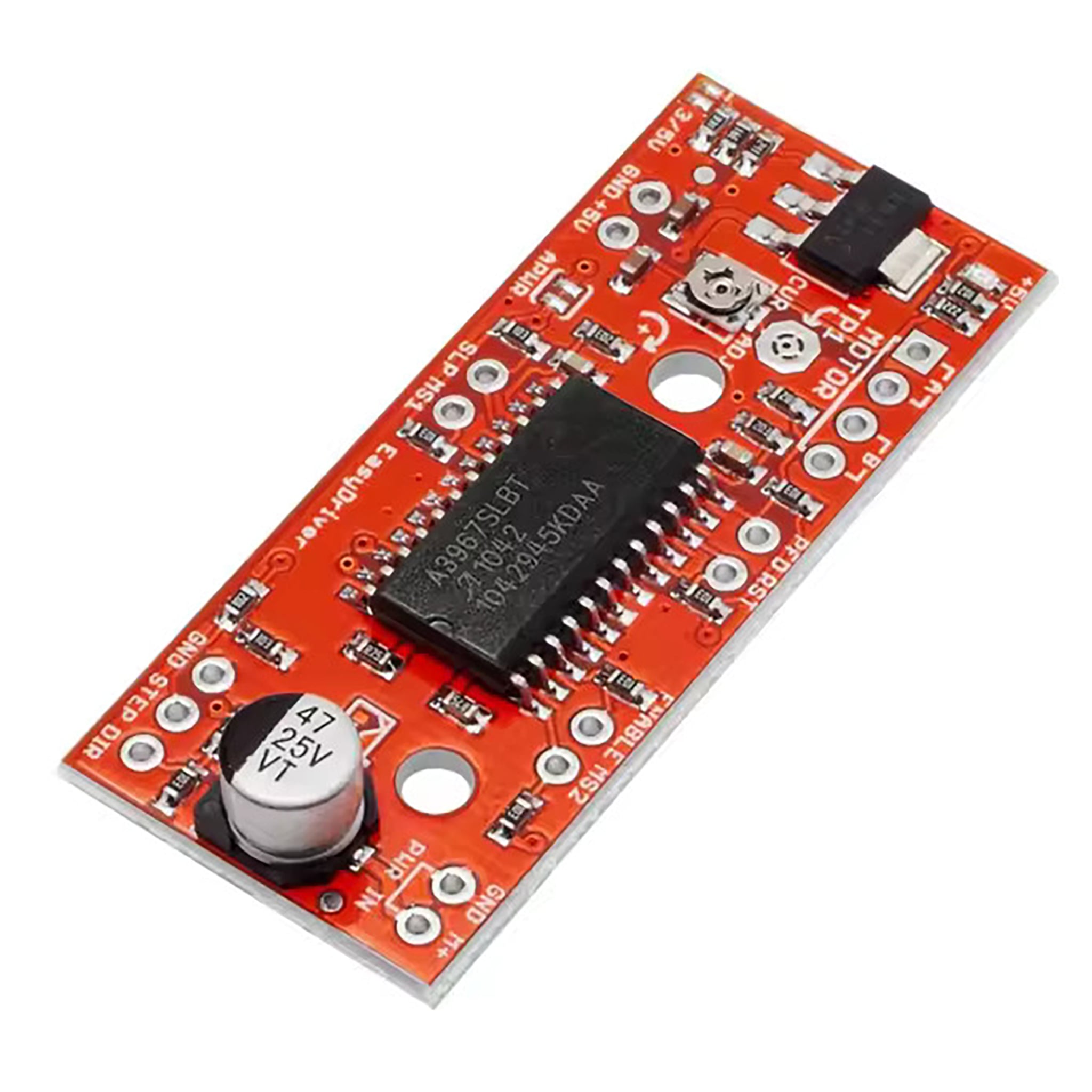

a3967-stepper motor driver board
$6.991 PCS
The A3967 is a simple two-phase, four-wire stepper motor driver board designed specifically for beginners, making it ideal for learning and working with stepper motors.
| Dimensions | 50 × 20 mm |
|---|---|
| Brand |
easyelecmodule |
1323 in stock
Product Introduction
The A3967 Stepper Motor Driver Board utilizes the A3967SLB main control chip from Allegro MicroSystems, featuring:
Built-in multiple protection functions to ensure safe operation for beginners.
Optional 8-microstep capability for finer motion control.
Three current decay modes to further reduce motor noise, enhance control precision, and lower power consumption.
5V power supply output capable of powering an MCU.
Logic control voltage range of 3.0V–5.5V, compatible with control signals from most MCUs.
Maximum output current of up to 750mA.
- It uses a simpler control logic—only requiring the output of high/low level signals and square waves to achieve control.
Product Parameters
| A3967 | VALUE | A3967 | VALUE |
|---|---|---|---|
| Power supply voltage | 12V | Output voltage | 5V |
| Max motor drive current | 750mA | Logic voltage | 3V–5.5V |
| Operating ambient temperature | −20°C to 85°C | Max STEP frequency | 500kHz |
Using video
If you want to learn how to use the A3967 stepper motor driver board, please click on stepper-motor-driver-board-a3967.
