KY-016 RGB_ LED module
$1.30 1pcs
KY-016 RGB_ LED module is capable of producing lights of different colors using a single LED.

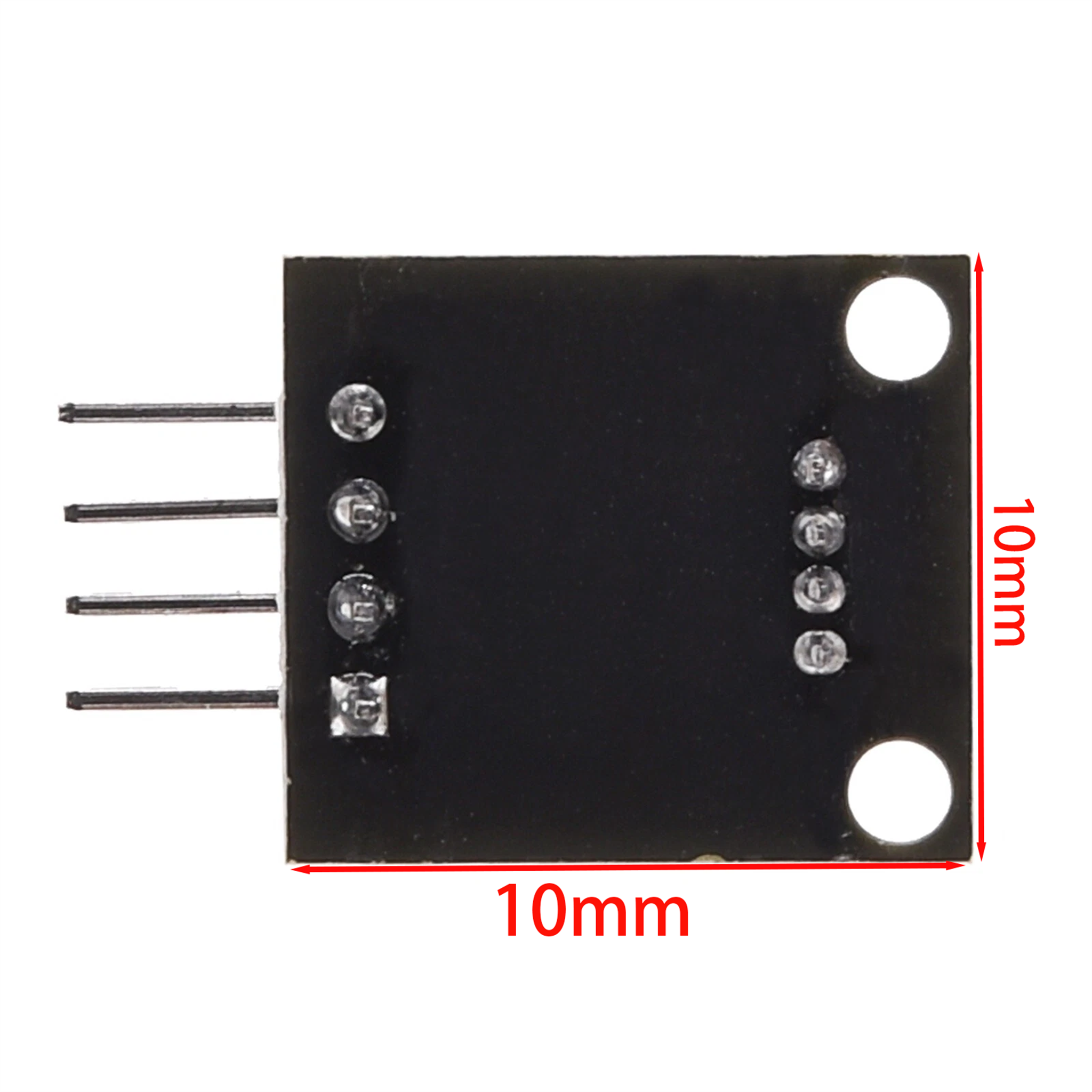

| Dimensions | 10 × 10 × 5 mm |
|---|---|
| Brand |
easyelecmodule |
3699 in stock
Product Introduction
The RGB LED module is made of plug-in full-color LEDs. By inputting PWM voltages for R, G, and B through three pins, the intensity of the three primary colors (red, blue, and green) can be adjusted, thereby achieving a full-color mixing effect. When used together with Arduino, this module can control the cold light effect.
Product features
1. Use surface-mount three-color full-color LED
2. The RGB three-color LEDs all have current-limiting resistors to prevent damage
3. By adjusting PWM, the three primary colors can be mixed to obtain various colors
4. Pin connector interface, convenient for wiring and testing
5. Can be connected to various microcontrollers
6. High-level power on to light up the LED
7. Working voltage: 3.3V/5V
8. Board size: 19mm * 15mm, with pins 25mm * 15mm

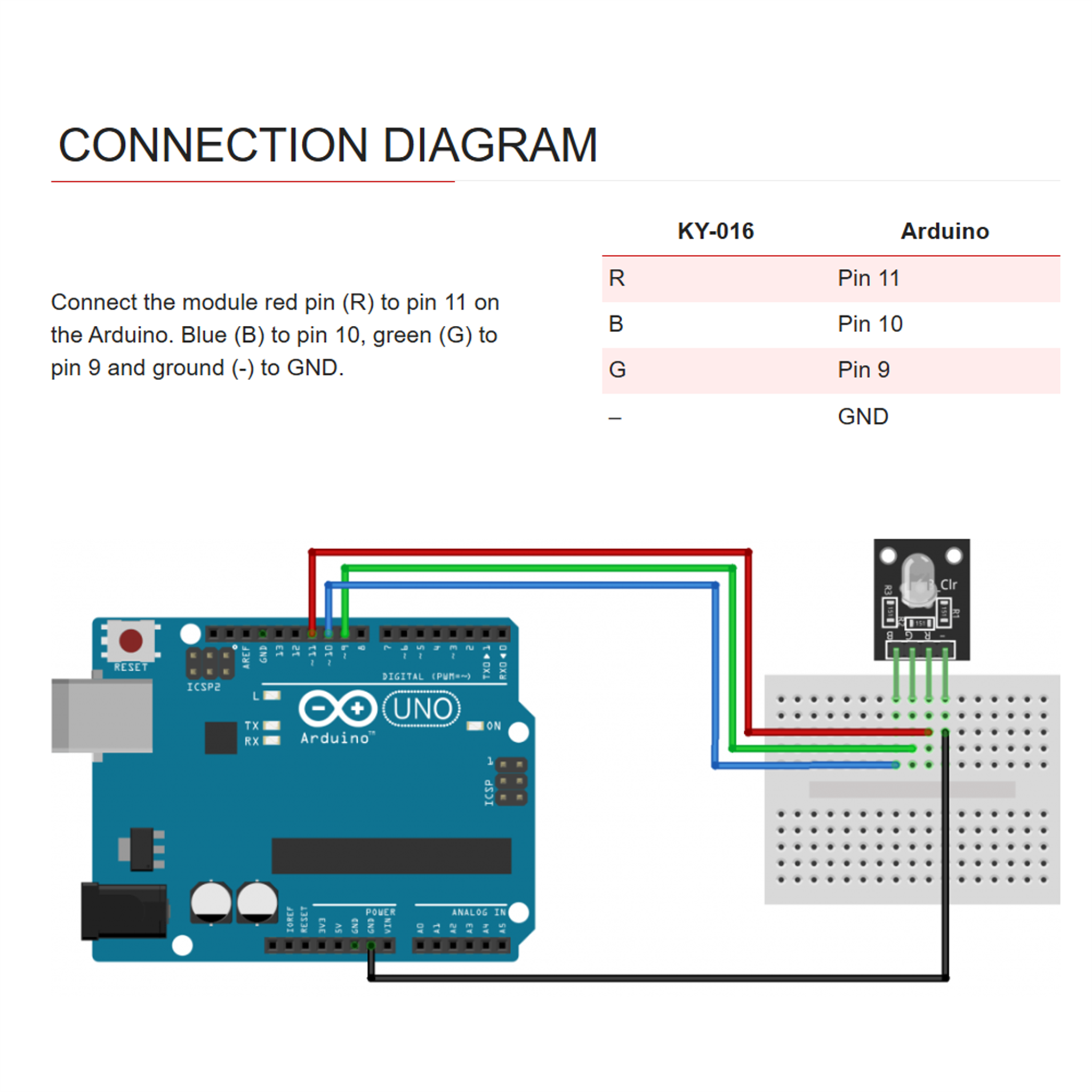

KY-016 Arduino connection
