GY-9960-3.3 APDS-9960 RGB and Gesture Sensor
$7.421pcs
The GY-9960-3.3 APDS-9960 sensor rocks！RGB and gesture sensing, proximity/light detection, I2C plug-and-play, fast gestures, real-time RGB, perfect for projects！
| Dimensions | 20.0 × 15.3 mm |
|---|---|
| Brand |
easyelecmodule |
5426 in stock
Product Introduction

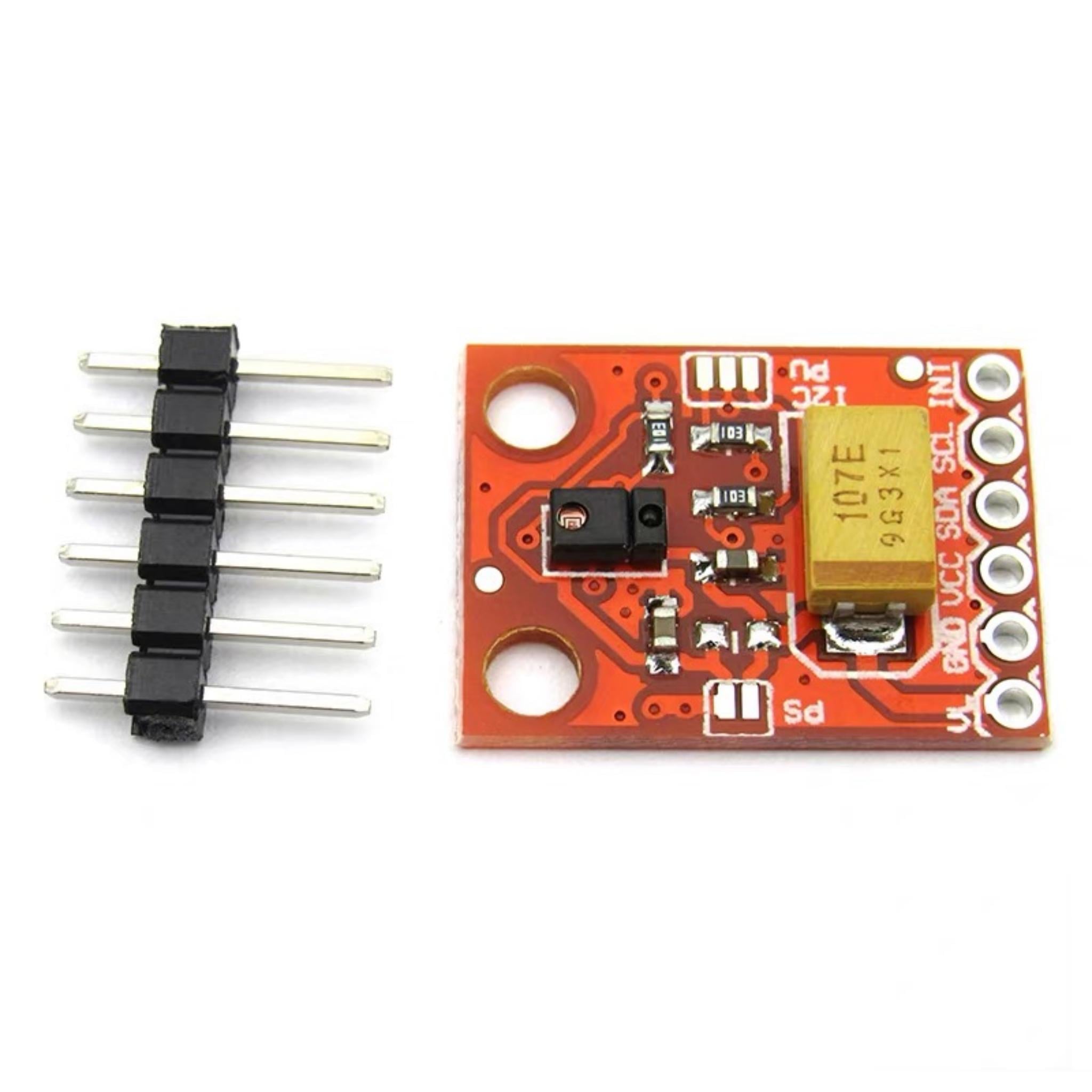

RGB and gesture sensor GY-9960-3.3 APDS-9960, a small adapter board with a built-in APDS-9960 sensor, providing APDS-9960 ambient light, color detection, proximity detection and non-contact gesture measurement. With this APDS-9960 RGB and Gesture Sensor, you can control computers, microcontrollers, robots, etc. with just a gentle wave of your hand!
The APDS-9960 hardware integrates UV and IR blocking filters, four independent diodes sensitive to different directions, and an I2C compatible interface. Each APDS-9960 has a detection range of 4~8 inches (10 ~ 20 cm).
APDS-9960 Parameter
| Power supply | 2.4V~3.6V (recommended 3.3V) |
| Communication mode | IIC communication protocol |
| Dimensions | 20.0 * 15.3 mm |
APDS-9960 Pin Function
| Pin | Pin Function |
|---|---|
| INT | Interrupt output |
| SCL | I2C clock port |
| SDA | I2C data port |
| VCC | Power supply positive pole, 2.4V~3.6V (recommended 3.3V) |
| GND | Grounding |
| VL | External IR LED power supply: 3.0V~4.5V |
APDS-9960 Application
- Gesture Recognition Control
① Contactless gesture switch control for smart devices (such as speakers, lamps)
② Gesture-based volume adjustment or switch to the next song in vehicle environments
③ Gesture interaction with smart home appliances
- Proximity Sensing
① Automatic activation of bathroom equipment (such as smart toilet seats, faucets) when a human approaches
② Smart shelves/display cabinets (detecting customers’ approach and triggering prompts or lights)
- Motion and Direction Detection
① Simple remote controls, channel switching or volume adjustment via gesture sliding
② Game controllers, controlling the movement or actions of game characters via gesture waving
③ Human-machine interaction devices (such as smart display stands, digital signage), realizing page turning, selection through user gestures
④ Obstacle avoidance or direction sensing assistance for robots
