Name: LIS3DH 3-Axis Accelerometer – Easyelecmodule
Price: 4.60 USD
Availability: InStock

DESCRPIPTION AND FEATURES

Product Introduction

This accelerometer module is based on the LIS3DH (note: the text mentions “LISDH” which is likely a typo for LIS3DH) MEMS 3-axis accelerometer chip produced by STMicroelectronics. It is an intelligent, low-power, 3-axis, capacitive micro-mechanical accelerometer module with 12-bit resolution, capable of realizing motion sensing functions.

The LIS3DH 3-Axis Accelerator is an ultra-low-power, high-performance 3-axis linear accelerometer that belongs to the “nano” embedded state machine family, and can be programmed to enable autonomous applications. This LIS3DSH features dynamically selectable full scales of ±2g/±4g/±6g/±8g/±16g, and it can measure acceleration with an output data rate ranging from 3.125 Hz to 1.6 kHz. A self-test function allows users to verify the sensor’s functionality in the final application.

This device can be configured to generate interrupt signals triggered by user-defined motion patterns.

The LIS3DSH is equipped with a first-in, first-out (FIFO) buffer, which lets users store data to reduce host processor intervention.

The LIS3DSH comes in a small, thin land grid array (LGA) package, and it operates reliably over an extended temperature range of -40°C to +85°C.

Product Features

Wide operating voltage range: 1.71~3.6V
Three operating modes: Shutdown; Normal; Low-power
Power consumption: 2μA in low-power mode; 11μA in normal mode (at ODR=50Hz, requires SDO/SA0 pin to be floating or pulled up)
Measurement range: Dynamically selectable full scale: ±2g/±4g/±8g/±16g
Interfaces: I2C, SPI
16-bit data output
Two programmable interrupt output pins (for free-fall and motion detection)
6D/4D orientation detection
Built-in AD (supports 3 external signal inputs)
Built-in temperature sensor
Built-in 32-slot 10-bit FIFO memory
Self-test function
Embedded temperature sensor

LIS3DH 3-Axis Accelerator Datasheet

If you want to learn more details about the LIS3DH 3-axis accelerometer, you can refer to this datasheet.

LIS3DH 3-Axis Accelerometer Pin Description

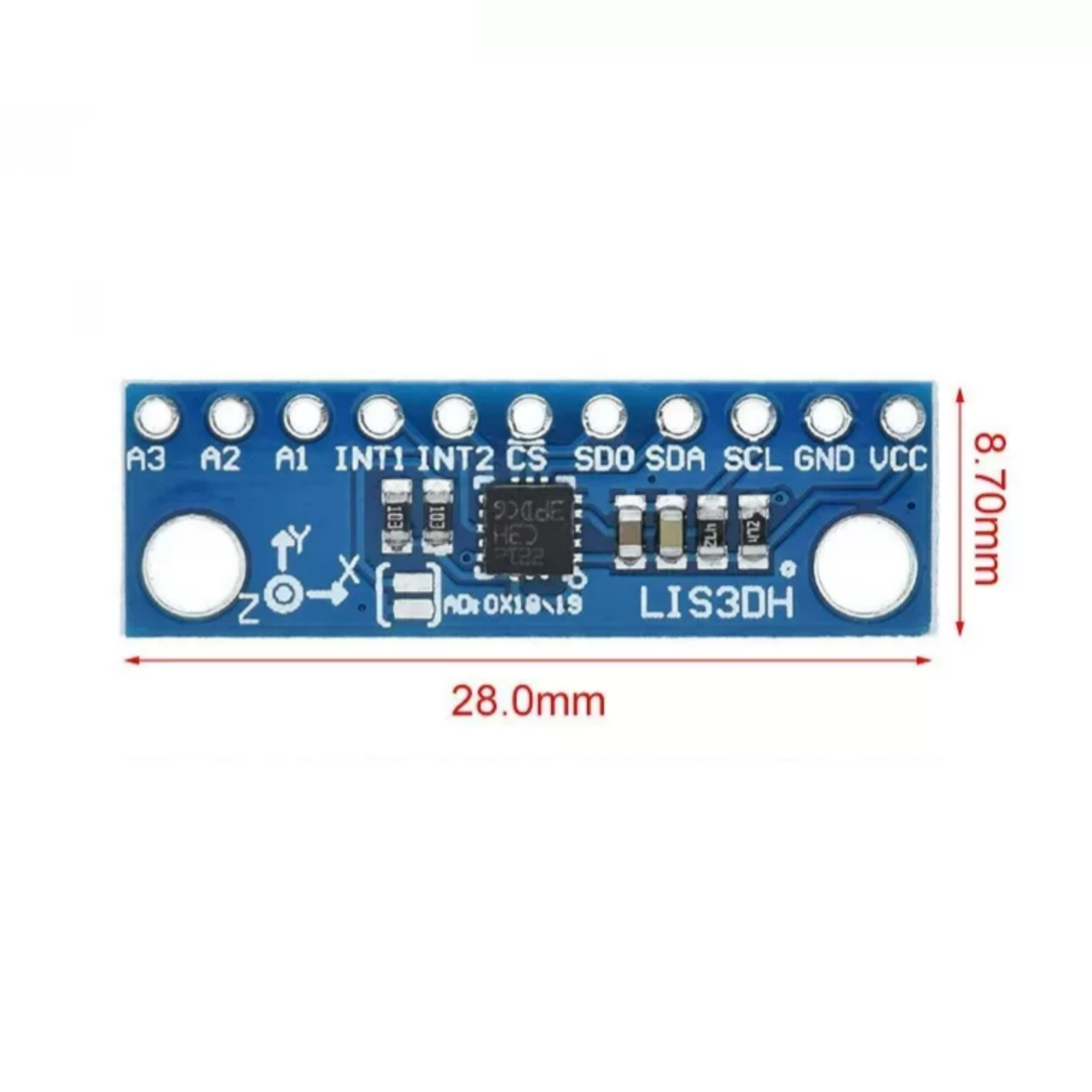

At the bottom of the front side, there is a jumper pad corresponding to the I2C address adjustment function. When the pad is soldered (connected), the address 0x18 is used; otherwise, if left open, the address is 0x19. Important note: Keep this pad open when using SPI.

Test Instructions

The examples included in the accompanying Arduino library and their functions are as follows:

ADUsage: Demonstrates analog reading and recording of collected data;
FifoExample: Demonstrates how to use the built-in buffer for burst data collection;
FullSettingExample: Displays all configurations (unused options are commented out);
IntUsage: Shows the configuration of interrupt bits;
LowLevelExample: Demonstrates using only the core driver (no mathematical calculations or additional settings required);
MinimalistExample: The simplest configuration;
MultiI2C: Uses two LIS3DH modules over the I2C interface;
MultiSPI: Uses two LIS3DH modules over the SPI interface;

Product Applications

Motion-sensing games
Augmented reality
Electronic image stabilization
Optical image stabilization
Pedestrian navigation devices
“Zero-touch” gesture user interfaces
Posture-based shortcuts

Target application markets: Smartphones, tablet devices, handheld gaming products
