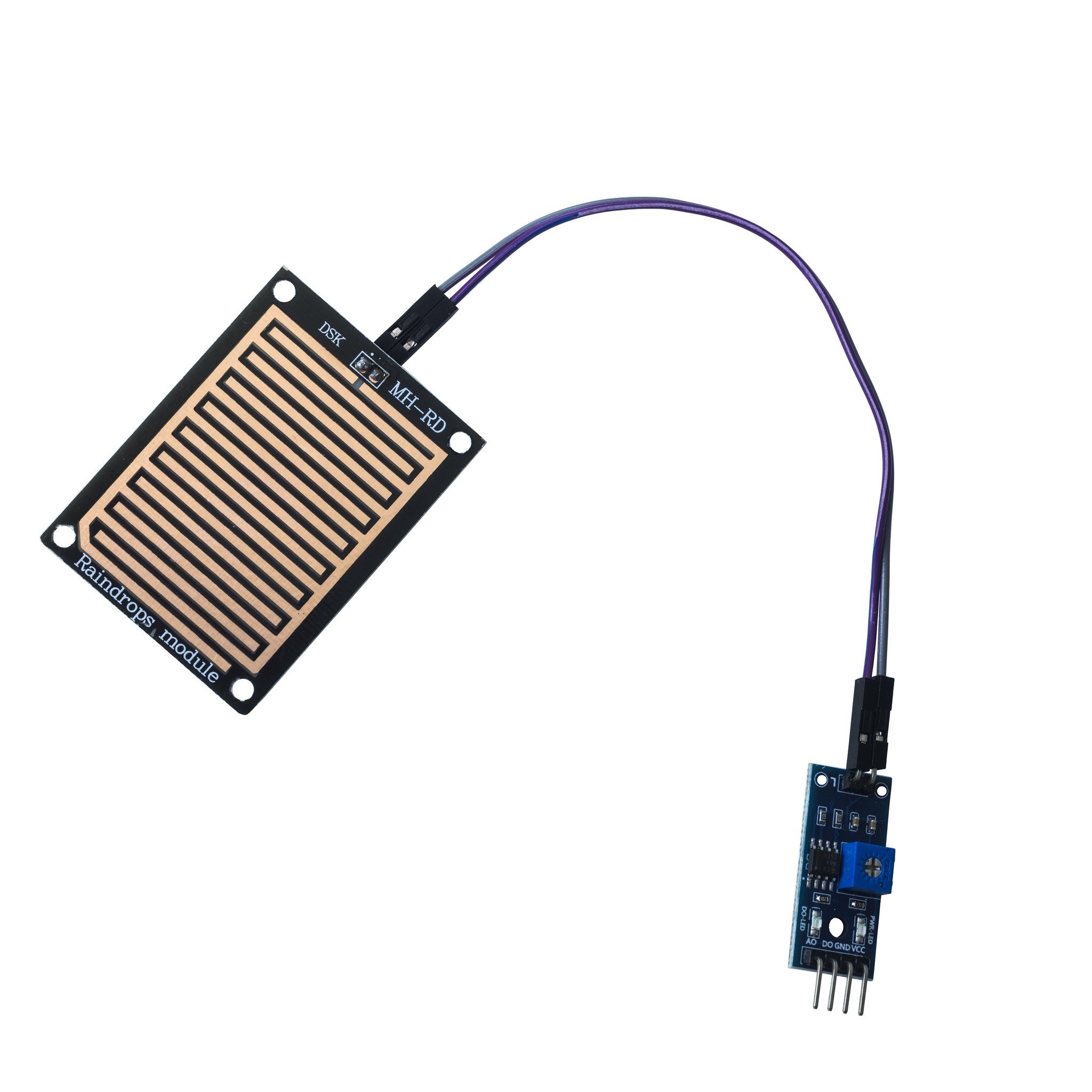

MH-RD Raindrops Module
$0.991 pcs
Nickel-plated anti-oxidation, clean LM393 comparator signals, adjustable sensitivity, easy installation, and wide voltage support.
| Dimensions | 54 × 40 mm |
|---|---|
| Brand |
easyelecmodule |
9785 in stock
Introduction
Ever rushed home to collect clothes drying outside because of sudden rain? Tired of manually checking if your garden needs watering or if your car’s wiper needs adjustment? The MH-RD Raindrops Module is here to automate rain detection—keeping your belongings dry, your plants healthy, and your life hassle-free.
What is Raindrop module？
A raindrop sensor is a sensor used to detect the presence and intensity of rain. It usually consists of a metal plate and a sensor module. The module detects changes in the surface resistance of the metal plate to determine whether rain drops are falling, thereby achieving the perception of rainfall conditions.
Technical specification
| Parameter | Details |
| Operating voltage | 3.3V – 5V |
| Operating current | 15mA |
| Output form | Digital signal DO switch output 0/1; Analog AO output |

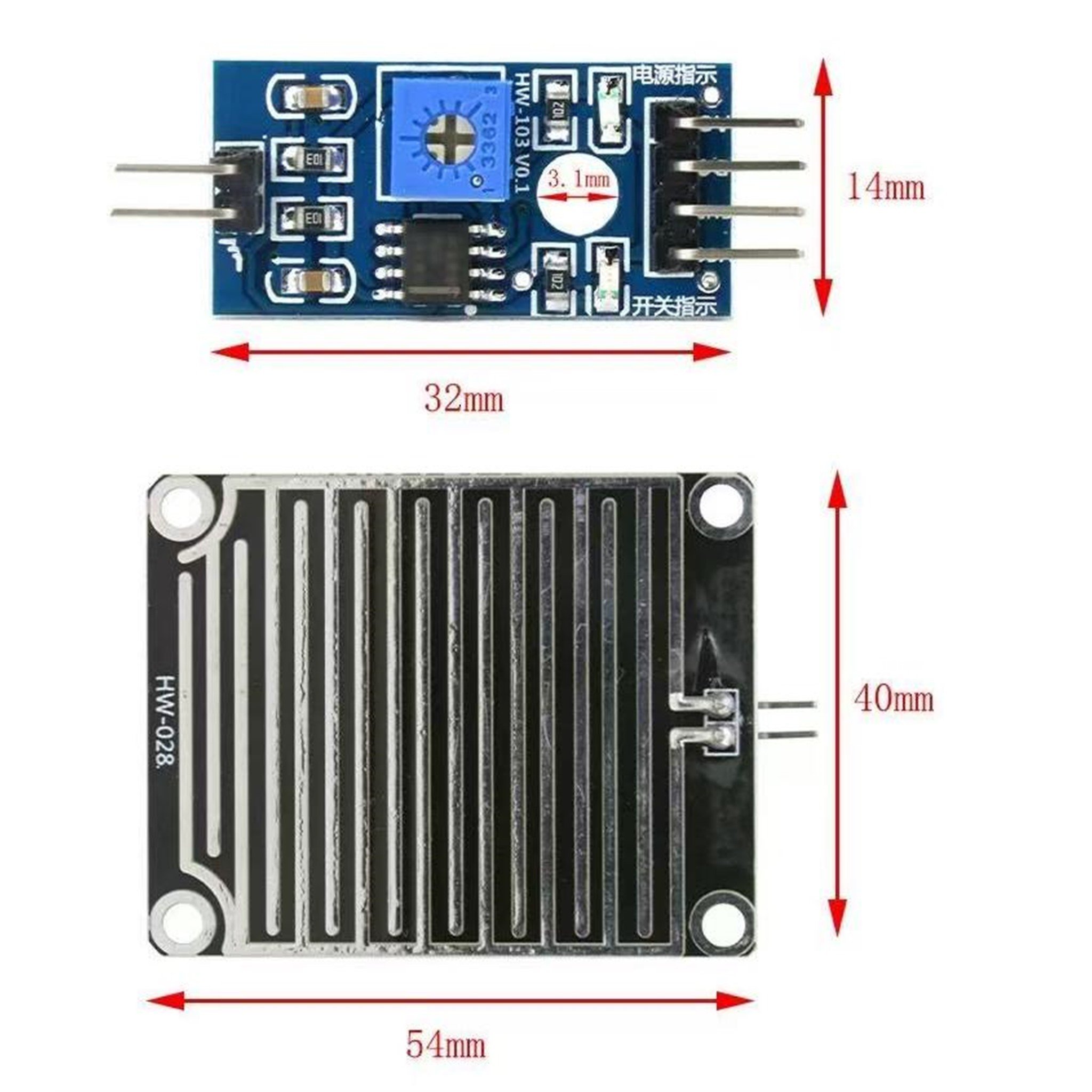

| Product size | large: 5.0*4.0cm; small: 3.2*1.4cm |
| Comparator | LM393 |

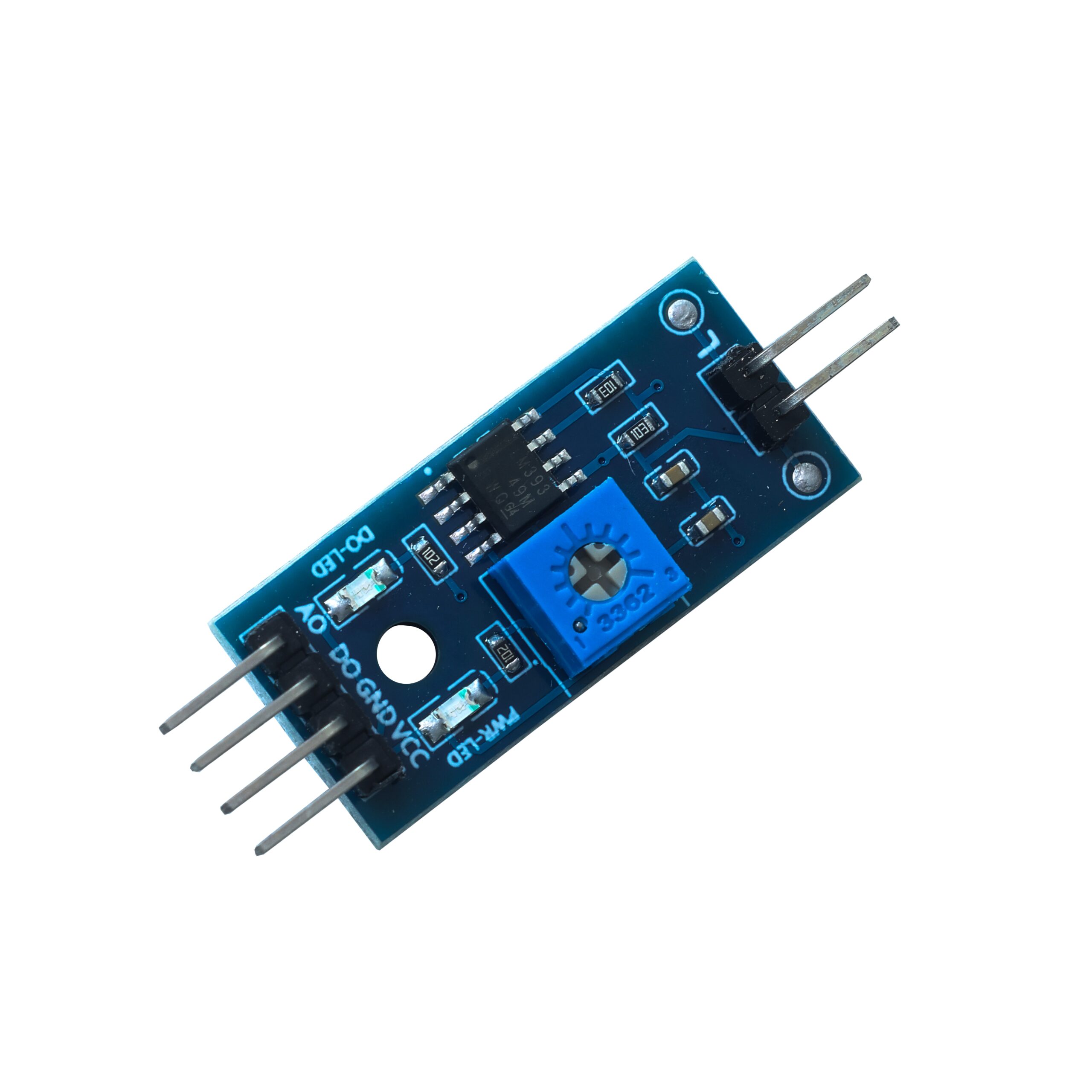

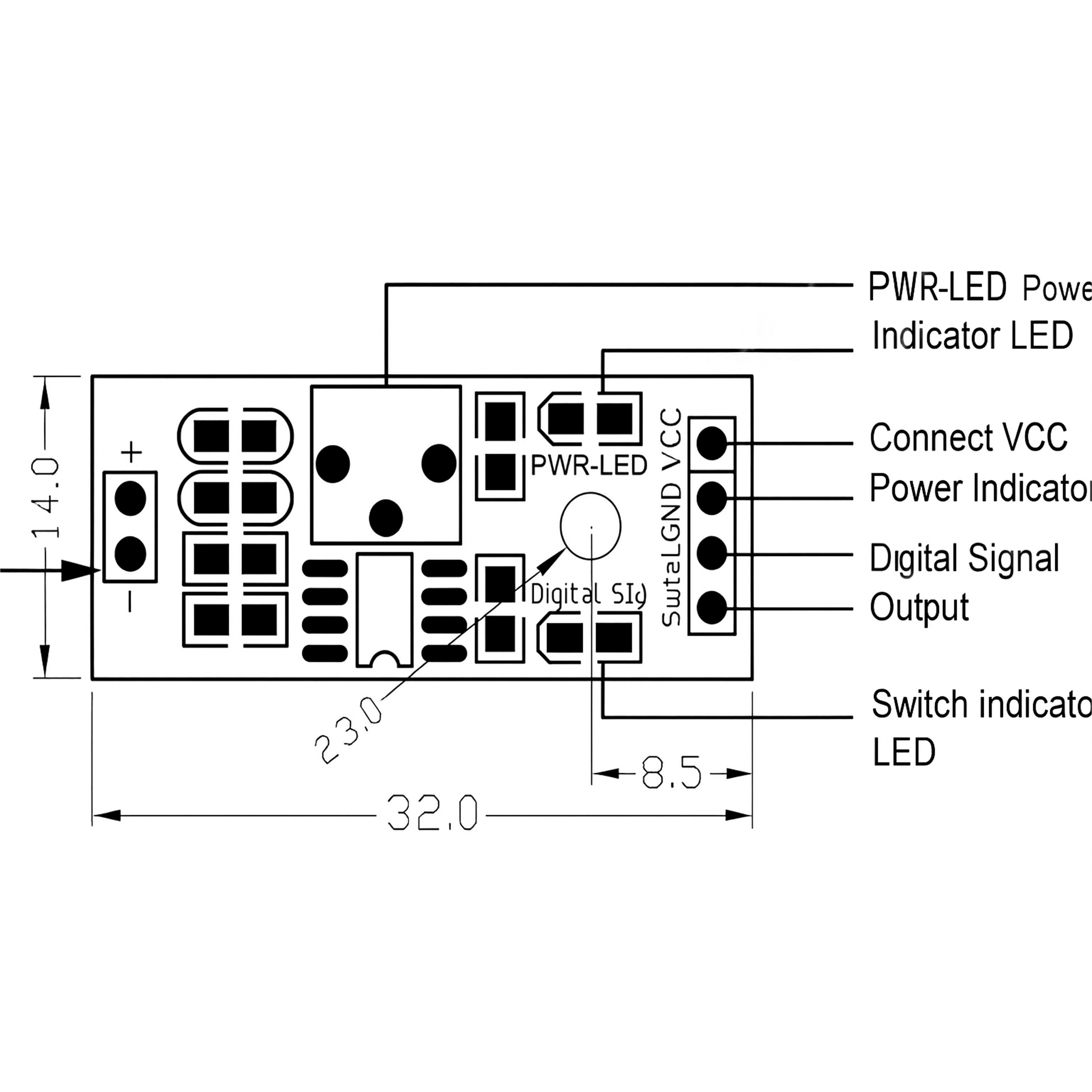

Module Pinouts
- VCC: Connect to 5V voltage input
- GND: Ground terminal
- D0: Digital signal output pin
- A0: Analog signal output pin
- VCC：Voltage input
- GND：Ground terminal
Why choose this MH-RD Raindrops Module？
- economical and practical
- Durable andConductive
- Clean, Reliable Signals
- Adjustable Sensitivity
- Easy Installation
Advantage of MH-RD Raindrops module

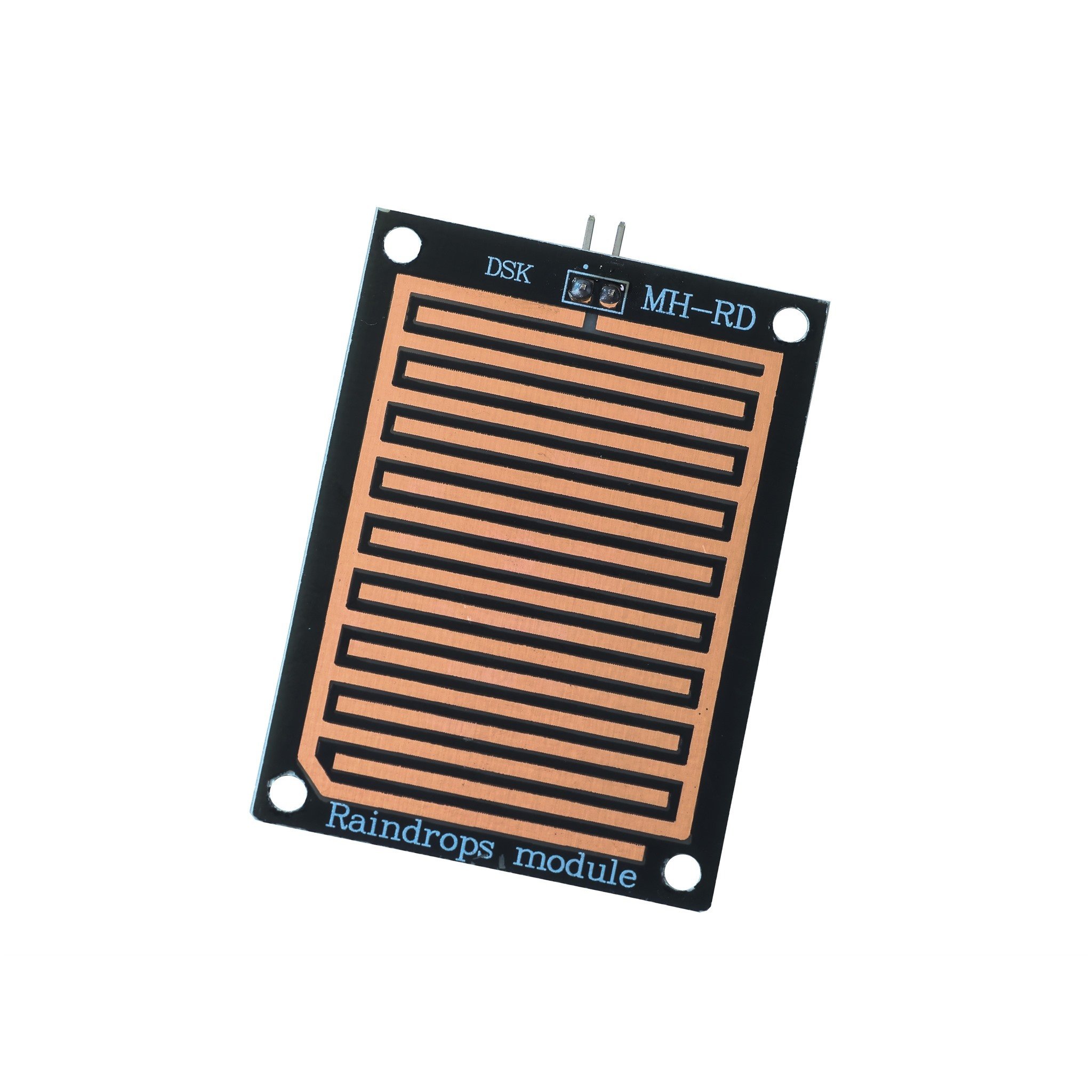

1、The sensor is made of double-sided materials and its surface is treated with nickel plating, which offers better performance in terms of anti-oxidation, electrical conductivity and service life.
2、Comparator output, clean signal, good waveform, strong driving ability, over 15mA.
3、A potentiometer is equipped to adjust the sensitivity.
4、It is equipped with fixed bolt holes for convenient installation.
5、Use the wide-voltage LM393 comparator.
Application
- Smart awnings
- Automotive automatic wiper systems
- Garden irrigation systems
- Other fields that require rain detection
