TTL TO RS485 Module (MAX-RS485)
$2.401pcs
The TTL to RS485 module converts TTL-level signals into RS485 differential signals, enabling reliable long-distance communication. It is suitable for industrial control, embedded systems, and serial communication applications.
| Dimensions | 42.8 × 15.2 mm |
|---|---|
| Brand |
easyelecmodule |
3477 in stock
TTL TO RS485 Module
3.3V/5.0V Auto-Direction Control RS485 Module Specifications
I. Core Features
Automatic Direction Control: No need for software-controlled “Receive-Transmit” pins. Operating this module is as simple as using a standard UART serial port.
Wide Voltage Compatibility:
Power Compatibility: Compatible with both 3.3V and 5.0V power supplies.
Signal Compatibility: TTL signal levels are compatible with both 3.3V and 5.0V systems.
Industrial-Grade Reliability:
High-quality chips and industrial-grade design ensure strong anti-interference capability.
Operating temperature range: -40°C to +85°C.
Enhanced lightning protection design for RS485, suitable for industrial fields and harsh outdoor environments.
Transmission Distance: Supports distances up to kilometers (tested with 850 meters of 2*1.5 cable. Recommended for use within 800 meters; beyond 800 meters, a repeater is required).
Schematic Diagram of TTL TO RS485 Module
II. Hardware Design
PCB Process:
Half-hole process design, board thickness 0.8mm, easily used as a sub-board or with terminals soldered.
Large-area copper coating to prevent signal interference.
Standard 2.54mm pitch pin header design for convenient secondary development.
Protection Design:
Equipped with a dedicated “Ground Connection” terminal. For long-distance outdoor transmission, connecting this terminal to earth provides excellent anti-interference and lightning protection. For short-distance indoor transmission, this connection can be omitted.
Termination Resistor: Onboard 120Ω matching resistor. Enable by shorting the R0 terminals. Recommended for long-distance transmission to ensure signal stability.
III. Functions and Interfaces
Bus Capability: Supports multi-device communication, allowing connection to a bus with up to 128 devices.
Hot-Swap Support: Supports hot-swapping without signal latch-up issues common in other RS485 chips.
Status Indicators: Equipped with RXD and TXD signal indicators for visual monitoring of data transmission and reception status.
IV. Key Advantages
Ease of Use: Automatic direction control makes operating RS485 as simple as using a UART serial port.
High Compatibility: Fully compatible with both 3.3V and 5.0V power and signal systems.
Robust Reliability: Industrial-grade design with lightning protection and anti-interference, suitable for harsh environments.
Flexible Design: Half-hole, terminals, and standard-pitch pin headers support various installation and development needs.

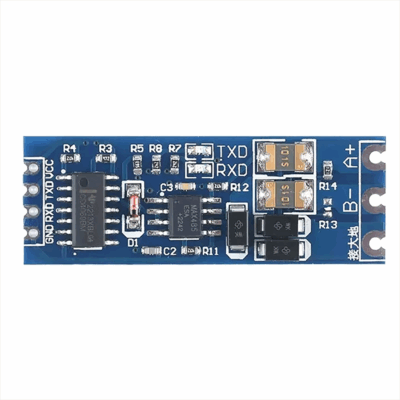

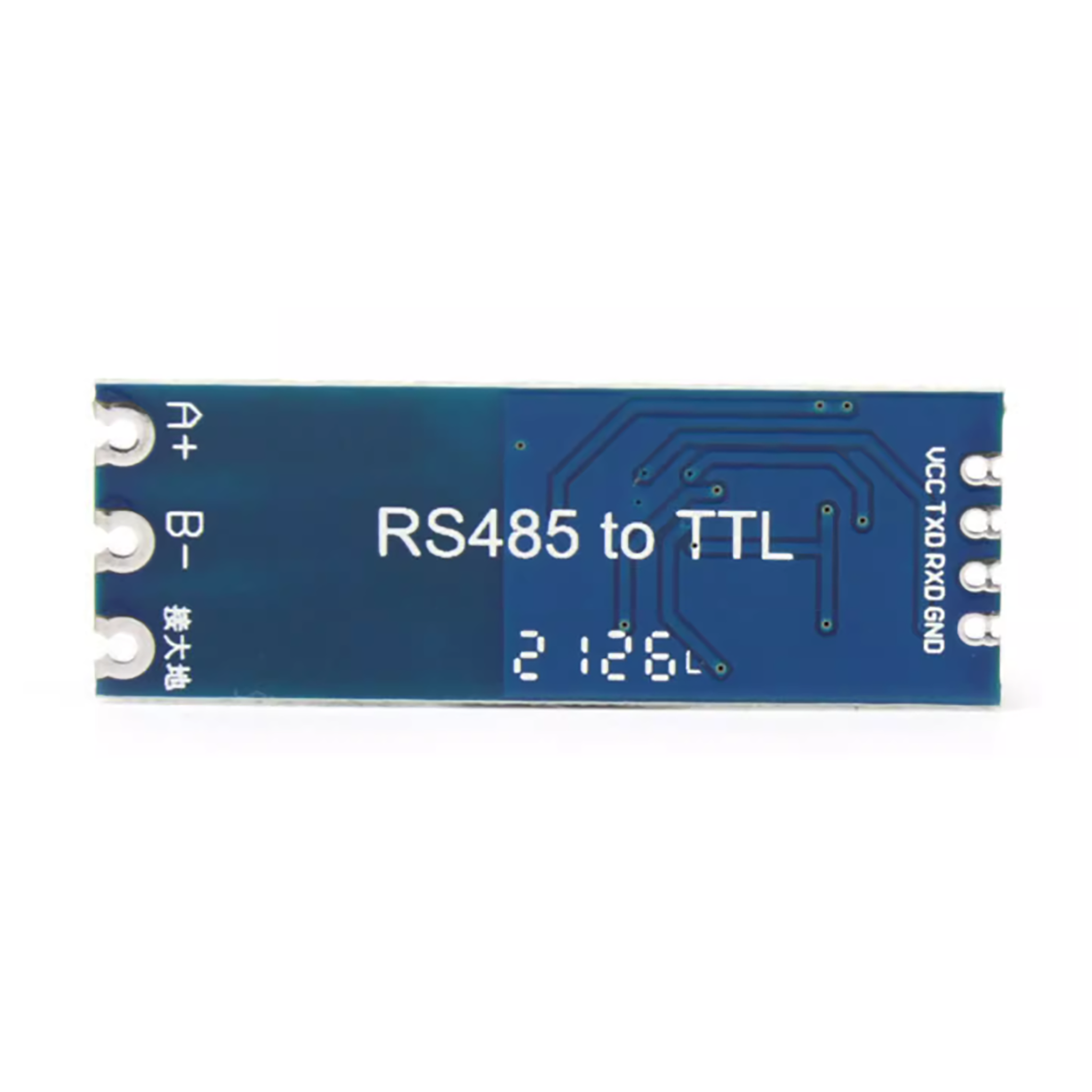

TTL TO RS485 Module PCB
TTL TO RS485 Module Pinout
