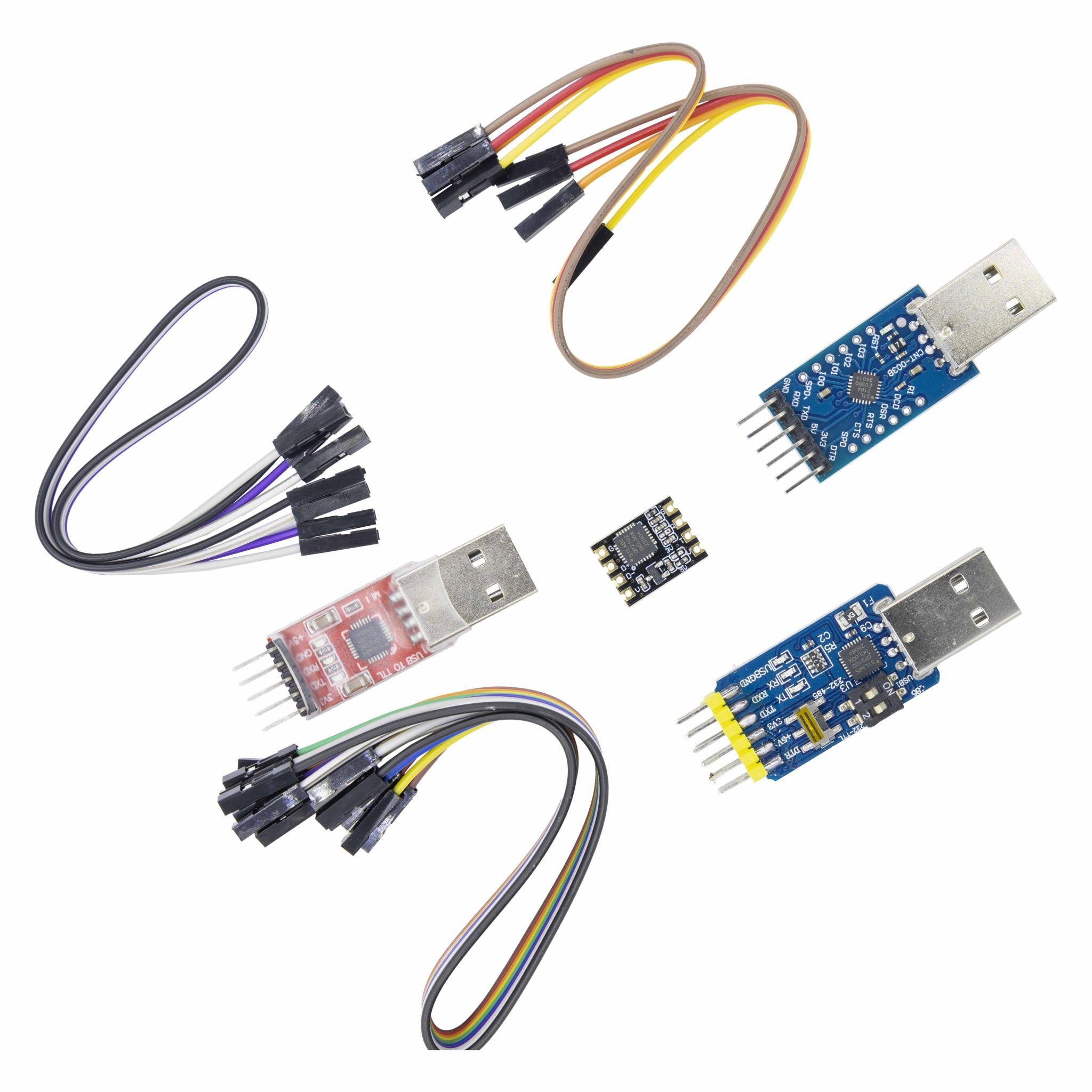

CP2102/CP2104 USB TO TTL/UART MODULE
Price range: $2.69 through $5.901 pcs
| Dimensions | N/A |
|---|---|
| Brand |
easyelecmodule |

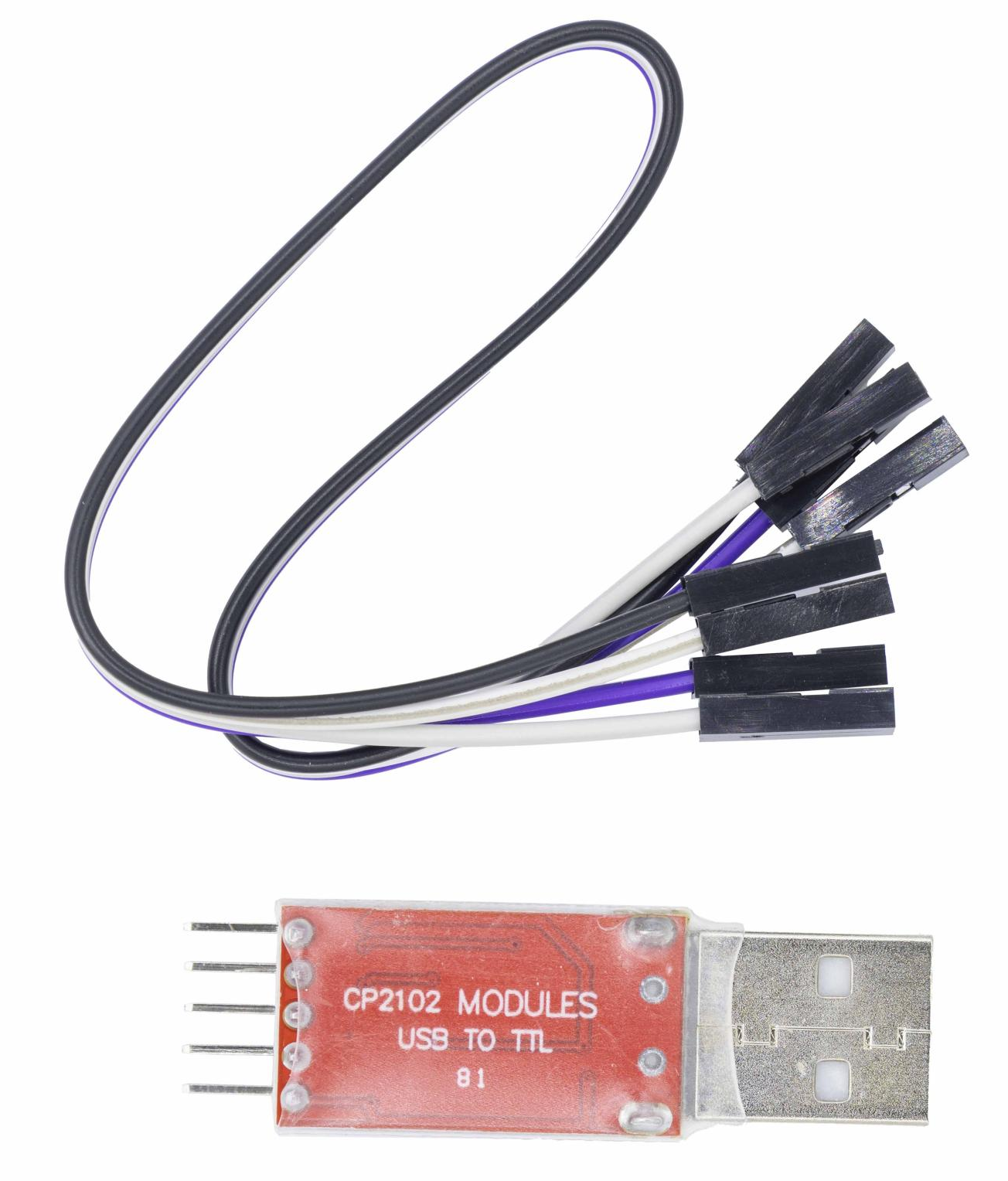

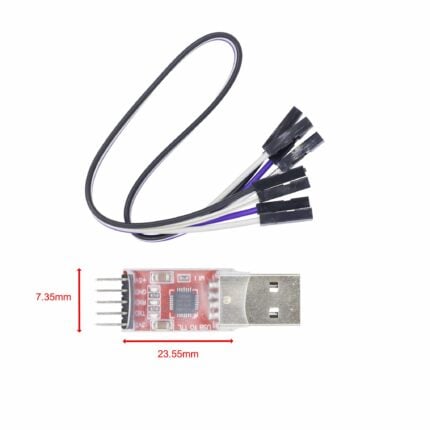

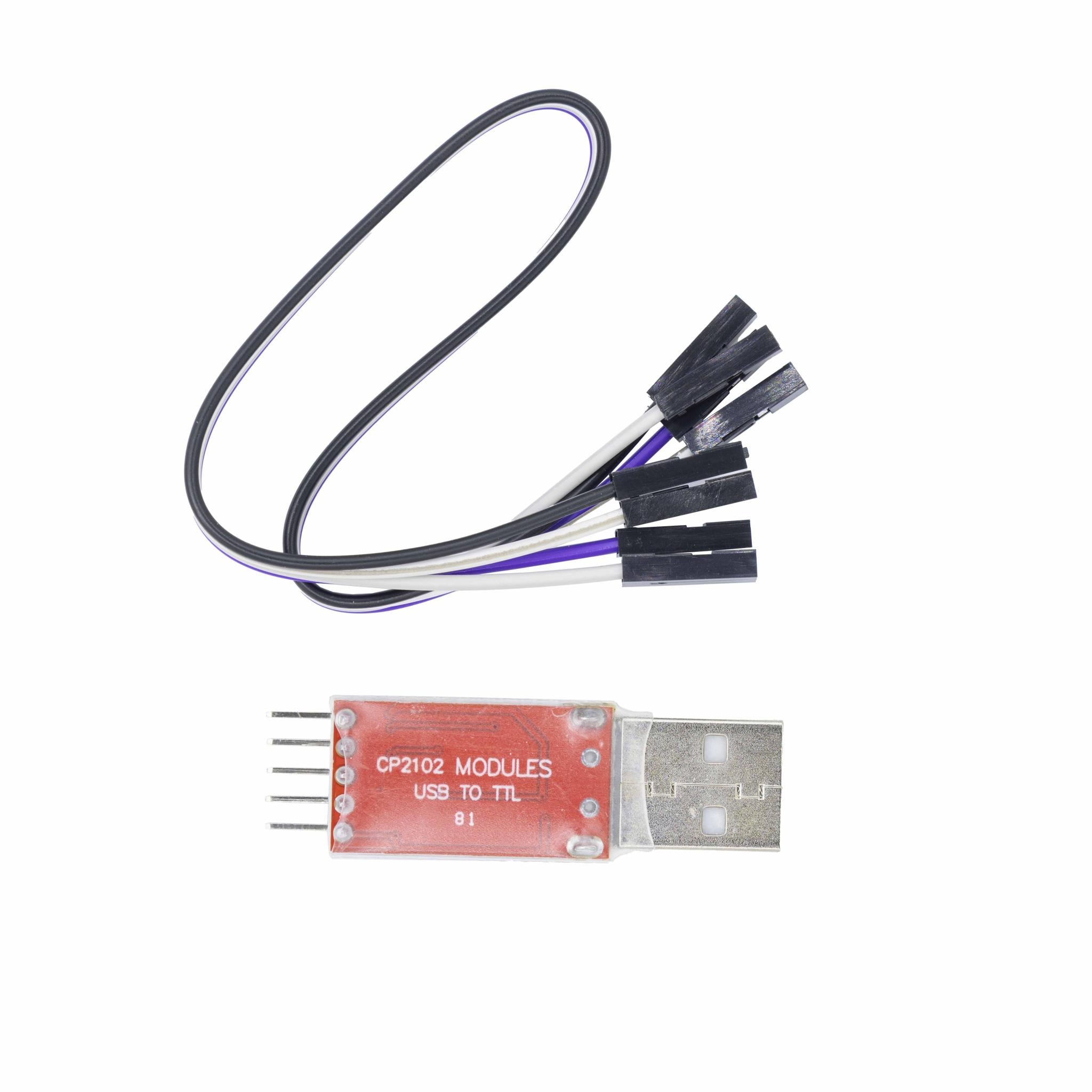

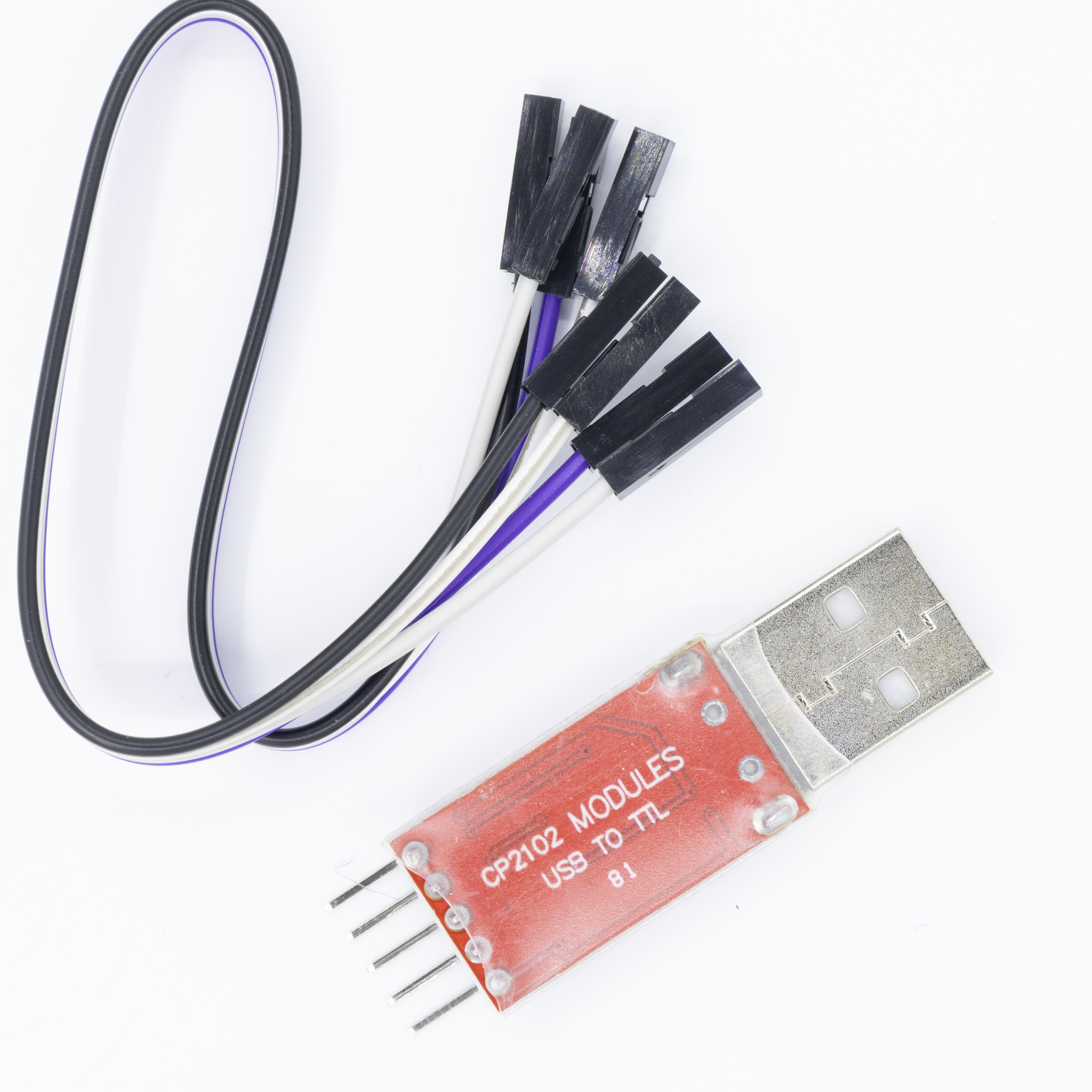

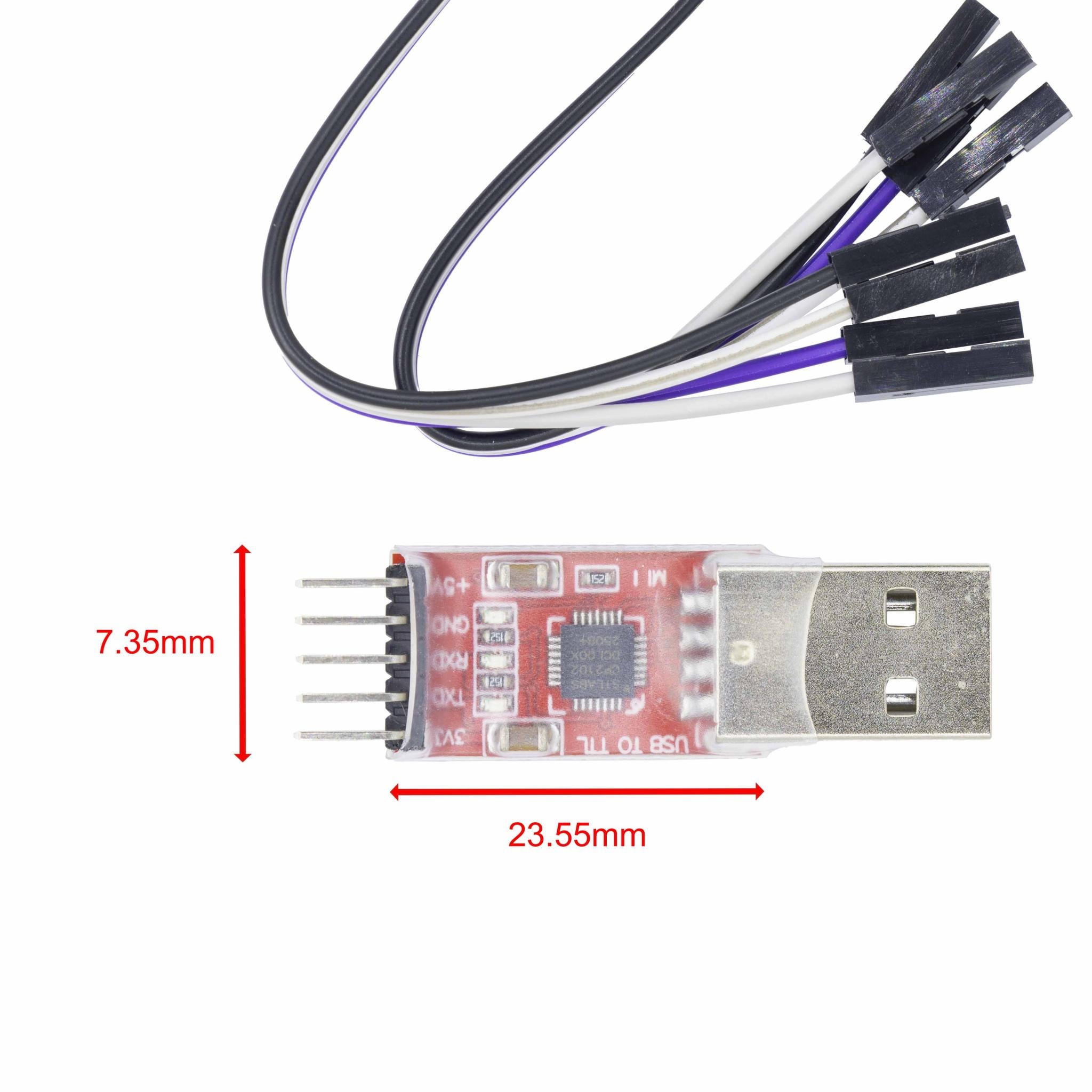

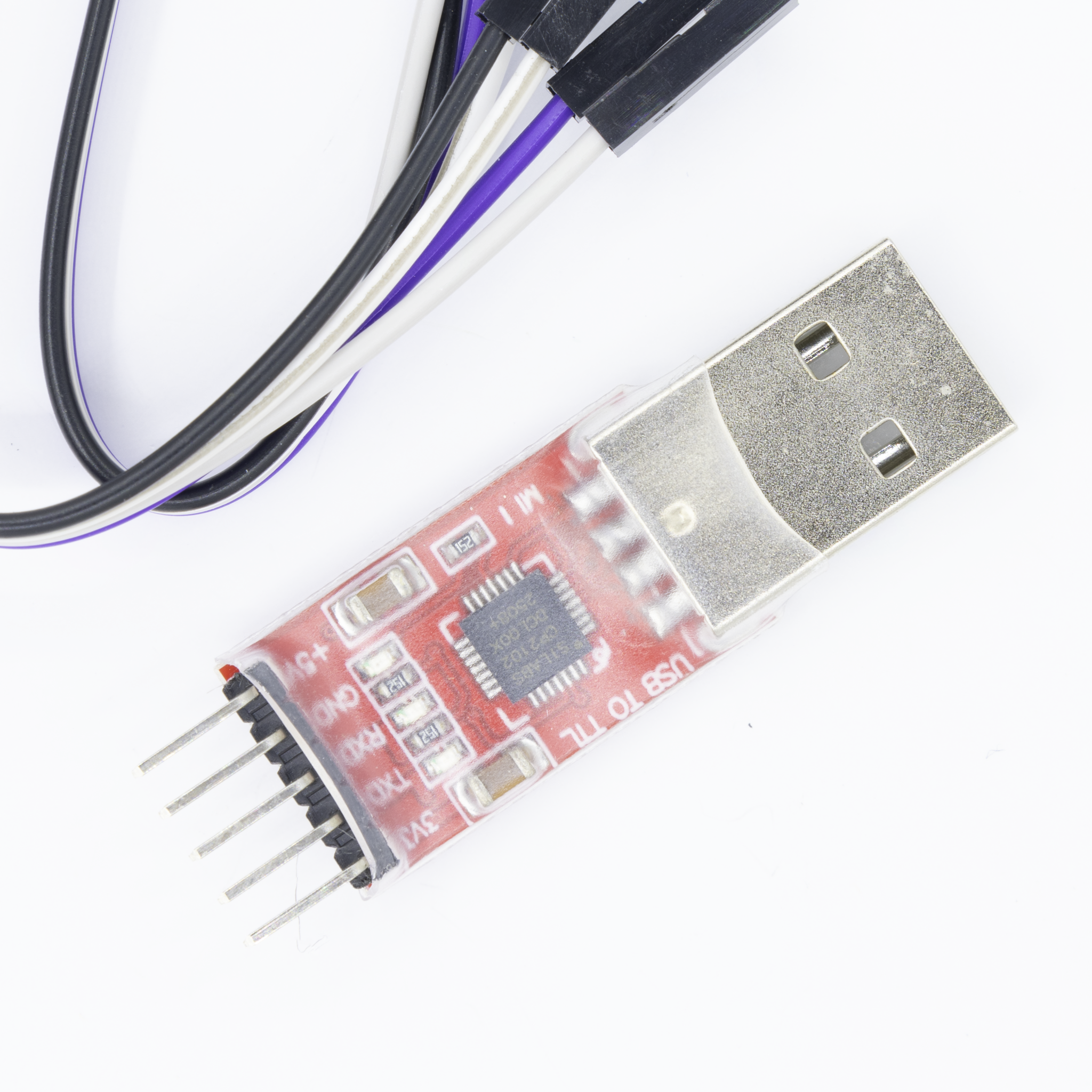

Parameters:
1.The main chip is2102, and a virtual serial port is generated after installing the driver.
2.Power is taken from USB, and the outgoing interfaces include 3.3V (<40mA), 5V, GND, TX, RX. The signal pin level is 3.3V with positive logic.
3.Supports baud rates from 300bps to 115200bps.
4.Data format support: ①. 5/6/7/8 data bits; ②. Supports 1/1.5/2 stop bits; ③. odd/even/mark/space/none.
5.Driver supports operating systems: Windows vista/xp/server 2003/2000, Mac OS-X/OS-9, Linux (such as W105).
6.The USB head is a male head, and 3.3V can be directly connected to the STC system USB port.
7.This downloader supports online programming of all series of STC single-chip microcomputers. It has USB to TTL and USB to serial port functions and can be used for the upgrade of USB to TTL electronic products without affecting normal serial port communication tests! It supports high wave rate 115200 and is also suitable for programming STC12 series, STC11 series, and STC15 series!
Pin Description:
- G: Ground wire (GND) connected to the GND of the STC single-chip microcomputer.
- Q: Power supply (OUT VCC) connected to the VCC of the STC single-chip microcomputer.
- R: Receive (RXD) connected to P3.1 of the STC single-chip microcomputer.
- T: Transmit (TXD) connected to P3.0 of the STC single-chip microcomputer.

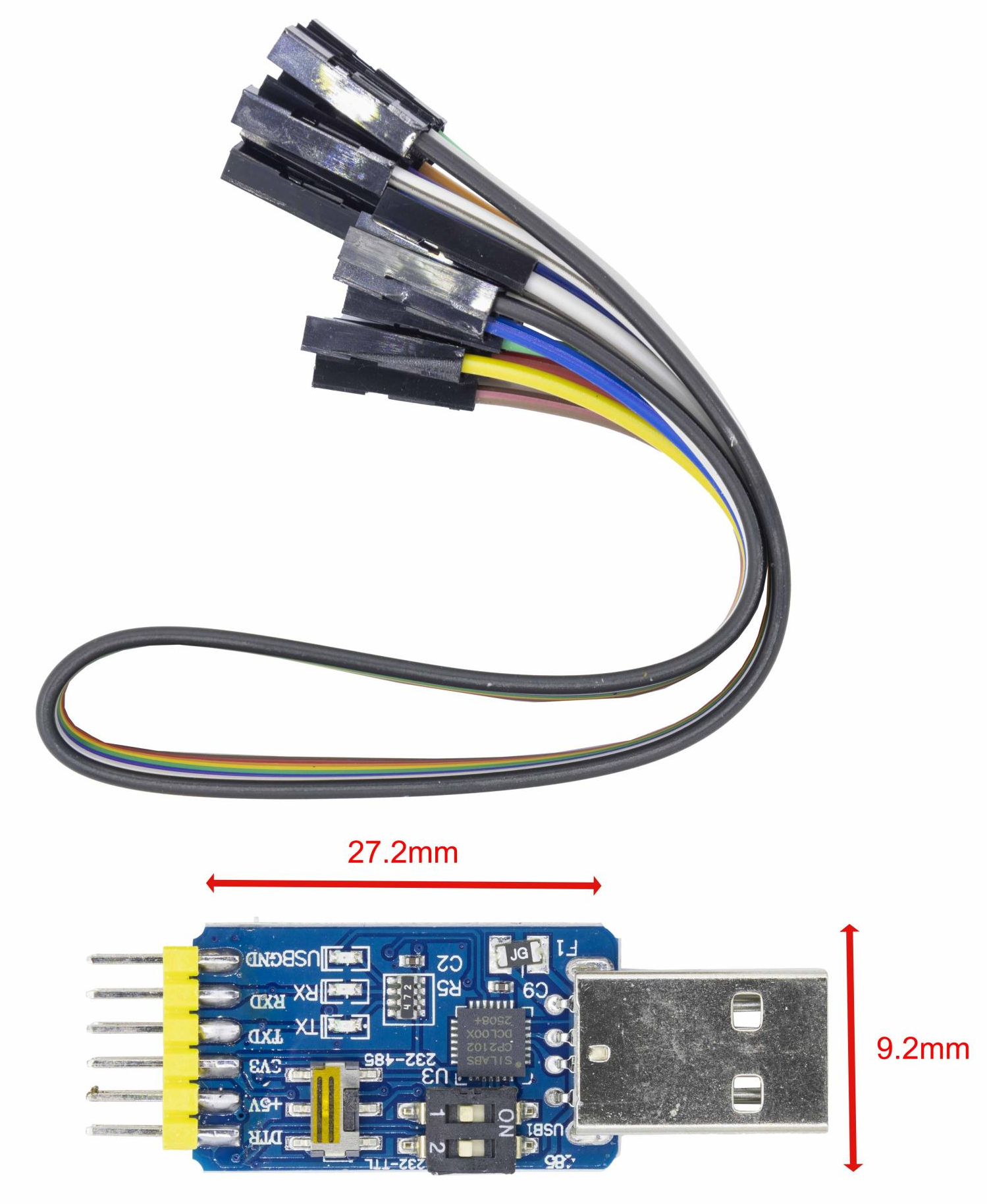

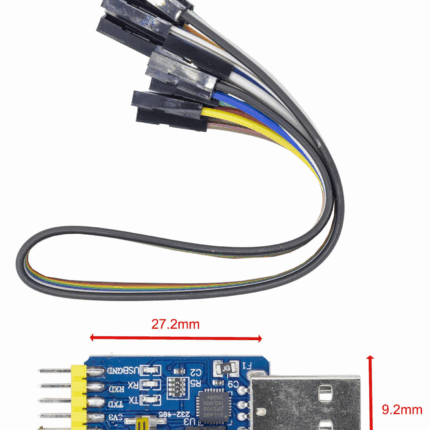

Parameters:
1、System Compatibility: Fully supports drivers for Win8/Win7/WinXP/Win2k/WinCE/Linux/Mac systems, both 32-bit and 64-bit.
2、3.3V and 5V Compatibility: This product supports 3.3V voltage.
3、Power supply output 5V – 500mA or 3.3V – 100mA.
4、Overcurrent Protection: When overcurrent occurs (exceeding 500mA at 5V or 100mA at 3.3V), the fuse will automatically blow.
5、TTL Level: Can be directly connected to single-chip microcomputers or other embedded devices.
6、RS232 Level: Can be connected to computers or other RS232-level devices.
7、R485 Level: With automatic send and receive control, default to receive status.
8、Four Communication Freely Switch: USB/TTL/RS232 can be freely switched.
9、High-Speed: Baud rate can reach up to 2Mbps.
| Mode | Pin Name | Function |
|---|---|---|
| TTL Level Interface | TXD | TTL Transmit |
| RXD | TTL Receive | |
| GND | TTL Ground | |
| 232 Level Interface | 232-TX | 232 Transmit |
| 232-RX | 232 Receive | |
| GND | 232 Ground | |
| 485 Level Interface | A | 485+ |
| B | 485- | |
| +5V Voltage Output | +5V | +5V Voltage Output |
| 3.3V Voltage Output | 3V3 | 3V3 Voltage Output |
| DTR Output | DTR | Special Function |
| RTS Output | RTS | Special Function |

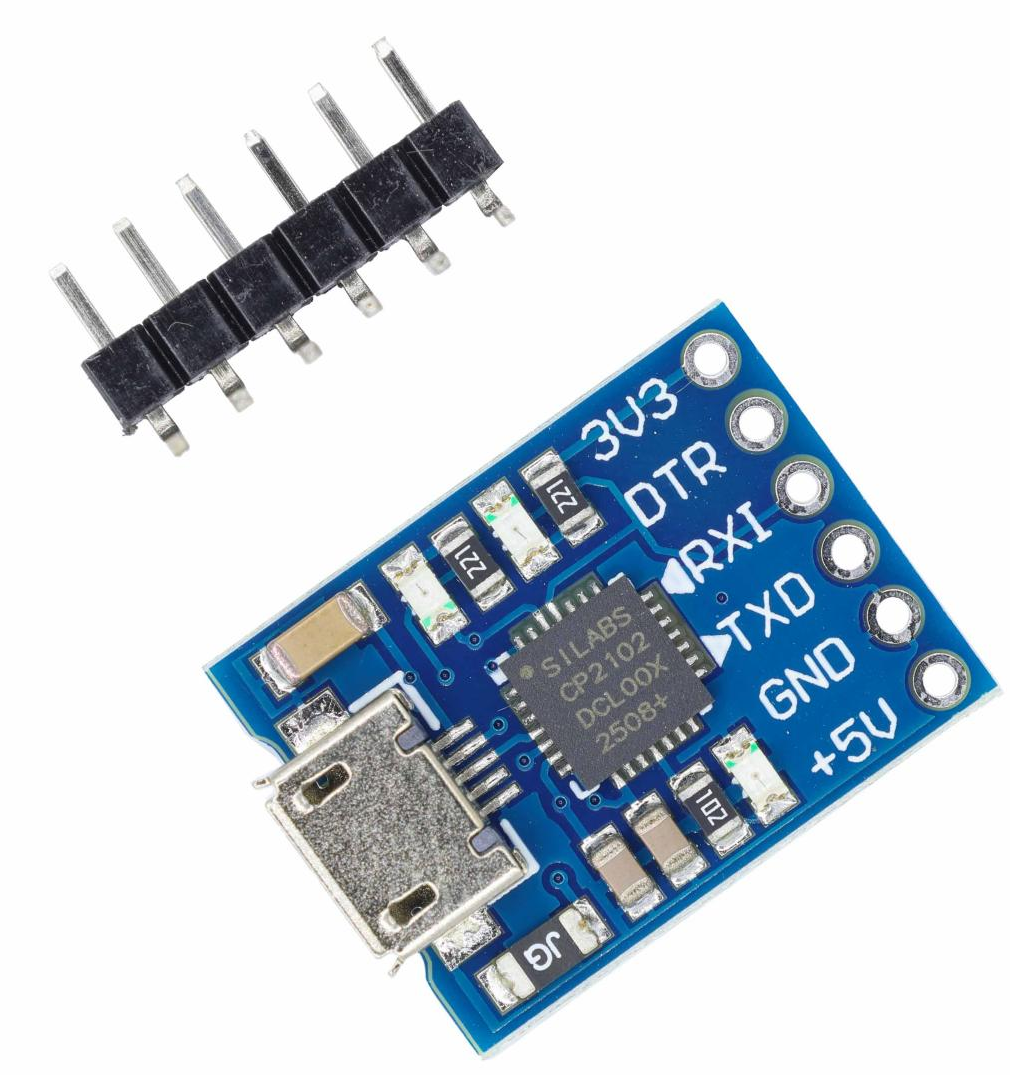

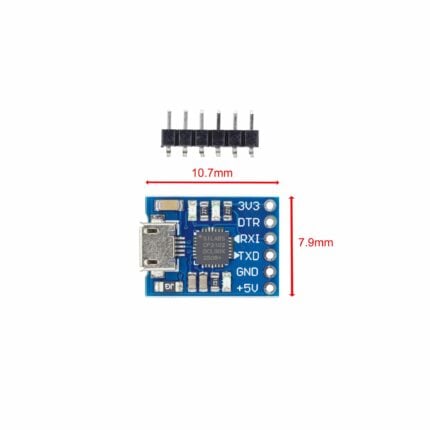

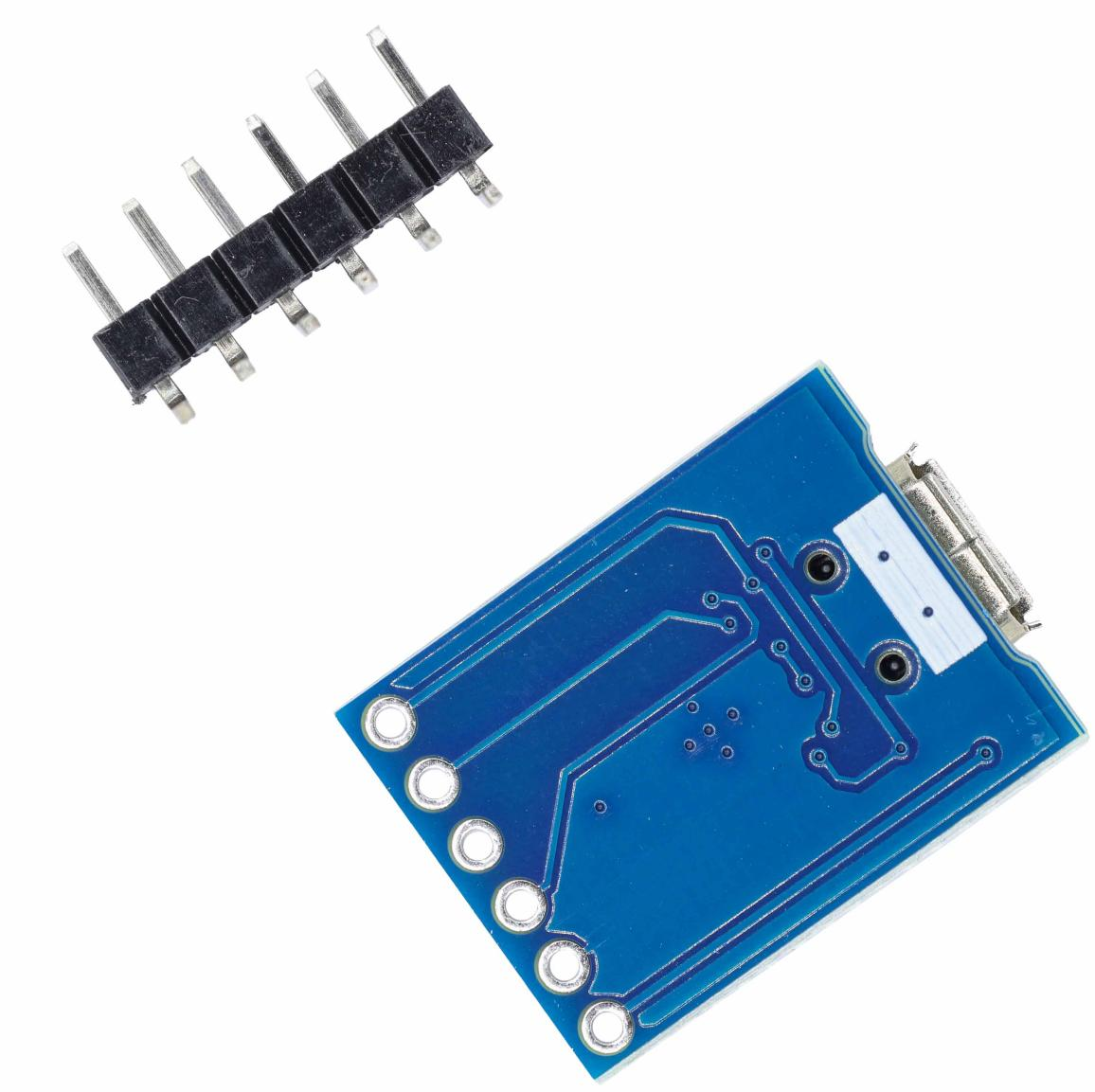

Parameters:
1、Equipped with the CP2102 chip, a COM port is generated after installing the driver.
2、With a self – recovering fuse, it can effectively protect the downloader and the computer’s USB port in case of accidental short circuit.
3、With 3 indicator lights: power indicator light, data reception indicator light, and data transmission indicator light.
4、With two types of voltage output: 3.3V and 5V.
5、All useful pins are led out.
6、With a reset signal output, it can directly download programs to Arduino mainboards such as Promini.
7、Supported operating systems: Windows 98/Me/2000/XP/7/8/10, MAC OS – 9, MAC OS, Linux 2.40 or a higher version.
8、Built – in USB transceiver, no external interface circuit required; built – in clock circuit, no external circuit required.
9、Built – in upper computer circuit.
10、The on – chip voltage regulation can output 3.3V voltage.

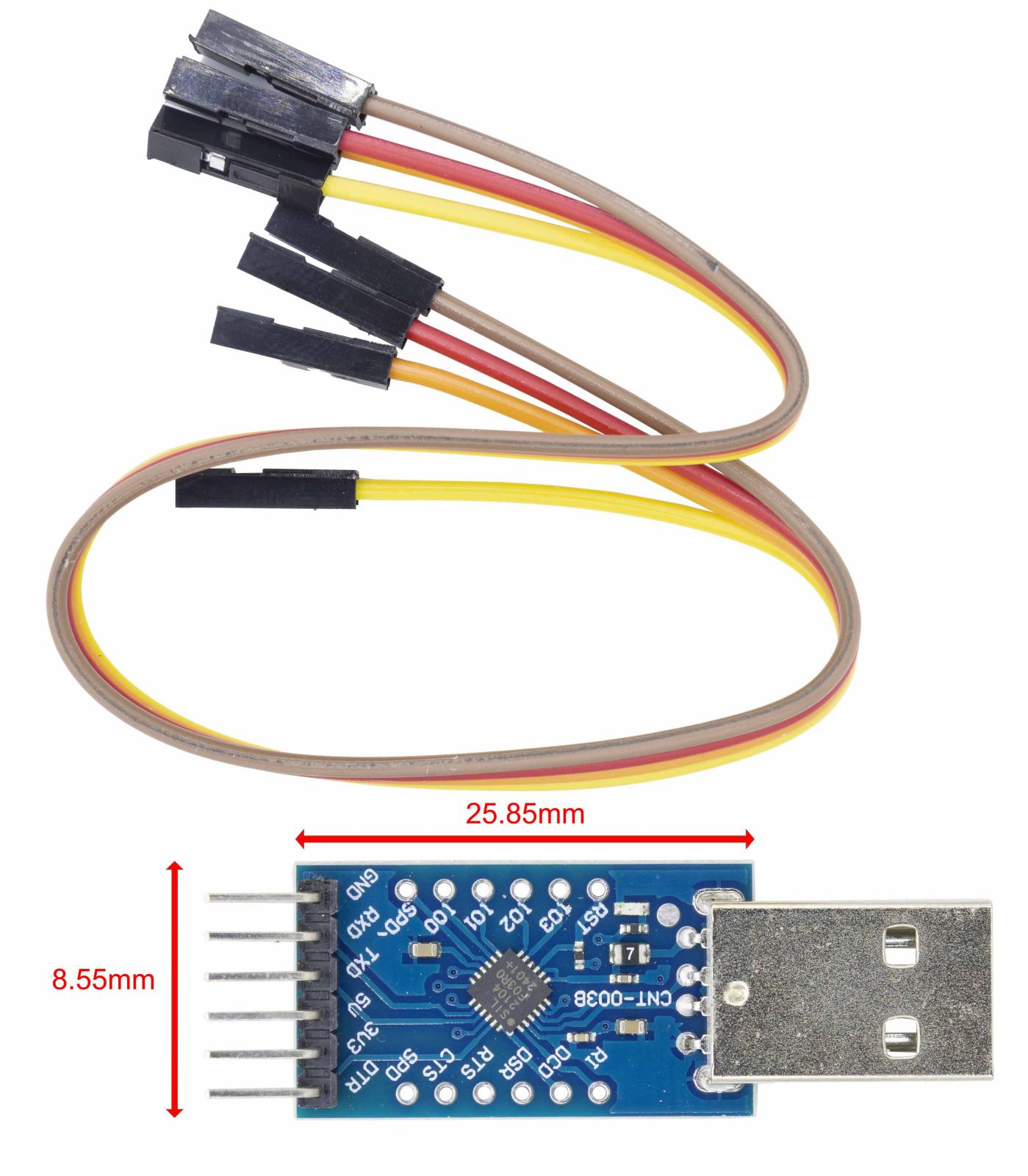

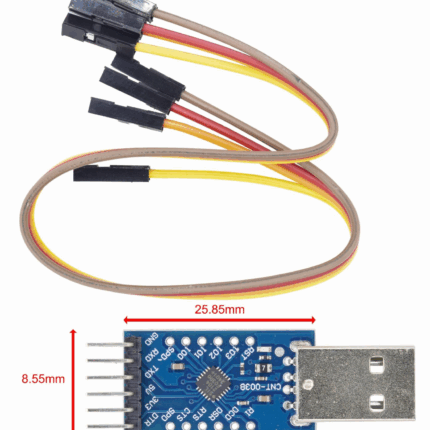

Parameters:
1、Adopts the new chip CP2104.
2、With self – recovering fuse, which can effectively protect your downloader and computer USB port in case of accidental short circuit.
3、With indicator light to show the working status at a glance.
4、With two kinds of power output: 3.3V and 5V.
5、All useful pins are led out.
6、With reset signal output, which can directly download programs to Arduino mainboards such as Promini.
7、Supported operating systems: Windows 98/Me/2000/XP/7/8/10, MAC OS – 9, Mac OS – X, Windows CE, Linux 2.40 or higher versions.
8、Built – in USB transceiver, no need for external circuit; built – in clock circuit, no need for external circuit.
9、Built – in upper computer circuit.
10、The on – chip voltage regulation can output 3.3V voltage.
11、The serial data bus contains all handshaking and modulation regulators.
12、Supports data bits of 5 – 8, stop bits of 1 – 2, and parity bits.
13、The receiving buffer can hold 512 bytes, and the transmitting buffer can hold 512 bytes.
14、Supports hardware or X – ON/X – OFF handshaking.

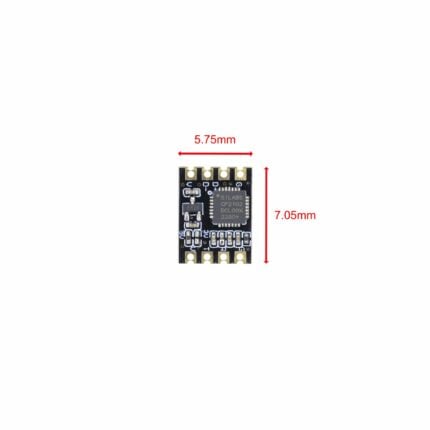

Parameters:
1、Adopts the new chip CP2102, supporting all operating systems on the market.

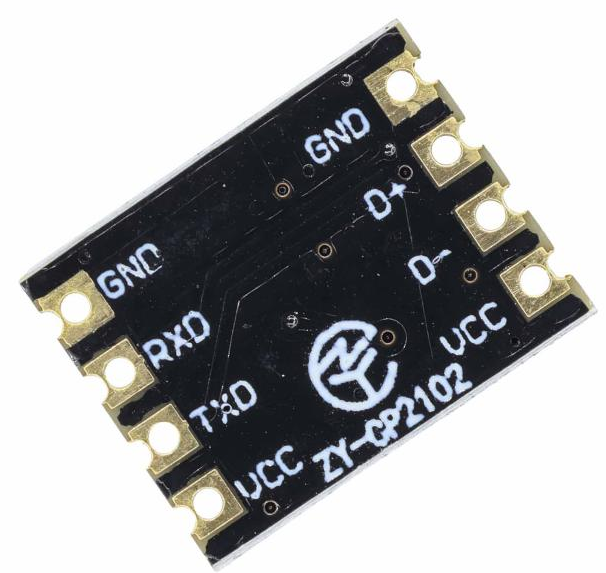

2、The incoming port includes: D+, D-, GND, VCC. The outgoing port includes: GND, TX, RX, VCC.
3、The module input voltage ranges from 3.3V to 5V, with the default output being 5V. To supply 3.3V, remove the 5V pull – up resistor and attach a 0Ω resistor to the 3.3V pad.
If you want to download the driver, you can refer to:https://docs.keyestudio.com/projects/Arduino/en/latest/windowsCP2102.html
If you want to refer datasheet, you can refer to:https://easyelecmodule.com/wp-content/uploads/cp2102-datasheet-1.pdf、https://easyelecmodule.com/wp-content/uploads/cp2104-datasheet-1.pdf
