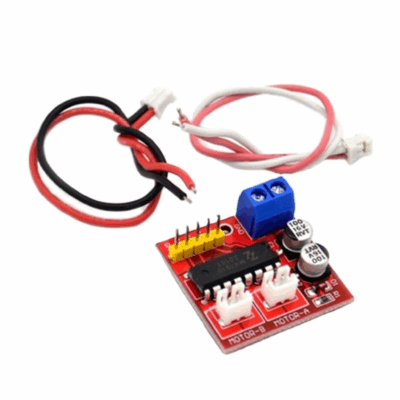

XY‑2.5AD 2.5A Dual‑Way Motor Drive Module
$1.20 1pcs
The XY‑2.5AD 2.5A dual‑way motor drive module is a practical and cost‑effective solution for controlling low‑to‑medium power brushed DC and stepper motors in a range of electronics and robotics projects.
| Dimensions | 32 × 30 mm |
|---|---|
| Brand |
easyelecmodule |
4213 in stock
Key Features & Specifications of XY-2.5AD
Dual H‑Bridge Architecture
The core of the XY‑2.5AD module is its dual H‑bridge motor driver configuration. Each H‑bridge can independently drive a DC motor, which allows for two motors to be controlled simultaneously — or one 4‑wire stepper motor via coordinated control of both bridges. This setup supports forward and reverse rotation of motors.
Electrical Characteristics
- Supply Voltage Range: Approximately 2V – 10V DC, which covers most small motors in hobby electronics.
- Signal Input Voltage: Designed to accept control logic levels from about 8V to 7V, making it compatible with both 3.3V and 5V microcontrollers.
- Maximum Current: Each channel can handle up to 5A continuous current, suitable for many DC motors used in robots and small vehicles.
- Low Standby Current: The design draws very little power when not actively driving motors, enhancing battery efficiency.
Protection Circuits
To improve reliability, the module incorporates:
- Over‑heat Protection: Thermal shutdown prevents damage from excessive current draw or stalled motors.
- Anti‑common state conduction: Prevents erratic behavior when input pins are left floating.
Physical Attributes
The module is small, lightweight, and easily mountable, typically with 2 mm mounting holes, allowing easy integration into compact project enclosures.
Typical Use Cases of XY-2.5AD
The XY‑2.5AD is widely used in applications such as:
- Small robotics — drive wheels or actuators in lightweight robots.
- DIY projects & prototyping — educational projects controlling motors with Arduino or ESP32.
- Smart vehicles — miniature car platforms and robotic chasses.
- Home automation components — controlling motion in small devices.

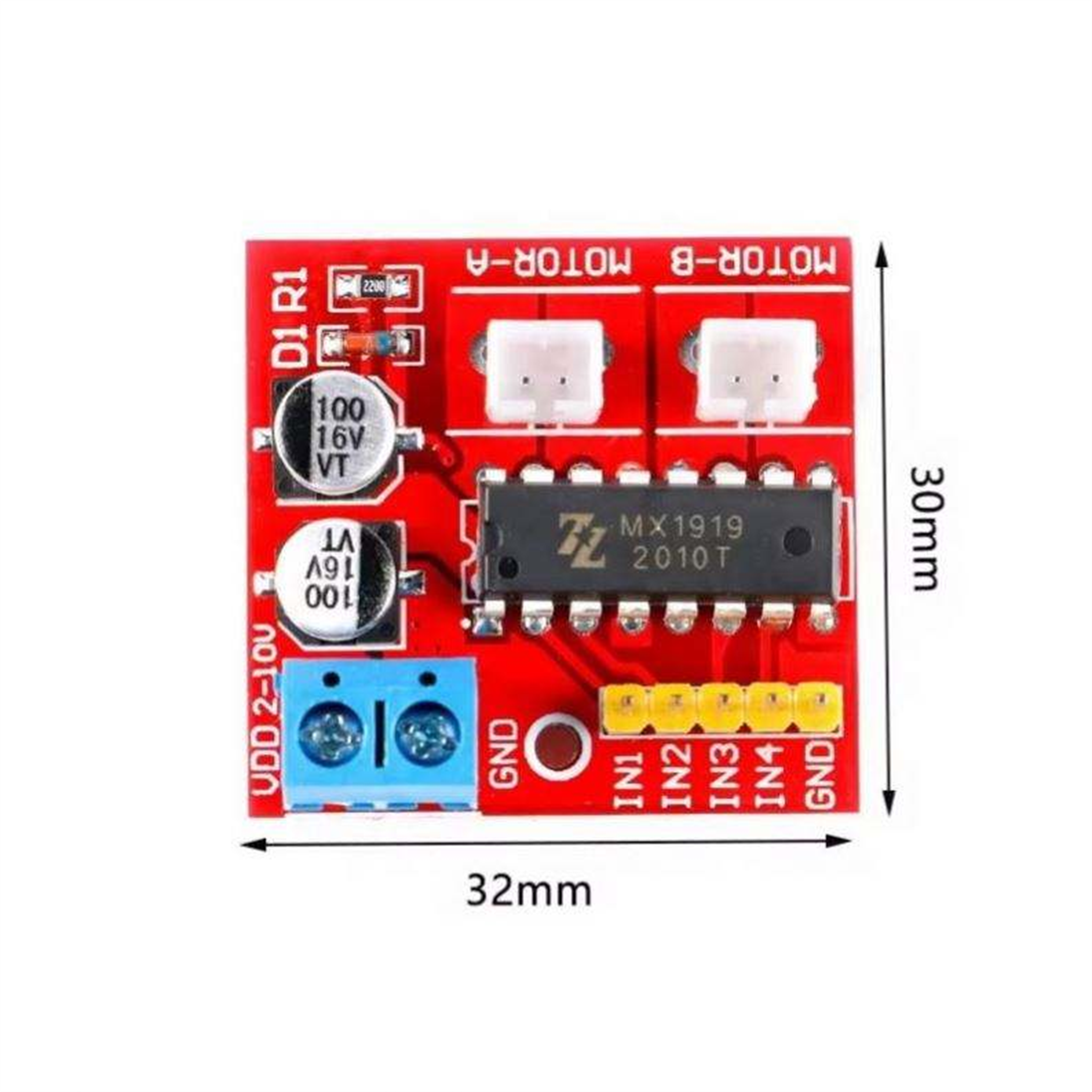

Pin Description of the XY-2.5AD Module
Although different manufacturers may label the pins slightly differently, the typical XY-2.5AD dual-way motor driver module includes the following pins:
Power Pins
- VM / V+ – Motor power supply (2V–10V DC, according to motor rating)
- GND – Ground (must be common with MCU ground)
Motor Output Pins
- OUT1 / OUT2 – Motor A terminals
- OUT3 / OUT4 – Motor B terminals
Control Input Pins
- IN1 / IN2 – Direction and PWM control for Motor A
- IN3 / IN4 – Direction and PWM control for Motor B
| DC Motor | Rotation Mode | IN1 | IN2 | IN3 | IN4 |
|---|---|---|---|---|---|
| Motor A | Forward (speed) | 1 / PWM | 0 | — | — |
| Reverse (speed) | 0 | 1 / PWM | — | — | |
| Standby | 0 | 0 | — | — | |
| Brake | 1 | 1 | — | — | |
| Motor B | Forward (speed) | — | — | 1 / PWM | 0 |
| Reverse (speed) | — | — | 0 | 1 / PWM | |
| Stop | — | — | 0 | 0 | |
| Brake | — | — | 1 | 1 |
