L293D Mini Motor Driver Module
$1.201pcs
The L293D is a quad half-H driver primarily used for driving DC motors and stepper motors.

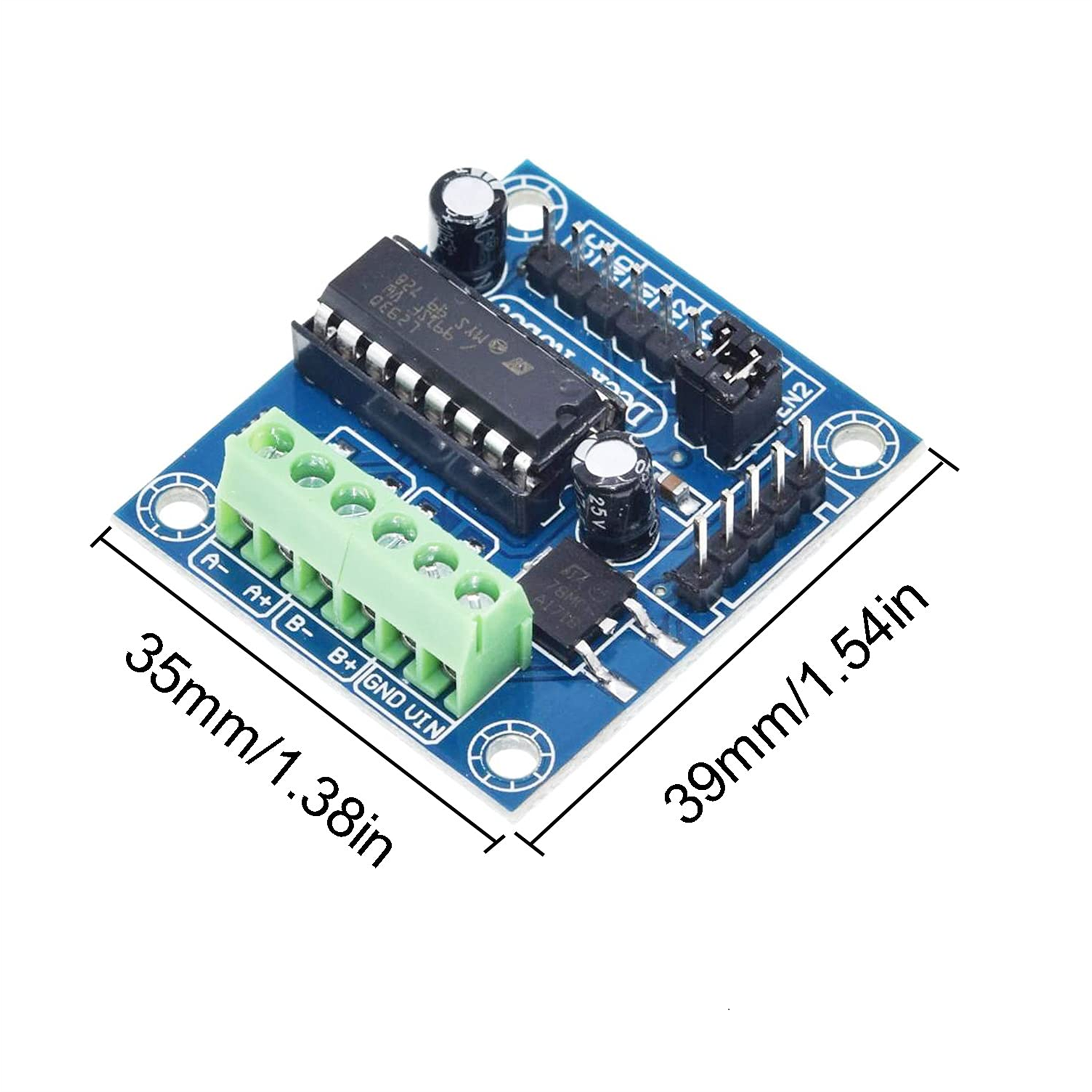

| Dimensions | 39 × 35 mm |
|---|---|
| Brand |
easyelecmodule |
4255 in stock
Specifications
| Parameter | Specification |
|---|---|
| Output Current Capability per Driver | 600 mA |
| Pulsed Output Current | 1.2 A per driver |
| Output Clamp Diodes | For inductive transient suppression |
| Supply Voltage Range | 9 V to 24 V |
| Input Logic Supply | Separate input-logic supply |
| Protection Feature | Thermal shutdown |
| ESD Protection | Internal ESD protection |
| Input Characteristics | High-noise-immunity inputs |
| Compatibility | Functional replacement for SGS L293D |
Hardware Introduction
| L293D Pin | Description |
|---|---|
| ENA | Motor A enable (PWM speed control) |
| IN1 | Motor A control pin 1 |
| IN2 | Motor A control pin 2 |
| IN3 | Motor B control pin 1 |
| IN4 | Motor B control pin 2 |
| ENB | Motor B enable (PWM speed control) |
| OUT1 / OUT2 | Motor A output |
| OUT3 / OUT4 | Motor B output |
| VCC | Motor power supply |
| GND | Ground |
| 5V | Logic power (from Arduino if supported) |
